| Prod Model: |
BB-EBHL03-3611 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
E-Bike |
| Structure: |
Samsung 29e 10s4p |
| Dimension: |
361*92*90mm |
| Motor Available: |
350W Motor |
| Working Current: |
15A |
| Charger: |
2A Aluminum Case Charger |
| Type: |
Lithium-Ion Battery Pack |
| Connection Mode: |
Series and Parallel |
| Usage: |
E-Bike |
| Electrolyte: |
Li-ion |
Product Description

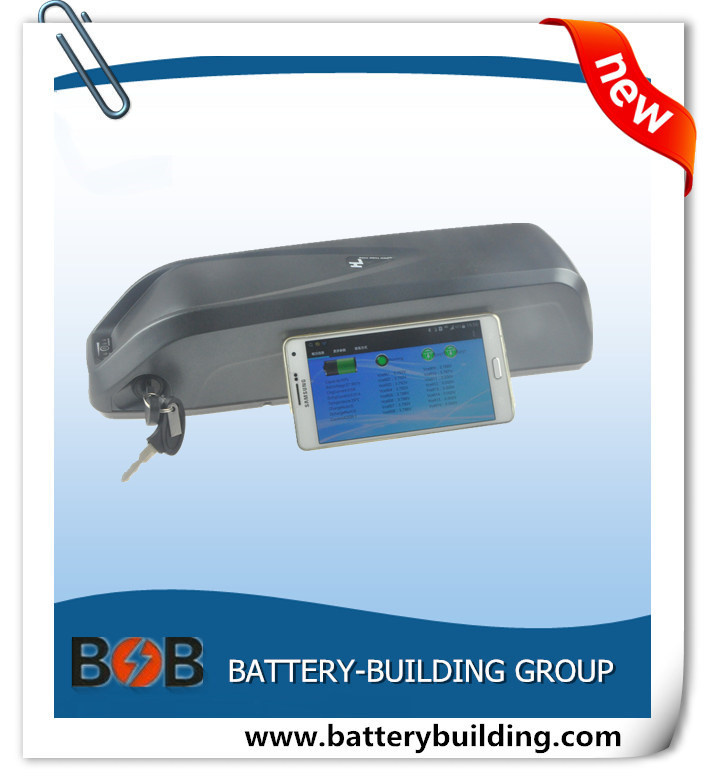

36V 11.6Ah 10S4P lithium ion battery pack with bluetooth BMS
Features
1. 36V11.6Ah new case lithium ion battery pack
2. Samsung 29E 10S4P
3. electric bicycle battery
4. High density
5. 800 times cycle
6. CE, RoHS certificate
7. With bluetooth BMS which can show the data of battery.
Specification
| Item | Parameters | Remark |
| Typical Capacity | 11.6Ah | 25ºC,1 C5A discharge |
| Nominal Voltage | 36.0V | 25ºC,Average Voltage at 0.2 C5A discharge |
| Charge input voltage | 110-240V AC | Wide voltage |
| Charge current | 2.5-5A | Working temperature:0~35ºC |
| Charge cut-off voltage | 42.0V | CC/CV |
| Charge time | 2.5-5h | |
| Working current | 15A | |
| Max working current(15S) | 40A | |
| Peak Working Current(2S) | 45A | Working temperature:0~35ºC |
| Over charge protection | 4.3±0.05V | Single cell |
| Over discharge protection | 2.75±0.05V | Single cell |
| Dimension | 361*92*90mm | |
| Weight | ≤ 3.35kg | |
| Storage temperature | ≤3month | Best 20±5ºC for long-time storage |
Storage humidity | ≤3month | 0~30ºC | Best storage temperature:20±5ºC
Charge battery every 3 month |
| ≤6month | 20±5ºC |
| 65±20%RH | 20±5ºC |
Bluetooth BMS details:
Details | Min. | Typ. | Max | Error | Unit |
Battery Gas | 3.7V lithium cell | |
Battery Link | 10S | |
Input Charging Voltage | | 42.0 | | ±1% | V |
Input Charging Current | | <5 | | | A |
Output Discharging Voltage | | 36.4 | | | V |
Continuous Output Discharging Current | | ≤18 | | | A |
Ambient
Condition
|
Operating Temperature | -25 | 25 | 70 | | ºC |
Humidity (No Water-Drop) | 0% | | 90% | | RH |
Storage
Condition
|
Temperature | -40 | | 85 | | ºC |
Humidity (No Water-Drop) | 0% | | 90% | | RH |
()
Protection Parameters (for Individual Cell) |
Over-Charge Voltage Protection (OVP) | | 4.200 | | ±25mV | V |
Over-Charge Voltage Protection Release (OVPR) | | 4.10 | | ±25mV | V |
Over-Discharge Voltage Protection (UVP) | | 2.80 | | ±50mV | V |
Over-Discharge Voltage Protection Release
(UVPR) | | 3.00 | | ±50mV | V |
Over-Current Discharge Protection (OCDP) | | 60A | Latency | 500mS | |
Over-Current Discharge Protection Release |
Release load |
Short circuit current protection |
Enable |
Short circuit current protection delay time | | 100 | 300 | ±100 | uS |
Short circuit protection Release |
Release load |
| Temperature protection | High temperature | 75 | external | ±5ºC | Low Temperature | -25 | external | ±5ºC | ºC |
| self-consuming | ≤1000 | uA |
| dormant self-consuming | ≤100 | uA |
(MOS-RDS)
Main loop electrify resistance | ≤30 | mΩ |
| PCBA Size | 75×55×10 | mm |
Key Application
Widely applied in Electric Bicycle, Electric vehicle, Electric Tricycle, Electric scooter, Electric golf trolley, Electric car, Electric wheelchairs,two wheel vehicles and etc.
Payment Terms
1.We accept bank transfer(T/T) ,PayPal,Cash.
2.If you prefer other payment method,please contact us by email.
Shipping Terms
1.Samples order: sending by Express ( DHL/ UPS/ FEDEX/ TNT )
2.Bulk order: sending out by air/express/sea.
Warranty Instructions
1.We provide 2 years Warranty.
2.Warranty code: quality problems, defective goods can be fixed or replacement; Man-made damage, inflowing water, fault operation leading to short circuit or burning, damaged by carrier is out of our warranty.
3.Goods should be returned in original condition to qualify for a replacement or repair.
