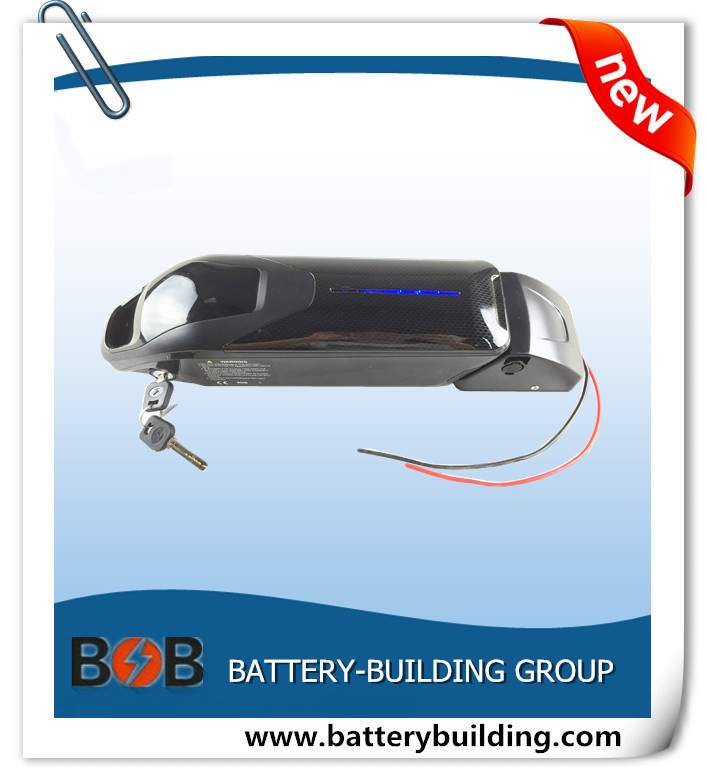

36V 11.6ah Crh Model Battery Pack with 5V USB Port and Bluetooth BMS

Prod Model:	BBG-CRH01-3611
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:	E-Bike, E-Scooter
Structure:	Panasonic 18650PF 10s4p
Indicator:	5 Levels Indicator
Working Current:	15-30A
Peak Current:	80A
Type:	Lithium-Ion Battery Pack
Connection Mode:	Series and Parallel
Standard Voltage:	36V
Usage:	E-Bike, E-Scooter
Electrolyte:	Li-ion

Product Description

36V 11.6Ah CRH model battery pack with 5V USB port and bluetooth BMS

Features
1. 36V 11.6Ah CRH model lithium-ion battery
2. 600 times cycles
3. Stable performance
4. No memery effect
5. High energy density
6. Panasonic 18650PF 10S4P
7. The case can hold 52pcs 18650 cells.
8. Battery comes controller box and 5V output port
9. 5 levels indicator.
10. 36V or 48V battery pack

Details

NO	Item	General Parameter				Remark
1	Model	BBG-CRH01-3611
2	Standard capacity(0.5C)	11.6Ah
3	Rated voltage	36V
4	Max. charge voltage	42V				Single Ave. charge Voltage: 4.2V
5	Over charge protection	Over charge detection voltage		4.40±0.025V
		Over charge release voltage		4.3±0.025V
6	Standard charge current	2A				0.2C
7	Charging time	About 5 hours				X C
8	Discharge cut-off voltage	27.5V				Single Ave. Discharge Voltage: 2.75V
9	Over discharge Protection	Over discharge detection voltage			2.5±0.05V
		Over discharge release voltage			2.75±0.05V
10	Max. continuous discharge current	15-30A(adjustable)				1.5C
11	Peak discharge current	80A				4.5C
12	Short circuit protection	Detetion delay time			XXμs	Release condition	Cut-off load
12	Battery dimension	245*90*73mm
13	Total weight(Approx.)	About 3.54kg
14	Operation temperature	Standard	0ºC~45ºC
		Discharge	-20ºC~65ºC
		Storage	-20ºC~65ºC

Payment Terms
1.We accept bank transfer(T/T) ,PayPal,Cash.
2.If you prefer other payment method,please contact us by email.

Shipping Terms
1.Samples order: sending by Express ( DHL/ UPS/ FEDEX/ TNT )
2.Bulk order: sending out by air/express/sea.

Warranty Instructions
1.We provide 2 years Warranty.
2.Warranty code: quality problems, defective goods can be fixed or replacement; Man-made damage, inflowing water, fault operation leading to short circuit or burning, damaged by carrier is out of our warranty.
3.Goods should be returned in original condition to qualify for a replacement or repair.

Advantages
1.OEM&ODM manufacture, design any of special shape, dimension and other requirements battery packs.
2.Good quality, competitive price, fast delivery, excellent service.
3. Wonderful package, stable shipment, 100% testing and inspection before shipment to insure the quality.
4.CE, RoHS, UN38.3, UL, MSDS certificates.
5. Quick action&response,every inquires will be relied within 24 hours.
