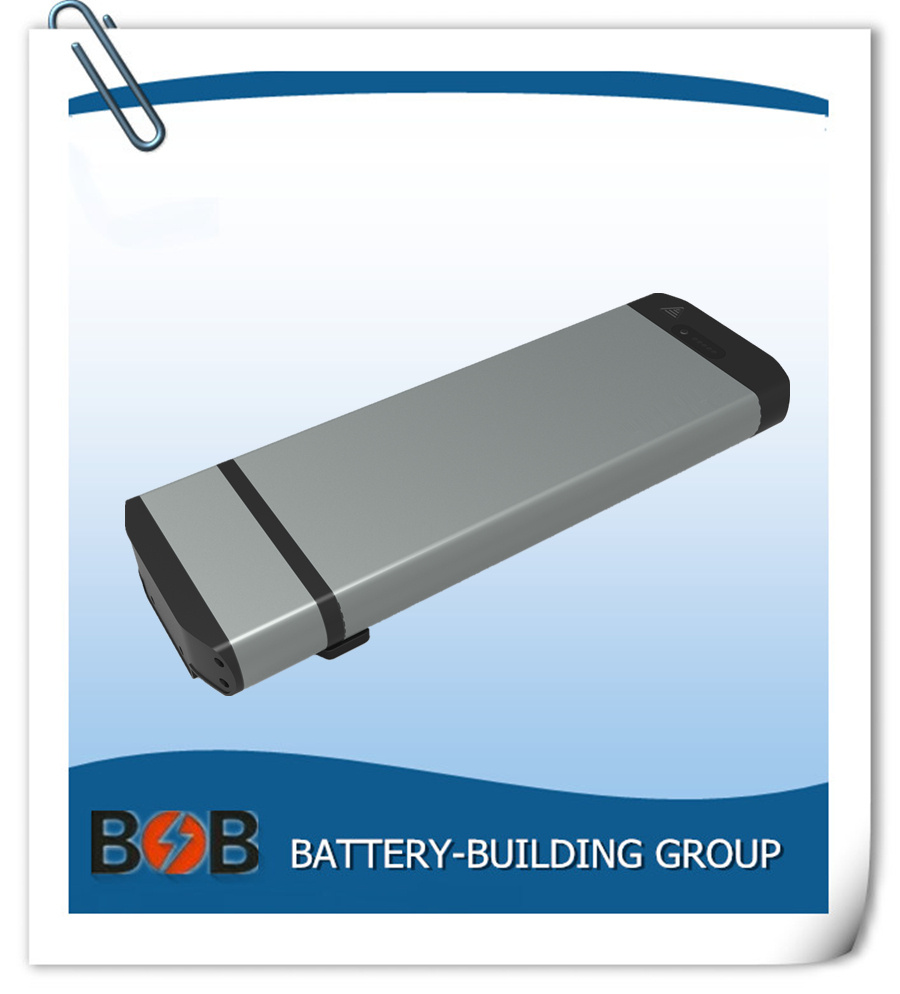

36V 13.2ah 10s6p Lithium Battery Pack
| Price: |
US $ 155-165/Piece |
| Min Order: |
10/Piece |
| Pay Type: |
T/T,Western Union |
| Prod Model: |
BBG-HB-10S6P |
| Cycle Life: |
500cycles |
| Charger: |
42V 2.5A |
| Color: |
Silver |
| MOQ: |
10units |
| Lead Time: |
7-10 Days |
| Warranty: |
1 Year |
| Application: |
36V 500W Motor |
| Cell Inside: |
18650 2200mAh 5c Cells |
| Type: |
Lithium-Ion Battery Pack |
| Connection Mode: |
Series and Parallel |
| Rated Capacity: |
13.2ah |
| Standard Voltage: |
36V |
| Usage: |
E-Bike |
| Electrolyte: |
Lithium Battery |
Product Description
36V 13.2Ah 10S6P Lithium Battery Pack
Specification:
NO | Item | General Parameter | Remark |
| 1 | Model | BBG-HB-10S6P | |
| 2 | Standard capacity(0.5C) | 13.2Ah | |
| 3 | Rated voltage | 36V | |
| 4 | Max. charge voltage | 42V | Single Ave. charge Voltage: 4.2V |
| 5 |
Over charge protection
| Over charge detection voltage | 4.40±0.025V | |
| Over charge release voltage | 4.3±0.025V | |
| 6 | Standard charge current | 2A | 0.1C |
| 7 | Charging time | About 300 minutes | 0.2C |
| 8 | Discharge cut-off voltage | 30V | Single Ave. Discharge Voltage: 2.75V |
| 9 |
Over discharge Protection
| Over discharge detection voltage | 2.5±0.05V | |
| Over discharge release voltage | 2.75±0.05V | |
| 10 | Max. continuous discharge current | 15A(adjustable) | 1C |
| 11 | Peak discharge current | 30A(adjustable) | 2C |
| 12 | Short circuit protection | Detetion delay time | XXμs | Release condition | Cut-off load |
| 12 | Battery dimension | 455*157*54mm | |
| 13 | Total weight(Approx.) | About 3.45kg | |
| 14 | Operation temperature | Standard | 0~45 | |
| Discharge | -20~65 | |
| Storage | -20~65 | |

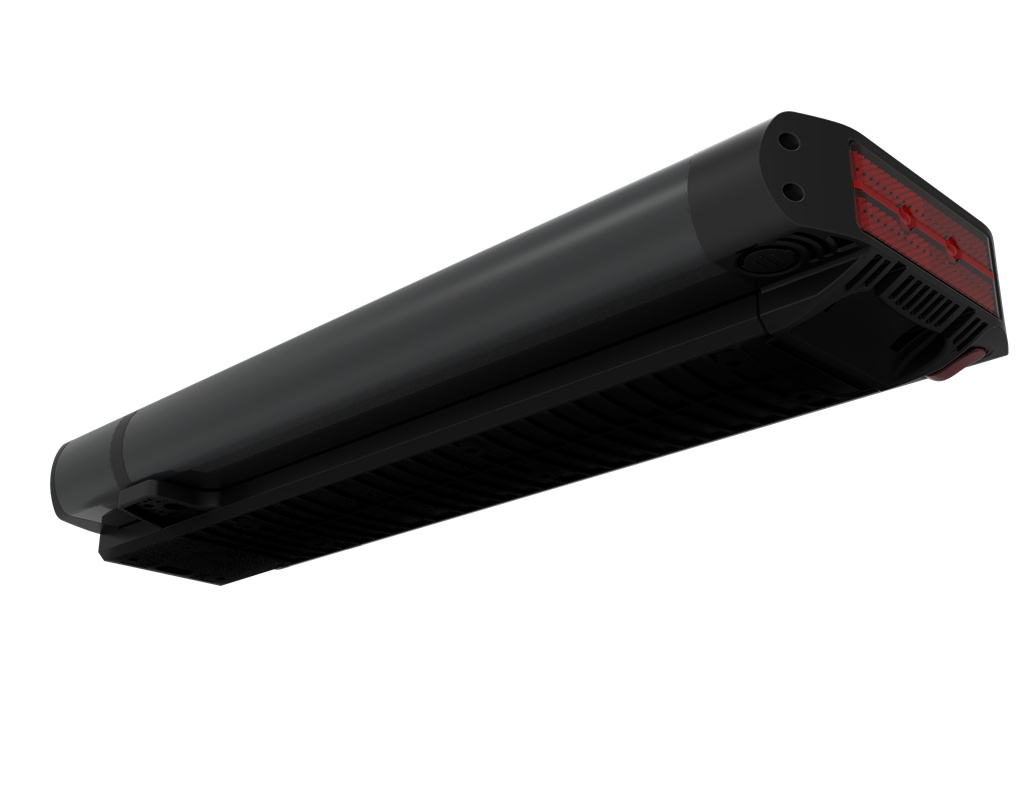

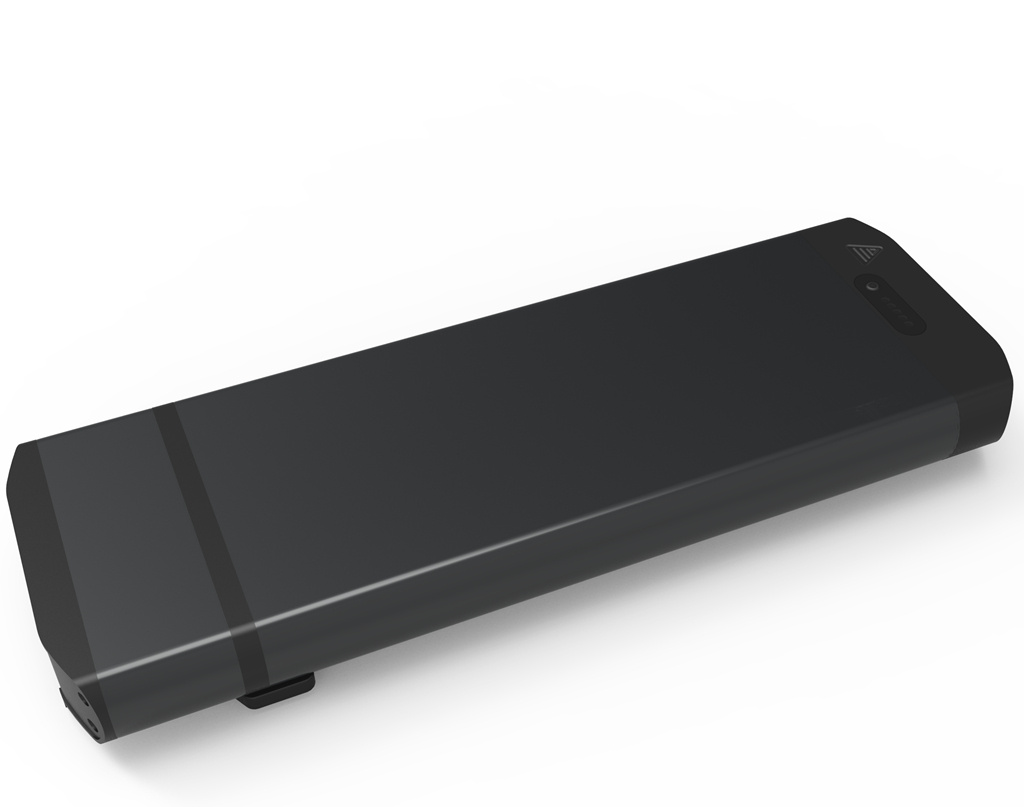

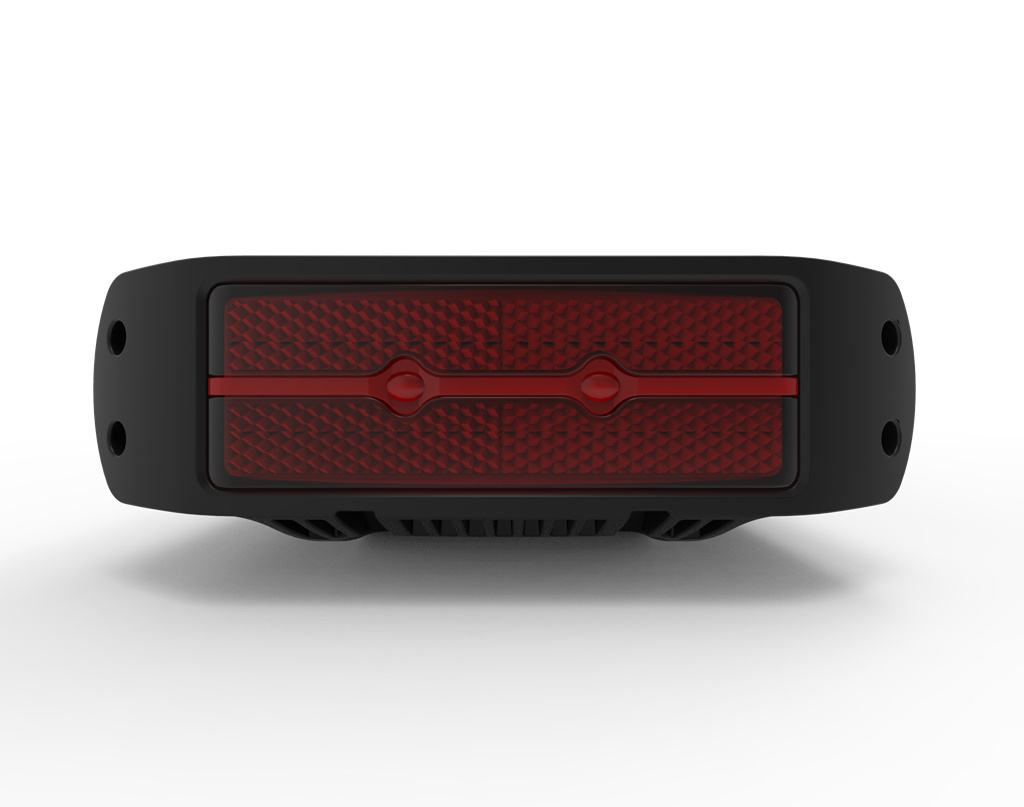

More Pictures:
Payment Terms
1.We accept bank transfer(T/T) ,PayPal,Cash.
2.If you prefer other payment method,please contact us by email.
Shipping Terms
1.Samples order: sending by Express ( DHL/ UPS/ FEDEX/ TNT )
2.Bulk order: sending out by air/express/sea.
Warranty Instructions
1.We provide 2 years Warranty.
2.Warranty code: quality problems, defective goods can be fixed or replacement; Man-made damage, inflowing water, fault operation leading to short circuit or burning, damaged by carrier is out of our warranty.
3.Goods should be returned in original condition to qualify for a replacement or repair.
Advantages
1.OEM&ODM manufacture, design any of special shape, dimension and other requirements battery packs.
2.Good quality, competitive price, fast delivery, excellent service.
3. Wonderful package, stable shipment, 100% testing and inspection before shipment to insure the quality. 4.CE, RoHS, UN38.3, UL, MSDS certificates.5. Quick action&response,every inquires will be relied within 24 hours.Storage and Transportation
(1)Based on the characters of cells, proper environment for transportation of battery pack need to be created to protect the battery.
(2)During transportation,50% SOC must be kept to ensure that short circuit, appearance of liquid in the battery or immersion of battery in liquid never occur.
(3)Battery should be kept at -20ºC~45ºC in warehouse where it is dry, clean and well-ventilated.
(4)During loading of battery, attention must be paid against dropping, turning over and serious
stacking.
Warnings and Tips
In order to prevent the battery leaking, getting hot and exploding, please pay attention to preventing
measure as following:
Never throw the battery into water, keep it under dry, shady and cool circumstance when not use.
Never upside down the positive and negative.
Never connect the positive and negative of battery with metal.
Never ship or store the battery together with metal
Never knock, throw or trample the battery.
Never cut through the battery with nail or other edge tool.
Never use or keep the battery under the high temperature. Otherwise it will cause battery heat, get into fire or lose some function and reduce the life. The proposed temperature for long-term storage is 10-45ºC.Any questions or concerns, please call us at +86-13652423024. Justin always here and will do best to help you. Your inquiry will be replied within 8 hours, thanks for your support.
SHENZHEN BATTERYBUILDING INDUSTRY Co., Limited is a profestional hi-tech industry company. We are specialized in different kinds of lithium batteries and engaged in the related products, include Lithium batteries, LiFePO4 batteries, BMS/PCM/CMB, RC/Lipo Batteries, and related battery chargers.
Various lithium battery cells models are provided, and can be customized the battery packs according to customers' Detailed requirements and applications. With a wide range, good quality, reasonable prices and stylish designs, our products are widely used in E-bikes, backup power, laptop, electrical toys, helicopter models, electrical cars, power tools and so on.
Our products are exported to all over the world, like Europe, USA, Canada etc. Our company focuses on the development of battery quality with our own research centre and technical team in battery developing, quality controlling and producing. Our aim is "to keep improving new product technology, to take Environment Protection as our responsibility; To provide customers with excellent service and technical support; To make our products much more environment-friendly and safer. "
If you hany any inquiry and question, please just contact us.
We are looking forward to establishing relationships with you in the near future.
