| Prod Model: |
QW360-160-S |
| Input Voltage: |
Half Voltage 180-240V or 110V |
| Desktop Type: |
Yes |
| Power: |
600W |
| Delivery Date: |
15days |
| Warranty: |
One Year |
| Charger Type: |
Electric Charger |
| Type: |
Lead Acid Battery |
| Nominal Voltage: |
44.1V |
| Socket Type: |
Can Be Customized |
Product Description

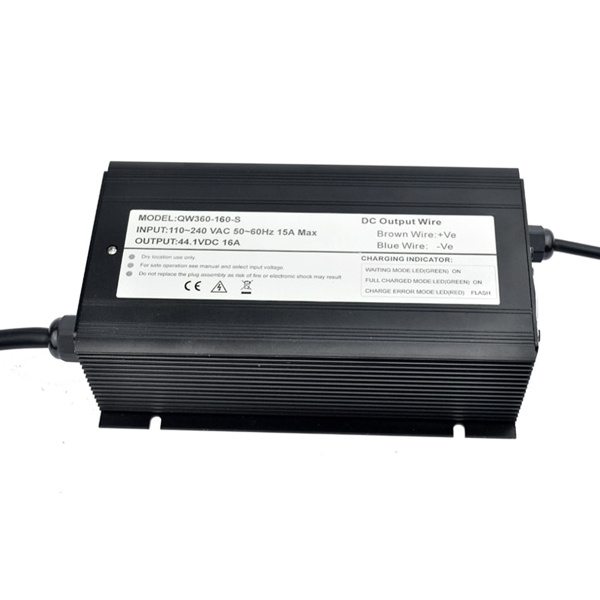

36V 16A charger for car battery
Quick Detail:
Brand Name: QUAWIN
Model Number: QW360-160-S
Use: 36V Lead-Acid Battery
Type: Electric
Place of Origin: Guangdong China (Mainland)
Battery charger: Automatic battery charger 44.1V
Color: Black
Input voltage: AC 90~132V or 180~264V 50/60Hz 10A MAX
Output voltage: 44.1V
Output current: 16A
Output power: 705.6W
Output Connector: Alligator Clip, SR175A Output Plug, SB175A Output Plug, SB50A Output Plug, Custom
Packaging & Delivery:
inner package: white box/polybags/at your request
outer package: carton
Delivery Detail: sample within 5 work days, 25 days for bulk order
Specifications:
Portable fast SLA/AGM/VRLA /GEL charger 36V lead acid battery charger
Features:
• Fully auto CC +CV(H)+CV(L) charging process, with MCU controller.
• Constant big charging current for faster charging,
• automatically charging ending with Cut-Off output.
• Aluminum case with Fan Cooling
• It can charge any 36V SLA/VRLA/GEL/AGM battery with capacity 90-100Ah
Specification:
• Input: AC 90~132V or 180~264V
• Output: DC 44.1V
• Charging current: 16A
• Full Load Efficiency: ≥87%
• Shock & Vibration: SAEJ1378 Standard
• Operating Temperature: -20ºC~45ºC (-20ºF~+113ºF)
• Weight: 2000g(only body)
• Dimension: 203*120*70mm
Safety protections:
• Over Voltage protection
• Short Circuit protection
• Polarity error protection
• Over power protection
LED Indicator:
• GREEN Light ON: fully charged or no connected.
• BLUE Light flash: battery is being charged.
• RED Light ON: Charger under protection (over temperature protection, output short-circuit protection, reverse polarity protection, output over-voltage protection).
Call us to know more details datasheet.
| ITEM | QW120-260-S | QW120-270-S | QW120-280-S | QW120-290-S | QW120-300-S | QW240-160-S |
| Output voltage: | 14.7V | 14.7V | 14.7V | 14.7V | 14.7V | 29.4V |
| Rated output current: | 26A | 27A | 28A | 29A | 30A | 16A |
| Output power: | 382.2W | 396.9W | 411.6W | 426.3W | 441W | 470.4W |
| ITEM | QW240-170-S | QW240-180-S | QW240-190-S | QW240-200-S | QW360-110-S | QW360-120-S |
| Output voltage: | 29.4V | 29.4V | 29.4V | 29.4V | 44.1V | 44.1V |
| Rated output current: | 17A | 18A | 19A | 20A | 11A | 12A |
| Output power: | 499.8W | 529.2W | 558.6W | 588W | 485.1W | 529.2W |
| ITEM | QW360-130-S | QW480-080-S | QW480-090-S | QW480-100-S | QW600-070-S | QW600-080-S |
| Output voltage: | 44.1V | 58.8V | 58.8V | 58.8V | 73.5V | 73.5V |
| Rated output current: | 13A | 8A | 9A | 10A | 7A | 8A |
| Output power: | 573.3W | 470.4W | 529.2W | 588W | 514.5W | 588W |
| ITEM | QW720-060-S | QW840-050-S | | | | |
| Output voltage: | 88.2V | 102.9V | | | | |
| Rated output current: | 6A | 5A | | | | |
| Output power: | 529.2W | 514.5W | | | | |
