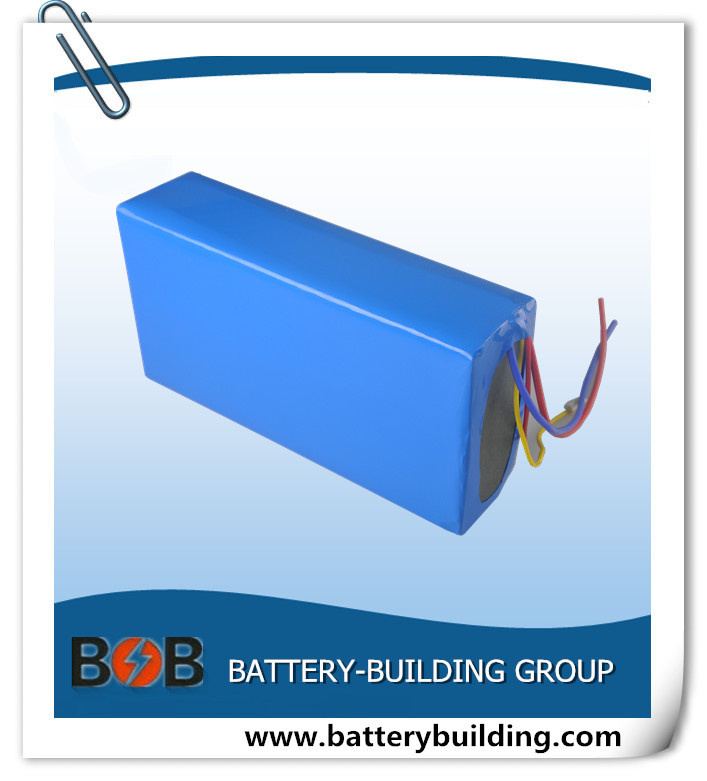

36V 16ah Lithium Battery Pack for E-Bike
| Price: |
US $ 218/Piece |
| Trade Terms: |
FOB,EXW |
| Min Order: |
5/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
BB-EB3616S |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
E-Bike, E-Scooter |
| Structure: |
Samsung 26f 10s6p |
| Dimension: |
355*148*70 Mm |
| Weight: |
About 4.7kg |
| Motor Available: |
700W |
| Continuous Discharge Current: |
15-20A |
| Charger: |
2A/3A Charger |
| Type: |
Lithium-Ion Battery Pack |
| Connection Mode: |
Series and Parallel |
| Standard Voltage: |
36V |
| Usage: |
E-Bike, E-Scooter |
| Electrolyte: |
Li-ion |
Product Description
36V 16Ah lithium battery pack for e-bike
Specification
1. 36V 16Ah lithium battery pack
2. Samsung 26F 10S6P
3. Long cycle life
4. High energy density
5. Stable performance
Details| Item | Parameters | Remark |
| Typical Capacity | 16.0Ah | 25ºC,1 C5A discharge |
| Nominal Voltage | 36.0V | 25ºC,Average Voltage at 0.2 C5A discharge |
| Charge input voltage | 110-240V AC | Wide voltage |
| Charge current | 2-5A | Working temperature:0~35ºC |
| Charge cut-off voltage | 42.0V | CC/CV |
| Charge time | 2.5-7h | |
| Working current | 15-20A | |
| Max working current(15S) | 35-45A | |
| Working temperature | 0~35ºC | |
| Over charge protection | 4.2±0.05V | Single cell |
| Over discharge protection | 2.75±0.05V | Single cell |
| Dimension | 355*148*70 | |
| Weight | ≤ 4.7kg | |
| Storage temperature | ≤3month | Best 20±5ºC for long-time storage |
Storage humidity | ≤3month | 0~30ºC | Best storage temperature:20±5ºC
Charge battery every 3 month |
| ≤6month | 20±5ºC |
| 65±20%RH | 20±5ºC |
Product Drawing

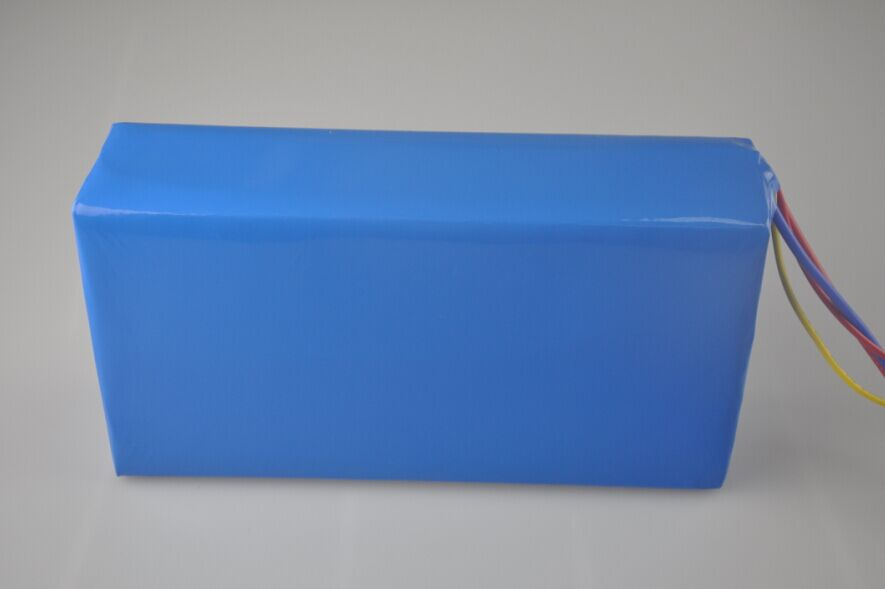

Product Pictures

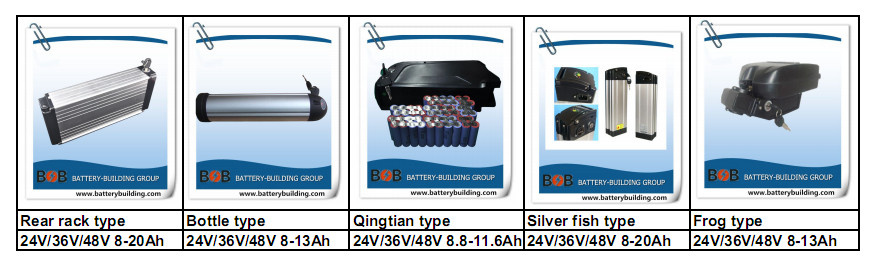

We supply batteries types such as bottle battery, rear rack battery, silver battery, frog battery, Qingtian battery, 24/36/48V normal series, we also accept customized battery packs, domestic cell or imported cells are all available. If you are interested, welcome to send your inquiry.
Key Application
Widely applied in Electric Bicycle, Electric vehicle, Electric Tricycle, Electric scooter, Electric golf trolley, Electric car, Electric wheelchairs,two wheel vehicles and etc.
Payment Terms
1.We accept bank transfer(T/T) ,PayPal,Cash.
2.If you prefer other payment method,please contact us by email.
Shipping Terms
1.Samples order: sending by Express ( DHL/ UPS/ FEDEX/ TNT )
2.Bulk order: sending out by air/express/sea.
Warranty Instructions
1.We provide 2 years Warranty.
2.Warranty code: quality problems, defective goods can be fixed or replacement; Man-made damage, inflowing water, fault operation leading to short circuit or burning, damaged by carrier is out of our warranty.
3.Goods should be returned in original condition to qualify for a replacement or repair.
Advantages
1.OEM&ODM manufacture, design any of special shape, dimension and other requirements battery packs.
2.Good quality, competitive price, fast delivery, excellent service.
3. Wonderful package, stable shipment, 100% testing and inspection before shipment to insure the quality.
4.CE, RoHS, UN38.3, UL, MSDS certificates.5. Quick action&response,every inquires will be relied within 24 hours.
SHENZHEN BATTERYBUILDING INDUSTRY Co., Limited is a profestional hi-tech industry company. We are specialized in different kinds of lithium batteries and engaged in the related products, include Lithium batteries, LiFePO4 batteries, BMS/PCM/CMB, RC/Lipo Batteries, and related battery chargers.
Various lithium battery cells models are provided, and can be customized the battery packs according to customers' Detailed requirements and applications. With a wide range, good quality, reasonable prices and stylish designs, our products are widely used in E-bikes, backup power, laptop, electrical toys, helicopter models, electrical cars, power tools and so on.
Our products are exported to all over the world, like Europe, USA, Canada etc. Our company focuses on the development of battery quality with our own research centre and technical team in battery developing, quality controlling and producing. Our aim is "to keep improving new product technology, to take Environment Protection as our responsibility; To provide customers with excellent service and technical support; To make our products much more environment-friendly and safer. "
If you hany any inquiry and question, please just contact us.
We are looking forward to establishing relationships with you in the near future.
