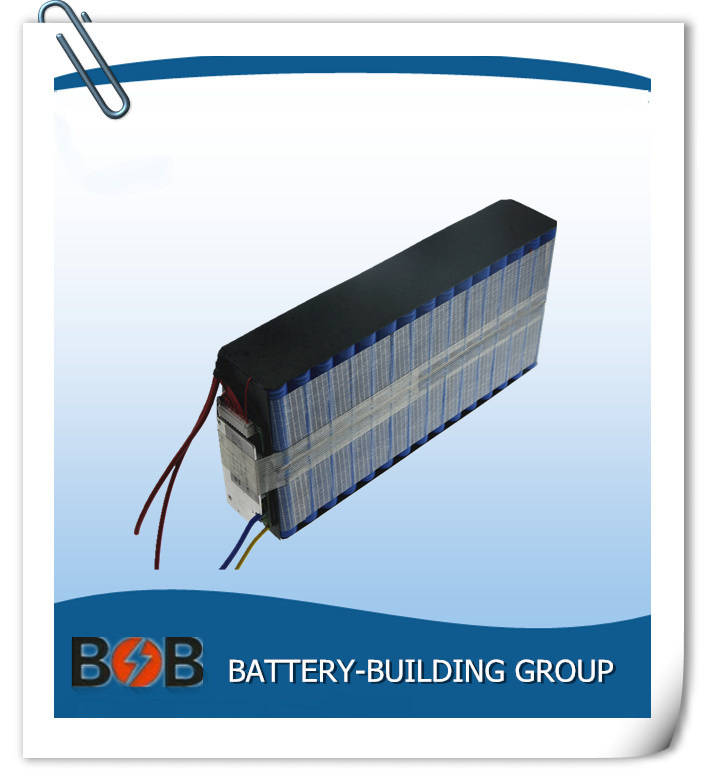

36V 20ah Battery Pack for Ebike

Name: 36V 20ah Battery Pack for Ebike
Brand: all-electronics-online.com
SKU: 749403535
Availability: InStock
Rating: 4.3 (112 reviews)

Price:	US $ 240-248/Piece
Trade Terms:	FOB,EXW
Min Order:	1/Piece
Pay Type:	T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	BBG-SB-LN3610
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:	E-Bike, E-Scooter
Structure:	Icr18650 2200mAh 10s9p
Dimension:	34014865mm
Motor:	700W or Below
Continuous Discharge Current:	10-20A
Charger:	2A/3A/5A Charger
Type:	Lithium-Ion Battery Pack
Connection Mode:	Series and Parallel
Electrolyte:	Li-ion
Rated Capacity:	19.8ah
Standard Voltage:	36V
Usage:	E-Bike, E-Scooter

Product Description

36V 20Ah Battery Pack for Ebike

Specification

Item		Parameters	Remark
Typical Capacity		20.0Ah	25ºC,1 C5A discharge
Nominal Voltage		36.0V	25ºC,Average Voltage at 0.2 C5A discharge
Charge input voltage		110-240V AC	Wide voltage
Charge current		2.5-7A	Working temperature:0~35ºC
Charge cut-off voltage		42.0V	CC/CV
Charge time		2.5-7h
Working current		10-20A
Max working current(15S)		35-45A
Working temperature		0~35ºC
Over charge protection		4.2±0.05V	Single cell
Over discharge protection		2.75±0.05V	Single cell
Dimension		34014865mm
Weight		≤ 5.1kg
Storage temperature		≤3month	Best 20±5ºC for long-time storage
Storage humidity	≤3month	0~30ºC	Best storage temperature:20±5ºC Charge battery every 3 month
	≤6month	20±5ºC
	65±20%RH	20±5ºC

Key Application
Widely applied in Electric Bicycle, Electric vehicle, Electric Tricycle, Electric scooter, Electric golf trolley, Electric car, Electric wheelchairs,two wheel vehicles and etc.

Payment Terms
1.We accept bank transfer(T/T) ,PayPal,Cash.
2.If you prefer other payment method,please contact us by email.

Shipping Terms
1.Samples order: sending by Express ( DHL/ UPS/ FEDEX/ TNT )
2.Bulk order: sending out by air/express/sea.

Warranty Instructions
1.We provide 2 years Warranty.
2.Warranty code: quality problems, defective goods can be fixed or replacement; Man-made damage, inflowing water, fault operation leading to short circuit or burning, damaged by carrier is out of our warranty.
3.Goods should be returned in original condition to qualify for a replacement or repair.

Advantages
1.OEM&ODM manufacture, design any of special shape, dimension and other requirements battery packs.
2.Good quality, competitive price, fast delivery, excellent service.
3. Wonderful package, stable shipment, 100% testing and inspection before shipment to insure the quality.
4.CE, RoHS, UN38.3, UL, MSDS certificates.
5. Quick action&response,every inquires will be relied within 24 hours

SHENZHEN BATTERYBUILDING INDUSTRY Co., Limited is a profestional hi-tech industry company. We are specialized in different kinds of lithium batteries and engaged in the related products, include Lithium batteries, LiFePO4 batteries, BMS/PCM/CMB, RC/Lipo Batteries, and related battery chargers.

Various lithium battery cells models are provided, and can be customized the battery packs according to customers' Detailed requirements and applications. With a wide range, good quality, reasonable prices and stylish designs, our products are widely used in E-bikes, backup power, laptop, electrical toys, helicopter models, electrical cars, power tools and so on.

Our products are exported to all over the world, like Europe, USA, Canada etc. Our company focuses on the development of battery quality with our own research centre and technical team in battery developing, quality controlling and producing. Our aim is "to keep improving new product technology, to take Environment Protection as our responsibility; To provide customers with excellent service and technical support; To make our products much more environment-friendly and safer. "

If you hany any inquiry and question, please just contact us.

We are looking forward to establishing relationships with you in the near future.
