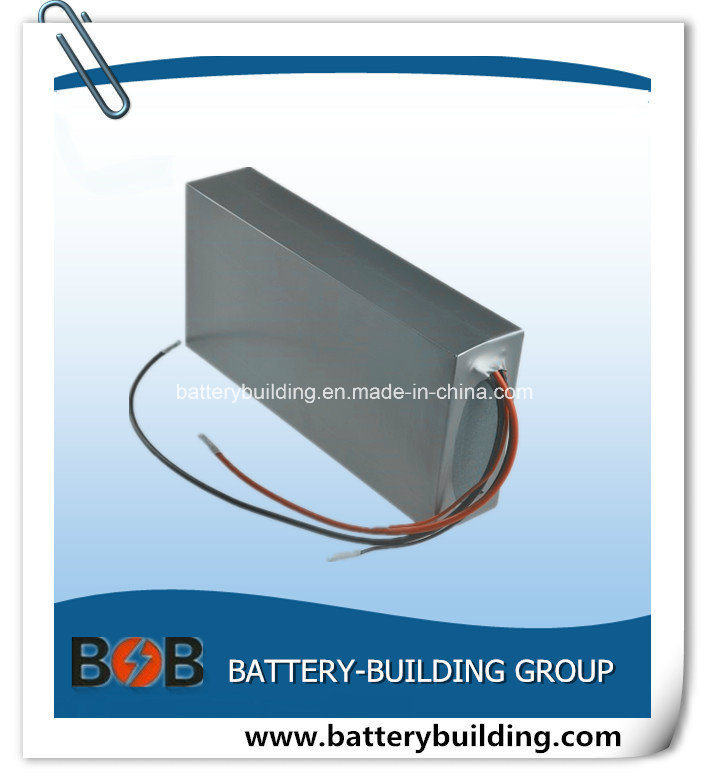

36V 20ah PVC Lithium battery 36V Rechargeable Battery for E-Scooter
| Price: |
US $ 195-220/Piece |
| Trade Terms: |
EXW |
| Min Order: |
5/Piece |
| Pay Type: |
T/T,Western Union,Paypal,Money Gram |
| Prod Model: |
BBG-3620 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
36V 20ah Lithium Battery Pack |
| Nominal Voltage: |
36V |
| Nominal Capacity: |
20ah |
| Cell: |
18650 3.7V 2200mAh |
| Configuration: |
10s9p |
| BMS: |
30A Continuous Working Current, 80A Peak Current |
| Charger: |
42V-4A Aluminum Charger |
| Net Weight: |
4.3kg |
| Application: |
E-Bike/Tricycle/Scooter/Skateboard etc |
| Warranty: |
2 Years |
| Type: |
Lithium-Ion Battery Pack |
| Connection Mode: |
Series and Parallel |
| Electrolyte: |
Lithium Battery |
| Rated Capacity: |
20ah |
| Standard Voltage: |
36V |
| Size: |
290*138*60mm |
| Usage: |
Electric Bike, Tricycle, Scooter, Skateboard etc |
Product Description
36V 20Ah PVC lithium battery e-bike rechargeable battery 36V PVC li-ion battery for skateboard
Features
Model: 36V 20Ah NCM lithium-ion battery pack
Cell: 18650 3.7V 2200mah cell.
Configuration: 10S9P
Dimension: 290*138*60mm
Net Weight: Approx 4.3kg
BMS: Custom BMS with 30A continuous and 80A peak discharging current.
Customization: We can assemble the battery pack with different cells to get different voltage and capacity.
Optional Cells:Samsung:22P,26F,29E,32E,33G
Panasonic:PF,32BD,18650B, GA
LG:B4,C2,D1,E1,MG1,MJ1.
BMS
The BMS provides protection against over-charge, over-discharge and short circuit, through monitoring
single string of cells. Also it enables every battery pack to obtain independent balancing function.

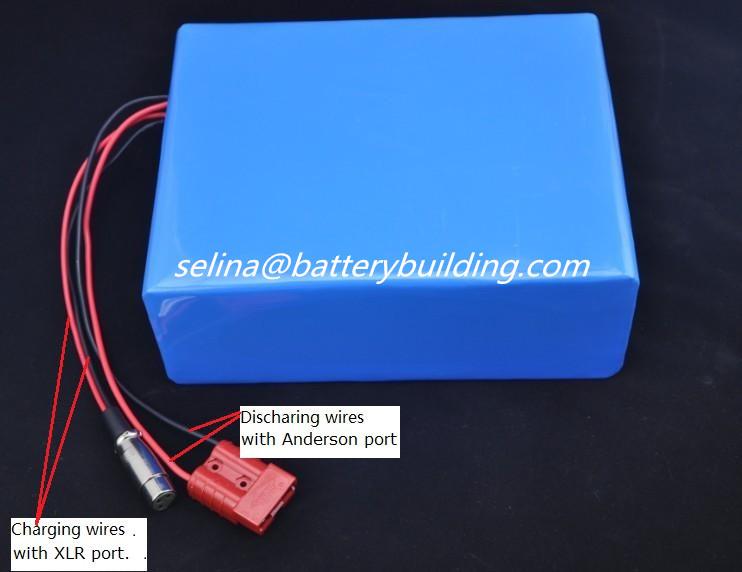

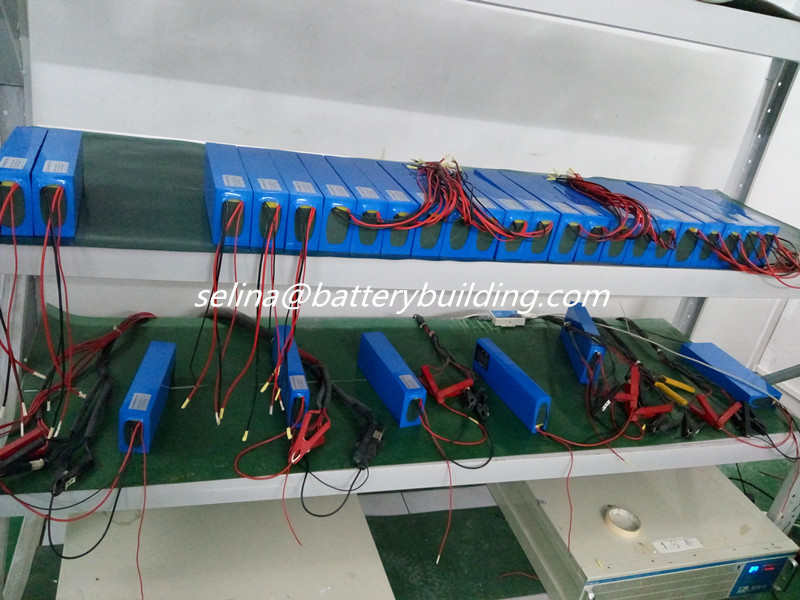

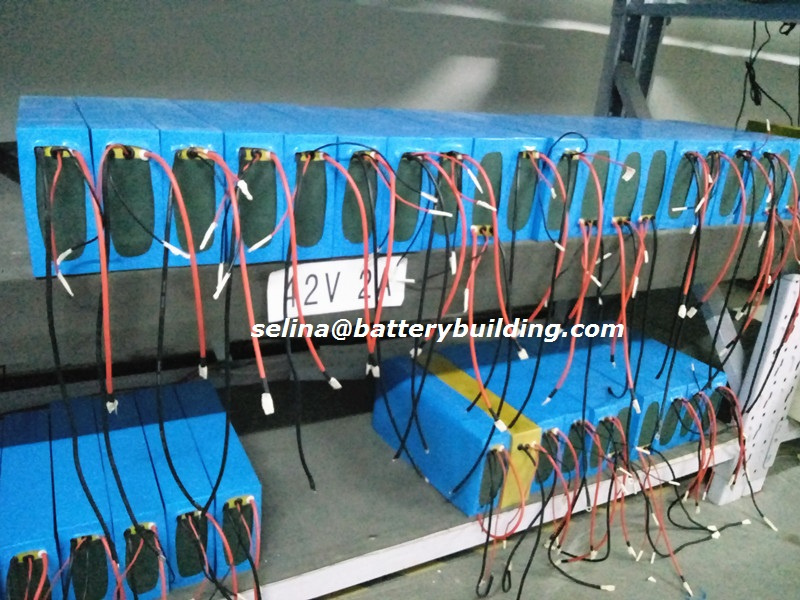

Photos for reference:
Application:
Electric bicycle, electric tricycle, e-scooter, e-skateboard, motor home, stored energy, power supply, electric lights, golf bus, all kinds of car etc.
Advantage:
1.800 times cycle life and good shock resistance.
2.Low self-discharge and good discharge performance at low temperature.
3.Strong charging acceptance and quick-charging capability.
4. Strong over-discharge resistance and charge retention.
5. Maintenance-free.
6. Excellent performance of large discharging current, obvious advantages in startup and climbing.
7. High temperature performance.
8. Environmental friendly.
9. Lighter weight and smaller size.
10. Most safe no explosion no fire.
11. The voltage and capacity can be customized.
12. All battery we provide will be strictly tested before shipping and have 2 years warranty, also the testing report can be provided.
13. We offer OEM & OEM service.
Term of trade
1. Payment: 30% advance payment by T/T, 70% balance should be paid off before shipping.
2. EXW, FOB and CIF all are available.
3. Production lead time:7-10 working days.
4. Sample can be delivered in 3-5 working days.
5. Discounts are offered based on large quantities.
6. Loading port: Shenzhen or HK.
