| Prod Model: |
BBG-PHC-10S3P |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Continuous Discharge Rate: |
1c |
| Max Discharge Current: |
3c |
| Charger: |
42V 2.5A |
| Cycle Life: |
500cycles |
| Charging Time: |
5hours |
| Weight: |
1.7kg |
| Cell: |
Samsung Icr18650-22p |
| MOQ: |
10PCS |
| Lead Time: |
7-10 Days |
| Type: |
Lithium-Ion Battery Pack |
| Connection Mode: |
Series and Parallel |
| Usage: |
Golf Car, Electric Scooter |
| Standard Voltage: |
36V |
| Size: |
215X60X70mm |
| Rated Capacity: |
6.6ah |
| Electrolyte: |
Lithium Battery |
Product Description

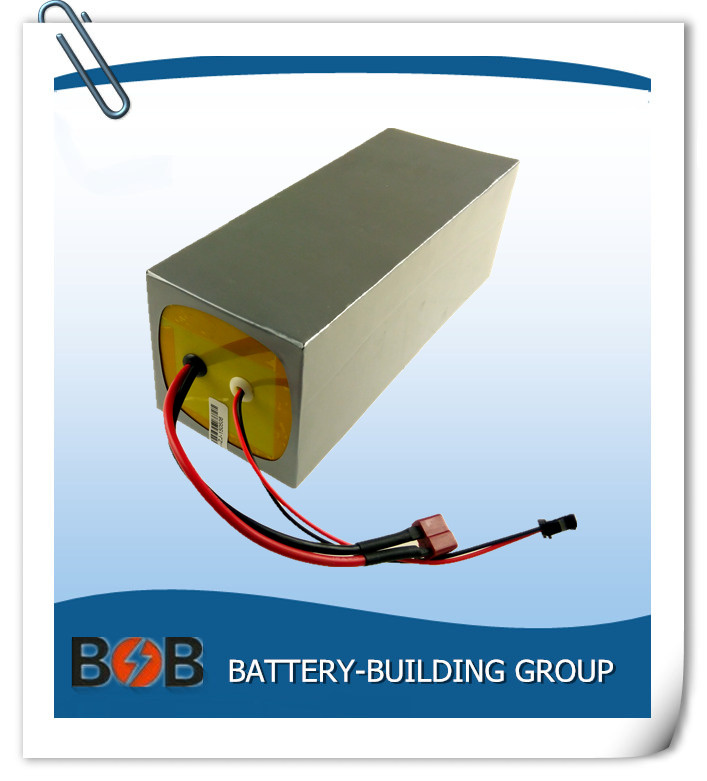

36V 6.6Ah high power lithium battery
Specification:
| Product name | 36V 6.6Ah Lithium battery |
| Model | BBG-SLC-3666 |
| Rated Capacity | 6.6Ah |
| Nominal Voltage | 36V |
| Over discharge protection voltage | 30V±0.05V |
| Over charge protection voltage | 42V±0.05V |
| AC Impedance New Cell Max.(mΩ) | ≤100 mΩ |
| Maximum Continuous Charge Current | ≤5A adjustment |
| Maximum Continuous Discharge Current | ≤10A adjustment |
| Maximum Pulse discharge current | ≤35A adjustment |
| Operation Temperature Range | Charge: 0~45°C,Discharge: -20~60°C |
| Storage Temperature Range | Less than 1 year: -20~25°C |
| Less than 3 months: -20~40°C |
| Storage Temperature Range | Less than 30 Days: -25°C~45°C |
| Less than 90 Days: -25°C~30°C |
| Weight | Approx 1.7kg |
| Cycle Characteristic | 500 times |
| Export | 2 wires, 15 inches long, 1.5mm2 Red, Black |
| Dimension | L: 220mm,W: 100mm,T: 70mm |
Shipping:
1. We will ship the products within 15 workdays after receipt of payment.
2. We can ship to you by UPS/FEDEX/DHL and so on. Other shipping terms can also be arranged according to specific requirements.
3. We are not responsible for any accidents, delays or other issues that are the responsiblility of the shipping service.
Payment:
1. We accept T/T, PAYPAL, Western Union, Cash and so on.
2. If you prefer other payment terms, please contact us.
How to order?
1. Please let us know what kind of model you need?
2. We make invoice for you.
3. Please check and confirm the invoice.
4. Once confirmed the order, please pay it soon.
5. After payment, all goods will be sent to you in 2 weeks.
Feature:
1. Long life, large capacity and good shock resistance
2. Low self-discharge and good discharge performance at low temperature
3. Strong charging acceptance and quick-charging capability
4. Strong over-discharge resistance and charge retention
5. Maintenance-free and no acid or water for maintenance in usage
6. Excellent large current discharge performance, and have obvious advantages in startup and climbing
7. High temperature performance
8. Environmental friendly
9. Lighter weight smaller size
Notes:
1. If shelve a long time suggested that the battery voltage 25.2-29.2V, need for regular recharging (even if not use), must charge and discharge for three months one time;
2. Do not expose the battery to extreme heat or flame.
3. Do not short circuit, over-charge or over-discharge the battery;
4. Do not disassemble or modify the battery.
5. Do not handle or store with metallic like necklaces, coins or hairpins, etc.
6. Do not reverse the polarity of the battery for any reason.
7. Do not immerse the battery in water or sea water, or get it wet.
8. Use a constant current, constant voltage (CC/CV) lithium-ion (Li+) battery charge controller.
SHENZHEN BATTERYBUILDING INDUSTRY Co., Limited is a profestional hi-tech industry company. We are specialized in different kinds of lithium batteries and engaged in the related products, include Lithium batteries, LiFePO4 batteries, BMS/PCM/CMB, RC/Lipo Batteries, and related battery chargers.
Various lithium battery cells models are provided, and can be customized the battery packs according to customers' Detailed requirements and applications. With a wide range, good quality, reasonable prices and stylish designs, our products are widely used in E-bikes, backup power, laptop, electrical toys, helicopter models, electrical cars, power tools and so on.
Our products are exported to all over the world, like Europe, USA, Canada etc. Our company focuses on the development of battery quality with our own research centre and technical team in battery developing, quality controlling and producing. Our aim is "to keep improving new product technology, to take Environment Protection as our responsibility; To provide customers with excellent service and technical support; To make our products much more environment-friendly and safer. "
If you hany any inquiry and question, please just contact us.
We are looking forward to establishing relationships with you in the near future.
