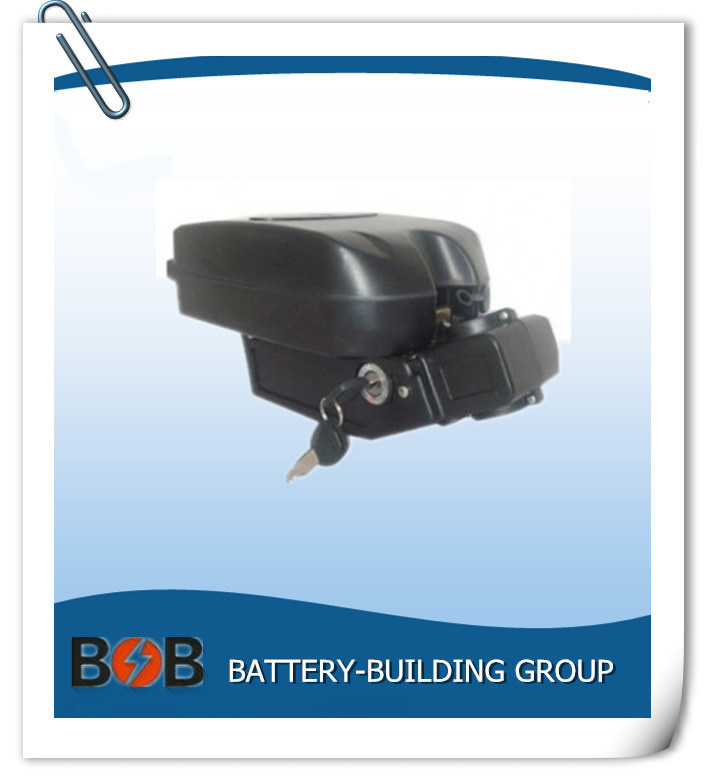

36V Frog Style Battery Pack for Electric Bicycle
| Price: |
US $ 165-185/Piece |
| Trade Terms: |
FOB,EXW |
| Min Order: |
200/Piece |
| Pay Type: |
T/T,Western Union |
| Prod Model: |
BBG-EB3610-QW |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Available Motor: |
350W |
| Type: |
Lithium-Ion Battery Pack |
| Connection Mode: |
Series and Parallel |
| Usage: |
Electric Bicycle, Electric Scooter |
| Standard Voltage: |
36V |
| Rated Capacity: |
10ah |
Product Description
36V Frog Style Battery Pack for electric bicycleSpecification:
1. Voltage: 36V
2. Capacity: 10Ah
3. Structure: 10S5P
4. Recommended Size(L*W*H): 241.21 x 143.30 x 84.66 mm
5. Weight: 2.32KG
6. Standard discharge: 10A
7. Maximum continuous: 20A
8. Maximum (30s): 40A
9. Maximum (10s): 50A
10. Cut-off voltage: 30V
11. Charge voltage: 42V
12. Standard charge: 2A
13. Maximum continuous: 10A
14. Maximum (30s): 30A
15. Maximum (10s): 40A
Battery maintenance:
(1) Be sure to charge the new battery fully before using for the first time. The battery will reach its max capacity after 3-5 times of full charging and discharging.
(2) When the battery is powered off, an immediate charging is needed, which will greatly help extend the battery's cycle life. Otherwise, it will affect the longevity of the battery. If need to store the battery for long time, had better keep the battery half charged state and charge it for around one hour every other month.
(3) When start the electric appliance, please start slowly little by little. Better assist it with accessory power to decrease the starting current and decrease the startup burden accordingly, which will benefit the battery longevity etc.
(4) Charge the battery in a dry and ventilative environment and don't place it near the fire and other tinder. When charging, you'd better disconnect the load (close the electric appliance)
(5) The best working temperature of the battery is 15C-40C. Otherwise, it will affect the battery's normal performance. The direct embodiment is the change of the battery capacity or the working time of the electric equipment, which is the normal.
(6) If the environment temperature is above 40C, the battery's longevity will be shorten. Therefore in hot summer day, don't expose the battery in strong direct sunlight.
(7) If the temperature is at/below -10C, the battery's performance will also be affected and (in this situation ), maybe only 60% of the capacity can be outputted. As a result, the working time of the e-equipment in winter will be much less than that in Summer The battery should be stored and charged in the room in winter. When charging, if the indicator to show the full charge is on, you can stop charging the battery.
(8) Don't wash the outer shell of the battery with impregnant. In case of fire please use Carbon Chlorin or sand &earth to put out fire instead of CO2.
(9) The battery is an expendable and its cycle life is limited. When the capacity of the battery seems only half of the nominal capacity, please change new battery in time
SHENZHEN BATTERYBUILDING INDUSTRY Co., Limited is a profestional hi-tech industry company. We are specialized in different kinds of lithium batteries and engaged in the related products, include Lithium batteries, LiFePO4 batteries, BMS/PCM/CMB, RC/Lipo Batteries, and related battery chargers.
Various lithium battery cells models are provided, and can be customized the battery packs according to customers' Detailed requirements and applications. With a wide range, good quality, reasonable prices and stylish designs, our products are widely used in E-bikes, backup power, laptop, electrical toys, helicopter models, electrical cars, power tools and so on.
Our products are exported to all over the world, like Europe, USA, Canada etc. Our company focuses on the development of battery quality with our own research centre and technical team in battery developing, quality controlling and producing. Our aim is "to keep improving new product technology, to take Environment Protection as our responsibility; To provide customers with excellent service and technical support; To make our products much more environment-friendly and safer. "
If you hany any inquiry and question, please just contact us.
We are looking forward to establishing relationships with you in the near future.
