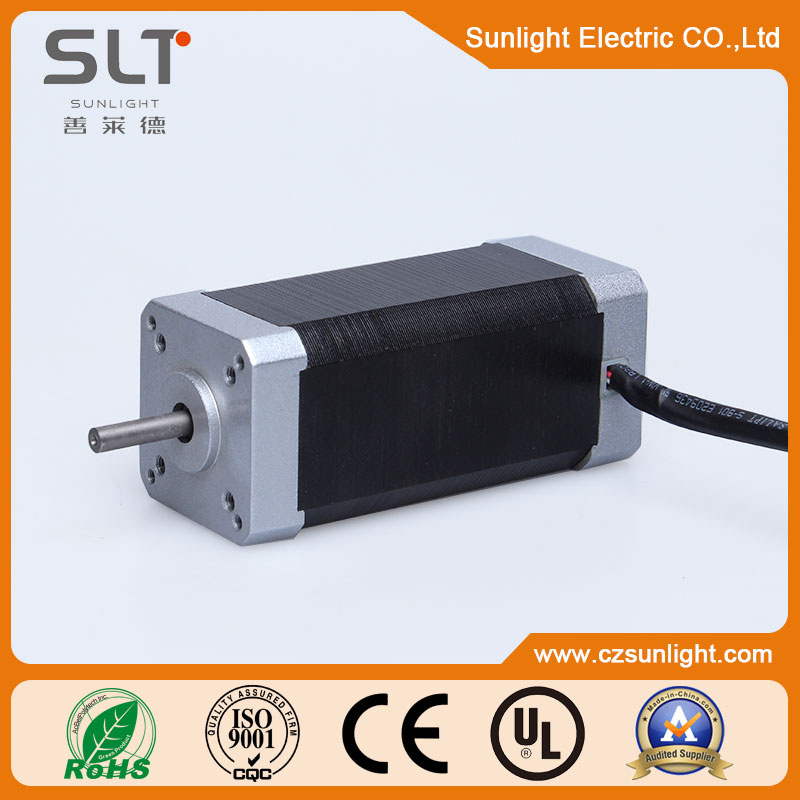

36V Hub DC Brushless Geared Motor for Air Purifier
| Price: |
US $ 3-50/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
200/Piece |
| Pay Type: |
L/C,T/T,Paypal,Western Union |
| Prod Model: |
SLT-60BL01 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Voltage: |
36 |
| No Load Speed: |
5200 |
| Rated Torque: |
0.11nm |
| Rated Speed: |
4000rpm |
| Rated Current: |
1.9A |
| Max Torque: |
0.3nm |
| At Torque (Max )Current: |
4.5A |
| Rotor Inertia: |
7.5 Kgmm2 |
| Weight: |
0.5kg |
| L1: |
61.5mm |
| Operating Speed: |
Adjust Speed |
| Excitation Mode: |
Excited |
| Structure And Working Principle: |
Brushless |
| Brand: |
Slt |
Product Description
Product Description1,Voltage:6V-36V
2,No load speed:1000-10000 r/min
3,Rated torque:0.01-0.8Nm
4,Rated speed:3000-8000r/min
5,Rated current:0.5A-20A
6,Environment conditions:-10-40ºC
7,Magnet material:Bonded NdFeB
8,Insulation Class:B
9,OEM and ODM are available for us.
Advantages of 36V Hub DC Brushless Geared Motor for Air Purifier A: Save cost, price is low
B: Better reliability.
C: Low energy consumption.
D: Speed is steady.
E: Easy to run and adjust the speed.
F:Small size, easy to carry.
G: Application range is super wideAdvantages of 36V Hub DC Brushless Geared Motor for Air Purifier Specification| Model | SLT-60BL01 | SLT-60BL02 |
| Voltage | V | 36 |
|
| No load speed | rpm | 5200 | 5200 |
| Rated torque | Nm | 0.11 | 0.22 |
| Rated speed | rpm | 4000 | 4000 |
| Rated current | A | 1.9 | 3.3 |
| Torque(max) | Nm | 0.3 | 0.55 |
| At Torque (max )Current | A | 4.5 | 7.4 |
| Rotor inertia | Kgmm² | 7.5 | 11.9 |
| Black-EMFconstant | V/krpm | 4.5 | 4.82 |
| Torque Constant | Nm/A | 0.074 | 0.079 |
| Resistance(20ºC) |
| ohm | 1.65 | 0.7 |
| Weight | 0.5 |
| L1 | mm | 61.50 | 81.50 |
| Rotor:La | mm | 20 | 40 |
| Model | No load
speed(rpm) | Rated t
orque(Nm) | Rated
speed(rpm) | Rated
current(A) | Torque(max)(Nm) | Rotor
inertia(Kgmm²) | Black-EMFconstant(V/krpm) | Torque
Constant(Nm/A) | Resistance(20ºC)(ohm) | Weight
(Kg) | Rotor:La(mm) |
| SLT42BL01 | 5000 | 0.063 | 4000 | 1.65 | 0.189 | 5.2 | 3.17 | 0.045 | 1.42 | 0.29 | 20 |
| SLT42BL02 | 5000 | 0.125 | 4000 | 3.4 | 0.375 | 9.3 | 3.13 | 0.044 | 0.73 | 0.47 | 40 |
| SLT42BL03 | 5000 | 0.185 | 4000 | 4.5 | 0.5 | 13.4 | 3.28 | 0.73 | 0.39 | 0.65 | 60 |
| SLT60BL01 | 5200 | 0.11 | 4000 | 1.9 | 0.3 | 7.5 | 4.5 | 0.074 | 1.65 | 0.5 | 20 |
| SLT60BL02 | 5200 | 0.22 | 4000 | 3.3 | 0.55 | 11.9 | 4.82 | 0.079 | 0.7 | 0.5 | 40 |
| SLT60BL03 | 5200 | 0.32 | 4000 | 4.8 | 0.8 | 17.3 | 4.87 | 0.08 | 0.48 | 1 | 60 |
| SLT60BL04 | 5200 | 0.44 | 4000 | 6.6 | 1.05 | 21 | 4.87 | 0.08 | 0.35 | 1 | 80 |
| SLT62BL01 | 3900 | 0.22 | 3200 | 4.5 | 0.66 | 19 | 4.3 | 0.062 | 0.57 | 0.9 | 20 |
| SLT62BL02 | 3700 | 0.4 | 3000 | 7.1 | 1.1 | 37.5 | 4.6 | 0.065 | 0.24 | 1.3 | 40 |
| SLT62BL03 | 3700 | 0.65 | 3000 | 12.7 | 1.8 | 55.8 | 4.53 | 0.061 | 0.13 | 1.8 | 60
|
B.Home Appliance ( Electric cooker, Electric mop and other products.)
C.Medical equipment and beauty products.
D.Office products (such as printer, scanner......)
E. Electrical tools and Garden tools. Product Structure1,Casing bearing;
2,totor;
3,magnet shoe
4,brush group
5,diverter
6,terminal
7,end cap bearing
8,end cover
9,cabinet
10,shaft extension About sunlight:1,The company covers an area of 5000 square meters;
2,Modern workshops have advanced production lines and professional knowledge of assembly
3,Excellent sales team and after-sales service
4,Professional technical team
5,Broad market:Europe(Germany....)America(America,Canada...)
Asian( Korea, Japan...)
FAQQ1,Can I have a sample for testing?
A: Yes,of courses we can supply the sample for you !
Q2,I need 12v fan ,is that possible for you ?
A: we can make the voltage according to your requirement , like, 6v ,8v ,9v,12v Just tell me the voltage you want to .
Q3:Can I add my logo on the electric gear brush dc motor for car seat?
A:Yes,OEM and ODM are available for us.
But you should send us the Trademark authorization letter.
Q4:How can i get the after-service?
A:We will send you the spare parts by free if the problems caused by us.
If it is the men-made problems,we also send the spare parts,but you should pay.
Q5 :Do you have inspection procedures for electric gear brush dc motor for car seat?
A:100% self-inspection before packing
Q6:Can we mix the 20ft container?
A: Yes,if the items are meet our min order qty.
Q7:Can I have a visit to your factory before the order?
A: Sure,welcome to visit our factoryWhy choose Sunlight1,Your client satisfied on the right schedule and quality;
2,You can get good reputation from your market and obtain more orders;
3,Our professional service before and after sale;
4,The reasonable and competitive price;
5,Service is excellent.Any questions from you are welcome and will be replied in 24 hours.
6,Delivery on timePackaging & Shipping1,Inner packing(Waterproof plastic bag packing)+Outer packing(Carton packing)
2,Export wooden box packaging for products.
3,Other package as you required
Name Card:Changzhou Sunlight Co., Ltd
Contact.: Catherine Wang
Tel.: 86-519-83825998
Fax.: 86-519-83823899
Mobile: 86-15888322079
Website: www.czsunlight.com or www.sunlightmotor.com
www.czsunlightmotor.en.made-in-china.com
Changzhou Sunlight Motor is the subsidiary company of the Jiangsu Woersen Electronics Technology Co., Ltd. It also contains Wenwei tube, Rongda Electronics, Woersen motor.
There are almost two hundred people in this group, including twenty technical engineers, eight R&D engineers. Annual value of production is about 0.16 billion.
The main products are DC motor, brushless DC motor, linear actuator and DC fan.
At present, our products have been exported to the United States, Germany, Britain, Russia, Japan, South Korea and so on. And we have received the high praise from our customers.
Currently, our company has passed ISO9000 and TS16949 certifications. The factory also has been audited by the authority SGS.
We welcome all the global companies to visit our factory and negotiate with us!
Sunlight is a young and dynamic team. Our slogan is " Where there is power supply, there is Sunlight"
We can not only meet our clients` mass production order, but also be flexible to provide the small quantity order for our clients too.
Meanwhile, the professional OEM services could be provided by us according to the customers'requests. The main brushless DC motor's series are: 42BLDC, 57BLDC, 86BLDC 110BLDC motor and so on
The main brush DC motor's series are: 130DC, 365DC, 370DC, 477DC motor and so on;
The main linear actuator's series are: ST01, PT01, YT01 and so on;
The main fan's series are: 16inch, 12inch, and so on
So that, If you give us a chance, Sunlight Motor will not let you disappoint.
