| Prod Model: |
BB-EB36RRY |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
E-Bike, E-Scooter |
| Structure: |
Icr18650 2200mAh 10s5p |
| Color: |
Yellow |
| Continuous Discharge Current: |
15A |
| Type: |
Lithium-Ion Battery Pack |
| Connection Mode: |
Series and Parallel |
| Standard Voltage: |
36V |
| Usage: |
E-Bike |
| Electrolyte: |
Li-ion |
Product Description

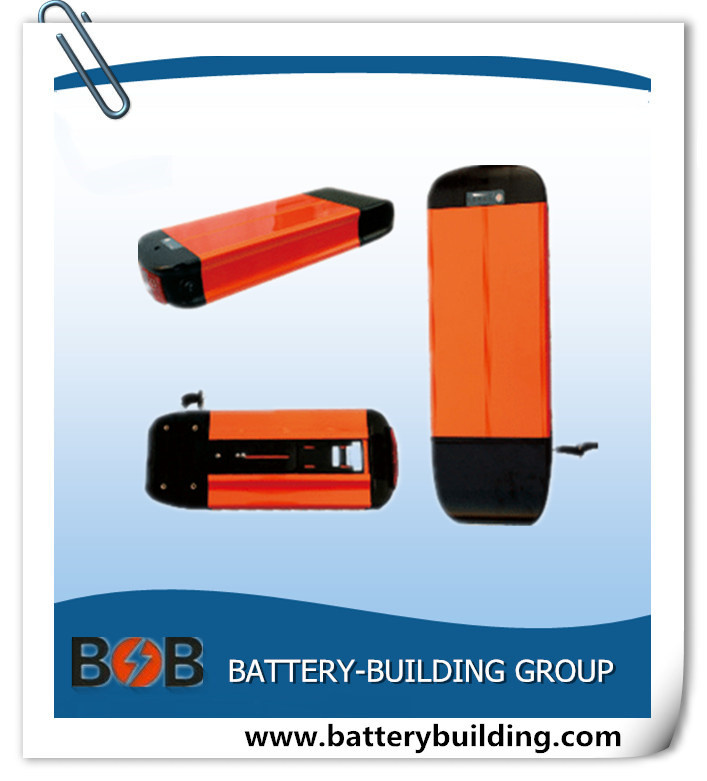

36V lithium battery pack rear rack type
Specification
| Item | Parameters | Remark |
| Typical Capacity | 10Ah | 25ºC,1 C5A discharge |
| Nominal Voltage | 36.0V | 25ºC,Average Voltage at 0.2 C5A discharge |
| Charge input voltage | 110-240V AC | Wide voltage |
| Charge current | 2-5A | Working temperature:0~35ºC |
| Charge cut-off voltage | 27.5V | CC/CV |
| Charge time | 2-5h | |
| Working current | 10-15A | |
| Max working current | 30-45A | |
| Working temperature | 0~35ºC | |
| Over charge protection | 4.2±0.05V | Single cell |
| Over discharge protection | 2.75±0.05V | Single cell |
| Balance current | 60mA | Balance active voltage 4.175V |
| Weight | ≤ 3.25kg | |
| Storage temperature | ≤3month | Best 20±5ºC for long-time storage |
Storage humidity | ≤3month | 0~30ºC | Best storage temperature:20±5ºC
Charge battery every 3 month |
| ≤6month | 20±5ºC |
| 65±20%RH | 20±5ºC |
Dimension
Cavity size :144.8*56.7*270mm
External Dimension
Appearance size:435*160*60mm
Product features:Shelf type large capacity Length of aluminum shell can be self integral controller box
Recommended to install the electric core number:18650 78PCS
Instruction of the Battery Pack Structure
(1)Battery modules
50 cells, 5 parallel and 10 serial to make a battery module.
(2)Protective board
The protective board, provides protection against overcharge, and short circuit, through monitoringsingle string of cells. Also it enables every battery pack to obtain independent balancing function
(3)Charge/discharge standards for cell
Cell adopted: ICR3.7V2200mAh
Constant charge current: 0.2 C5A -1 C3A is the best. cell max voltage<4.3V.
Constant discharge current: single cell min voltage> 2.75V
Rapid charge capability: Max. charge current1C3A;temperature increase falls within 15°C is
normal while over 15°C will affect the cycle life of cell.
Payment Terms
1.We accept bank transfer(T/T) ,PayPal,Cash.
2.If you prefer other payment method,please contact us by email.
Shipping Terms
1.Samples order: sending by Express ( DHL/ UPS/ FEDEX/ TNT )
2.Bulk order: sending out by air/express/sea.
Warranty Instructions
1.We provide 2 years Warranty.
2.Warranty code: quality problems, defective goods can be fixed or replacement; Man-made damage, inflowing water, fault operation leading to short circuit or burning, damaged by carrier is out of our warranty.
3.Goods should be returned in original condition to qualify for a replacement or repair.
Advantages
1.OEM&ODM manufacture, design any of special shape, dimension and other requirements battery packs.
2.Good quality, competitive price, fast delivery, excellent service.
3. Wonderful package, stable shipment, 100% testing and inspection before shipment to insure the quality.
4.CE, RoHS, UN38.3, UL, MSDS certificates.
5. Quick action&response,every inquires will be relied within 24 hours
SHENZHEN BATTERYBUILDING INDUSTRY Co., Limited is a profestional hi-tech industry company. We are specialized in different kinds of lithium batteries and engaged in the related products, include Lithium batteries, LiFePO4 batteries, BMS/PCM/CMB, RC/Lipo Batteries, and related battery chargers.
Various lithium battery cells models are provided, and can be customized the battery packs according to customers' Detailed requirements and applications. With a wide range, good quality, reasonable prices and stylish designs, our products are widely used in E-bikes, backup power, laptop, electrical toys, helicopter models, electrical cars, power tools and so on.
Our products are exported to all over the world, like Europe, USA, Canada etc. Our company focuses on the development of battery quality with our own research centre and technical team in battery developing, quality controlling and producing. Our aim is "to keep improving new product technology, to take Environment Protection as our responsibility; To provide customers with excellent service and technical support; To make our products much more environment-friendly and safer. "
If you hany any inquiry and question, please just contact us.
We are looking forward to establishing relationships with you in the near future.
