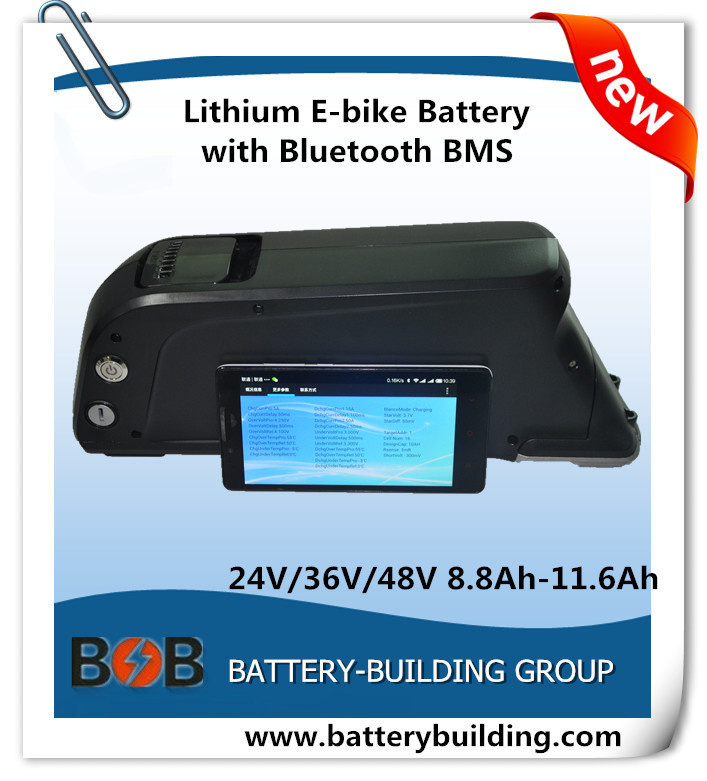

36V Lithium E-Bike Battery Downtube Battery Pack with Bluetooth BMS
| Price: |
US $ 225-260/Piece |
| Min Order: |
5/Piece |
| Pay Type: |
L/C,T/T,Western Union,Money Gram |
| Prod Model: |
36v lithium battery pack |
| Voltage: |
36V |
| Capacity: |
14.5ah |
| Battery Cell: |
Panasonic NCR18650PF 2900mAh Power Cell |
| Configuration: |
10s5p |
| Battery Size: |
360 *130*90mm |
| Continuous Discharging Current: |
20-30A |
| Max Discharging Current: |
80A |
| Battery Charger: |
42V-2.5A Aluminum Charger |
| Certification: |
Ce. RoHS |
| Warranty: |
2 Years Warranty |
| Type: |
Lithium-Ion Battery Pack |
| Connection Mode: |
Series and Parallel |
| Electrolyte: |
Lithium Rechargeable Power Battery |
| Rated Capacity: |
14.5ah |
| Standard Voltage: |
36V |
| Size: |
360 *130*90mm |
| Usage: |
Lithium Battery for E-Bike, E-Scooter |
Product Description
36V 14.5Ah Panasonic downtube lithium battery pack for electric bike with 5V USB port FeaturesModel: 36V 14.5Ah Panasonic downtube lithium battery pack Cell: NCR18650 PF 2900mah power cellsConfiguration: 10S5PNominal Voltage: 36VNominal Capacity: 14.5AhDimension: 360*130*90mm Net Weight: Approx 3kg BMS: Custom BMS with 20-30A continuous discharging current and 80A peak current. Customization: We can assemble the battery pack with different cells like Samsung INR18650-29E 2900mah cells or Panasonic NCR18650B 3400mah cells etc, also the size and capacity can be custom as your request.Specification| Item | Parameters | Remark |
| Typical Capacity | 14.5Ah | 25ºC,1 C5A discharge |
| Nominal Voltage | 36V | 25ºC,Average Voltage at 0.2 C5A discharge |
| Charge input voltage | 110-240V AC | Wide voltage |
| Charge current | 2.5A | Working temperature:0~35ºC |
| Charge cut-off voltage | 42V | CC/CV |
| Charge time | about 6h | |
| Working current | 20-30A | |
| Peak Working Current(2S) | 80A | Working temperature:0~35ºC |
| Over charge protection | 4.2±0.05V | Single cell |
| Over discharge protection | 2.75±0.05V | Single cell |
| Battery Weight | ≤ 3.0kg | |
| Storage temperature | ≤3month | Best 20±5ºC for long-time storage |
Storage humidity | ≤3month | 0~30ºC | Best storage temperature:20±5ºC
Charge battery every 3 month |
| ≤6month | 20±5ºC |
| 65±20%RH | 20±5ºC |

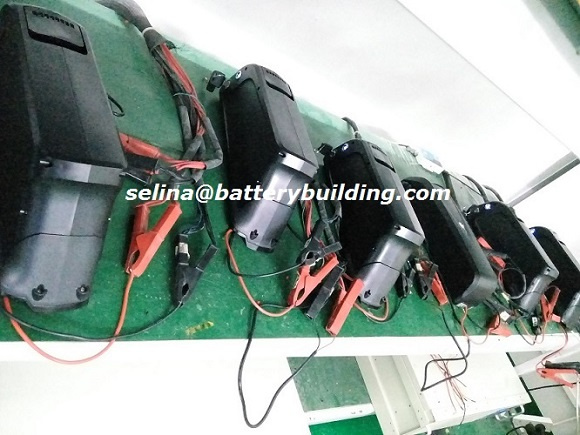

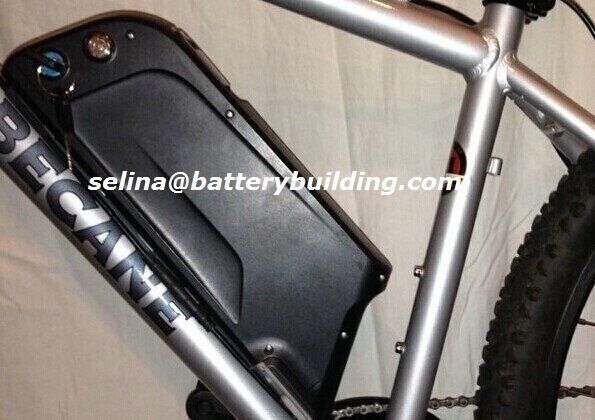

Inner Circuit BoardThe inner circuit board, provides protection against over-charge, over-discharge and short circuit, through monitoringsingle string of cells. Also it enables every battery pack to obtain independent balancing functionKey ApplicationWidely applied in Electric Bicycle, Electric vehicle, Electric Tricycle, Electric scooter, Electric golf trolley, Electric car, Electric wheelchairs,two wheel vehicles and etc. Pictures for reference
Shipping Terms1.Samples order: sending by Express ( DHL/ UPS/ FEDEX/ TNT )2.Bulk order: sending out by express/air/sea. Term of trade1. Payment: 30% advance payment by T/T, 70% balance should be paid off before shipping.2. EXW, FOB and CIF all are available.3. Production lead time:7-10 working days.4. Sample can be delivered in 3-5 working days.5. Discounts are offered based on large quantities.6. Loading port: Shenzhen or HK.Advantages1. Your inquiry related to our products will be replied within 24 hours.2. OEM & ODM, also provide customized service.3. CE, ROHS, UN, UL, MSDS etc certification.4. Solid package, stable shipment, 100% testing and inspection before shipping to ensure the quality. 5. Distributorship is available for your unique design and some our current models.6. We will keep secret for customer sale area ,design ideas and all other private informationContactPlease contact us freelyor call us at +86-13267068372. Selina always here and will do best to help you.
SHENZHEN BATTERYBUILDING INDUSTRY Co., Limited is a profestional hi-tech industry company. We are specialized in different kinds of lithium batteries and engaged in the related products, include Lithium batteries, LiFePO4 batteries, BMS/PCM/CMB, RC/Lipo Batteries, and related battery chargers.
Various lithium battery cells models are provided, and can be customized the battery packs according to customers' Detailed requirements and applications. With a wide range, good quality, reasonable prices and stylish designs, our products are widely used in E-bikes, backup power, laptop, electrical toys, helicopter models, electrical cars, power tools and so on.
Our products are exported to all over the world, like Europe, USA, Canada etc. Our company focuses on the development of battery quality with our own research centre and technical team in battery developing, quality controlling and producing. Our aim is "to keep improving new product technology, to take Environment Protection as our responsibility; To provide customers with excellent service and technical support; To make our products much more environment-friendly and safer. "
If you hany any inquiry and question, please just contact us.
We are looking forward to establishing relationships with you in the near future.
