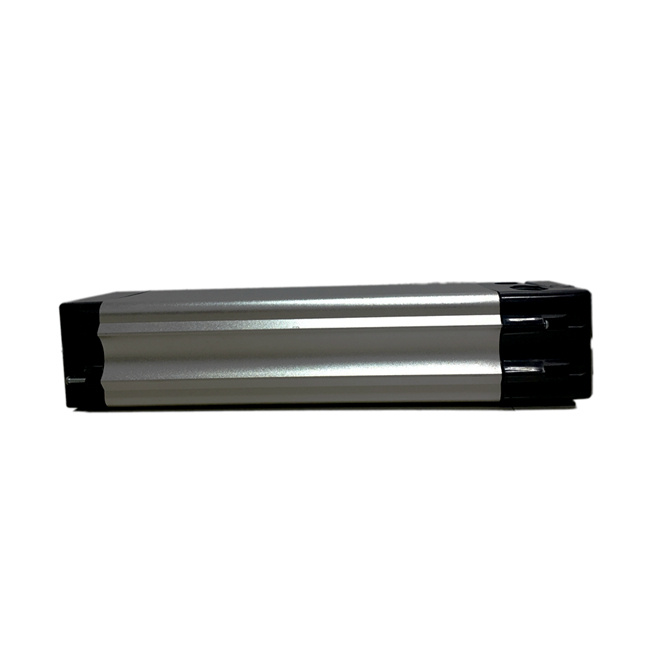

36V Rechargeable Li-ion Battery for Electric Bikes

Name: 36V Rechargeable Li-ion Battery for Electric Bikes
Brand: all-electronics-online.com
SKU: 696325945
Availability: InStock
Rating: 4.9 (57 reviews)

Price:	US $ 100-130/Piece
Trade Terms:	others
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	lifePo4
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Nominal Voltage:	36V
Nominal Capacity:	10ah
Warranty:	1 Year
Avaliable Voltage:	24V, 36V, 48V
Avaliable Capacity:	8ah, 10ah, 13ah, 15ah
Battery Cell Model:	18650
Battery Cell Type:	Samsung/ LG/ Panasonic
Type:	Lithium-Ion Battery Pack
Connection Mode:	Series and Parallel
Usage:	Remote Control Bike

Product Description

Specification

Model	36v 10ah Electric bike Battery
Cell	Cell model	2.6Ah-18650
	Capacity	≥2.5Ah
	rated voltage	3.7V
	Typical Impedance	≤12mΩ
	Battery material	NMC cathode material
Battery Pack	Combination method	4P10S
	Minimal capacity	10Ah
	Nominal voltage	36V
	Max. charge voltage	42V
	Discharge cut-off voltage	≤31V
	Max Charge current	5A(0.5C)
	Max Working current	15A(1.5C)
	Standard charge current	0.2C
	Standard working current	0.5C
	Pack Impedance standard	≤150mΩ
	Weight	3.7Kg
	Max. dimension(L×W×H)(mm)	65150430
Operating temperature	Charge temperature	0ºC~45ºC
Operating temperature	Discharge temperature	-10ºC~55ºC
Batterty manager system	Single cell over-charge cut-off voltage	4.2V
	Single cell under-discharge cut-off voltage	2.75V
	over-charge release voltage	4.1V
	Discharge release voltage	3.0V
	Over-discharge cut-off current	52A
	Over-discharge cut-off current delay	1.5S
	Short-circuit protection	150A

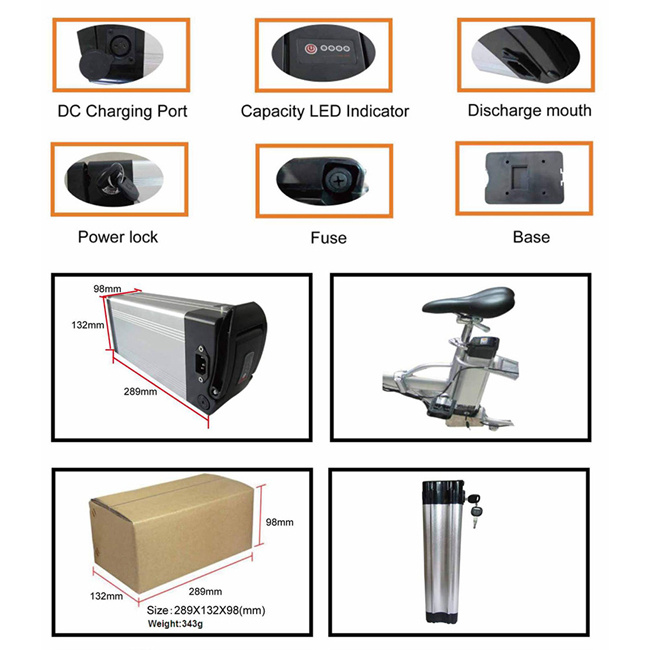

Products Details

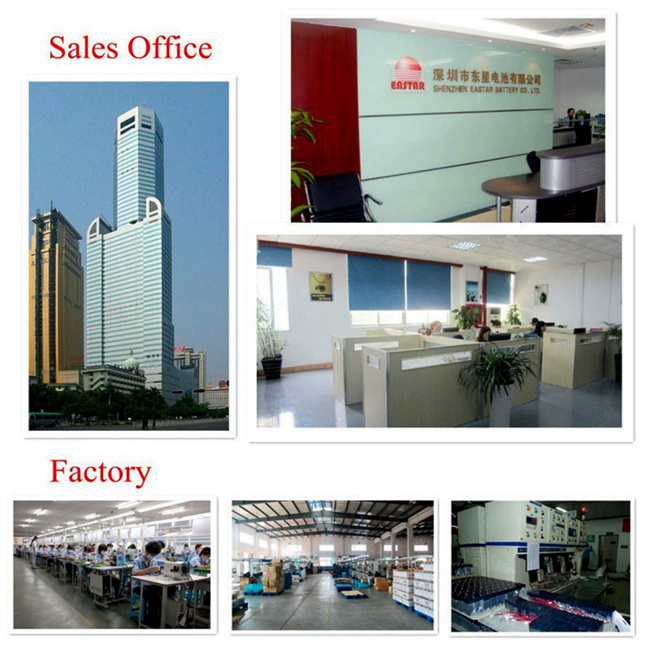

About Eastar Battery

Shenzhen Eastar Battery Co., Ltd was set up as a manufacturer of various batteries in 1997. Our main products include dry batteries ( carbon & alkaline), lead-acid batteries(General batteries, Auto batteries), Ni-MH/Ni-CD batteries and packs, Lithium batteries ( Li-ion, Li-PO).

Quality is our life
As a battery manufacturing group, we have separate factory located in Guangzhou, Shenzhen and Xingfeng for different battery types. We invested much on the advanced production facilities and testing equipments. We have a powerful R&D and skillful worker group. Based on ISO9001, we built up a complete quality control system.

The best services to you
1 year Warranty
ODM & OEM service
24 hours online service

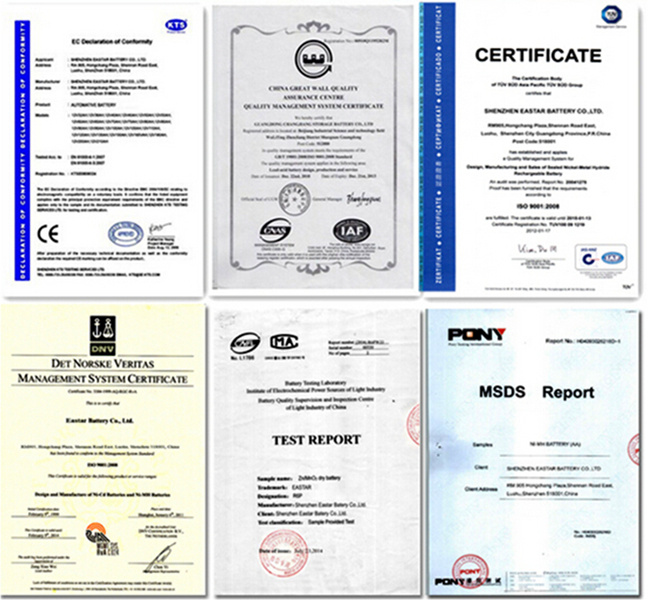

Certifications

Payment & Shipping

FAQ

1. Q: Can you accept OEM and ODM Service?

A: Yes, we supply OEM&ODM service as clients requirement.

2. Q: Can we get samples for test?

A: Yes, we offer sample, but free samples are not available at beginning.

3. Q: What's your payment term?

A: TT, L/C, West Union, Paypal etc.

4. Q: What's your warranty for products?

A: Generally speaking, it's one year's warranty, for quality problems, we will send you a new one.

5. Q: How long will be the delivery?

A: Usually delivery in 7-15 days, but could be change according to the quantity or other things.

6. Q: How do you control your product quality.

A: All batteries have 10 steps testing during the whole production.

Contact Us

Mark Chan

Shenzhen Eastar Battery Co.ltd

Phone: +8615671606270

Web: www.eastarbattery.com

www.eastarbatery.en.alibaba.com

A professional battery manufacturer group
Shenzhen Eastar Battery Co., Ltd. Was set up as a manufacturer of various batteries in 1997. Our main products include lead-acid batteries(general batteries, auto batteries), dry batteries ( carbon & alkaline), Ni-MH/ni-CD batteries and packs, lithium batteries ( Li-ion, li-po). With six manufacturing facilities of around 200, 000 square meters, and a team of highly qualified staff, eastar grew up as a professional battery group in southern China.

Quality is our life
As a battery manufacturing group, we have separate factory located in guangzhou, shenzhen and xingfeng for different battery types. We understand well on the importance of the quality, so we invested much on the advanced production facilities and testing equipments. We have a powerful R&D and skillful worker group. Based on ISO9001, we built up a complete quality control system. We always keep ourselves working ahead on technology and quality control in battery field.

It contributed us to supply with good quality products to our customers always. With a large capacity, we export more than 50 containers battery monthly to countries all over the world.

The best services to you
We built up our sales team with 20 saleswomen/ salesmen in down town shenzhen. Our team is a experienced sales team, our motto is: Every time the best services to every customer. We are good at both ODM orders and OEM projects. If you are in battery business, come to us, I believe you will find that you are working with the right partner: Shenzhen eastar battery Co., Ltd.
