| Prod Model: |
BBG-HL01 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Cell: |
Samsung Icr18650-30A 3000mAh Cells |
| Voltage: |
36V |
| Capacity: |
15ah |
| Configuration: |
10s5p |
| Working Current: |
15-20A |
| Color: |
Black and Grey |
| Net Weight: |
Approx 3.5kg |
| Charger: |
42V-2.5A Aluminum Charger |
| Cycle Life: |
>500times |
| Application: |
Electric Bicycle or Tricycle |
| Type: |
Lithium-Ion Battery Pack |
| Connection Mode: |
Series and Parallel |
| Usage: |
Electric Bicycle or Tricycle |
| Standard Voltage: |
36V |
| Size: |
360*90*92mm |
| Rated Capacity: |
15ah |
| Electrolyte: |
Lithium Battery |
Product Description
Product Description

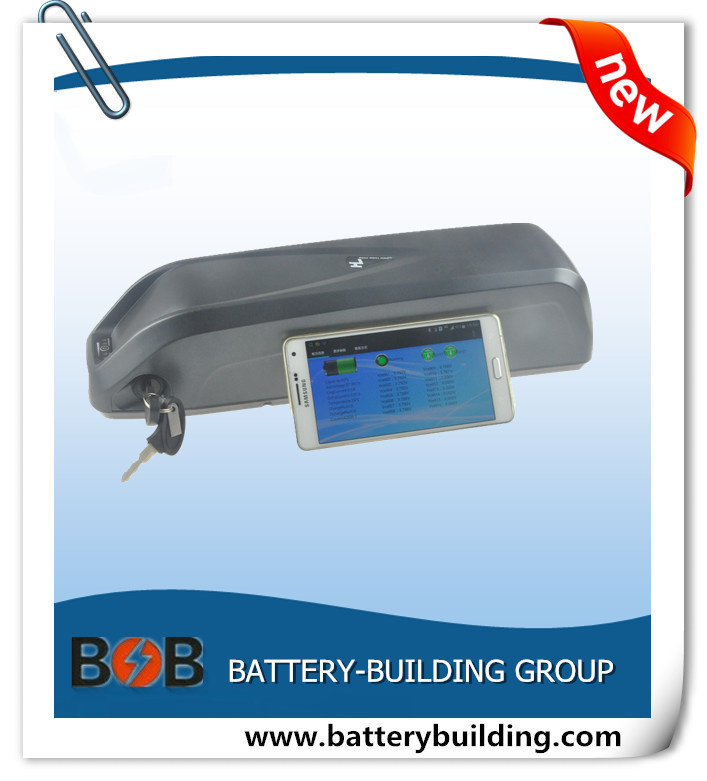

36V Samsung water bottle e-bike lithium rechargeable battery with bluetooth BMS via 10S5P
Internal Dimension: 310*78*73mm
External Dimension
External size: 361*90*92mm
Recommended to install the electric core number: 50 or 52pcs 18650 cells
1. Instruction of the Battery Pack Structure
(1) Battery modules
50 cells, 5 parallel and 10 serial to make a battery module
52 cells, 4 parallel and 13 serial to make a battery module
(2)BMS
The BMS provides protection against overcharge, and short circuit, through monitoring
single string of cells. Also it enables every battery pack to obtain independent balancing function
(3)Charge/discharge standards for cell
Cell adopted: ICR3.7V2200mAh-3000mAh
Constant charge current: 0.2 C 3A -1 C3A is the best charging current, single cell max voltage<4.3V
Constant discharge current: 15-20A is the best discharging current, single cell min voltage> 2.75V
Rapid charge capability: Max charging current 0.5C.
2. Storage and transportation
(1)Based on the characters of cells, proper environment for transportation of battery pack need to be created to protect the battery.
(2)During transportation,50% SOC must be kept to ensure that short circuit, appearance of liquid in the battery or immersion of battery in liquid never occur.
(3)Battery should be kept at -20ºC~45ºC in warehouse where it is dry, clean and well-ventilated.
(4)During loading of battery, attention must be paid against dropping, turning over and serious
stacking.
3. Warnings and Tips
In order to prevent the battery leaking, getting hot and exploding, please pay attention to preventing
measure as following:
Never throw the battery into water, keep it under dry, shady and cool circumstance when not use.
Never upside down the positive and negative.
Never connect the positive and negative of battery with metal.
Never ship or store the battery together with metal
Never knock, throw or trample the battery.
Never cut through the battery with nail or other edge tool.
Never use or keep the battery under the high temperature. Otherwise it will cause battery heat, get into fire or lose some function and reduce the life. The proposed temperature for long-term storage is 10-45ºC.
NO | Item | General Parameter | Remark |
| 1 | Model | BBG-HL01 | |
| 2 | Standard capacity(0.2C) | 15Ah | |
| 3 | Rated voltage | 36V | |
| 4 | Max. charge voltage | 42.0V | Single Ave. charge Voltage: 4.2V |
| 5 |
Over charge protection
| Over charge detection voltage | 4.40±0.025V | |
| Over charge release voltage | 4.3±0.025V | |
| 6 | Standard charge current | 3A | 0.2C |
| 7 | Charging time | About 300 minutes | 0.2C |
| 8 | Discharge cut-off voltage | 27.5V | Single Ave. Discharge Voltage: 2.75V |
| 9 |
Over discharge Protection
| Over discharge detection voltage | 2.5±0.05V | |
| Over discharge release voltage | 2.75±0.05V | |
| 10 | Max. continuous discharge current | 20A(adjustable) | |
| 11 | Peak discharge current | 45A(adjustable) | 3C |
| 12 | Short circuit protection | Detection delay time | XXμs | Release condition | Cut-off load |
| 12 | Battery dimension | 360*90*92mm | |
| 13 | Total weight(Approx.) | About 3.5kg | |
| 14 | Operation temperature | Standard | 0~45 | |
| Discharge | -20~65 | |
| Storage | -20~65 | |
