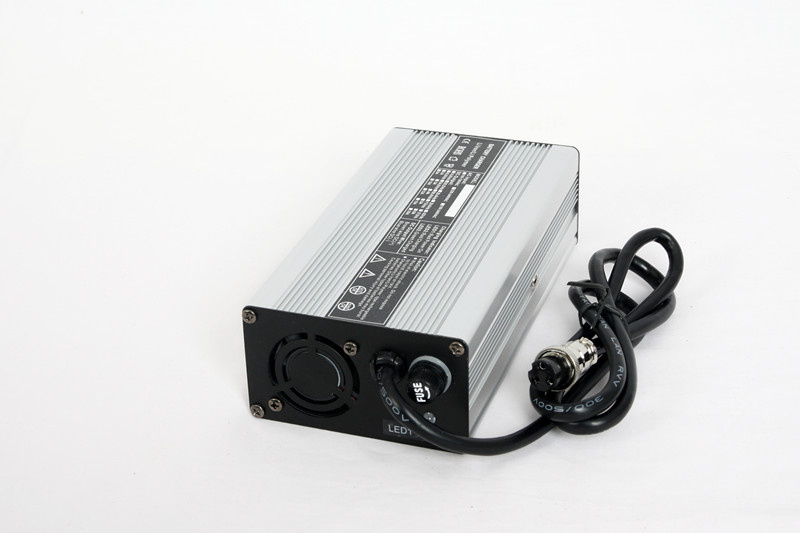

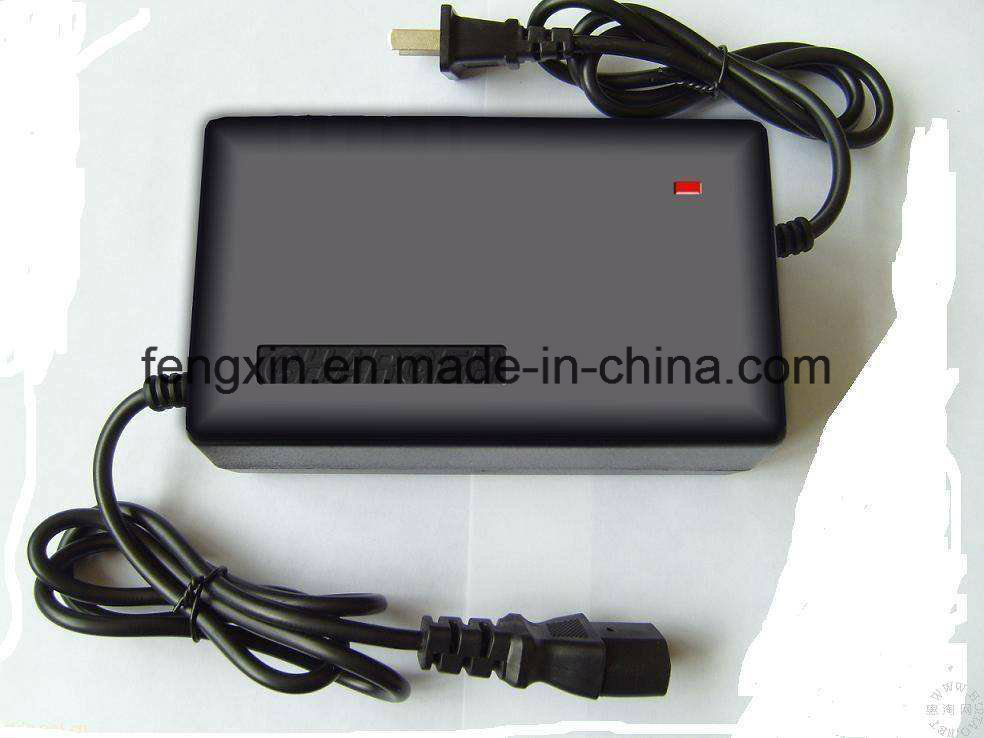

36V5a Golf Cart Battery Charger
| Price: |
US $ 4.5/Piece |
| Min Order: |
5/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
48V20AH |
| Product Name: |
Electric Bicycle/UPS Battery Charger for 6s 2A Li- |
| MOQ: |
1PC |
| Materical: |
Plastic |
| Ship Port: |
Shanghai |
| Type: |
Lead-Acid Battery Charger |
| Charging Type: |
Electric Charger |
| Principle: |
Standard Battery |
Product Description
Product DescriptionFeatures:
1.short-circuit protection,charger o/p current automatically when short-circuit.
2.overload protection:charger o/p current limited automatically when overload.
3.reverse polarity protection:it will shut down when the wire is connected,charge DC fuse or remove the fault.
4.3-stage charging mode: CC(constant current), CV(constant voltage) and float stage.
5. Reliable, elegant,Small size, light,
6.charging state:two LED display.
7.all kinds of production has passed the CE certification.
8.Efficiency: ≥88 %( full capacity)
Operate Condition:
1.Temperature: -10~45 Degree
2.Hi-pot: ≥AC1500 (P to S),≥AC1500 (P to FG)
3.Life Expectancy: 50,000H at 25 Degree
Apply to:
1. Electrical forklift
2. Electrical motorcycle
3. Electrical tourist-car
ES-J (240W) Battery Charger Datasheet:
| No. | spec | Constant voltage | Constant current | Transition/
Cut-off | Weight | size |
| Lead-acid | Li-Mn | Lifepo4 | Max (A) | Lead-acid | Li | (kg) | (mm) | |
| 1 | 12V | 14.7V | 16.8V | 14.6V | 10 | 0.2 | 0.5 | 1.0 | 170*90*50
| |
| 2 | 24V | 29.4V | 29.4V | 2
9.2V | 7 | 1.4 | 0.35 | |
| 3 | 36V | 44.1V | 42.0V | 43.8V | 5 | 1.0 | 0.25 | |
| 4 | 48V | 58.8V | 54.6V | 58.4V | 4 | 0.8 | 0.2 | |
| 5 | 60V | 73.5V | 75.6V | 73.0V | 3 | 0.6 | 0.15 | |
| 6 | 72V | 88.2V | 84.0V | 87.6V | 2 | 0.4 | 0.1 | |
| Features | 1 | Full automatic transition of CC, CV and Float/cut-off |
| 2 | Precise limit of voltage & current, guarantee fully charged and avoid over charge |
| 3 | Protections: over current, over voltage, short circuit and reverse polarity |
| 4 | High Efficiency: 95%~98%, PFC: 0.96, eco-friendly |
| 5 | Two LED indicators, Aluminium, elegant and reliable |
| 6 | CE & ROHS Certified, Safety and High Quality |
| Note: Cut-off point for Li battery is 5% of CC, and it can be set between 5%-10%. |
It has aluminium case,elegant appearance,light weight and small size.We own high-level developing engineers and manufacturing staffs and have abilty to manufacture large order.
Package:
There is product name, model, name of manufacturer, safety approval, serial number, User Manual and packing
list in the package box.
Transportation:
Suit for transportation by truck, the products should be shielded by tent from sunshine, and loaded and unloaded carefully.
Storage:
Products should be stored in package box when it is not used. And warehouse temperature should be -40~70ºC, and relative humidity is 5~95%. In the warehouse, there should not be harmful gas, inflammable, explosive
products, and corrosive chemical products, and strong mechanical vibration, shock and strong magnetic field affection.
The package box should be above ground at least 20cm height, and 50cm away from wall, thermal source, and vent.
Under this requirement, product has 2 years of storage period, and should be rechecked when over 2 years.
