36VDC 0.9n. M 104W Magnet DC Motor

Name: 36VDC 0.9n. M 104W Magnet DC Motor
Brand: all-electronics-online.com
SKU: 696915792
Availability: InStock
Rating: 4.8 (129 reviews)

Price:	US $ 22.33-30/Piece
Trade Terms:	FOB,CIF,CIP
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	80ZYT134-3614
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Voltage:	36VDC
Rated Speed:	1100rpm
No-Load Speed:	1400rpm
Rated Torque:	0.9n.M
Rated Current:	3.2A
No-Load Current:	0.4A
Power:	104W
Application:	Power Tools
Operating Speed:	Adjust Speed
Excitation Mode:	Excited
Structure And Working Principle:	Brush
Type:	PMDC Motor
Brand:	Sunrise Motor

Product Description

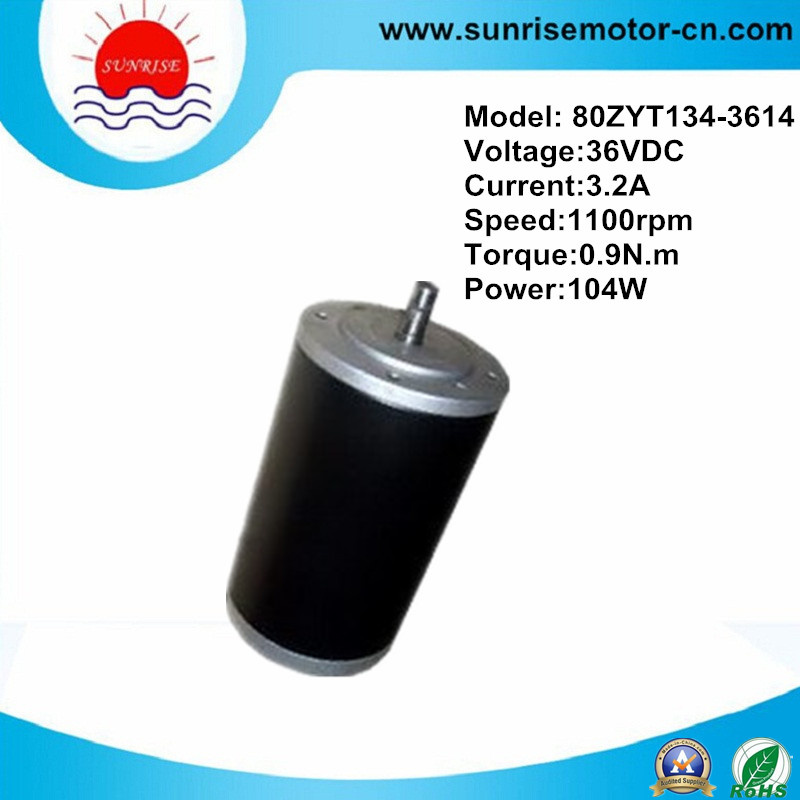

PMDC MOTOR
MODEL: 80ZYT134-3614
Voltage: 36V
Rated Torque: 0.9N. m
Rated Current: 3.2A
Rated Speed: 1100rpm
No-load speed: 1400rpm
Power: 104W
Length: 134mm

Special motors can be customized per your requirements.
Encoder and gear box can be fixed.

Model	Voltage (V DC)	No Load		Rated Load			Length (mm)
Model	Voltage (V DC)	Current (A)	Speed (r/min)	Torque (N. m)	Current (A)	Speed (r/min)	Length (mm)
80ZYT115-1234	12	0.9	3400	0.24	8	3000	115
80ZYT134-3614	36	0.4	1400	0.9	3.2	1100	133.5

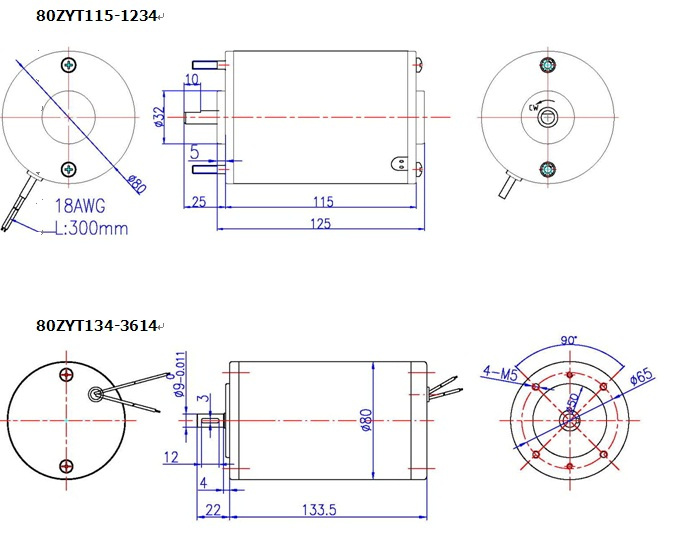

Figure:

Changzhou Sunrise Electric Motor Company was founded in 2004 and is located about 200 km west of Shanghai. SUNRISE ELECTRIC MOTOR manufacture and export PMDC motors, BLDC motors, Hybrid Stepping motors with high torque output (0.2N. M - 28N. M), and customized motors which are per customers' drawings, specification and technical requirements. Also, we source and customize products associated with electric motor applications such as, motor controllers and drivers, motor sensing boards (PCB), etc.

The motors introduced can be used for commercial and residential applications such as industrial automation, office equipment, appliances for household, etc.

The motors listed have been exported overseas through our sales representatives in North America and Europe.
