| Prod Model: |
OS-636-CV |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Output Power: |
36W Max |
| Output: |
Constant Current or Constant Voltage |
| Input Voltage: |
170-260V |
| IP Rating: |
IP67 |
| Warranty: |
2 Years Warranty |
| Use: |
for Spot Light, Down Light, Panel Light |
| Size: |
198*30*22.5mm |
| Case: |
Aluminum |
| Application: |
LED Module,Strips,Light Box,Wall Washer... |
| Usage: |
Construction, Building |
| Circuit Structure: |
PWM Controlled |
| Output Type: |
Terminal |
| Driving Method: |
Constant Voltage or Constant Current |
| Certification: |
Ce, RoHS, EMC Test |
| In-Out: |
AC to DC |
| Power Supply Voltage: |
AC170-260V |
| Brand: |
Neonpro |
Product Description

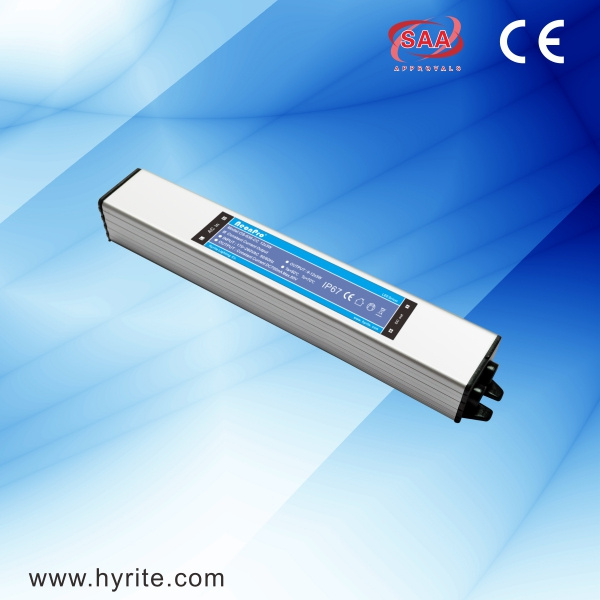

36W CV 12/24V Waterproof LED Lighting Transformer Constant Voltage with Aluminum BoxProduct Feature of the outdoor waterproof LED Driver:*Constant voltage and constant current, aluminum case, IP67
*Used for Spot Light, Down Light, Panel Light etc
*Protections: Short circuit/over load/over voltage/over temp
*2 years warranty
*CE approval
Note:Trade Terms: EXW, FOB, CIF and CNF term available
Lead time of
the outdoor waterproof LED Driver : 15 days after order confirmation
Payment terms: L/C, T/T, Western Union
MOQ: 1 pc
Shipping:* DHL FedEx TNT UPS EMS
* By Sea
* By Air
Data sheet of the outdoor waterproof LED Driver:| Model no. | OS-636-CV |
| Input voltage | 170-260 VAC 50/60 Hz |
| Max. power | 36W max |
| Output type | Constant Current or Constant Voltage |
| Efficiency | 85% |
| Output | 12/24VDC |
| Overload protection | 105% hiccup mode, auto-recovery |
| Over voltage protection | 120% rated output voltage |
| Withstand voltage | I/P~O/P:1.5kVAC, 1 minute |
| Operating temperature | -25~40 degree |
| Installation | Waterproof |
| IP rating | IP67 |
| Certificates/standards | CE |
| Connection input/output | Terminal |
| Dimensions(L*W*H) | 198*30*22.5mm |
| Packing information | 100Pcs/ Carton, G.W 3.5KG |
Applications of LED Driver* LED module* LED strip* LED-neon tube* Bar light* Other signage lightingImportant Parameter of LED Driver:* Store Temperature: -25~75° C* Working Temperature: -25~40° C* Work environment: Indoor or outdoor installations* Waterproof Rating: IP67 Our Service & Advantages: * 24 hours Service for customers all over the world
* More than 20 years sales and manufacturing experience for LED Power Supply and Neon transformers in China.
* All of our products are sold to overseas market.
* Our products passed CE ROHS SASO TUV SAA UL approval.Equipment and Production Lines:
We attend: Sign China; LED China; Guangzhou International Lighting Exhibition; Shanghai Int'l Lighting Expo; Light India; Hong Kong International Lighting Fair and Professional international lighting exhibition.Welcome to our factory!Only 45 mins away from Guangzhou International Baiyun Airport.Contact Info:Company Name: Hyrite Lighting Co. (known as NeonPro)Address:15 Junye RD, Shishan Industry Zone C, Shishan, Nanhai, Guangdong,P.R.China, 528225Tel: +86-757-81200188(10 lines)
Fax: +86-757-81200369
Customer Service: 400 660 8083 (China), +86-757-81200368(Overseas)Website: www.hyrite.com
Hyrite Lighting Company, also known as NeonPro Co, has 20 years experience in the design, development and manufacturing of electronic power supplies, one of an extremely successful range of signage products including, over the last seven years, LED modules and driver units.
The senior management having recognized the ongoing success and further potential of our LED products and utilizing their experience and proven track record in innovative product design and manufacture has formed Hyrite Lighting Company solely dedicated to manufacturing products specifically for the LED signage and lighitng markets.
Our products are surrently being used in many countries under different technical standards in a variety of climate conditions.
Pls kindly check our main products below,
*IP67 Slim high efficiency constant voltage LED power supply (New)
*Traditional IP67 constant voltage waterproof LED power supply
*IP45 Rainproof constant voltage LED power supply.
*IP20 indoor type LED power supply.
*Constant Current LED Driver for LED lighting.
*Dimmable LED driver.
*LED module for Channel letter/light box.
Certificate: CE RoHS SASO SAA TUV UL approved
In addition we offer comprehensive OEM and ODM services to our partners.
We sincerely welcome your visiting and valued advices to us. Any questions from you, our experienced salesperson will feedback to you within 12 hours.
