37dBm GSM 900MHz Repeater/Mobile Signal Booster/Mobile Phone Booster (GW-37CSRG)
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CIF,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: |
GW-37CSRG |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| 37dBm: |
Channel Selective Repeater |
| Type: |
Signal Repeater |
| Transmission Medium: |
Cable |
| Standard: |
Standard |
| Lightning Protection: |
With Lightning Protection |
| Certification: |
CE |
| Condition: |
New |
Product Description

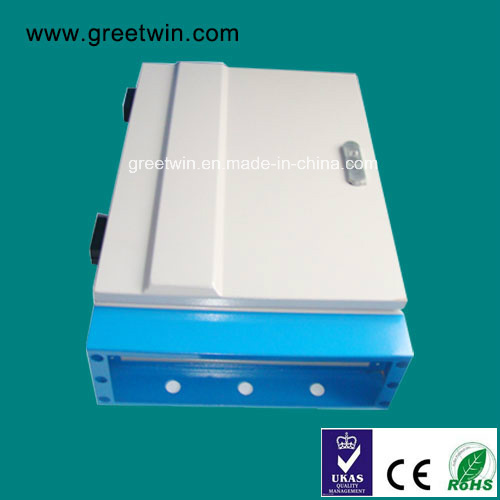

37dBm GSM 900MHz Repeater/Mobile Signal Booster/Mobile Phone Booster (GW-37CSRG)
Model:
GW-37CSRGFeature:* Each Central frequency can be shifted.
* High linear design, low interference to BTS.
* Intelligent design, built-in ALC function.
* With the used of IF saw fillter to make it good out-of-band rejection.
* Indoor coverage up to 10000-50000 m² , outdoor coverage up to 1-5 KM.
* Can be controled and monitored, via RS232 connects PC for local control, via GSM modem connects PC for remote control.
Application:To expand signal coverage or fill signal blind area where signal is weak or unavailable.
· Outdoor: Airports, tourism regions, golf courses, tunnels, factories, mining districts, villages, highways
· Indoor: Hotels, exhibition centers, basements, shopping malls, offices, parking lots.
| Items | Uplink | Downlink |
| Frequency Range | GSM900 | 890 ~ 915 MHz | 935 ~ 960 MHz |
| Max. Gain | 83 dB | 87 dB |
| Bandwidth | 200K |
| Channels Number | ≤ 8 Channels |
| Manual Gain Control | 31dB in step of 1dB |
| Automatic Gain Control | > 20dB |
| Ripple in Band | ≤ 3dB(Typical) |
| Out of Band Rejection | ± 400 KHz ≤ -20 dBc |
| ± 600 KHz ≤ -30 dBc |
| ± 1 MHz ≤ -40 dBc |
| ± 5 MHz ≤ -50 dBc |
| Max. Input Power Without Damage | 0 dBm |
| Output Power | 26 dBm | 37 dBm |
| Intermodulation Products | 9KHz~1GHz | ≤ -36 dBm | ≤ -45 dBc |
| 1GHz~12.75GHz | ≤ -30 dBm | ≤ -45 dBc |
| Spurious Emission | 9KHz~1GHz | ≤ -36 dBm | ≤ -36 dBm |
| 1GHz~12.75GHz | ≤ -30 dBm | ≤ -30 dBm |
| Frequency Stability | ≤ 0.01 ppm |
| Noise Figure @ max. gain | ≤ 5 dB(Typical) |
| Return loss | ≤ -14 dB |
| Time Delay | ≤ 4.5 μ s |
| MTBF | > 50000 hours |
| Power Supply | AC: 90~265V, 50/ 60Hz |
| Power Consumption | < 250W |
| Impedance | 50 ohm |
| LED indication | Power LED | DC ON/OFF |
| Alarm LED | Normal: Green; Any Alarm Heppen: Red |
| Remote/ Local Control | Local: Via RS232; Remote: Via wireless Modem |
| RF Connector | N-Female |
| Switch | Power Switch\Battery Switch |
| Cooling | Heatsink Convection cooling |
| Dimensions (D x W xH ) | 420x650x170 mm |
| Weight | < 35 Kg |
| Installation Type | Wall Installation (or Pole Mount) |
| Environment Conditions | IP65 |
| Humidity | < 90% |
| Operating Temperature | -10º C~55º C |
Shenzhen Greetwin Technology Co., Limited is one of the leading suppliers which specializes in designing and manufacturing RF Jamming Equipment and Wireless Coverage Products.
Wireless Coverage Products include RF Repeater.
The RF Repeater solutions will bring smooth and clear calls, support all bandwidths and mobile standards including TETRA, iDEN, GSM850, EGSM, GSM900, DCS1800, PCS1900, CDMA800, CDMA450, LTE 4G, CDMA2000, 3G(WCDMA) as well as TD-SCDMA series.
Such as, Wide band Repeater, Band selective Repeater, Channel selective Repeater, Frequency-shifting Repeater, Fiber Optic Repeater, Digital ICS Repeater, TMA, TMB, Micro Repeater, Consumer Signal Booster.
We are committed to providing the best solutions for mobile operators, offering OEM and ODM service. Products can be customized according to different operators in the world and the output power are available from 0.01W to 200W.
Comprehensive repeater will supply optimizing solutions for vehicle, office, commercial center, countryside, tunnel, Mountain. etc.
RF Jamming Equipment include Cell Phone Signal Jammer and RF Communication Jammer(20-6000MHz).
GREETWIN is the foremost innovator in the field of RF jamming, offering a comprehensive range of jamming equipment and systems which have a proven record of reliability and performance in all types of applications and environmental conditions.
In countering the ever-growing threat of remotely controlled improvised explosive devices (RCIEDs), we has invested heavily in the development of a range of multi-band, very-high-power jamming systems for the protection of troop transportation, military and police checkpoints, large governmental establishments, bomb disposal squads and VIP convoys.
Such as, High power bomb jamming devices, Military IED jammers, Digital programable jammer, VIP Convoy Bomb Jammers (RCIED Jammers), Mobile Phone Signal Jammers, Prison Jammers, Portable Jammers, Handheld Jammers, to suit all types counter terrorism activities.
Our clients are government agencies, military, SWAT team, prison, school, bank, law enforcement and VVIPs. We also serve corporations and private individuals who must take responsibility for protecting assets, proprietary information, executives and family members.
GREETWIN products have been exported to more than 60 countries and regions around the world. Such as Southeast Asia, Africa, Europe, South America and the Middle East.
