| Prod Model: |
HMR71A-6-0.37KW |
| Markets: |
Eastern Europe |
| Frame Size Range: |
71 |
| Rated Frequency: |
50Hz |
| Rated Voltage: |
220/380V, 380/660V, 230/400V, 400V/690V |
| Rated Power Range: |
0.37kw |
| Protection Class: |
IP55 |
| Insulation Class: |
F |
| Mounting Type: |
B3, B5, B14, B35multi and Pad Mounting |
| Bearing: |
C&U, NSK, SKF etc |
| Delivery: |
15-30days |
| Package: |
Carton Box&Wooden Box |
| Application: |
Universal |
| Operating Speed: |
Constant Speed |
| Number Of Stator: |
Three-Phase |
| Species: |
Y, Y2 Series Three-Phase |
| Rotor Structure: |
Squirrel-Cage |
| Casing Protection: |
Closed Type |
| Starting Mode: |
y-δ Starting |
| Brand: |
Hongma |
| Certification: |
GOST Standard |
Product Description

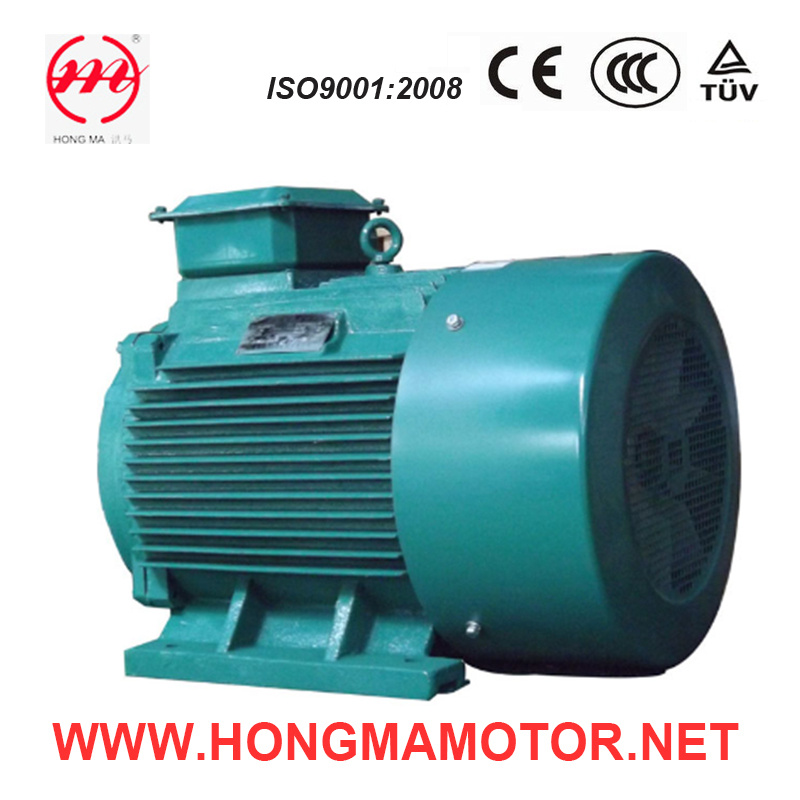

HMR Series GOST R Standard Three Phase Asynchronous Electric Motor
GOST standard three-phase asynchronous electric motors, was introduced as an updated design, basically in conformity with IEC standard ,but also combining other eastern Europe. It is an ideal energy saving product. Moreover, it has other good features like high starting torque, unique appearance, convenient operation and so on.
GOST Standard motors with the mounting dimension in accordance with standard IEC60034 and DIN42673, is identical to the performance and mounting dimension of GOST R51689-2000.
GOST standard motors can be widely used in various kinds of general used machineries like compressors, fans, pumps, machine tools, mills, transportation, machines and so on, and can also be used in the hazardous areas such as oil and chemical industry, steel plants ,marine industry and mining industry.
Technical Data:
| Type | Ouput | Speed | Rated current | Efficiency | Power factor | Is/In | Ts/Tn | | Noise | Weight |
| KW | HP | r/min | A | % | COSΦ | LwdB(A) | KG |
| Poles:2 Frequency:50Hz Synchronous Speed:3000r/min Voltage:380V |
| 71A2 | 0.75 | 1 | 2820 | 1.9 | 74 | 0.83 | 5.3 | 2.5 | 2.7 | 61 | 8.7 |
| 71B2 | 1.1 | 1.5 | 2800 | 2.5 | 77 | 0.86 | 5.2 | 2.6 | 2.8 | 61 | 10.5 |
| 80A2 | 1.5 | 2 | 2835 | 3.2 | 79 | 0.87 | 6.5 | 2.8 | 3.0 | 63 | 13.0 |
| 80B2 | 2.2 | 3 | 2820 | 4.6 | 82 | 0.87 | 6.5 | 3.2 | 3.4 | 63 | 15.0 |
| 90L2 | 3 | 4 | 2835 | 6.5 | 82 | 0.86 | 6.5 | 2.9 | 3.2 | 63 | 17.0 |
| 100S2 | 4 | 5.5 | 2845 | 8.7 | 83 | 0.84 | 7.0 | 3.4 | 4.0 | 66 | 20.5 |
| 100L2 | 5.5 | 7.5 | 2860 | 11 | 84 | 0.86 | 5.5 | 1.8 | 2.2 | 66 | 28.0 |
| 112M2 | 7.5 | 10 | 2895 | 15 | 87 | 0.89 | 7.0 | 2.5 | 3.2 | 69 | 49.0 |
| 132M2 | 11 | 15 | 2886 | 22 | 87 | 0.88 | 7.0 | 2.3 | 3.0 | 69 | 54.0 |
| 160S2 | 15 | 20 | 2940 | 30 | 88 | 0.86 | 7.5 | 2.0 | 3.2 | 75 | 116.0 |
| 160M2 | 18.5 | 25 | 2940 | 35 | 90 | 0.88 | 7.5 | 2.0 | 3.2 | 75 | 130.0 |
| 180S2 | 22 | 30 | 2940 | 42 | 90.5 | 0.89 | 7.5 | 2.1 | 3.5 | 79 | 150.0 |
| 180M2 | 30 | 40 | 2940 | 56 | 92 | 0.89 | 7.5 | 2.2 | 3.5 | 79 | 170.0 |
| 200M2 | 37 | 50 | 2940 | 70 | 91.5 | 0.88 | 7.5 | 2.3 | 3.2 | 82 | 230.0 |
| 200L2 | 45 | 60 | 2940 | 83 | 92 | 0.9 | 7.5 | 2.4 | 3.3 | 82 | 255.0 |
| 225M2 | 55 | 75 | 2950 | 100 | 93.5 | 0.9 | 7.5 | 2.3 | 4.0 | 84 | 320.0 |
| 250S2 | 75 | 100 | 2970 | 136 | 94 | 0.89 | 7.5 | 2.6 | 4.0 | 84 | 450.0 |
| 250M2 | 90 | 120 | 2970 | 162 | 94 | 0.9 | 7.5 | 2.7 | 4.0 | 86 | 530.0 |
| 280S2 | 110 | 150 | 2970 | 190 | 93 | 0.91 | 7.0 | 2.0 | 2.7 | 86 | 650.0 |
| 280M2 | 132 | 180 | 2970 | 230 | 93 | 0.91 | 7.0 | 2.0 | 2.7 | 86 | 700.0 |
| 315S2 | 160 | 215 | 2970 | 301 | 95.8 | 0.92 | 7.0 | 2.6 | 2.7 | 87 | 1170.0 |
| 315M2 | 200 | 270 | 2980 | 360 | 96.1 | 0.93 | 7.3 | 2.1 | 2.0 | 87 | 1460.0 |
| 355M2 | 250 | 340 | 2980 | 433 | 96 | 0.92 | 7.1 | 1.8 | 2.2 | 103 | 1900.0 |
| 355L2 | 315 | 430 | 2980 | 545 | 96 | 0.92 | 7.1 | 1.8 | 2.2 | 103 | 2300.0 |
| Poles:4 Frequency:50Hz Synchronous Speed:1500r/min Voltage:380V |
| 71A4 | 0.55 | 0.75 | 1400 | 1.5 | 72 | 0.8 | 5.5 | 2.5 | 2.6 | 56 | 8.4 |
| 71B4 | 0.75 | 1 | 1400 | 2.0 | 75 | 0.75 | 5.5 | 2.3 | 2.8 | 56 | 10.0 |
| 80A4 | 1.1 | 1.5 | 1420 | 2.7 | 77 | 0.8 | 5.5 | 2.3 | 2.6 | 53 | 14.0 |
| 80B4 | 1.5 | 2 | 1420 | 3.6 | 78.5 | 0.8 | 5.5 | 2.3 | 2.8 | 53 | 16.0 |
| 90L4 | 2.2 | 3 | 1390 | 5.2 | 78 | 0.82 | 5.0 | 2.2 | 2.6 | 53 | 17.0 |
| 100S4 | 3 | 4 | 1395 | 7.3 | 78 | 0.8 | 5.5 | 2.7 | 3.0 | 62 | 21.0 |
| 100L4 | 4 | 5.5 | 1435 | 9.4 | 83 | 0.78 | 6.6 | 2.8 | 2.6 | 62 | 37.0 |
| 112M4 | 5.5 | 7.5 | 1450 | 11.3 | 87 | 0.85 | 7.0 | 2.4 | 3.0 | 59 | 45.0 |
| 132S4 | 7.5 | 10 | 1455 | 15.6 | 88 | 0.83 | 7.0 | 2.8 | 3.2 | 59 | 52.0 |
| 132M4 | 11 | 15 | 1435 | 21.8 | 87 | 0.88 | 7.0 | 2.5 | 2.9 | 59 | 60.0 |
| 160S4 | 15 | 20 | 1460 | 29.4 | 89 | 0.87 | 7.0 | 1.9 | 2.9 | 67 | 125.0 |
| 160M4 | 18.5 | 25 | 1460 | 35.1 | 90 | 0.89 | 7.0 | 1.9 | 2.8 | 67 | 142.0 |
| 180S4 | 22 | 30 | 1460 | 41.7 | 91 | 0.88 | 7.0 | 2.1 | 3.0 | 73 | 160.0 |
| 180M4 | 30 | 40 | 1460 | 56.3 | 91 | 0.89 | 7.0 | 2.4 | 3.5 | 73 | 190.0 |
| 200M4 | 37 | 50 | 1460 | 70.2 | 92 | 0.87 | 7.5 | 2.2 | 3.2 | 76 | 230.0 |
| 200L4 | 45 | 60 | 1460 | 85.4 | 92 | 0.87 | 7.0 | 2.2 | 2.6 | 76 | 260.0 |
| 225M4 | 55 | 75 | 1470 | 103.8 | 92.5 | 0.87 | 7.5 | 2.2 | 3.5 | 75 | 325.0 |
| 250S4 | 75 | 100 | 1470 | 149.4 | 93 | 0.82 | 7.5 | 2.5 | 3.5 | 75 | 450.0 |
| 250M4 | 90 | 120 | 1480 | 169.0 | 93 | 0.87 | 7.5 | 2.5 | 3.5 | 80 | 495.0 |
| 280S4 | 110 | 150 | 1470 | 197.5 | 93 | 0.91 | 7.0 | 2.0 | 2.7 | 80 | 650.0 |
| 280M4 | 132 | 180 | 1470 | 237.0 | 93 | 0.91 | 7.0 | 2.0 | 2.7 | 80 | 700.0 |
| 315S4 | 160 | 215 | 1480 | 294.1 | 95 | 0.87 | 6.5 | 1.8 | 2.2 | 81 | 1000.0 |
| 315M4 | 200 | 270 | 1480 | 363.5 | 95 | 0.88 | 6.8 | 2.0 | 2.4 | 81 | 1200.0 |
| 355M4 | 250 | 340 | 1490 | 442.9 | 95.3 | 0.9 | 6.9 | 2.1 | 2.2 | 101 | 1700.0 |
| 355L4 | 315 | 430 | 1490 | 558.0 | 95.3 | 0.9 | 6.9 | 2.1 | 2.2 | 101 | 1900.0 |
| Poles:6 Frequency:50Hz Synchronous Speed:1000r/min Voltage:380V |
| 71A6 | 0.37 | 0.5 | 910 | 1.2 | 64 | 0.72 | 4.0 | 2.0 | 2.2 | 51 | 8.4 |
| 71B6 | 0.55 | 0.75 | 915 | 1.8 | 67 | 0.7 | 4.0 | 2.0 | 2.2 | 51 | 10.0 |
| 80A6 | 0.75 | 1 | 930 | 2.3 | 71 | 0.7 | 4.0 | 2.0 | 2.4 | 52 | 14.0 |
| 80B6 | 1.1 | 1.5 | 930 | 3.2 | 72 | 0.72 | 4.0 | 2.0 | 2.4 | 52 | 16.0 |
| 90L6 | 1.5 | 2 | 925 | 4.5 | 72 | 0.71 | 4.5 | 2.4 | 2.8 | 60 | 18.0 |
| 100L6 | 2.2 | 3 | 950 | 5.6 | 78 | 0.76 | 5.3 | 2.2 | 2.7 | 57 | 33.5 |
| 112MA6 | 3 | 4 | 960 | 7.0 | 83 | 0.79 | 5.9 | 2.2 | 2.6 | 56 | 41.0 |
| 112MB6 | 4 | 5.5 | 960 | 9.0 | 84 | 0.8 | 6.0 | 2.2 | 2.6 | 56 | 50.0 |
| 132S6 | 5.5 | 7.5 | 950 | 12.3 | 83 | 0.82 | 5.0 | 2.2 | 2.5 | 62 | 56.0 |
| 132M6 | 7.5 | 10 | 960 | 17.5 | 84.5 | 0.77 | 6.5 | 2.8 | 3.1 | 62 | 61.0 |
| 160S6 | 11 | 15 | 970 | 23.4 | 87 | 0.82 | 6.5 | 2.2 | 2.9 | 65 | 125.0 |
| 160M6 | 15 | 20 | 970 | 31.2 | 89 | 0.82 | 7.0 | 2.3 | 3.0 | 65 | 155.0 |
| 180M6 | 18.5 | 25 | 970 | 36.7 | 89 | 0.86 | 6.0 | 2.2 | 3.0 | 69 | 160.0 |
| 200M6 | 22 | 30 | 970 | 45.7 | 87 | 0.84 | 6.0 | 2.0 | 2.5 | 71 | 195.0 |
| 200L6 | 30 | 40 | 970 | 59.2 | 89.5 | 0.86 | 6.5 | 2.0 | 2.7 | 71 | 225.0 |
| 225M6 | 37 | 50 | 973 | 69.4 | 91 | 0.89 | 6.0 | 2.0 | 2.3 | 73 | 360.0 |
| 250S6 | 45 | 60 | 980 | 85.4 | 92 | 0.87 | 6.0 | 2.0 | 2.0 | 75 | 465.0 |
| 250M6 | 55 | 75 | 980 | 102.7 | 92.5 | 0.88 | 6.0 | 2.1 | 2.2 | 75 | 520.0 |
| 280S6 | 75 | 100 | 985 | 140.1 | 93.5 | 0.87 | 6.5 | 2.0 | 2.4 | 75 | 690.0 |
| 280M6 | 90 | 120 | 990 | 165.3 | 94 | 0.88 | 6.5 | 2.0 | 2.4 | 75 | 800.0 |
| 315S6 | 110 | 150 | 985 | 202.0 | 94 | 0.88 | 7.0 | 2.3 | 2.6 | 76 | 880.0 |
| 315M6 | 132 | 180 | 985 | 239.9 | 95 | 0.88 | 7.0 | 2.4 | 2.6 | 76 | 1050.0 |
| 355MA6 | 160 | 215 | 990 | 288.4 | 95.8 | 0.88 | 7.2 | 1.9 | 2.0 | 92 | 1550.0 |
| 355MB6 | 200 | 270 | 990 | 362.7 | 95.2 | 0.88 | 7.2 | 1.9 | 2.0 | 92 | 1600.0 |
| 355L6 | 250 | 340 | 990 | 453.9 | 95.1 | 0.88 | 7.2 | 1.9 | 2.0 | 92 | 1700.0 |
| Poles:8 Frequency:50Hz Synchronous Speed:750r/min Voltage:380V |
| 71B8 | 0.25 | 0.37 | 700 | 1.0 | 56 | 0.65 | 3 | 1.8 | 2 | 43 | 9 |
| 80A8 | 0.37 | 0.5 | 700 | 1.6 | 59 | 0.59 | 3 | 1.9 | 2.1 | 45 | 15 |
| 80B8 | 0.55 | 0.75 | 675 | 2.1 | 63 | 0.62 | 3.2 | 2.1 | 2.2 | 45 | 18 |
| 90LA8 | 0.75 | 1 | 705 | 2.8 | 67 | 0.6 | 3.3 | 2 | 2.3 | 49 | 23 |
| 90LB8 | 1.1 | 1.5 | 705 | 3.4 | 72 | 0.68 | 4.0 | 2.0 | 2.4 | 49 | 28.0 |
| 100L8 | 1.5 | 2 | 705 | 4.3 | 75 | 0.71 | 4.4 | 2.2 | 2.5 | 53 | 33.5 |
| 112MA8 | 2.2 | 3 | 705 | 5.9 | 75 | 0.75 | 4.0 | 1.7 | 2.3 | 55 | 46.0 |
| 112MB8 | 3 | 4 | 700 | 8.0 | 78 | 0.73 | 4.0 | 1.7 | 2.3 | 55 | 53.0 |
| 132S8 | 4 | 5.5 | 710 | 10.1 | 79 | 0.76 | 4.0 | 1.6 | 1.9 | 59 | 70.0 |
| 132M8 | 5.5 | 7.5 | 710 | 13.7 | 80 | 0.76 | 4.0 | 1.7 | 2.1 | 59 | 86.0 |
| 160S8 | 7.5 | 10 | 730 | 18.2 | 86 | 0.73 | 5.5 | 1.8 | 2.4 | 62 | 125.0 |
| 160M8 | 11 | 15 | 730 | 25.6 | 87 | 0.75 | 6.5 | 1.8 | 2.4 | 62 | 150.0 |
| 180M8 | 15 | 20 | 730 | 34.7 | 86.5 | 0.76 | 5.5 | 2.0 | 2.7 | 65 | 172.0 |
| 200M8 | 18.5 | 25 | 730 | 39.9 | 88 | 0.8 | 5.8 | 2.1 | 2.5 | 65 | 210.0 |
| 200L8 | 22 | 30 | 735 | 49.1 | 88.5 | 0.77 | 6.0 | 2.0 | 2.5 | 65 | 225.0 |
| 225M8 | 30 | 40 | 735 | 63.3 | 90 | 0.8 | 5.5 | 2.2 | 2.2 | 67 | 360.0 |
| 250S8 | 37 | 50 | 740 | 77.2 | 91 | 0.8 | 5.5 | 2.0 | 2.0 | 69 | 465.0 |
| 250M8 | 45 | 60 | 740 | 97.0 | 91.5 | 0.77 | 5.5 | 2.2 | 2.0 | 69 | 520.0 |
| 280S8 | 55 | 75 | 740 | 112.9 | 92.5 | 0.8 | 6.0 | 2.0 | 2.4 | 70 | 690.0 |
| 280M8 | 75 | 100 | 740 | 150.8 | 93.3 | 0.81 | 6.0 | 2.0 | 2.3 | 70 | 800.0 |
| 315S8 | 90 | 120 | 740 | 180.6 | 93.5 | 0.81 | 6.0 | 2.0 | 2.4 | 73 | 880.0 |
| 315M8 | 110 | 150 | 740 | 218.3 | 94.5 | 0.81 | 6.0 | 2.4 | 2.6 | 73 | 1050.0 |
| 355MA8 | 132 | 180 | 740 | 261.0 | 93.7 | 0.82 | 6.4 | 1.8 | 2.0 | 75 | 2000.0 |
| 355MB8 | 160 | 215 | 740 | 314.7 | 94.2 | 0.82 | 6.4 | 1.8 | 2.0 | 75 | 2150.0 |
| 355L8 | 200 | 270 | 740 | 387.4 | 94.5 | 0.83 | 6.4 | 1.8 | 2.0 | 75 | 2250.0 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Package
Frame NO. 80--132 :Package by carton box and then packed by wooden box
Frame NO.160 and above:one wooden box per set
