| Prod Model: |

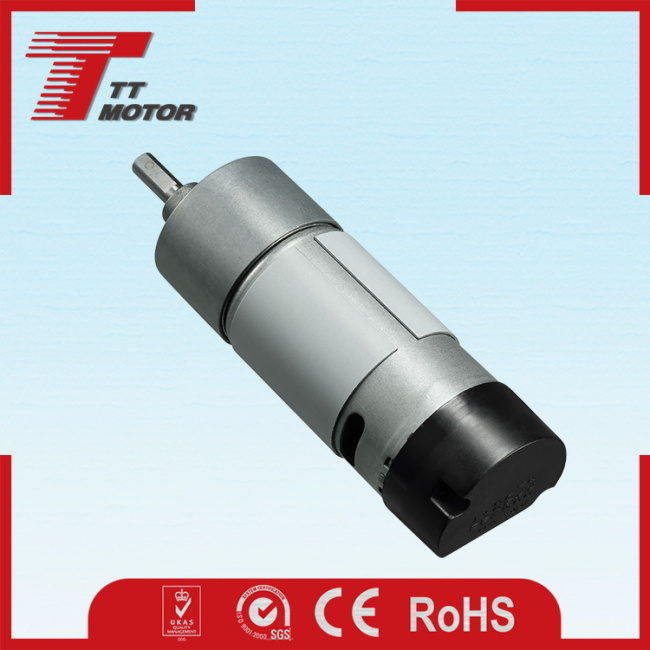

DC gear motor with Encoders GM37-555PM-EN |
| Product Name: |
DC gear motor with Encoders GM37-555PM-EN |
| Rated Voltage: |
12-24V |
| Gear Type: |
Straight Teeth |
| Output Shaft: |
Steel Hardened |
| Main Gear: |
Steel Hardened |
| Housing: |
Zinc Alloy |
| Bearing At Output: |
Sleeve Bearing |
| Axial Play: |
0.05-0.5mm |
| Reduction Ratio: |
3-810 |
| Life Expectency: |
500 hours |
| Application: |
Power Tools |
| Operating Speed: |
Low Speed |
| Structure And Working Principle: |
Brush |
| Excitation Mode: |
Permanent Magnet |
| Type: |
Gear Motor |
| Certification: |
RoHS CE |
| Brand: |
TT Motor |
Product Description

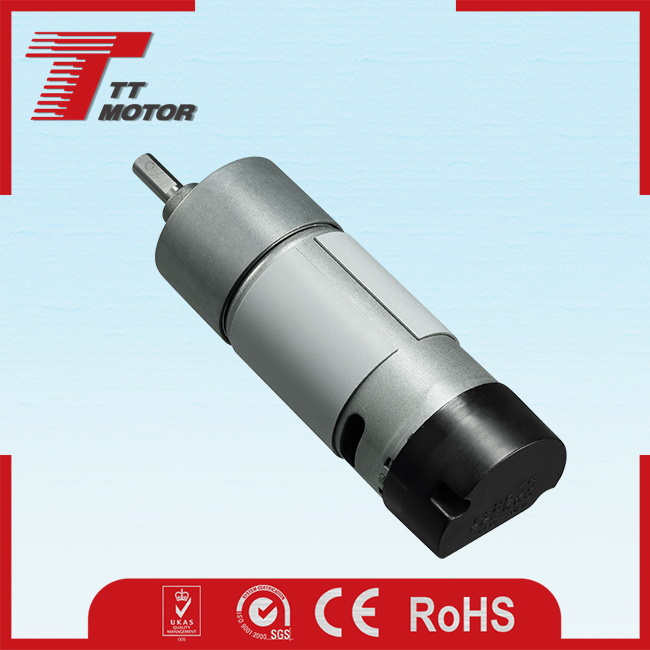

37mm 12V encoder dc gear motor for postal equipments
Main Features:1.OEM/ODM 37mm Eccentric out shaft gearbox plus 520&3530&3527&5 series motor and TEC3650&3640 brushless motor;
2.Small size dc gear motor with low speed and big torque;
3.37mm gear motor provide 1.0Nm torque and more reliable;
4.Suitable to small diameter, low noise and big torque application;
5.DC Gear motors can match encoder, 11ppr;
6.Reduction ratio:6,10,19,30,44,56,90,131,169,270,506,810. | Motor model no. | Rated voltage | No-load speed | No-load current | Rated speed | Rated torque | Rated current | Output power | Stall torque | Stall current |
| VDC | r/min | mA | r/min | g.cm | mA | W | g.cm | A |
| TRS-555PM-1233 | 12 | 3300 | 200 | 2800 | 200 | 1000 | 5.7 | 1150 | 5.5 |
| TRS-555PM-1260 | 12 | 6000 | 300 | 5250 | 290 | 2400 | 16 | 2200 | 15 |
| TRS-555PM-2440 | 24 | 4000 | 150 | 3150 | 200 | 700 | 6.4 | 1000 | 2.7 |
Gear motor technical data : GM37-555PM-1233-xxx| Reduction ratio | 6 | 10 | 19 | 30 | 56 | 90 | 169 | 270 | 506 | 810 |
| Length mm | 19 | 19 | 21.5 | 21.5 | 24 | 24 | 26.5 | 26.5 | 29 | 29 |
| No-load speed rpm | 500 | 300 | 160 | 105 | 57 | 36 | 20 | 12 | 6.5 | 4 |
| Rated speed rpm | 450 | 280 | 150 | 90 | 60 | 31 | 18 | 11 | 6.3 | 4 |
| Rated torque kg.cm | 1.0 | 1.6 | 2.7 | 4.2 | 6.7 | 10 | 10 | 10 | 10 | 10 |
| Max.momentary tolerance torque kg.cm | 5.5 | 9.2 | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 |
Gear motor technical data : GM37-555PM-1260-xxx| Reduction ratio | 6 | 10 | 19 | 30 | 56 | 90 | 169 | 270 | 506 | 810 |
| Length mm | 19 | 19 | 21.5 | 21.5 | 24 | 24 | 26.5 | 26.5 | 29 | 29 |
| No-load speed rpm | 900 | 550 | 300 | 190 | 100 | 65 | 35 | 22 | 12 | 7 |
| Rated speed rpm | 870 | 525 | 275 | 175 | 90 | 61 | 34 | 22 | 12 | 7 |
| Rated torque kg.cm | 1.4 | 2.3 | 3.8 | 6.1 | 10 | 10 | 10 | 10 | 10 | 10 |
| Max.momentary tolerance torque kg.cm | 10 | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 |
Gear motor technical data : GM37-555PM-2440-xxx| Reduction ratio | 6 | 10 | 19 | 30 | 56 | 90 | 169 | 270 | 506 | 810 |
| Length mm | 19 | 19 | 21.5 | 21.5 | 24 | 24 | 26.5 | 26.5 | 29 | 29 |
| No-load speed rpm | 600 | 360 | 200 | 120 | 65 | 45 | 24 | 15 | 8 | 5 |
| Rated speed rpm | 520 | 315 | 165 | 105 | 56 | 36 | 21 | 14 | 8 | 5 |
| Rated torque kg.cm | 1.0 | 1.6 | 2.7 | 4.2 | 6.7 | 10 | 10 | 10 | 10 | 10 |
| Max.momentary tolerance torque kg.cm | 4.8 | 8.0 | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 |
Product ApplicationAutomatic door operators, automatic energy saving bath,electrical controlled valve,oxygen machine,optical equipment, Automat cordless power tool,lighting,etc.

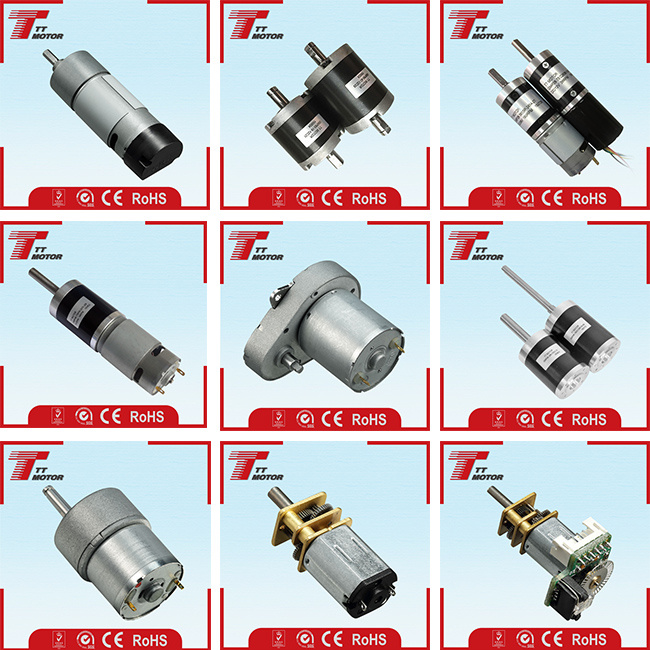

1.Accessory of automobile 2.Paper feed3.Widely used in automatic actuator,electric lock4.Power Lock,Monitor5.Precision instrument6.Mini mechanism,Robot7.Financial apparatus,auto DVD8.Financial apparatus, Ad equipmentRelated ProductsPacking & DeliveryPackaging: single carton packing, 100 pieces per box.
Shipping time:
DHL: 3-5 working days ;
UPS: 5-7 working days;
TNT: 5-7 working days;
FedEx: 7-9 working days;
EMS: 12-15 working days;
China Post: Depends on ship to which country;
Sea: Depends on ship to which country

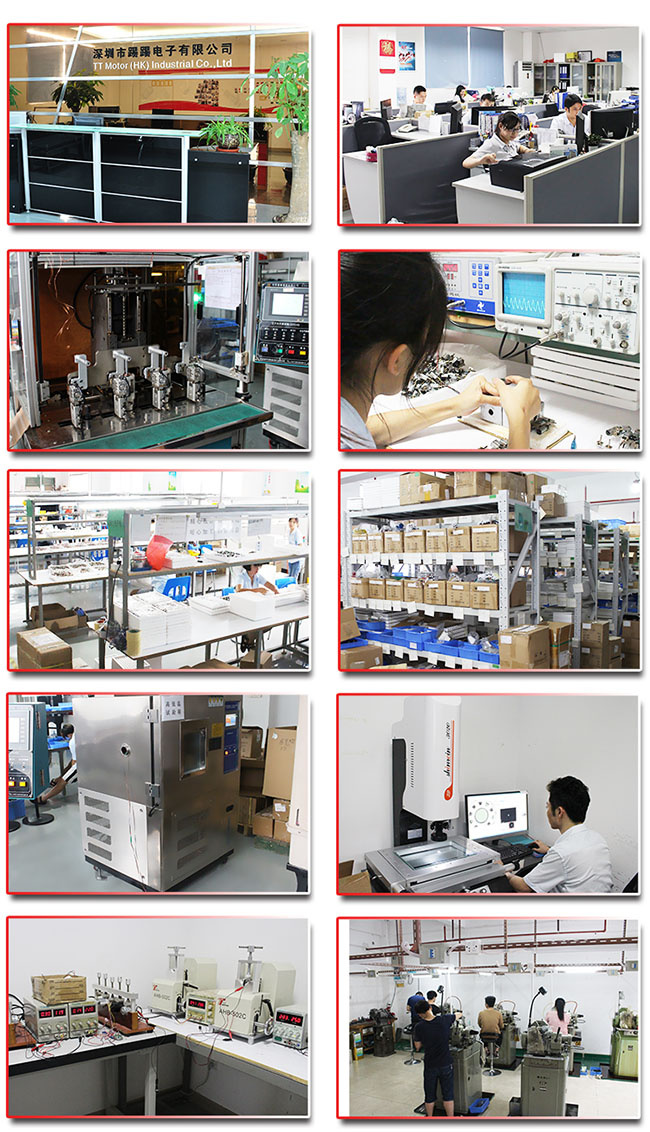

Our companyTT Motor (HK) Industrial Co., Ltd. has been specializing in micro motors, gear motors and their respective parts since 2000.
