38 Circuits Separate Slip Rings with Flexible Solution, Ce, FCC, RoHS, ISO Certified

Name: 38 Circuits Separate Slip Rings with Flexible Solution, Ce, FCC, RoHS, ISO Certified
Brand: all-electronics-online.com
SKU: 808161105
Availability: InStock
Rating: 4.7 (139 reviews)

Price:	US $ 150/Piece
Min Order:	3/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	BTS50110-3802
Circuits:	as Per Requested
Contact Material:	Gold or Silver
Dimension:	as Per Requested
Electric Noise:	0.007ohm
Guaranteed:	1 Year
Lead Time:	2~3 Weeks

Product Description

A slip ring can be used in any electromechanical system that requires unrestrained, intermittent or continuous rotation while transmitting power and / or data. It can improve mechanical performance, simplify system operation and eliminate damage-prone wires dangling from movable joints.

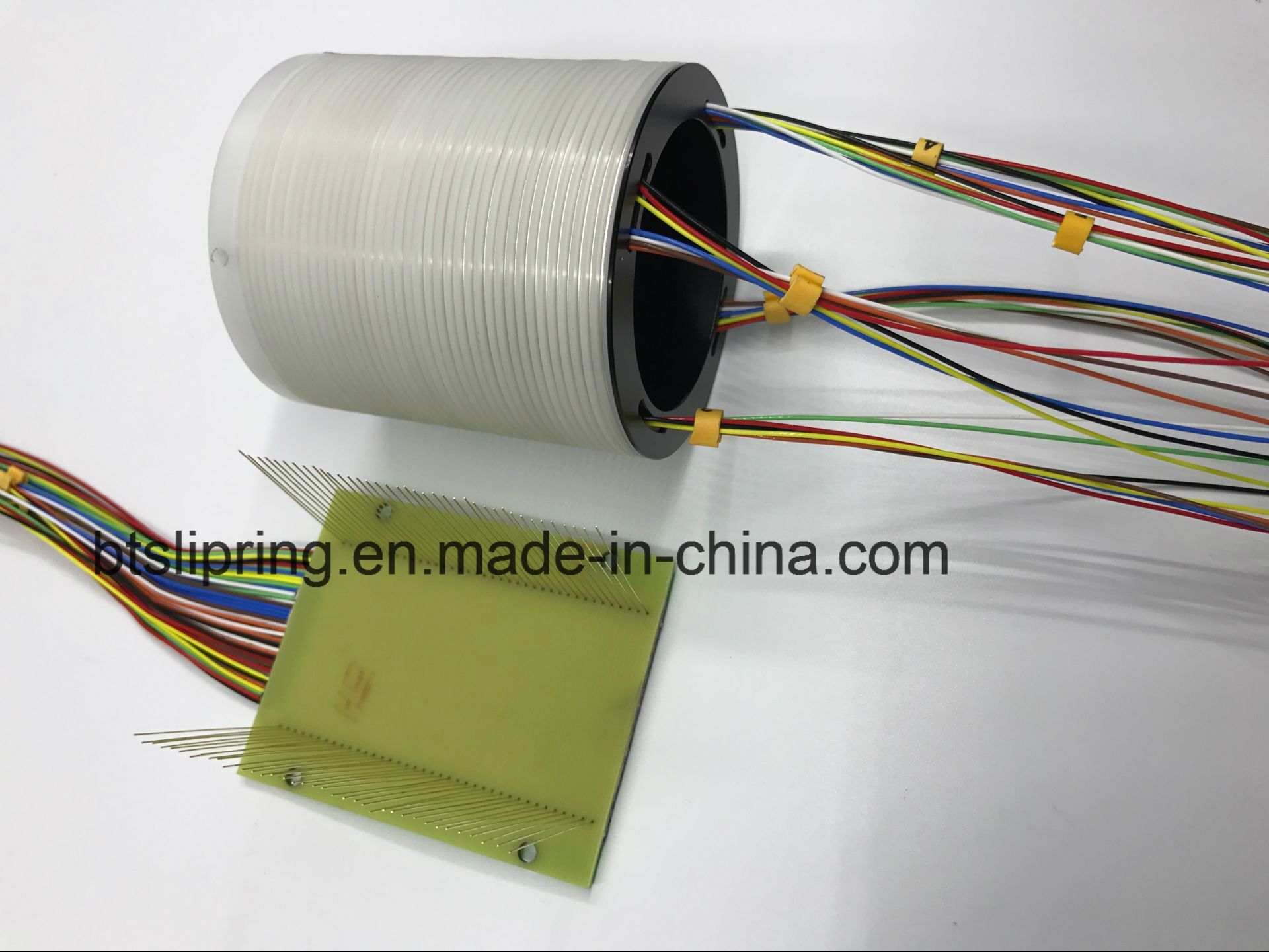

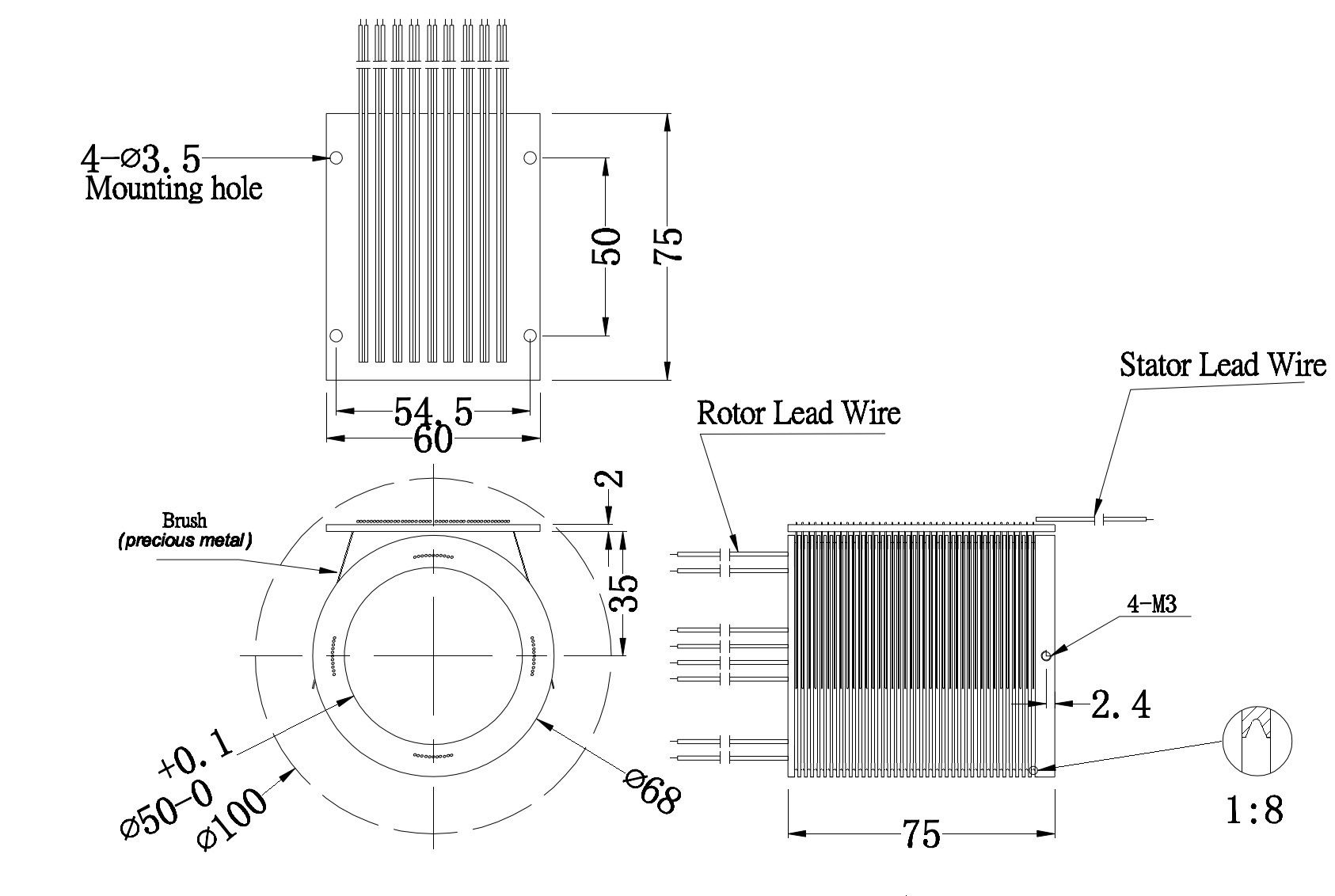

Sometimes a self-contained "capsule" slip ring is not practical due to system size constraints or cost limitations. We can provide the slip ring (rotor) and brush block (stator) as separate components to be mated by the customer in their system. The rotor is supplied in a drum configuration which features consecutive individual rings along the axis of rotation. Miniature separates may have slip ring rotor diameters less than 5mm

Mechanical :

Working speed	300rpm
Operating temperature	-40ºC~ +100ºC
Contact material	Gold or silver

Electrical:

Circuit	2~80
Current	2A
Voltage	≤380VAC
Dielectric strength	≥500V@50Hz between each circuit
Insulation resistance	500MΩ@ 500VDC
Electric noise	≤7mΩ
Lead wire size	28AWG, ,UL, color Teflon, silver or tin plated
Lead wire length	200mm
Life-span	120,000,000rounds

Features of separate slip ring :

l Low noise

l Wear-resisting (gold contacting)

l Anti-vibration

l Power and data compatible

l Easy installation

l Compact design

Alternatives of separate slip ring:

l Circuits

l Loading of each circuit

l Dimension

l Wire length

l Working environment

Typical Applications of separate slip ring:

l CCTV Camera

l Robot

l Medical equipment

l Exhibition equipment

l Total station

l Test equipment

l Revolve door

Advantages of slip ring manufacturer---ByTune:

l Affordable price

l Quality guaranteed

l Military standard

l Response within 24 hours

l Prompt delivery

l Reliable package & shipment

l Flexible & quick customization

Delivery time and shipment:

l 2 weeks ARO

l By UPS ,DHL or FedEx , or by sea as per your requested

Main cooperators :

Harvard University

Cobham Group

ESAB Automation

Mercedes-Benz

Emerson

Bosch

India GE

ByTune electronics Co., Ltd, since 1998, is a government supporting, hi-tech, private enterprise, with more than 200 employees, 20, 000 square feet factory and 2, 500 square feet rd & sales office. ByTune is focused in developing, designing, manufacturing slip rings nearly 20 years, we supply wide range slip rings and provide360° Rotary solutions. Besides supplying standard through hole slip rings, capsule slip rings, separate slip rings, pan cake slip rings, hydraulic slip rings, pneumatic slip rings, coax rotary joints, fiber optic slip ring etc, we have an expertized engineering team of more than 50 persons, we provide full range of customized slip rings at prompt delivery. We customize slip rings as per customers request in different applications such as agriculture machine slip ring, crane slip ring, antenna slip rings, wind turbine slip rings, auto-wrap machine slip rings...

ByTune electronics is equipped with the machines of CNC ( 2, 3, 4 and 5 axis), vertical machine tool integrating turning with milling, auto-drilling machine, precise milling machine, numerical control punch press, grinding machine, and so on… ...With advanced machines, we could do all of the processions in one-stop: CNC lathe, milling, drilling, grinding, punching, bending, casting, forging, stamping, etc … ByTune supplies quality & precise machine parts at prompt delivery.

At www.btslipring.COM, you could get high quality slip rings and machine parts at an affordable price and with superior support by contacting sales@btslipring. COM.

ByTune is ISO9001, CE, FCC, RoHS and military standard JGB9001A certificated!
