| Prod Model: |
MPS9335C 10-300KVA |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Thdi: |
Thdi <3% |
| Input Power Soft-Start Fantion: |
5-30s Settable |
| Frequency Range: |
40-70Hz |
| Charge Voltage Accuracy: |
± 1% |
| Three Phase Angle Accuracy: |
120°c ± 0.5°c |
| Frequency: |
50Hz/60Hz (Settable) |
| Protection Level: |
IP20 |
| Operation Temperature: |
0-40 °c |
| Phase: |
Three Phase |
| Type: |
On-line |
| Protection: |
Overvoltage |
| Brand: |
Sorotec |
Product Description

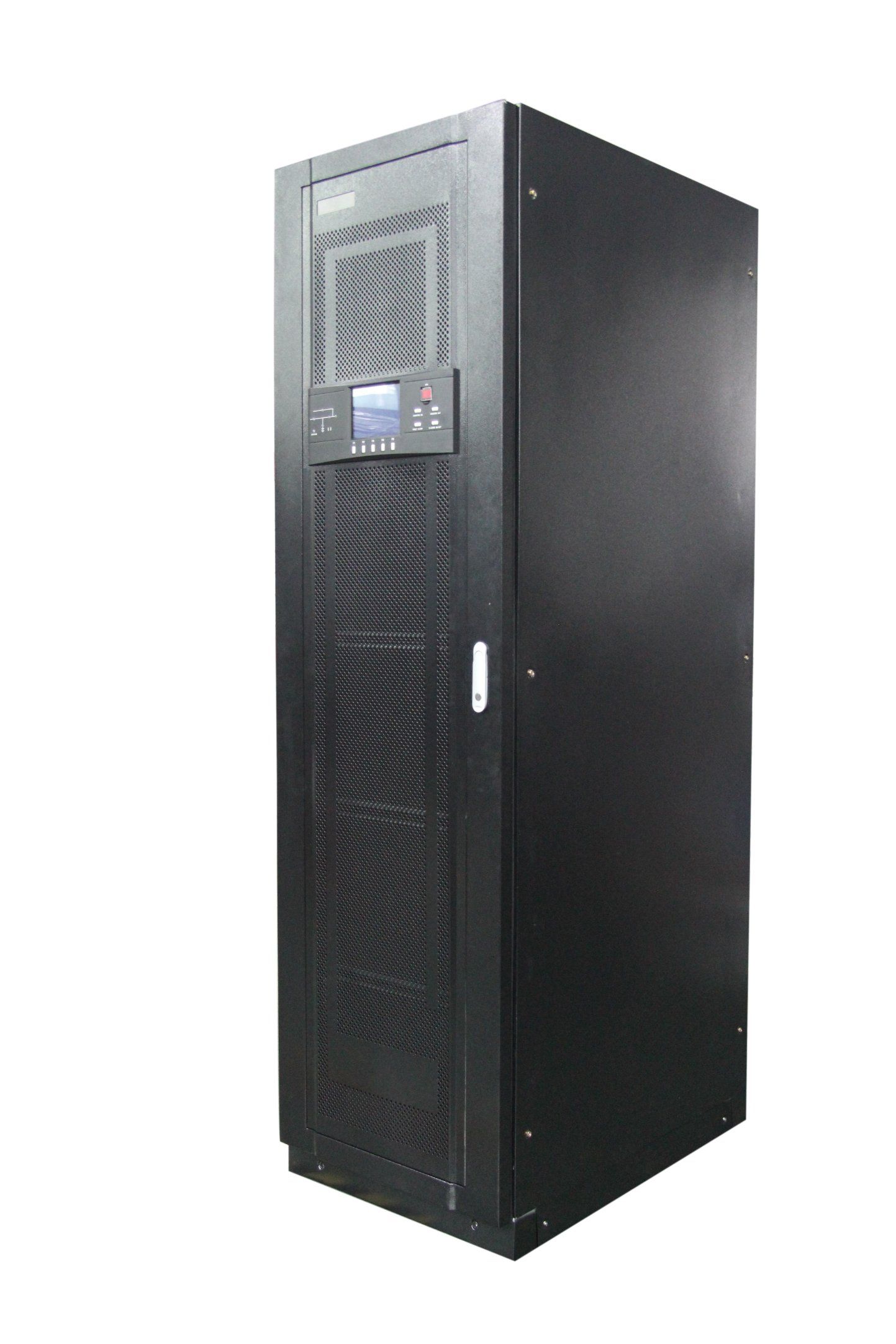

380/400/435VAC Online UPS 10KVA to 300KVA of Output Power Factor 1.0Key Features:1.Superior energy saving:
Efficiency > 96% at 50%-75% rated load, and > 95% at 25% rated load; Input PF > 0.99,input THDi<3%
2.Easy-to-install:
Top or bottom cabling, no need of input cabling cabinet.
4.Easy-to-maintain:
Full front access, UPS, failed part can be replaced shortly
5.Easy-to-modify:
The number of battery cells can be configured flexibly, so the original batteries can be used when modifying the legacy system; moreover, the battery cell can be replace in time when it fails without interrupting the normal operation of UPS.
6.Extra large LCD that can display 13 language(Chinese,English,Russian,Spanish,French and so on )
Applications :Application IDC (Internet Data Center), computing center, ISP (Internet Service Provider ), Telecom, Finance bank and securities, Tax, hospital system, industrial automation, precision equipment, etc.
Technical Specifications of Modular UPS, MPS9335 10-300KVA| Model | MPS9335C 30-300KVA |
| Capacity | 30-300KVA |
| Main input | |
| Input voltage | 380V/400V/415AC |
| Input Frequency Range | 50/60Hz |
| Power Factor | Full load>0.99 ,Half load >0. 98 |
| THDi | THDi <3% |
| Input power soft-start fantion | 5-30s settable |
| Input Voltage Ranges | 228V-476V;-20%- +25% Full load; linear derating at -25% - -40%; can take 70% load at -40% |
| Frequency Range | 40-70Hz |
| Battery | |
| Battery Voltage | ±240VDC(Default),12V Battery30-40pcs can be choose |
| Charge Voltage accuracy | ± 1% |
| Bypass | |
| Bypass Input voltage | 380/400/415VAC 3-phase 4-wire |
| Voltage Ranges | Default value is -20%-+15%, -40%, -30%, -10% - +10%, other ranges can be set via software |
| Overload Capacity | 150%,long term operation,150%1000% 100ms |
| Output | |
| Inverter Output Voltage | 380/400/415VAC 3-phase 4-wire |
| Voltage Accuracy | ± 0.5%(balanced load), ± 1% (unbalanced load) |
| THDi | THD<1%(linear load), THD<3%(nonlinear load) |
| Power Factor | 1.0 |
| Three Phase Angle accuracy | 120°c ± 0.5°c |
| Current Crest Ratio | 3:1 |
| Overload Capacity | 110%1h,125%10mins,150%1mins,>150%200ms |
| Transfer Time | 2ms |
| System | |
| Frequency | 50Hz/60Hz (Settable) |
| Mains synchronization range | ±2Hz(Default value) adjustable with step of 0.5Hz within range of +/- 0.5Hz - 3Hz |
| Protection Level | IP20 |
| Communication Ports | RS232,RS485,dry contact,SNMP card,EPO,generator port |
| System efficiency | > 96% at load above 50%, >95% at load above 25% |
| Operation Temperature | 0-40 °C |
| Storage Temperature | -25 °C -70 °C (without battery) |
| Humidity | 0-95%(no-condensing) |
| Noise(dB) | 55-62dB,Adjusted with load |
| Weight | module :PM10 | 10KVA power module :20KG |
| module :PM20 | 20KVA power module :35KG |
| module :PM30 | 30KVA power module :35KG |
| Dimendion(W XD XH)mm | 3 moudle cabinet | 600X900X1135 |
| 5 module cabinet | 600X1100X2070 |
| 6 moudle cabinrt | 600X900X1535 |
| 10 module cabinet | 900X900X2080 |
| power module | 440X650X132(10KVA/20KVA/30KVA) |
Product Show:
