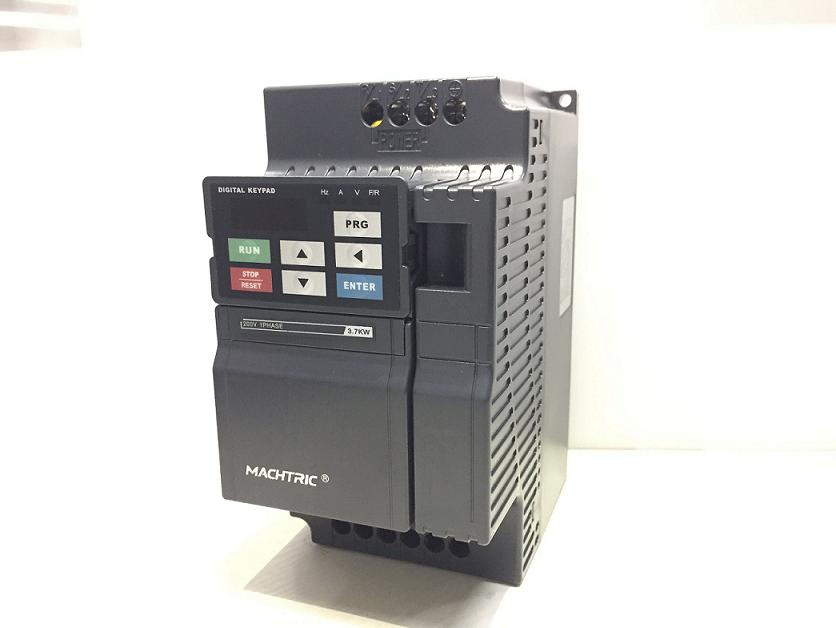

380V 3 Phase 50Hz 60Hz Mini VFD Low Frequency Inverter

Name: 380V 3 Phase 50Hz 60Hz Mini VFD Low Frequency Inverter
Brand: all-electronics-online.com
SKU: 819699325
Availability: InStock
Rating: 5 (128 reviews)

Price:	US $ 81/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	S800E
Item Name:	Mini Low Frequency Inverter
Input Power 220V:	0.4-3.7kw
Input Power 380V:	0.75-315kw
Output Current:	2.4A-300A
Maximum Frequency:	V/F Control(0-3200Hz);Vector Control(0-320Hz)
Digital Setting:	0.01Hz
Analog Setting:	Maximum Frequency X 0.025%
Speed Range:	1:100(Sfvc)
Timing Control:	Time Range:(0.0-6500.0 Minutes
Communication Methods:	RS485
Application:	High Frequency Converter Transducer
Output Type:	Triple
Switch Mode:	PWM Control
Main Circuit Type:	Voltage
Principle Of Work:	V/F or Vector Control
Voltage Of Power Supply:	220V/380V
Brand:	Machtric

Product Description

380V 3 Phase 50Hz 60Hz Mini VFD Low Frequency Inverter

1.Product Specification:

Item	Z900E
tandard Function	Control mode	Sensorless flux vector control(SFVC) Voltage/Frequency(V/F) control
	Maximum frequency	Vector control:0-320Hz V/F control:0-3200Hz
	Carrier frequency	1-16kHz The carrier frequency is automatically adjusted based on the load features.
	Input frequency resolution	Digital setting:0.01Hz Analog setting:maximum frequency x 0.025%
	Startup torque	G type:0.5 Hz/150%(SFVC) P type:0.5 Hz/100%
	Speed range	1:100(SFVC)
	Speed stability accuracy	±0.5%(SFVC)
	Torque control accuracy	± 5% (CLVC)
	Overload capacity	G type:60s for 150% of the rated current,3s for 180% of the rated current. P type:60s for 120% of the rated current,3s for 150% of the rated current.
	Torque boost	Fixed boost Customized boost 0.1%-30.0%
	V/F Curve	Straight-line V/F curve Multi-point V/F curve N-power V/F curve(1.2-power,1.4-power,1.6-power,1.8-power,square
	V/F separation	Two types:complete separation;half separation
	Ramp mode	Straight-line ramp S-curve ramp Four groups of acceleration/deceleration time with the range of 0.0-6500.0s
	DC braking	DC braking frequency:0.00 Hz to maximum frequency Braking time:0.0-100.0s Braking action current value:0.0%-100%
	JOG control	JOG frequency range:0.00-50.00Hz JOG acceleration/deceleration time:0.0-6500.s
	Onboard multiple	It implements up to 16 speeds via the simple PLC function or combination of X terminal states
	Onboard PID	It realizes process-controlled closed loop control systerm easily
	Auto voltage regulation(AVR)	It can keep constant output voltage automatically when the main voltage changes
	Overvoltage/Overcurrent stall control	The current and voltage are limited automatically during the running process so as to avoid frequent tripping due to overvoltage/over current
	Torque limit and control	It can limit the torque automatically and prevent frquent over current tripping during the running process
	Instantaneous stop doesn't stop	The load feedback energy compensates the voltage reduction so that the AC drive can continue to run for a short time
	Rapid current limit	It helps to avoid frequent over current faults of the AC drive
	High performace	Control of asynchronous motor is implemented throgh the high-performance current vector Control technology
	Timing control	Time range:0.0-6500.0 minutes
	Communication methods	RS485
	Running command channel	Given by the panel,control terminals.Serial communication port,can be switched by many ways
	Frequency source	10 kinds of frequency source,given by Digital analog voltage,analog current,Pulse,serial port.can be switched by man ways.
	Auxiliary frequency source	10 kinds of Frequency source,can easily realize Micro ajustment,frequency Synthesizer.
Input and output	Input terminal	6 digitak input terinals,one of which supports up to100kHz high-speed pulse input. 2 analog input terminal,one of which only supports 0-10v voltage input and the other supports 0-10v voltage input or 4-20 mA current input
Input and output	Output termianl	1 digital output terminal 1 relay output terminal 1 analog output termianl:that supports 0-20 mA current output or 0-10V voltage ouput
Operation on the operation panel	LED display	It displays the parameters
	Key locking and cuntion selection	It can lock the keys partially or completely and define the function range of some keys so as to prevent mis-function
	Protection mode	Motor short-circuit detection at power-on,output phase loss protection,over-curent protection,over-voltage protection,under voltage protection,overheat protection and overload protection.
Environment	Installation location	Indoor,avoid direct sunlight,dust,corrosive gas,combustible gas,oil smoke,vapour drip or salt
Environment	Altitude	Lower than 1000m(Lower the grades when using higher then 1000m)
	Ambient temperature	-10°C~40°C(Lower the grades if the ambient temperature is between 40°C and 50°C)
	Humidity	Less than 95%RH,without condensing
	Vibration	Less than 5.9 m/s² (0.6g)
	Storage temperature	-20°C~60°C

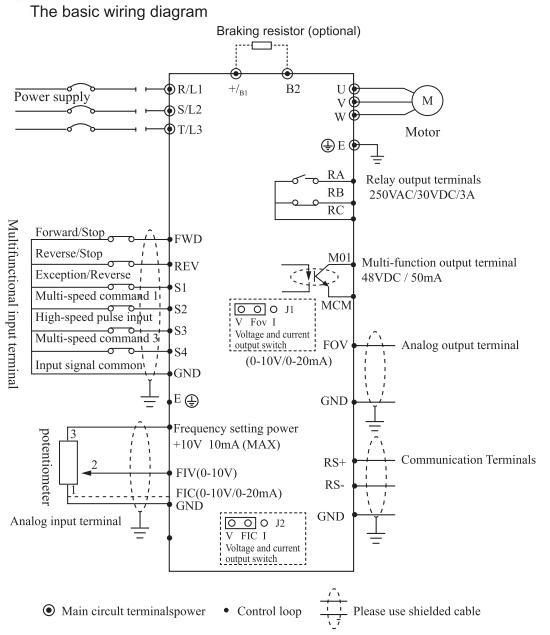

2.The Basic Wiring Diagram:

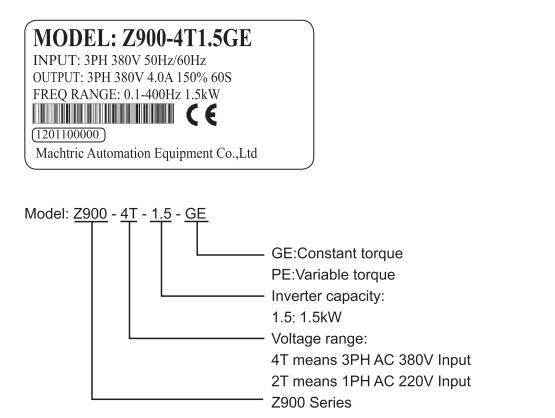

3.Description of Nameplate

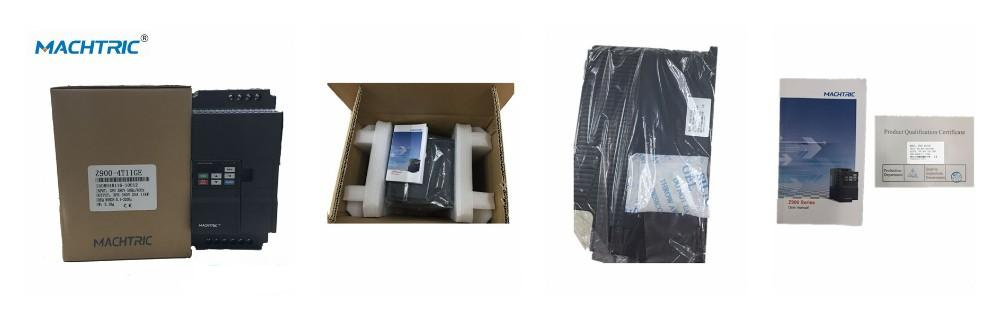

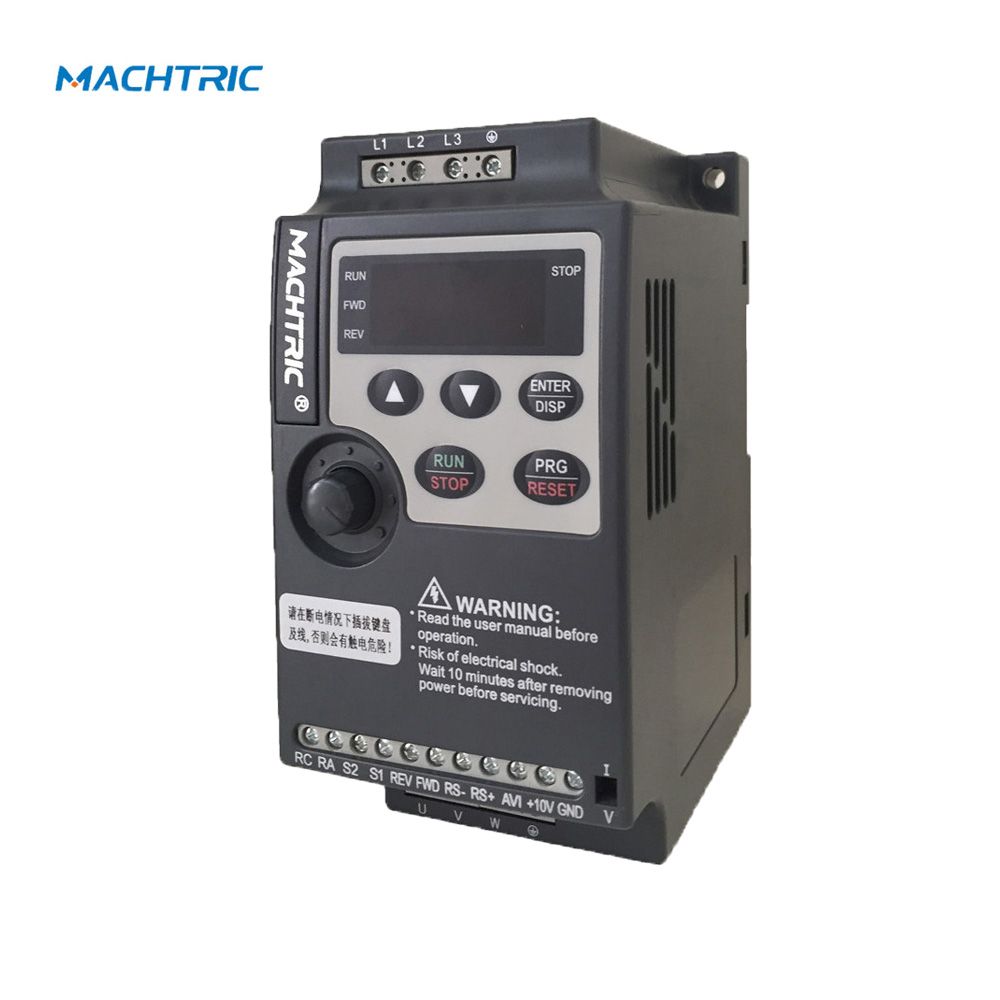

4.Product Show:
