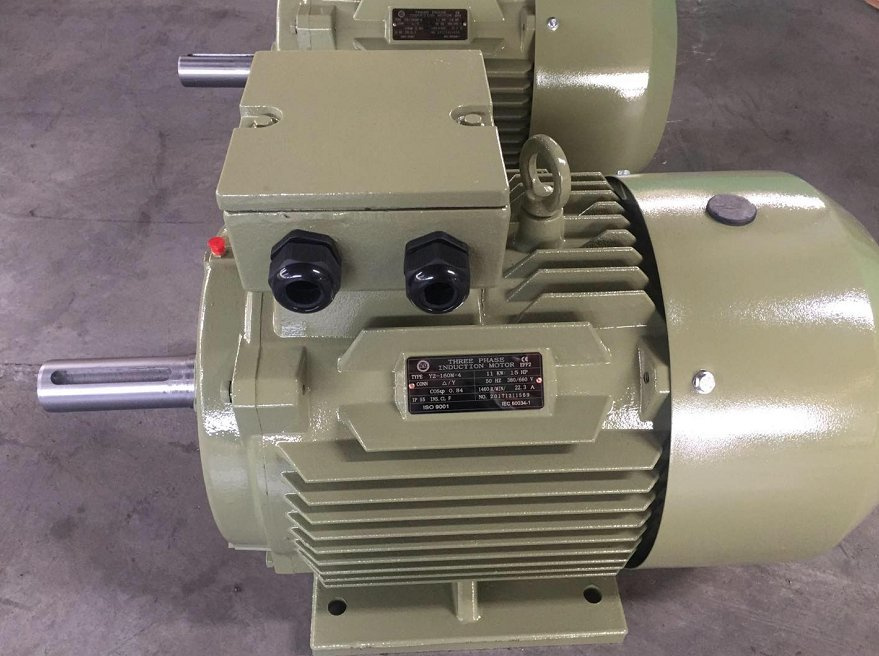

380V-400V Ie2/ Y2/Y3/AC Three Phase Electric Motor with CE (Y2-280M-6)

Name: 380V-400V Ie2/ Y2/Y3/AC Three Phase Electric Motor with CE (Y2-280M-6)
Brand: all-electronics-online.com
SKU: 612846075
Availability: InStock
Rating: 4.7 (81 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	50/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	Y2-280M-6
Markets:	South America,Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia,Western Europe
Application:	Universal
Operating Speed:	Adjust Speed
Number Of Stator:	Three-Phase
Species:	Y, Y2 Series Three-Phase
Casing Protection:	Closed Type
Certification:	CE

Product Description

XNY-Y2 series three-phase induction motors, deveploped with new techniques, are renewal and upgrading products of Y series
XNY-Y2 series motors are defined as totally enclosed, fancooled, squirrel cage type and noted for their novel design, beautiful modelling, compact structure, low noise, high efficiency, large torque, excellent starting performance, easy serving, ect. The motors are adopted with F class insulation and designed with assessing method for insulation system according to intermational practice, it enhances greatly motor's safely and reliability, therefore, these motor's have reached an international advanced level of the such kind products at the initial days of the 90s.
XNY-Y2 series motors can be widely used as driving equipments of various machinery, such as, machine tools, blowers, pumps, compressors, transporters, agricultural and food processing.

Operating Conditions

Ambient temperature: -15C≤ θ ≤ 40C

Altitude: Altitude should be lower than 1000meters above sea level.

Rated voltage: 380V Rated frequency: 50Hz

Connection: Star-connection for 3KW or less whereas delta-connection for 4KW or more.

Duty/Rating: Conntinuous(S1).

Insulation class: F, the temperature rise of the stator winding is examined at 80K(by resistance method).

Protection class: The main body of the motor is IP54, but the terminal box reaches IP55.

Cooling method: IC0141.

If the motor of which the frequency, voltage and connection are specially, please stale when ordering.

Wenling Xinnnuo Electric Motor Co.,Ltd.

History:    5 years experience of manufacturing Electric Motor,Motor;
Scale:        Working area of 70, 000 square meters, more than 300 employees;
Technology:    Professional technical engineers and R&D team;
Management:   Scientific management and strict quality control system;
Equipments:    Advanced automatic production line and test equipment;
Innovation:    Continuously diversify products range to satisfy customers;
Production capacity:    100000PCS/month;
Marketing network:    Europe, Asia,Southeast Asia, Africa, etc;

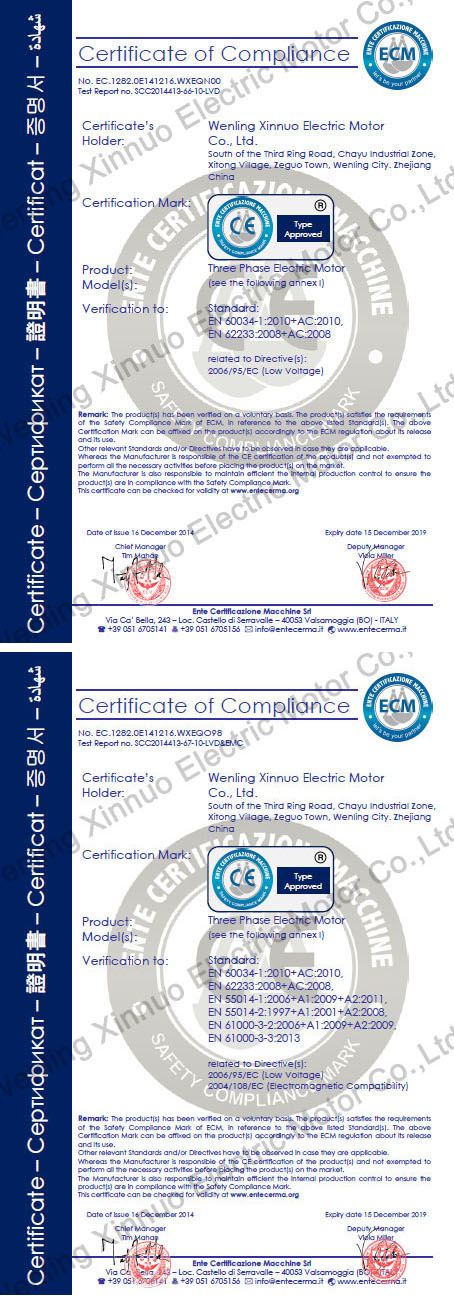

Certificate:    LVD,EMC,CE,ISO9001.
Marketing mode:    100% export business

We changed our company name to Wenling Xinnuo Electric Motor Co., Ltd. is advanced enterprise specializing in all type of MID-size and small-size electric motors, electric machines. The products include Y and Y2 series three-phase asynchronous, MS series three-phase asynchronous motor with aluminium housing, YO2 series three-phase asynchronous motor, YL series monophase machine, YD series multispeed machine, YCT series electromagnetic ajustable-speed motor, frequency adjustable-speed motor and fractional electric motor, YEJ2 series electromagnetic-brake motor, DSM and M50/4 single-phase resistant start asynchronous motors, etc.

Our management system has been assessed and passed the ISO 9001: 2000 Certificate, our products have got the CCEE, CCC, CQC and CE certificates, moreover we are putting efforts to apply the approvals by UL, CSA, CE. The enterprise has the self-supporting import & export right.

With our high Quality, favorable price and excellent service, we are willing to cooperate with the friends in all circles to circles to create the flourishing future.
