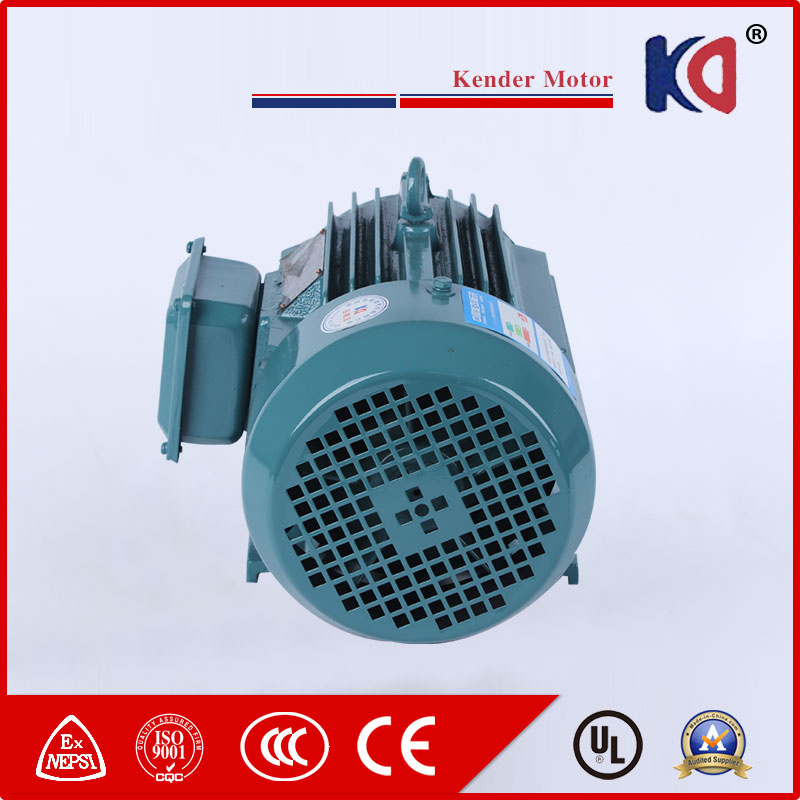

| Prod Model: |
YX3 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
Yx380m2-2 |
| Power In Kw: |
1.1kwkw |
| Power In HP: |
1.5HP |
| Current: |
2.43A |
| Voltage: |
380V |
| Efficiency: |
83% |
| Stall /Rated Current: |
7.3A |
| Stall /Rated Torque: |
2.3tst/Tn |
| Noise: |
64dB |
| Frequency: |
82.7Hz |
| Number Of Stator: |
Three-Phase |
| Function: |
Control |
| Brand: |
Kd |
Product Description
Technique parameter
| 1.Rated voltage | 380V |
| 2.Rated Frequency | 50HZ/60HZ |
| 3.Power | 0.12Kw~45Kw |
| 4.Frame | 80 ~355 |
| 5.Protection class | IP54/IP55 |
| 6.Work mode | S1 |
| 7.Insulation class | B/F |
| 8.Pole | 2-6 |
| 9.Cooling method | IC0141 |
Motor Advantage
Quick braking
High efficiency
Energy-saving
Low noise
Low loss
Little vibration and Safe operation
Easy maintenance
Technique Date
| Model | Power | Speed | Voltage | Effi. | Power Factor | Stall/Rated
Current (A) | Stall/Rated
Torque | Max/Rated
Torque | Static braking
torque | No Load
Brake Time | Exciting
Power |
| (kW) | (r/min) | (380V) | (%) | (cos) | N.m | s | W |
| 80M1-2 | 0.75 | 2830 | 1.81 | 75 | 0.84 | 6.5 | 2.2 | 2.3 | 7.5 | 0.2 | 50 |
| 80M2-2 | 1.1 | 2.52 | 77 | 0.86 | 7.5 | 0.2 | 50 |
| 90S-2 | 1.5 | 2840 | 3.44 | 78 | 0.85 | 7 | 15 | 0.2 | 60 |
| 90L-2 | 2.2 | 4.83 | 80.5 | 0.86 | 15 | 0.2 | 60 |
| 100L-2 | 3 | 2880 | 6.39 | 82 | 0.87 | 30 | 0.2 | 80 |
| 112M-2 | 4 | 2890 | 8.17 | 85.5 | 0.87 | 40 | 0.25 | 110 |
| 132S1-2 | 5.5 | 2900 | 11.1 | 85.5 | 0.88 | 7 | 2 | 75 | 0.25 | 130 |
| 132S2-2 | 7.5 | 15.02 | 86.2 | 75 | 0.25 | 130 |
| 160M1-2 | 11 | 2930 | 21.78 | 87.2 | 0.88 | 150 | 0.35 | 150 |
| 160M2-2 | 15 | 29.36 | 88.2 | 2.2 | 150 | 0.35 | 150 |
| 160L-2 | 18.5 | 2930 | 35.49 | 89 | 0.89 | 150 | 0.35 | 150 |
| 180M-2 | 22 | 2940 | 42.2 | 89 | 200 | 0.35 | 150 |
| 200L1-2 | 30 | 2950 | 56.9 | 90 | 300 | 0.45 | 200 |
| 200L2-2 | 37 | 69.79 | 90.5 | 300 | 0.45 | 200 |
| 225M-2 | 45 | 2970 | 83.96 | 91.5 | 450 | 0.45 | 200 |
| 801-4 | 0.55 | 1390 | 1.51 | 73 | 0.76 | 6 | 2.4 | 2.3 | 7.5 | 0.2 | 50 |
| 802-4 | 0.75 | 2.01 | 74.5 | 0.76 | 2.3 | 7.5 | 0.2 | 50 |
| 90S-4 | 1.1 | 1400 | 2.75 | 78 | 0.78 | 6.5 | 15 | 0.2 | 60 |
| 90L-4 | 1.5 | 3.65 | 79 | 0.79 | 15 | 0.2 | 60 |
| 100L1-4 | 2.2 | 1430 | 5.03 | 81 | 0.82 | 7 | 2.2 | 30 | 0.2 | 80 |
| 100L2-4 | 3 | 6.82 | 82.5 | 0.81 | 30 | 0.2 | 80 |
| 112M-4 | 4 | 1440 | 8.77 | 84.5 | 0.82 | 40 | 0.25 | 110 |
| 132S-4 | 5.5 | 11.64 | 85.5 | 0.84 | 75 | 0.25 | 130 |
| 132M-4 | 7.5 | 15.41 | 87 | 0.85 | 75 | 0.25 | 130 |
| 160M-4 | 11 | 1460 | 22.61 | 88 | 0.84 | 150 | 0.35 | 150 |
| 160L-4 | 15 | 30.3 | 88.5 | 0.85 | 2.2 | 150 | 0.35 | 150 |
| 180M-4 | 18.5 | 1470 | 35.9 | 91 | 0.86 | 2 | 200 | 0.35 | 150 |
| 180L-4 | 22 | 42.48 | 91.5 | 200 | 0.35 | 150 |
| 200L-4 | 30 | 56.82 | 92.2 | 0.87 | 300 | 0.45 | 200 |
| 225S-4 | 37 | 1480 | 70.39 | 91.8 | 0.87 | 1.9 | 450 | 0.45 | 200 |
| 225M-4 | 45 | 84.17 | 92.3 | 0.88 | 450 | 0.45 | 200 |
| 90S-6 | 0.75 | 940 | 2.25 | 72.5 | 0.7 | 5.5 | 2 | 2.2 | 15 | 0.2 | 60 |
| 90L-6 | 1.1 | 3.16 | 73.5 | 0.72 | 5.5 | 15 | 0.2 | 60 |
| 100L-6 | 1.5 | 3.97 | 77.5 | 0.74 | 6 | 30 | 0.2 | 80 |
| 112M-6 | 2.2 | 5.61 | 80.5 | 0.74 | 40 | 0.25 | 110 |
| 132S-6 | 3 | 960 | 7.23 | 83 | 0.76 | 6.5 | 75 | 0.25 | 130 |
| 132M1-6 | 4 | 9.4 | 84 | 0.77 | 75 | 0.25 | 130 |
| 132M2-6 | 5.5 | 12.56 | 85.3 | 0.78 | 2 | 75 | 0.25 | 130 |
| 160M-6 | 7.5 | 970 | 16.99 | 86 | 150 | 0.35 | 150 |
| 160L-6 | 11 | 24.63 | 87 | 0.78 | 150 | 0.35 | 150 |
| 180L-6 | 15 | 31.44 | 89.5 | 0.81 | 1.8 | 200 | 0.35 | 150 |
| 200L1-6 | 18.5 | 37.71 | 89.8 | 0.83 | 300 | 0.45 | 200 |
| 200L2-6 | 22 | 44.65 | 90.2 | 0.83 | 300 | 0.45 | 200 |
| 225M-6 | 30 | 980 | 59.45 | 0.85 | 1.7 | 450 | 0.45 | 200 |
Motor Application
1,Pack-aging machinery
2,Woodworker machinery
3,Food processing machinery
4,Chemical engineering machinery
5,Textile machinery
6.Construction machinery
Packing
Inspecting spare parts every processing
100% test after each process and final test before packing.
FAQ
| Q:What's the phase of the motor? | A:Single phase or three phase as your required. |
| | |
| Q:What's the mounting size of your motor? | A:Design as customer required. |
| | |
| Q: Do you offer OEM service? | A: Yes. |
| | |
| Q: What is your payment term? | A: 50% T/T in advance,50% before delivery. Or irrevocable L/C. |
| | |
| Q: What is your lead time? | A: About 10-45 days after receiving deposit or original L/C. |
| | |
| Q: What certificate do you have? | A: We have CE, ISO9001,CCC ,EX and so on. |
