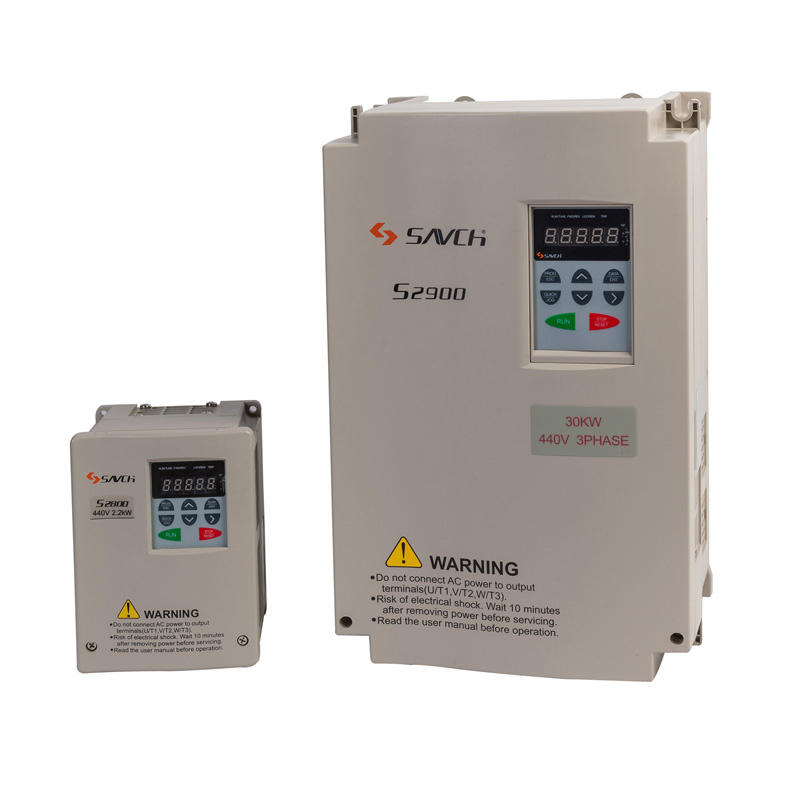

| Prod Model: |
S2800 inverter |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
White |
| Speed Range: |
1:100(SVC) |
| Frequency Range: |
0-400Hz |
| Voltage Range: |
220V;380V |
| Application: |
General Transducer |
| Output Type: |
Triple |
| Principle Of Work: |
Vector Control Transducer |
| Switch Mode: |
PWM Control |
| Main Circuit Type: |
Current |
| Brand: |
Sanch |
Product Description
Specifications:
1) Rated voltage: 440V / three phase
2) Power range: 5.5 ~ 55kW
3) Output frequency: 0.1 ~ 400Hz
Features:
1) Automatic setting for acceleration / deceleration
2) 16-level preset table speed, switch of 4-level accelerating/decelerating time
3) RS-485 in-line interface build-in
4) Automatic control of motor parameters, precise location control
5) Automatic voltage regulation (AVR)
6) All-dimensional protection
7) Includes PID circuit control
8) Senseless vector control
9) Program and vector control of fan and water pump makes it more economical.
| Input Voltage Level | 440V level |
| ModelS3000-***/***43* | 055 | 075 | 110 | 150 | 185 | 220 | 300 | 370 | 450 | 550 | 750 |
| Apply for rated power of | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 | 30 | 37 | 45 | 55 | 75 |
| 3-f MOTOR(KW) |
| Apply for rated power of | 7.5 | 10 | 15 | 20 | 25 | 30 | 40 | 50 | 60 | 75 | 100 |
| 3-f MOTOR(HP) |
| Contant torque output | 13 | 18 | 24 | 32 | 38 | 45 | 60 | 73 | 91 | 110 | 150 |
| current |
| Variable torque output | 16 | 22 | 30 | 40 | 47 | 56 | 75 | 91 | 113 | 138 | 188 |
| cureent |
| Rated output capacity(kva) | 9.9 | 14 | 18 | 24 | 29 | 34 | 46 | 56 | 69 | 80 | 100 |
| Maximum output voltage(v) | Three-phase power supply 380~440V corre |
| sponding to input voltage |
| Rated input voltage/frequency | 380/400/415/440Vcorrespongding to input |
| voltage |
| Operating voltage/frequency | 340~500VAC, 47~63Hz |
| Control system | Selection of sine wave PWM |
| vector control; torque control; V/F |
| Activating torque | Activating toque is more than 150%in0.5HZ |
| Control range of speed | 1: 100(can be up to 1: 1000 when have |
| external PG) |
| Control precision of speed | +-0.5%(can be up to +-0.02%) |
| Speed reactivity | 5Hz(can be up to 30Hz under vector control) |
| Maximum output frequency(HZ) | 0.00 to 400.00Hz |
| Frequency output precision | Digit instruction +-0.005%, |
| analog instruction +-0.5% |
| Frequency setting resolution | Digit instruction 0.01Hz, analog instructio |
| n: maximum output frequency is 1/1000(bit) |
| Torque limit | Maximum 200% torque current |
| Torque precision | +-5% |
| Accelerating/deceleratingtime | 0.00~600.00 seconds/0.00~6000.00 seconds |
| V/F curve | Randam V/F curve based on four points& |
| quadratic curve |
| Frequency setting signal | +10V, +-10V, 4~20mA, pulse wave input |
| Dynamic brake | About 20% |
| Motor protection | Electronic thermocouple protection |
| ` | Current restrain 170%, over-current protect |
| ion 200% of rated current |
| Ground protection for current | Current leakage protection; 50% peak value |
| leakage | of rated current |
| Overload capacity | Constant/variable torque 150% for |
| 60 seconds, 200% for 2 seconds |
| Voltage protection | Over-voltage position: Vdc> 400/800v |
| low-voltage position: Vdc< 200/400v |
| Over-voltage protection for | Surge wave absorber(MOV) |
| input power supply |
| Over-heat protection | Built-in temperature sensor |
| instantaneous power-off | Parameter setting can be up to 5 seconds |
| compensation |
| Protection level | NEMA 1/IP21 |
| Operating temperature | -10 ~ 40 for UL & -10 ~50 for CE |
| Storage temperature | -20 ~60 |
| Humidity | Below 90%RH(non-condensing) |
| Vibration | 1.0G below 20Hz, 0.6G at 20~60HZ |
| Cooling system | Air-blasst cooling(RUN, STOP) |
| Mounting height | Lower than 1000m |
| Keep from corrosive gases, liquid and dust |
Quanzhou Machtric Automation Equipment Co., Ltd., together with three leading enterprises and several affiliated organizations in China and Taiwan has been established to supply "Total Project Solutions" in Industrial Automation.Sanch is geared to integrate the development, manufacture and systems engineering for local and international clients alike.
Our professional teams of engineering, product development, manufacturing and integration staff, devote themselves to the development and application of motor, electric, electronic, microelectronic, information and control technology.
We continue to maintain close co-operation with scientific research institutions both at home and abroad, in order to provide "intelligent" products that not only offer the best solutions, but also have a "humanized" approach to functionality.
At present, our manufacturing capacity is over 100 thousand devices per annum.
This includes products such as:
A/C Frequency Inverters (INVERTER)
Thyristor power controller
Circular knitting machine
Intelligent Control Instruments
Peripheral equipment for Industrial Process Control (IPC)
Microcomputer Controllers for various applications and many others.
In order to service the Chinese market, we have already established dozens of marketing, distribution agents and service organizations, to cover the Northern, Eastern, Central and Southern areas.A Pathway Management System and CRM Customer Relationship Centre with high-efficiency logistic and linkage service has also been established.
SANCH have already applied their range of products and services to the following industries;Textile, dye, ceramic, transportation, building, metallurgy, chemical, light, military ---etc.
SANCH philosophy is to continually improve the electric management platform to account for all facets of applications, thus maximising the competitiveness of technology, quality, service and efficiently in accordance with the principle of satisfying our customers and creating excellent products.
SANCH actively promote a philosophy of, maximising production outputs and yet minimizing energy consumption, using modern technological developments.
Our goal is to achieve "Automation---Energy Saving---Green World", and we will try our best to improve the environment and society as a whole.
