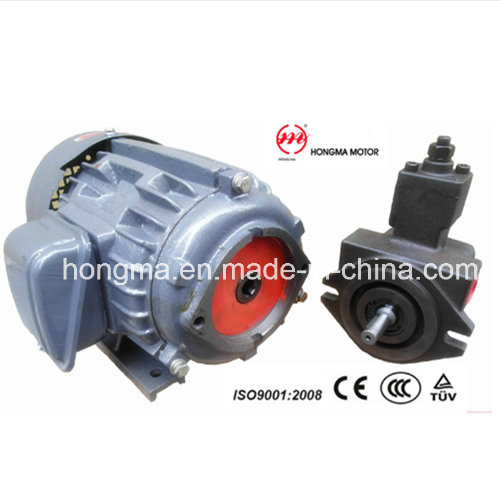

380V Asynchronous Oil Pump Induction Motor

Name: 380V Asynchronous Oil Pump Induction Motor
Brand: all-electronics-online.com
SKU: 781131215
Availability: InStock
Rating: 4.7 (116 reviews)

Price:	US $ 46.5-255.3/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	YQB
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Frame Size Range:	H80-160
Voltage Rate:	380V
Frequency:	50Hz
Protection Class:	IP54
Insulation Class:	B/F/H
Mounting Type:	B3, B5, B14, B35multi and Pad Mounting
Cooling Method:	IC411
Duty:	S1
Ambient Temperature:	Less Than 40°
Altitude:	Not Exceed 1000m
Application:	Industrial
Operating Speed:	Constant Speed
Number Of Stator:	Three-Phase
Species:	Y, Y2 Series Three-Phase
Rotor Structure:	Squirrel-Cage
Casing Protection:	Closed Type
Starting Mode:	y-δ Starting
Brand:	Hongma
Certification:	CE
Number Of Poles:	2, 4, 6

Product Description

Performance and Characteristic:
YQB series three phase induction motor is designed for oil pump, rated efficiency is in conformity with Chinese national standard (GB18613-2012) class (IEC60034-30:2008 IE2). YQB series motors have lots of features such as new structure, beautiful appearance, low temperature rise, low noise and vibration, large starting torque etc.

Technical Data

Frame Size	H80-160
Voltage Rate	380V
Frequency	50HZ
Protection Class	IP54
Insulation Class	B/F/H
Mounting Type	B3, B5, B14, B35multi and Pad Mounting
Cooling Method	IC411
Duty	S1
Ambient Temperature	Less than 40°
Altitude	Not Exceed 1000m

Connection:

    Power under 3KW selects Star connection;Power up 3KW selects Delta connection

Package

    Frame NO. 80--132  :Package by carton box and then packed by wooden box

    Frame NO.160 and above:one wooden box per set

Our Cerfiticate

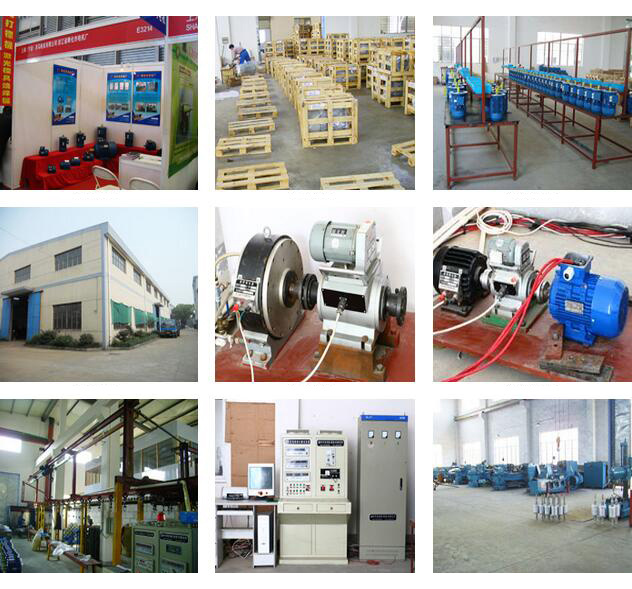

Our Factory

For further informations,pls visit our web page without hesitate!

Contact Info.

Evan Zhou

Cellphone:0086 15158307112

www.hongmamotor.com

Located in Ningbo City, an open seaport of China, we are one of the main manufacturer specialized in the manufacture of small & medium size electrical machinery in China. With a powerful scientific and technical force, advanced developing mode, high efficiency production facilities, complete testing conditions and consummate modernized management system, our company manufacture all the products in conformity with the IEC standards and the products have been reached the advanced level of the same products in the world. It has obtained the quality license for export electrical machinery, the ISO 9001: 2008 Quality Management Certificate, CE conformity and China CCC authentication. What's more, we have obtained direct importing and exporting rights which are approved by Chinese government.

Company's main products are: 1HM Series Three Phase Asynchronous Electric Motor, 2HM Series High Efficiency Electric Motor, 3HM Series Premium Efficiency Electric motor, HM Series Large Power Electric Motor, ML/MU/MY/MB Series Singe Phase Asynchronous Motor, HMD Variable Speed Motor, HMEJ(AC) Series Self-Braking Electric Motor (AC), HMEJ(DC) Series Self-Braking Electric Motor (DC), HMVP Series Integrated Frequency Inverter Motor, ST Series Servo Motor, HMG Series Screw Compressor Motor, HMP Series Pump Motor, GOST R standard Motor and UL NEMA Standard Motor.

We are looking for new distributors and agents in the whole worldwide to expand our sales network. Welcomes contact us to build business relationship and friendship.
