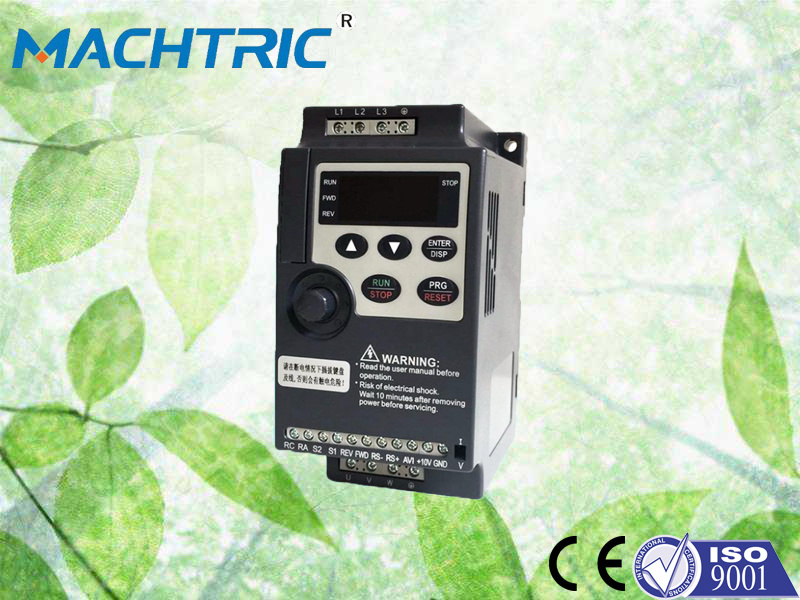

380V DIN Mail Mounted Variable Frequency Drive
| Price: |
US $ 53/Piece |
| Trade Terms: |
FOB |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: |
S800E |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Black |
| Pid Control: |
Built-in Pid Control |
| Frequency Range: |
0.01~400.00Hz |
| RS485: |
Standard RS485 Communication |
| Altitude: |
Lower Than 1000m |
| Protective Structure: |
IP20 |
| Export Markets: |
Global |
| Size: |
Mini |
| Ambient Humidity: |
Max. 95% (Non-Condensing) |
| Protection: |
Over Voltage |
| Application: |
High Frequency Converter Transducer |
| Output Type: |
Triple |
| Principle Of Work: |
V/F Control Transducer |
| Switch Mode: |
PWM Control |
| Main Circuit Type: |
Voltage |
| Brand: |
Machtric |
Product Description
Product Description
1) Possess Din rall mounted
2) Similar as Delta VFD-L series
3)cheap
4)Easy to operate
Spcification1AC220V±15% 0.2kW~2.2kW
3AC220V±15% 0.75kW~2.2kW
3AC380V±15% 0.75kW~2.2kW
| Items | S800E |
|---|
Power
Supply | Rated voltage, Frequency |
One-phase/Three-phase AC 220V 50/60Hz |
| Voltage Range |
220V: 170~240V |
| Output | Voltage Range | 220V: 0~220V |
| Frequency Range | 0.10~400.00Hz |
| Control method | V/F control, Space vector control. |
| Indication | Operating status/Alarm definition/interactive guidance: eg , frequency setting, the output frequency/ current, DC bus voltage, the temperature and so on. |
| Control SpeciAlations | Output Frequency
Range | 0.10Hz~400.00Hz |
Frequency Setting
Resolution | Digital input: 0.01Hz, analog input: 0.1% of
maximum output frequency |
Output Frequency
Accuracy | 0.01Hz |
| V/F Control | Setting V/F curve to satisfy various load
Requirements. |
Torque
Control | Auto increase: auto raise torque by loading
Condition; Manual increase: enable to set
0.0~20.0% of raising torque. |
Multifunctional
Input Terminal | Four multi-function input terminals, realizing
functions including fifteen section speed control, Program running, four-section acceleration/deceleration speed switch, UP/DOWN function and emergency stop and other functions |
Multifunctional
Output Terminal | 1 multi-function output terminals for displaying
of running, zero speed, counter, external
abnormity, program operation and other
Information and warnings. |
| Acceleration/ deceleration Time Setting | 0~999.9s acceleration/deceleration time can be set individually. |
Other functions
| PID Control | Built-in PID control |
| RS485 | Standard RS485 communication function(MODBUS) |
| Frequency Setting | Analog input: 0 to 10 V, 0 to 20mA can be
selected;
Digital input:Input using the setting dial of the
operation panel or RS485 or UP/DOWN.

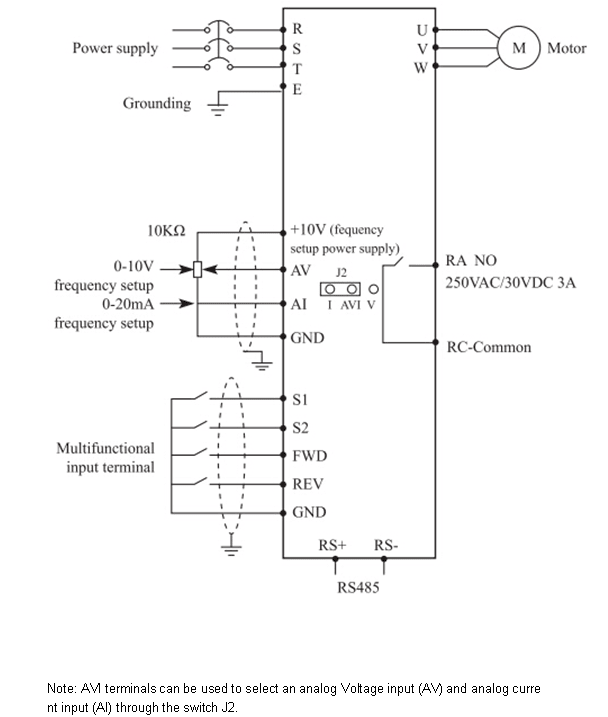

Note:AVI terminals can be used to select an
analog voltage input(AV) and analog current
input(AI) through the switch J2.
Note: AVI terminals can be used to select an
Analog voltage input (AV) and analog current
Input(AI) through the switch J2. |
| Multi-speed | Four multifunction input terminals, 15 section
speed can be set |
Automatic
voltage ID ControlliAlation regulation | Automatic voltage regulation function can be
Selected |
| Counter | Built-in 2 group of counters |
| Protection/Warning Function | Overload | 150%, 60 second(Constant torque) |
| Over Voltage | Over voltage protection can be set. |
| Under Voltage | Under voltage protection can be set |
| Other Protections | Overheat,output short circuit,over current, and
Parameter lock and so on. |
| Environment | Ambient Temperature | -10ºC to 40ºC(non-freezing) |
| Ambient Humidity | Max. 95% (non-condensing) |
| Altitude | Lower than 1000m |
| Vibration | Max.0.5G |
| Structure | Cooling Mode | Forced air cooling |
Protective
Structure | IP 20 |
| Installation | Mode | Wall-mounted or standard 35MM rail mounting |

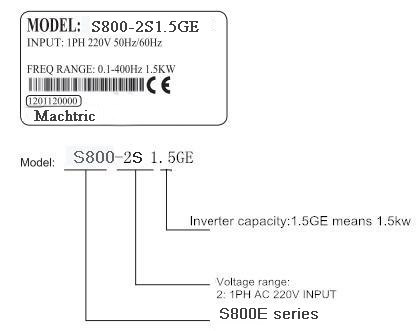

Product series models
| Model | Power output
(KW) | Capacity
(KVA) | Current output
(A) | Input current
(A) | Motor equipped
(KW) |
| 1PH AC220V,50/60HZ |
| S800-2S0.4GE | 0.4 | 1.0 | 2.5 | 3.75 | 0.4 |
| S800-2S0.75GE | 0.75 | 2.0 | 5.0 | 7.50 | 0.75 |
| S800-2S1.5GE | 1.5 | 2.8 | 7.0 | 10.50 | 1.5 |
| S800-2S2.2GE | 2.2 | 4.2 | 11.0 | 16.5 | 2.2 |
| 3PH AC380V ,50/60Hz |
| S800-4T0.75GE | 0.75 | 2.2 | 2.7 | 4.05 | 0.75 |
| S800-4T1.5GE | 1.5 | 3.2 | 4.0 | 6.0 | 1.5 |
| S800-4T2.2GE | 2.2 | 4.0 | 5.0 | 7.5 | 2.2 |
ApplicationsWe are professional manufacturer supplying with industrial automation products. with the support of our R&D, system engineering and the advantage of the abundant international resources, we have solved many problems by our engineer for different application. We would like to be one of the most popular industry Automation Solution Suppliers. We try to provide wisdom, individual product solution.
Our products have been broadly applied in Textile, Packing, plastic, ceramic, Traffic, Building, Metallurgy, Chemical industry, Light industry, Military industry etc various industry equipment.
We keep on promoting efficiently the competition ability of the technique, quality, service and positive take part in the project of energy program and productivity promotion in industry field. We work hard in environment protection in return for society. Quanzhou machtric Automation Equipment Co., LtdWe are one of the leading exporters of frequency inverter in china
China Top 10 Brand of Low-voltage Inverter
FAQ
1. what's the payment term?
We accept T/T, L/C, D/P, WEST UNION, CASH
2. What's the delivery time ?
Usually it will take about two - three weeks for production .It depends on your quanlity .
3. What is the standard of package?
Export standard package or special package according to customer requirement
.
4. what kind of product quality your factory offer?
We offer most competitive prices with best quality
5. Do you accept OEM business?
We accept OEM with your autherization.
6.Which market do you already sell?
We already ship to Europ, Middle East, South America, Asia, Afria etc.
Computerized control system of textile machines: Seamless Underwear machine, Glove Machine, Circular Knitting machine,
AutoStripper Knitting Machine, Hosiery Machine, Automatic Winding Machine, Automatic Spooler Machine etc.
Quanzhou Machtric Automation Equipment Co., Ltd., together with three leading enterprises and several affiliated organizations in China and Taiwan has been established to supply "Total Project Solutions" in Industrial Automation.Sanch is geared to integrate the development, manufacture and systems engineering for local and international clients alike.
Our professional teams of engineering, product development, manufacturing and integration staff, devote themselves to the development and application of motor, electric, electronic, microelectronic, information and control technology.
We continue to maintain close co-operation with scientific research institutions both at home and abroad, in order to provide "intelligent" products that not only offer the best solutions, but also have a "humanized" approach to functionality.
At present, our manufacturing capacity is over 100 thousand devices per annum.
This includes products such as:
A/C Frequency Inverters (INVERTER)
Thyristor power controller
Circular knitting machine
Intelligent Control Instruments
Peripheral equipment for Industrial Process Control (IPC)
Microcomputer Controllers for various applications and many others.
In order to service the Chinese market, we have already established dozens of marketing, distribution agents and service organizations, to cover the Northern, Eastern, Central and Southern areas.A Pathway Management System and CRM Customer Relationship Centre with high-efficiency logistic and linkage service has also been established.
SANCH have already applied their range of products and services to the following industries;Textile, dye, ceramic, transportation, building, metallurgy, chemical, light, military ---etc.
SANCH philosophy is to continually improve the electric management platform to account for all facets of applications, thus maximising the competitiveness of technology, quality, service and efficiently in accordance with the principle of satisfying our customers and creating excellent products.
SANCH actively promote a philosophy of, maximising production outputs and yet minimizing energy consumption, using modern technological developments.
Our goal is to achieve "Automation---Energy Saving---Green World", and we will try our best to improve the environment and society as a whole.
