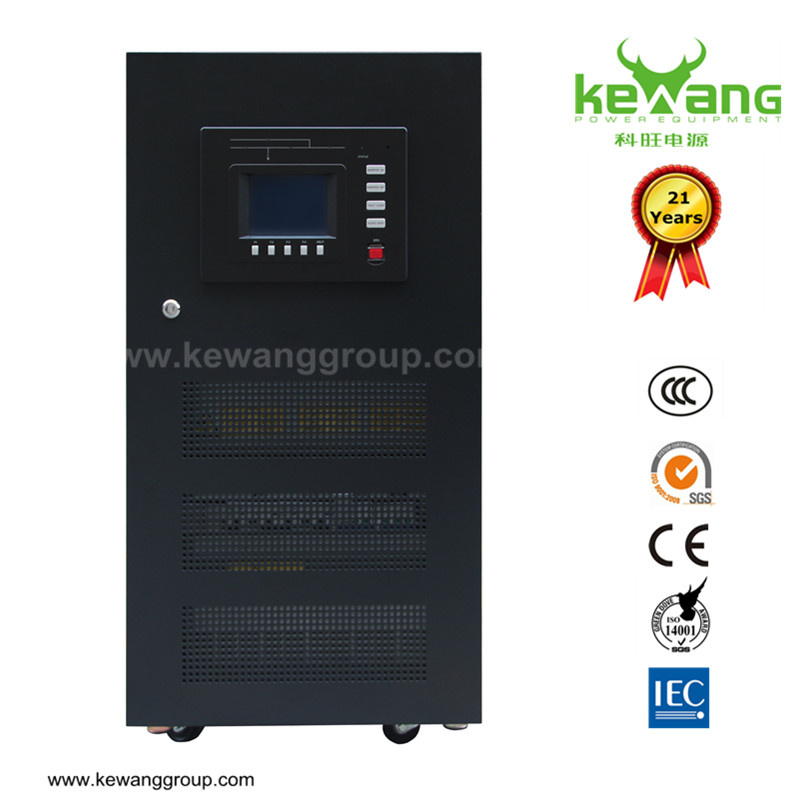

380V LCD Panel Sine Wave on Line UPS (KW7300-10kVA)
| Price: |
US $ 3800/Piece |
| Trade Terms: |
FOB,CIF,EXW |
| Min Order: |
5/Piece |
| Pay Type: |
L/C,T/T,Paypal,Western Union |
| Prod Model: |
KW7300-10KVA |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Capacity: 6-30kVA: |
Operation Panel:Large Screen LCD Display |
| Size:252*580*700(mm): |
Rated Frequency: 50Hz/60Hz |
| Phase: |
Three Phase |
| Type: |
On-line |
| Protection: |
Overvoltage |
| Brand: |
Kewang |
Product Description
380V LCD panel sine wave on line UPS
KW7300 SERIES COMMERCIAL TYPE UPS
INTRODUCTION
KW7300 "kingdom guard" series 3-phase input/3-phase output UPS, with unit capacity from 10KVA to 400KVA, is a high performance sinusoidal wave UPS system, dedicated designed with high availability and reliability to provide very important power supply protection for large scale and key application systems such as Data processing center, Host system, Manufacturing industry, Telecommunication equipment and Medical facility etc..
This series UPS takes double-conversion true on-line IGBT technology and high-speed DSP digital processor to ensure sine wave output with stable voltage and frequency.
With advanced parallel digital control technology, HR7300 series UPS can support parallel redundancy up to eight units, and optional parts such as harmonics suppression filter, bypass input isolating transformer and SNMP adapter etc.CHARACTERISTICS
01. High reliability design
Double conversion topology structure, configure the output isolating transformer, be suitable for complicated loads.
02. DSP fast digital processor
Make the control circuit operation faster and more stable.
03. Output 100% unbalanced load
Meet the requirements of varied loads.
04. 12 pulse rectifier
12 pulse rectifier option, improved input power factor and reduced input THDI effectively.
The matching value of generator can be reduced between 1.2 to 1.8.
05. ECO work mode
In the environment of better quality power grid, can choose ECO work mode which makes the efficiency improved to 98%. More energy saving and friendly to environment.
06. Different power parallel operation technology and parallel shared battery system technology
Reduced start-up cost and improves usability of UPS system effectively, max. 8 parallel operated UPS
07. Advanced battery intelligent management function
Reduce workload of management, extend battery life. Set parameters according to the battery capacity. UPS can manage the charging current automatically to meet the demands about long backup time.
08. Perfect man-machine communication scheme
These UPS display in Chinese and English with 7" touch screen and configure varied interface (RS485/RS232) . They are compatible with a variety of standard about IT communication protocol and configure. 14 groups signal nodes and perfect network management scheme.
All of these make man-machine communication zero distance.
09. Save the limited installation space

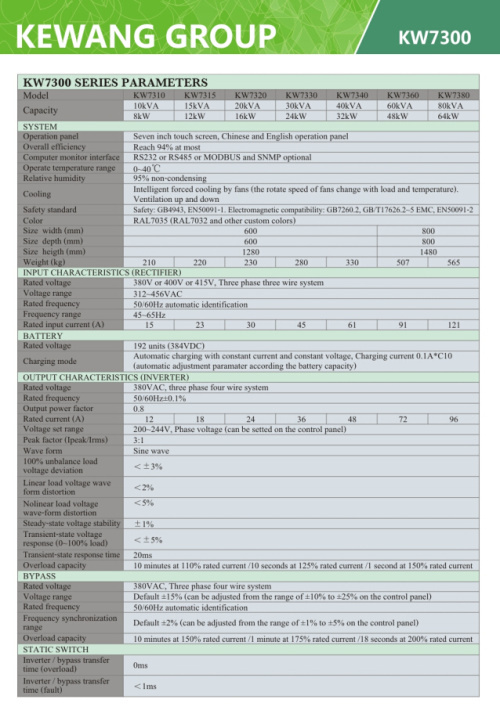

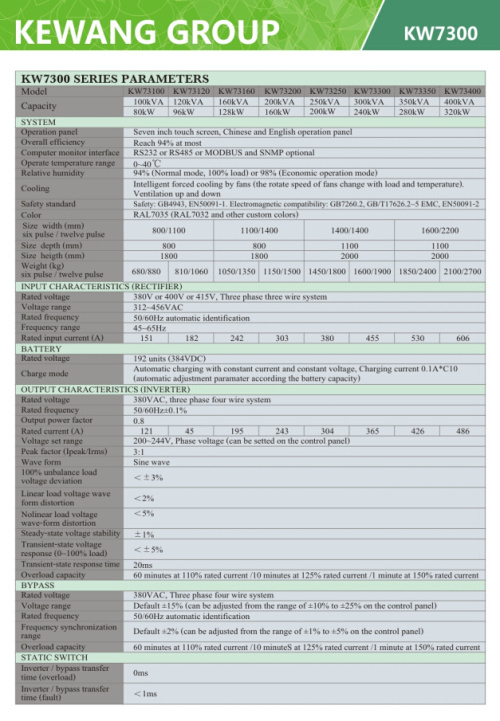

Compact installation space, all front maintain structure, just need 1m maintenance space in the front of UPS, the other 3 sides can be installed against the wall.Parameters
Company ViewKewang was established in 1995 with headquarter in Songshan Lake National HighTech Industrial Development Zone, Donguan city, Guangdong Province, China. It has a total construction of 50,000 square meters which consists of two subsidiaries, Dongguan Kewang Technology Co., Ltd. & Jiangxi Kewang Technology Co., Ltd. Dongguan Kewang is the Group's high class product development, manufacturing and sales base. Jiangxi Kewang is the Group's standard products R & D, manufacturing base with an area of 130,000 square meters.
Kewang Group is a hightech enterprise nominated by Guangdong Government. It's engaged in new energy and power supply whose business covers power devices for Wind power, Solar power, and Natural Gas Energy. It's dedicated to R&D, manufacturing, sales & engineering of high/ low voltage transmission, distribution devices & related power devices. Moreover, it provides integrated solutions for enterprises power supply, data center, and distributed new energy. Kewang has been serving for royal customers over 40 countries, with recognized good quality & professional service.
As a leading power supply company, Kewang Group had taken the lead to be qualified with the ISO9001 quality system certification & ISO14001 environment system certification, and the CCC China mandatory certification. Our products are qualified with European CE certification and American UL certification. We had taken 11 projects nominated by the local government: 4 of which had won government's scientific prizes, and over 30 patents had been achieved. We keep consistent cooperation with South China University of Technology and Wuhan University. With the introduction of high class technical talents, we integrate various resources for R&D, quality& management improvementthese cooperation enable us to set up strong advantages in techniques, talents & brand promotion.
Kewang Group upholds the principle of "Technology Oriented & Sustainable Operation". We keep introduction of new techniques for innovated products, keep on improving management & optimizing product quality. We are dedicated to provide global customers power solutions which are reliable, energy-saving & environment-friendly. We create win-win value for customers, and return value to the society, which is our original motivation.
Kewang Group is one of the largest professional provider and leader in the new energy and power distribution filed in China whose business covers power devices for Wind power, Solar power, and Natural Gas Energy. It's dedicated to R&D, manufacturing, sales & engineering of high/ low voltage transmission, distribution devices & related power devices. Moreover, it provides integrated solutions for enterprises power supply, data center, and distributed new energy. Kewang has been serving for royal customers over 40 countries, with recognized good quality & professional service.
As a leading power supply company, Kewang Group had taken the lead to be qualified with the ISO9001 quality system certification & ISO14001 environment system certification, and the CCC China mandatory certification. Our products are qualified with European CE certification and American UL certification. We had taken 11 projects nominated by the local government: 4 of which had won government's scientific prizes, and over 30 patents had been achieved. We keep consistent cooperation with South China University of Technology and Wuhan University. With the introduction of high class technical talents, we integrate various resources for R&D, quality& management improvement-- these cooperation enable us to set up strong advantages in techniques, talents & brand promotion.
Product line:
1. Customized Transformer & Reactor for application of UPS, PV Inverter, Electrical Car Station, etc.
2. RlS Series Contactless Intelligent type Voltage Stabilizer
3.1kw-5kw Smart Solar Energy Storage System with built in Inverter and Battery
4. DBW/SBW Dry type Voltage Regulator
5. SE series Air-cooled Transformer
6. UPS
7. Generator Set
