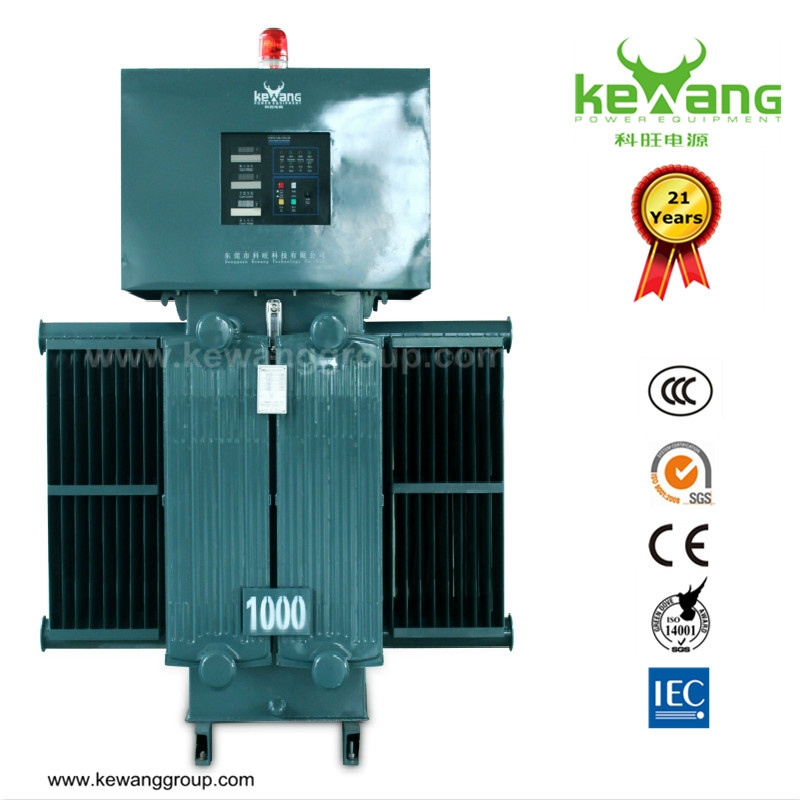

380V Three Phase Contactless Automatic Voltage Regulator 1600kVA

Prod Model:	regulator
Input Voltage:	380V/400V
Insulation Class:	a
Waveform Distortion:	<3%
Output Voltage:	380V
Capacity:	100kVA -2500kVA
Efficiency:	>96%
Current Type:	AC
Phase:	Three Phase
Usage:	SVC
Frequency:	Industrial Frequency
Frequency Characteristics:	50Hz/60Hz
Brand:	Kewang

Product Description

RLS Series Contactless Intelligent Type Voltage Regulator
RLS 100KVA~2500KVA


Introduction
RLS series voltage regulator is designed by advanced technology and digital control system to stabilize the output voltage within specific range. The RLS regulator has the advantage of high impact resistance, super strong instantaneous overload capacity and long service life.


Feature
1. Contactless without carbon brush friction;
2. Integrated circuit with reliable function for voltage regulation;
3. High efficiecy more than 98%;
4. Protection system: over load, over voltage, short circuit protection;
5. Higher precision,longer cycle life,more stable voltage;
6. Low loss and maintenance-free for a long time.

Senarios
Comercial Application: High-rise Building, Elevator Control, Lighting Equipment Industrial Field: Industrial Automation, Production Lines, CNC, Factory Machines, Heavy Load Machinery,Precision Machinery Medical Equipment: X-ray, CT Scanner, MRI System, Radiation Therapy Machine

PARAMETERS

PARAMETERS	100-2500KVA	Frequency	50Hz/60Hz
Input voltage	323-427V	Waveform Distortion	<3%
Output voltage	380V	Ambient Temp	-10ºC~+40ºC
Voltage precision	±1~5%settable	Relative Humidity	<90%
Efficiency	>=96%	Dielectric Strength	2000V 1Min
Response Time	<=0.5	Insulation Resistance	>5ΜΩ

SPECIFICATION(ONLY FOR REFERENCE)

Model	Capacity(KVA)	Phase	Dimension(W×D×H)mm	N.W(kg)	Cabinet
RLS-100	100	3	880×630×1560	420	1
RLS-150	150	3	1100×940×1760	580	1
RLS-200	200	3	1100×1020×1760	690	1
RLS-250	250	3	1100×1100×1760	760	1
RLS-300	300	3	1170×1010×1900	1200	1
RLS-400	400	3	1170×1090×1900	1450	1
RLS-500	500	3	1170×1170×1900	1550	1
RLS-600	600	3	1170×1170×2062	1700	1
RLS-800	800	3	1400×1400×2200	2100	1
RLS-1000	1000	3	1560×1400×2200	2400	1
RLS-1250	1250	3	1790×1630×2360	3600	1
RLS-1600	1600	3	1860×1860×2360	3800	1
RLS-2000	2000	3	1960×1960×2420	4300	1
RLS-2500	2500	3	2120×2120×2570	4600	1
