| A.- THREE PH ASE RECLOSER 33 KV | | | | |
| ITEM | DESCRIPTION | UNIT | REQUIRED | GUARANTEED |
| 1 | RECLOSER | | | |
| 1.01 | COUNTRY | | TO INDICATE | CHINA |
| 1.02 | MANUFACTURER | | TO INDICATE | HEMG |
| 1.03 | MODEL | | TO INDICATE | CHZ4 |
| 1.04 | STANDARD | | ANSI C-37.60 | YES |
| 1.05 | TYPE | | OUTDOOR | YES |
| 1.06 | SYSTEM | | THREE PHASE | YES |
| 1.07 | OPERATION TYPE | | AUTOMATIC AND MANUAL | YES |
| 1.08 | ALTITUDE OF OPERATION | MO.S.L | 2500 OR MORE | YES |
| | ELECTRIC CHARACTERISTICS | | | YES |
| 1.09 | OPERATION VOLTAGE | KV | 33 | YES |
| 1.10 | MAX, VOLTAGE OF THE EQUIPMENT | KV | 38 | YES |
| 1.11 | NOMINAL FREQUENCY | HZ | 60 | YES |
| 1.12 | NOMINAL CURRENT | A | 630 | YES |
| 1.13 | NOMINAL SYMETRIC INTERRPTION CURRENT | KA | 12.5 | YES |
| 1.14 | SPECIFIC LEAKAGE DISTANCE | mm/KV | 31 | YES |
| 1.15 | BIL | KV | 170 | YES |
| 1.16 | DISCHARGE VOLTAGE, DRY, 60 HZ, 1 MINUTE | KV | 70 | YES |
| 1.17 | DISCHARGE VOLTAGE, WET, 60 HZ, 10 SECONDS | KV | 60 | YES |
| 1.18 | CYCLE OF WORK ACCORD ANSI C-37.60 | | YES | YES |
| 1.19 | INTERRUPTIION WAY | | VACUUM | YES |
| 1.20 | INSULATION WAY | | SOLID DIELECTRIC OR GAS SF6 | YES |
| 1.21 | NUMBER OF ELECTRIC OPERATIONS | | 10000 | YES |
| 1.22 | CURRENT MEASURE | | WITH CURRENT SENSORS | YES |
| | INSTALLATION | | INDOOR | YES |
| | SYSTEM | | SINGLE PHASE | YES |
| 1.23 | RELATION OF TRANSFORMATION | A | 400/1. | YES |
| 1.24 | PRECISION | % | 1% | YES |
| 1.25 | VOLTAGE MEASURE | | VOLTAGE SENSORS INTERNAL | YES |
| 1.26 | TYPE | | CAPACITIVE | YES |
| 1.27 | INSTALLATION | | IN BUSHING | YES |
| 1.28 | PRECISION | % | 2.5 | YES |
| 1.29 | QUANTITY | | 6 | YES |
| 1.3 | SENSITIVE GROUND FAULT CURRENT DETECTION. | | CURENT TRANSFORMER | YES |
| | INSTALLATION. | | IN THE TANK (INSIDE THE TANK ) | IN CONTROL TANK |
| | QUANTITY. | | 1 | YES |
| | TRANSFORMATION RELATION. | Ma | 200/1.5 | YES |
| | MECHANIC CHARACTERISTICS | | | |
| 1.3 | METALLIC HARDWARE | | | |
| | MATERIAL | | STAINLESS | YES |
| | STANDARD OF THE MATERIAL | | ASTM A575 | YES |
| | STANDARD OF HOT GALVANIZED | | ASTM A 153 | YES |
| | THICKNEES OF GALAVANIZATION MIN | gr/CM2 | 800 | YES |

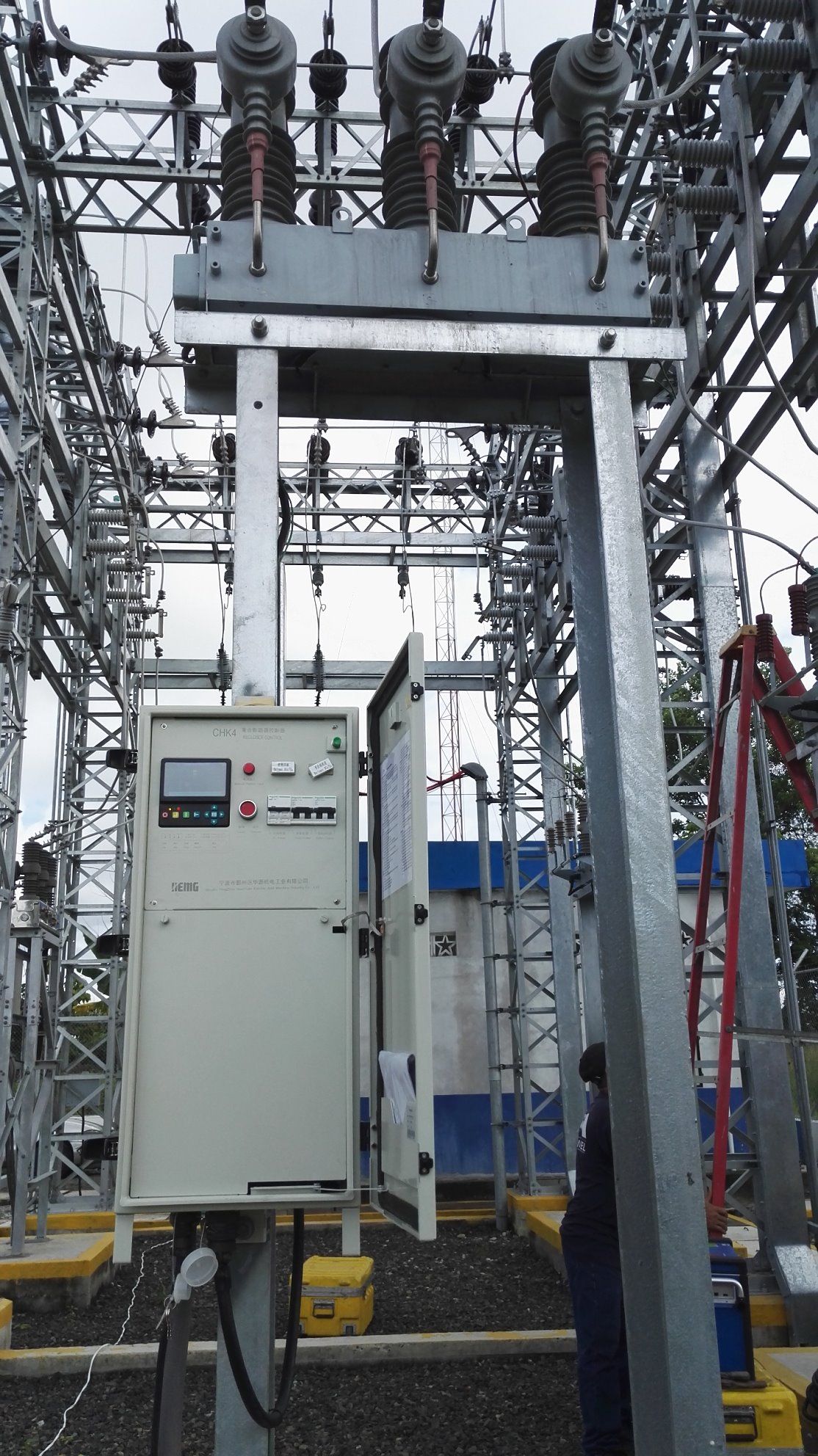

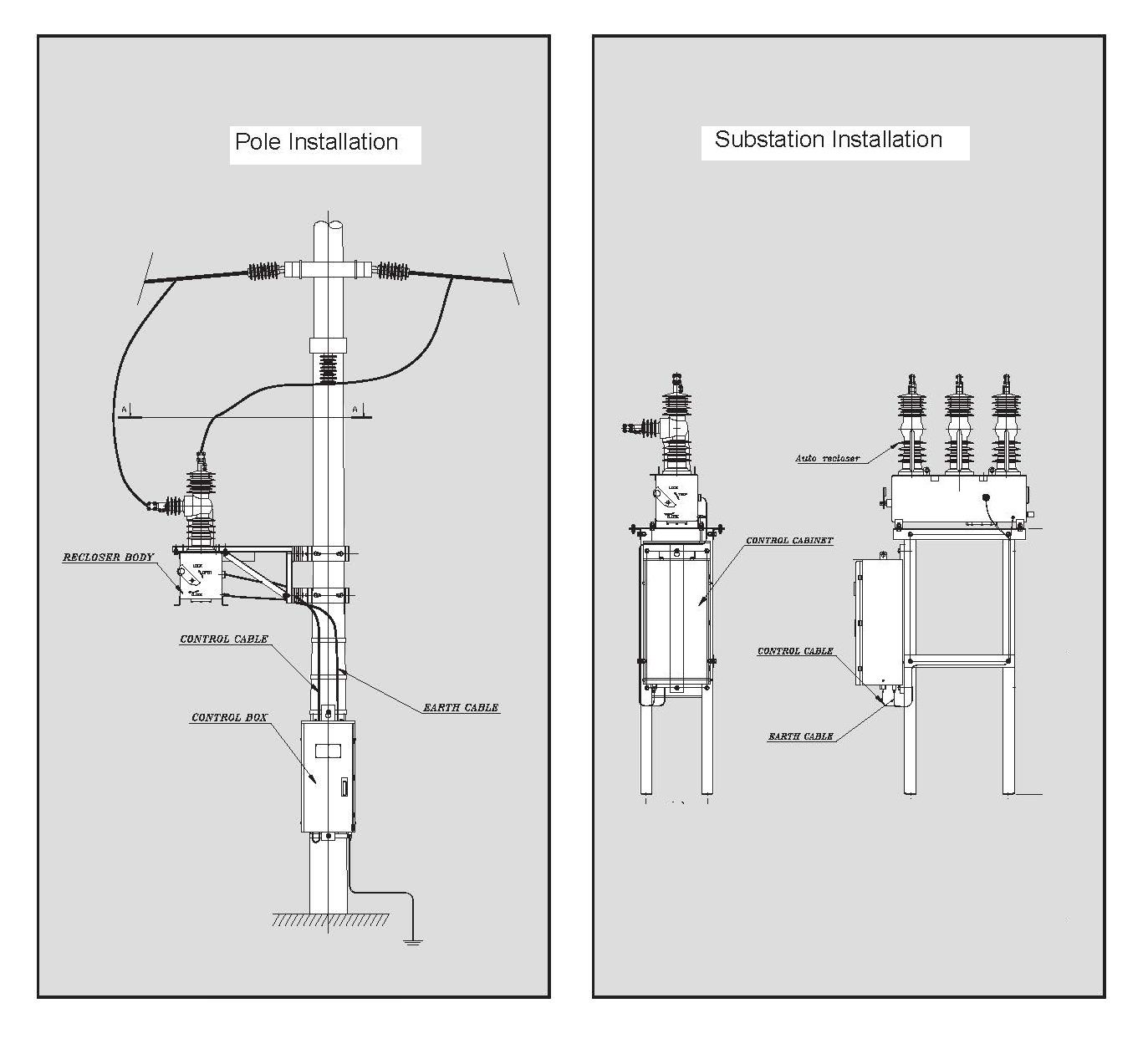

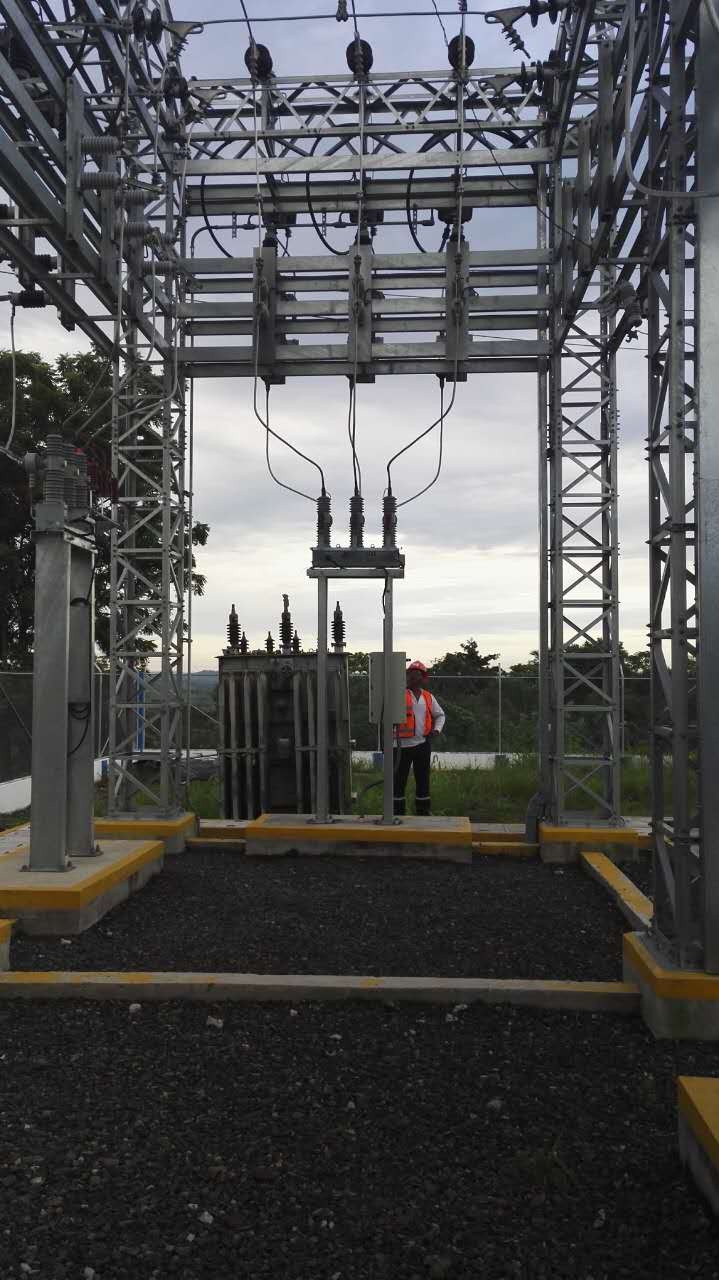

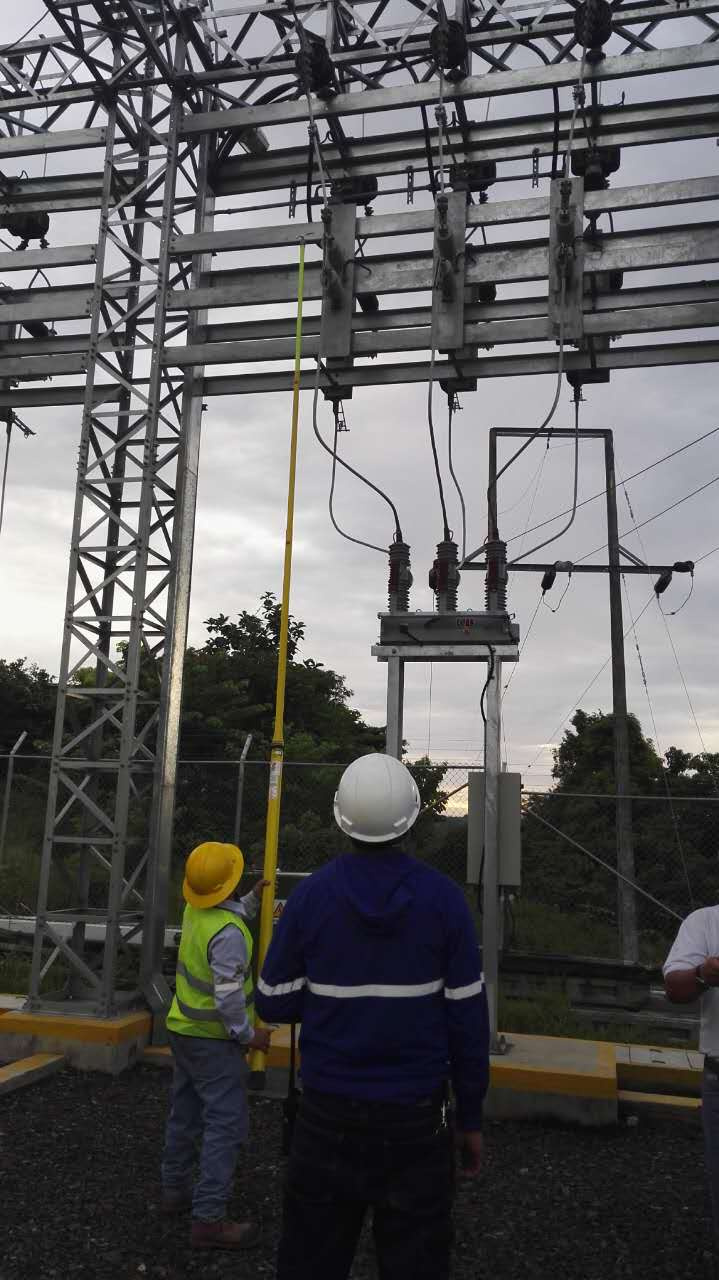

| 1.31 | MOUNTING | | ON CIRCULAR POLE | YES |
| 1.32 | MECHANISM OF OPERATION | | MAGNETIC ACTUATOR | YES |
| 1.33 | POSITION INDICATOR | | VISIBLE FROM THE SOIL | YES |
| 1.34 | OPERATION BETWEEN POLE WITH HOOK | | YES | YES |
| 1.35 | MANUAL LOCKING EMERGENCY (ATTACHED DRAWING) | | YES | YES |
| 1.36 | TOOL PROVIDED WITH MANUAL CONTROL | | YES | YES |
| 1.37 | WITH LIFTING HOOKS | | YES | YES |
| 1.38 | INDICATES THE LIFE OF CONTACTS | | YES | YES |
| 1.39 | NUMBER OF MECHANICS OPERATION | | 10000 OR MORE | YES |
| 1.40 | FULLY ASSEMBLED | | YES | YES |
| 1.41 | WEIGHT | | | YES |
| | PRINCIPAL TANK | KG | TO INDICATE | 75KG |
| | CONTROL BOX | KG | TO INDICATE | 35KG |
| 2 | TANK | | | |
| 2.01 | MATERIAL | | STAINLESS STEEL | YES |
| | CONSTRUCTION REQUIREMENTS | | INDICATE THE STANDARD | YES |
| 2.02 | COATING OF TIN IN TERMINALS AND CONDUCTIVE PARTS. | | 8 um | YES |
| 2.03 | PROTECTION DEGREE | | Able to withstand pressure fresh water cleaning insulators. | YES |
| 3 | BUSHINGS | | | |
| 3.01 | COUNTRY | | TO INDICATE | ZSW |
| 3.02 | MANUFACTURER | | TO INDICATE | HM |
| 3.03 | STANDARD | | ASTM D624, DIN 63504,IEC 60587,ASTM G154, AST G 155.
| YES |
| 3.04 | CHARACTERISTICS OF MANUFACTURE | | | |
| | MATERIAL OF CORE | | FIBER GLASS OR RESYN | YES |
| | INSULATION MATERIAL OF COVER HOUSING AND SHEDS | | Cycloaliphatic EPOXY RESIN | YES |
| | ELONGATION AT BREAK | % | 450 ( ACCORD STANDARD DIN 53504 ) | YES |
| 3.05 | TEAR RESISTANCE. | N/M | MAJOR OF 20 ( Standard ASTM D624) | YES |
| 3.06 | TRACKING AND EROSION RESISTANCE. | | CLASS 2A,4.5 ( IEC 60587 ) | YES |
| 3.07 | TESTING OF RESISTANCE TO UV RAYS. | | ACCORDING ASTM G154 AND ASTM G155 | YES |
| 3.08 | RANGE OF SECTION OF DRIVERS. | | 16 TO 120 MM2 | YES |
| 3.09 | CONDUCTOR MATERIAL OF ELIGIBLE. | | CU/AL , CU/CU , AL/AL | YES |
| 4 | SYSTEM OF CONTROL AND PROTECTION | | | |
| 4.01 | COUNTRY | | SAME COUNTRY INDICATE POINT 1.1 | YES |
| 4.02 | STANDARD OF MANUFACTURE | | ANSI / IEEE 37.90 | YES |
| 4.03 | INSTALLATION | | OUTDOOR | YES |
| 4.04 | MANUFACTURER | | SAME MANUFACTURER INDICATE POINT 1.2 | YES |
| 4.05 | CATALOGUE | | TO INDICATE | YES |

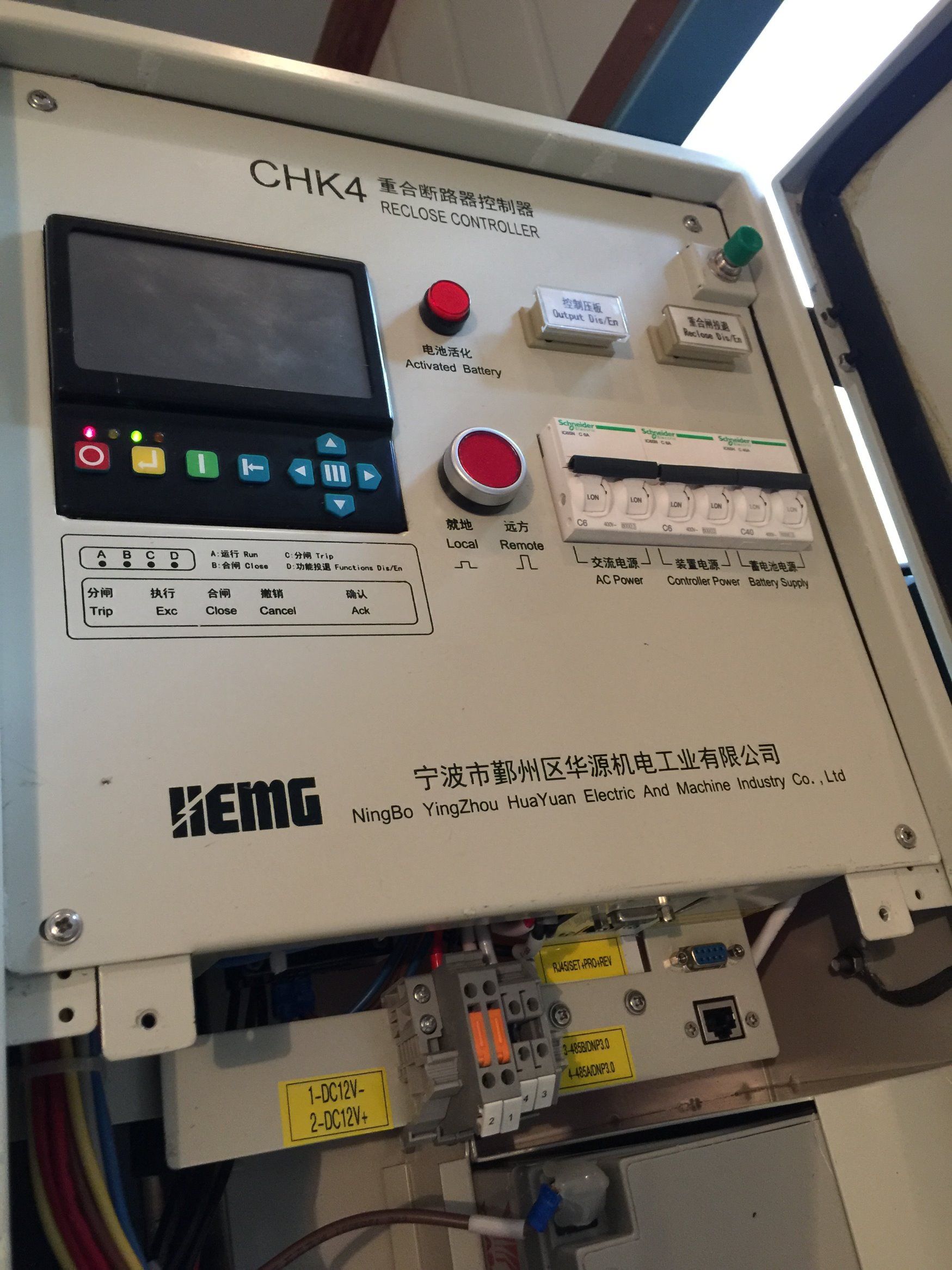

| 4.06 | MODEL OF ELECTRONIC SYSTEM | | TO INDICATE | CHK4 |

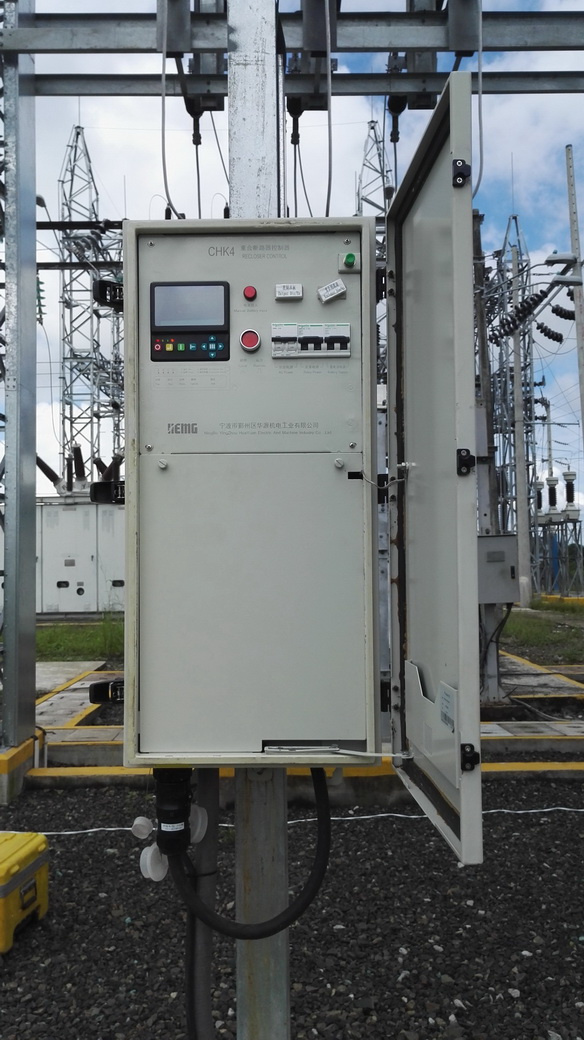

| | CONTROL BOX | | | |
| 4.07 | MATERIAL | | STAINLESS STEEL | YES |
| 4.08 | THICKNESS | | 2 MM | YES |
| 4.09 | SURFACE | | BRIGHT PASSIVATING | YES |
| 4.10 | COLOUR | | TO INDICATE | GREY |
| 4.11 | PROTECTION DEGRE OF THE BOX | | | |
| | CLOSE OPEN | | IP65 | CLOSE IP65 |
| | INSULATION VOLTAGE TO 1 MINUTE | | 2 KV | YES |
| | INSULATION VOLTAGE TO IMPULSE | | 6 KVp | YES |
| | SUPPORT TO INTERFERENCE TESTING ACCORDING TO STANDARDS: | | SWC ANSI C37.90.1, IEC 61000-4-4- | YES |
| | IMMUNITY TO INTERFERENCE RADIO WAVES. | | IEC 255-22-3 CLASS, ANSI C37.90.2 | YES |
| 4.12 | WITH NAMEPLATE | | YES | YES |
| | CHARACTERISTICS | | | |
| 4.13 | FUNCTION | | WITH MICROPROCESSOR | YES |
| 4.14 | PRINCIPAL PROTECTIONS | | 50/51,50N/51N,SEF,25,27,59,59N, 67 | YES |
| 4.15 | SECONDARY PROTECTIONS | | 46.81 | YES |
| 4.16 | ADJUSTEMENT GROUPS | | 2 MIN | YES |
| 4.17 | MIN CURRENT OF SHOOT | | | YES |
| | FAILURE BETWEEN PHASES | A | 20 or minor | YES |
| | FAILURE TO GROUND | A | 10 or minor | YES |
| | SENSITIVY FAILURE | A | 1 or minor | YES |
| 4.18 | SETTING ALLOWS PARAMETERS PROTECTION | | YES | YES |
| | IEC STANDARD CURVES | | YES | YES |
| | CUSTOM CURVES | | YES | YES |
| 4.19 | FAILURE TO GROUND | | YES | YES |
| 4.20 | MINIMUN VOLTAGES | | YES | YES |
| 4.21 | OVER VOLTAGE | | YES | YES |
| 4.22 | STATUS INDICATOR OF RECLOSERS | | | YES |
| | PARAMETERS | | YES | YES |
| | POSITION OF THE EQUIPMENTS | | YES | YES |
| 4.23 | ALLOWS STORAGE OPERATING EVENTS | | | YES |
| | OPEN OR CLOSE | | YES | YES |
| | LOSS VOLTAGE | | YES | YES |
| | OPERATION CURRENT | | YES | YES |
| 4.24 | REPORT FUNCTIONS | | | YES |
| | EVENT REGISTRATION NUMBER SYSTEM | | 2048 | YES |
| | EVENT REGISTRATION NUMBER OF DIAGNOSIS | | 512 | YES |
| | EVENT OF PERFIL LOAD REGISTRATION | | 512 | YES |
| | REGSITER OF NUMBER OF SHOOTS | | YES | YES |
| | REGISTER OF COUNTER OF FAILURES | | YES | YES |
| | NUMER OF REGISTER WAVE FORM | | 32 | YES |
| | REGISTRATION FORM | | COMTRADE or software application | YES |
| | | | | |
| 4.25 | REPORT FUNCTIONS | | | |
| | ERROR IN THE MEASUREMENT | | | |
| | BEFORE FAILURE | | 1% OR MINOR | YES |
| | AFTER FAILURE | | 3% OR MINOR | YES |
| | MEASSUREMENTS OF INSTANTANEOUS VALUES | | V,I,F,P,Q | YES |
| | ACTIVE AND REACTIVE POWER | | YES | YES |
| 4.26 | THE CONTROL MUST HAVE TO DISPLAY DATA AND ADJUSTMENT | | YES | YES |
| 4.27 | COMMUNICATIONS PROTOCOL (READY FOR INTEGRATION WITH SYSTEMS SCADA) | | DNP 3.0 | YES |
| 4.28 | COMMUNICATION PORTS | | | YES |
| | ETHERNET | | YES | YES |
| | COMMUNICATION WITH PERSONAL COMPUTER | | RS232, ETHERNET | YES |
| | COMMUNICATION READ DATA | | RS232, ETHERNET, RS485 | YES |
| 4.29 | OPTION be commanded remotely WITH RADIO MODEM OR GSM MODEM. | | YES | YES |
| | EFFORTS TO SAFE OPERATION. | | YES | YES |
| | INPUT AND OUTPUT NEEDED FOR THIS EFFECT. | | YES | YES |
| 4.3 | CONFIURATION SOFTWARE | | | |
| | ENVIROMENT | | WINDOWS | YES |
| | SECURITY SYSTEM | | WITH PASSWORD | YES |
| | INFORMATION DISCHARGE | | YES | YES |
| | PROGRAMMING IN REMOTELY | | YES | YES |
| 5 | AUXILIAR ENERGY FEEDER SYSTEM | | | YES |
| | SYSTEM | | SINGLE PHASE | YES |
| | INCLUDE AUXILIAR TRANSFORMER FOR CONTROL BOX | | YES | YES |
| 5.01 | BATTERY | | | |
| | COUNTRY | | TO INDICATE | CHINA |
| | MANUFACTURER | | TO INDICATE | LEOCH |
| | TYPE | | TO INDICATE | LEAD ACID |
| | NOMINAL VOLTAGE | | TO INDICATE | 12VX2 |
| | NUMBER OF UNIT OPERATING VOLTAGE TO FAILURES. | | 10 OR MORE | 24 |
| | MEASURING THE CONDITION OF THE BATTERY. | | YES | YES |
| | BATTERY LIFE IN FAILURE OF LACK OF VOLTAGE. | | 48 HOURS | 48 |
| | INCLUDED IN THE CABINET OF CONTROL | | YES | YES |
| 5.02 | SYSTEM OF CHARGE OF THE BATTERIES | | | |
| | COUNTRY | | TO INDICATE | CHINA |
| | MANUFACTURER | | TO INDICATE | BEJINAG |
| | AUXILIAR VOLTAGE | | 220 VAC | YES |
| | SYSTEM | | SINGLE PHASE | YES |
| | COMPATIBLE WITH SPECIFIED BATTERIES | | YES | YES |
| | INCLUDED IN THE CABINET OF CONTROL | | YES | YES |
| | | | | |
| | | | | |
