| Prod Model: |
39BYG103 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Motor Series: |
39 Byg |
| Step Angle: |
1.8 Degree |
| Shaft End Length: |
38mm / 1.50 in (Customizable) |
| Shaft: |
Plain Shaft (Customizable) |
| Connectors: |
Connectors, Lead Wires |
| Payment Term: |
30% Deposit, 70% Balance Before Shipment |
| Number Of Stator: |
Two-Phase |
| Excitation Mode: |
HB-Hybrid |
| Operate Mode: |
Three-Phase Six-Step |
| Type: |
Magnetic-Electric |
| Brand: |
Shengyang |
Product Description

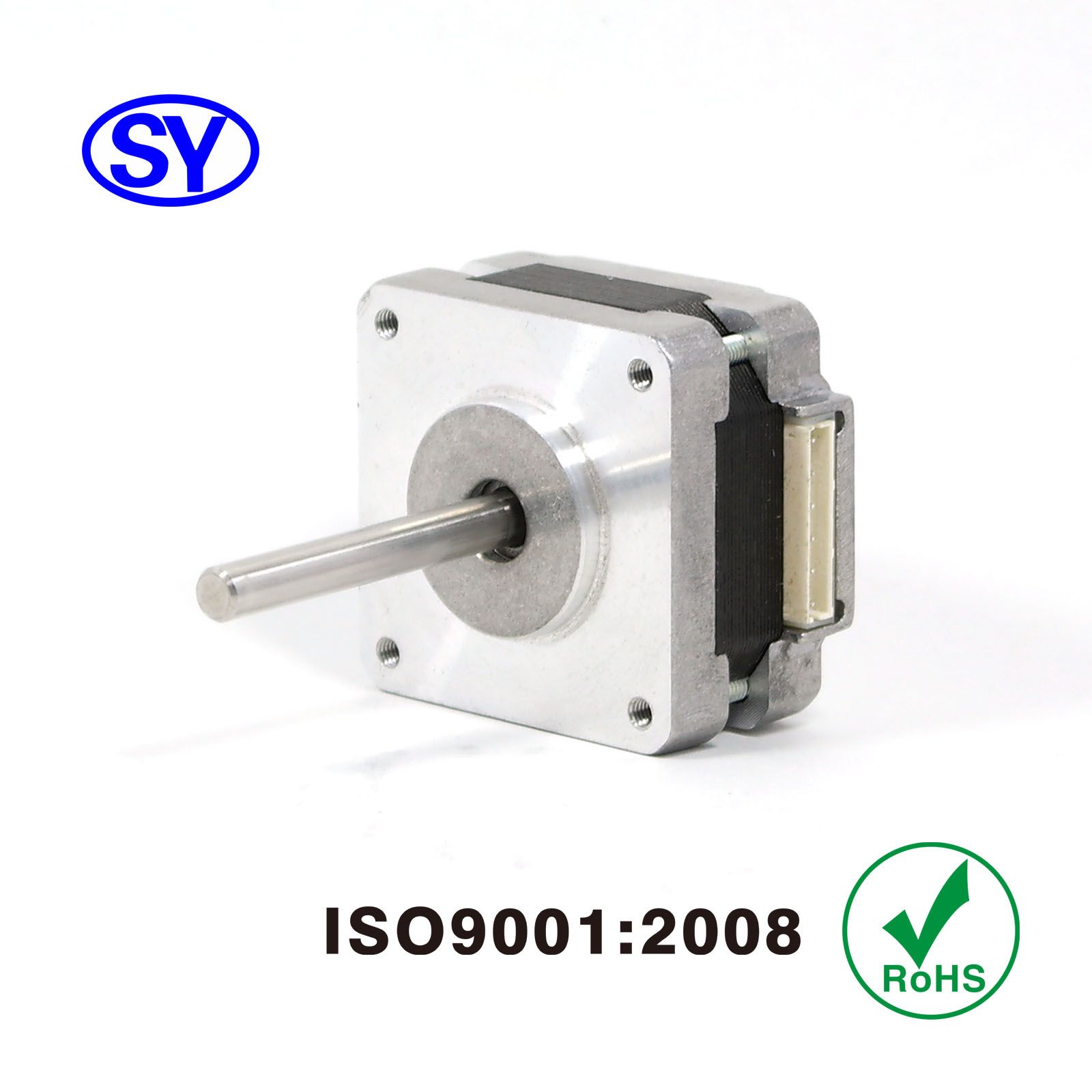

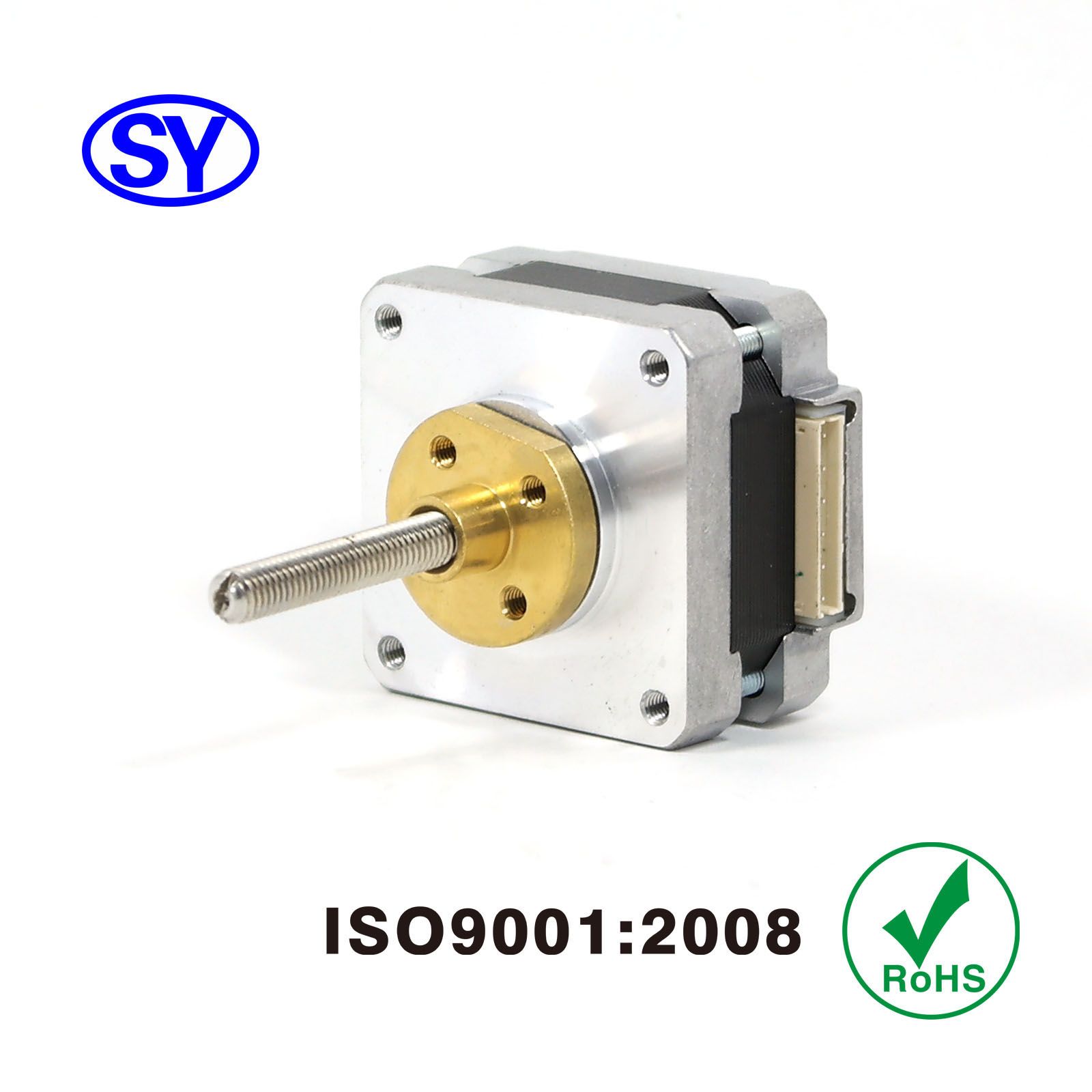

39 mm (NEMA 16) 1.8 Degree Stepper Electrical Motor
Features:Low noise
Low inertia
Low vibration
High accuracy Product Descriptions:
1. Specifications:
Motor Model: 39BYG103-A-38
Step Angle:1.8°± 5% full step, no load
Motor Length: 22mm (0.87in)
Holding Torque: 120mNm (17oz-in)
Rated Current: 0.4A DC
Resistance per Phase: 22ohm
Inductance per Phase: 32mH
Shaft Length: 38mm (1.50in)
Connectors: Connectors
Ambient Temperature:-24ºC- +60ºC
Relative humidity:90% MAX
Resistance Accuracy:± 10%
Insulation Resistance:Larger than 100mΩ 500V DC
Dielectric Strength:600V AC for 1S, leakage current less than 1mA
2. Notes:
Performance and parameters are customized, just simply send your motor diagram or samples to us, the competitive price will be sent to you for your reference.
Pricing is decided by the motor's performace and parameters, most importantly decided by your requirment, contact us and get the latest the price list.
3.Payment term:
T/T in advance, 30% deposit, 70% balance before shipment.
About Zhongshan Shengyang Motor Co., Ltd.:
Zhongshan Shengyang Motor Co., Ltd., established in 2011, has anual production capability of more than 3 million pieces for stepper motor and micro motor. We passed ISO9001:2008 quality system, raw materials comply with RoHS, all of the derived motors can be customized, welcome to contact us.
Contacts: Ms Rita Law
Mobile: (+86) 13631101993
www.shengyangmotor.com
Series
&
Length | Model
Number | Holding
Torque | Rated
Current | Resistance
per Phase | Inductance
per Phase |
| mNm oz-in | A | ohm | Mh |
39BYG0
20mm
(0.79in) | 39BYGOO1 | 90 12.74 | 0.4 | 28 | 19 |
39BYG1
22mm
(0.87in) | 39BYG103 | 120 17 | 0.4 | 22 | 32 |
39BYG9
23mm
(0.91in) | 39BYG902 | 180 25.49 | 0.4 | 26 | 40 |
39BYG2
25mm
(0.98in) | 39BYG205 | 200 28.32 | 0.4 | 34 | 58 |
39BYG3
34mm
(1.34in) | 39BYG308 | 130 18.4 | 0.28 | 44 | 25 |
