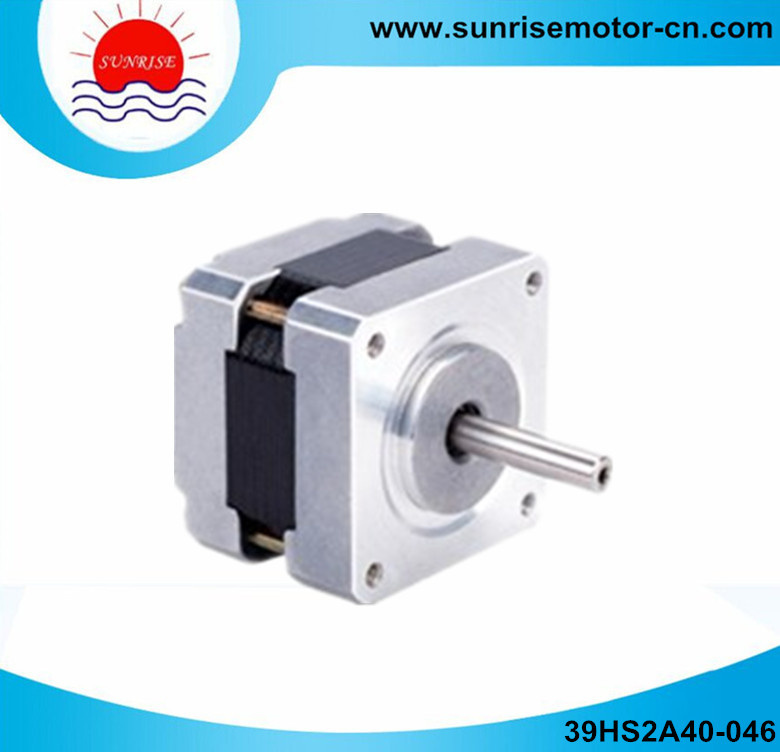

39hs NEMA16 0.4A 18n. Cm Stepper Motor

Name: 39hs NEMA16 0.4A 18n. Cm Stepper Motor
Brand: all-electronics-online.com
SKU: 732767525
Availability: InStock
Rating: 4.6 (80 reviews)

Price:	US $ 7.1-7.42/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	100/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	39HS2A40-046
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	39hs2A40-046
Holdding Torque:	18n.Cm
Current:	10.4A
Resistance:	30ohms
Inductace:	22mh
Length:	40mm
Wire:	6
Weight:	210g
Type:	Magnetic-Electric
Number Of Stator:	Two-Phase
Excitation Mode:	HB-Hybrid
Operate Mode:	The Three Single Phase
Brand:	Sunrise Motor
Certification:	SGS

Product Description

39HS series 2-Phase Stepping motor
1.8° NEMA16

Model: 39HS2A40-046
Holding torque: 18N. C M,
Current: 0.4A
Resistance: 30ohms
Inductace: 22mH
Length: 40mm
Wire: 6
Weight: 210g,

Remark:

We can produce motor according to customer's requirement.

Model	Holding Torque (N@cm±10%)	Current/Phase (A)	Resistance/Phase (ohms±10%)	Inductance/Phase (mH±20%)	Detent Torque (N@cm)	Rotor Inertia (g-cm 2 )	Length (mm)	Weight (g)
39HS2A20-044	8	0.42	18	12	0.5	12	20	100
39HS2A26-064	14	0.6	9	10	0.8	14	26	120
39HS2A34-064	18	0.6	12	13	1.0	19	34	160
39HS2A34-124	16	1.2	3.2	3.0	1.0	19	34	160
39HS2A34-046	12	0.4	30	14	1.0	19	34	160
39HS2A40-064	24	0.6	12	20	1.2	24	40	210
39HS2A40-124	24	1.2	3.8	6.5	1.2	24	40	210
39HS2A40-046	18	0.4	30	22	1.2	24	40	210

Changzhou Sunrise Electric Motor Company was founded in 2004 and is located about 200 km west of Shanghai. SUNRISE ELECTRIC MOTOR manufacture and export PMDC motors, BLDC motors, Hybrid Stepping motors with high torque output (0.2N. M - 28N. M), and customized motors which are per customers' drawings, specification and technical requirements. Also, we source and customize products associated with electric motor applications such as, motor controllers and drivers, motor sensing boards (PCB), etc.

The motors introduced can be used for commercial and residential applications such as industrial automation, office equipment, appliances for household, etc.

The motors listed have been exported overseas through our sales representatives in North America and Europe.
