39mm 1.8 Degree NEMA16 Stepper Motor with Leads 4 Length 20mm 22mm

Name: 39mm 1.8 Degree NEMA16 Stepper Motor with Leads 4 Length 20mm 22mm
Brand: all-electronics-online.com
SKU: 838187545
Availability: InStock
Rating: 4.9 (68 reviews)

Price:	US $ 4-8/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	39HS2204
Current:	0.4A
Holding Torque:	1kg.Cm
Step Angle:	1.8 Degree
Rated Volage:	7.2V
Resistance/Phase:	18Ω
Inductance/Phase:	14mh
No Of Leads:	4
Rotor Inertia:	13G.Cm2
Detent Torque:	50g.Cm
Motor Length:	20mm 22mm
Number Of Stator:	Two-Phase
Excitation Mode:	HB-Hybrid
Operate Mode:	2 Phase
Type:	Stepper Motor
Certification:	Ce
Brand:	Sjie

Product Description

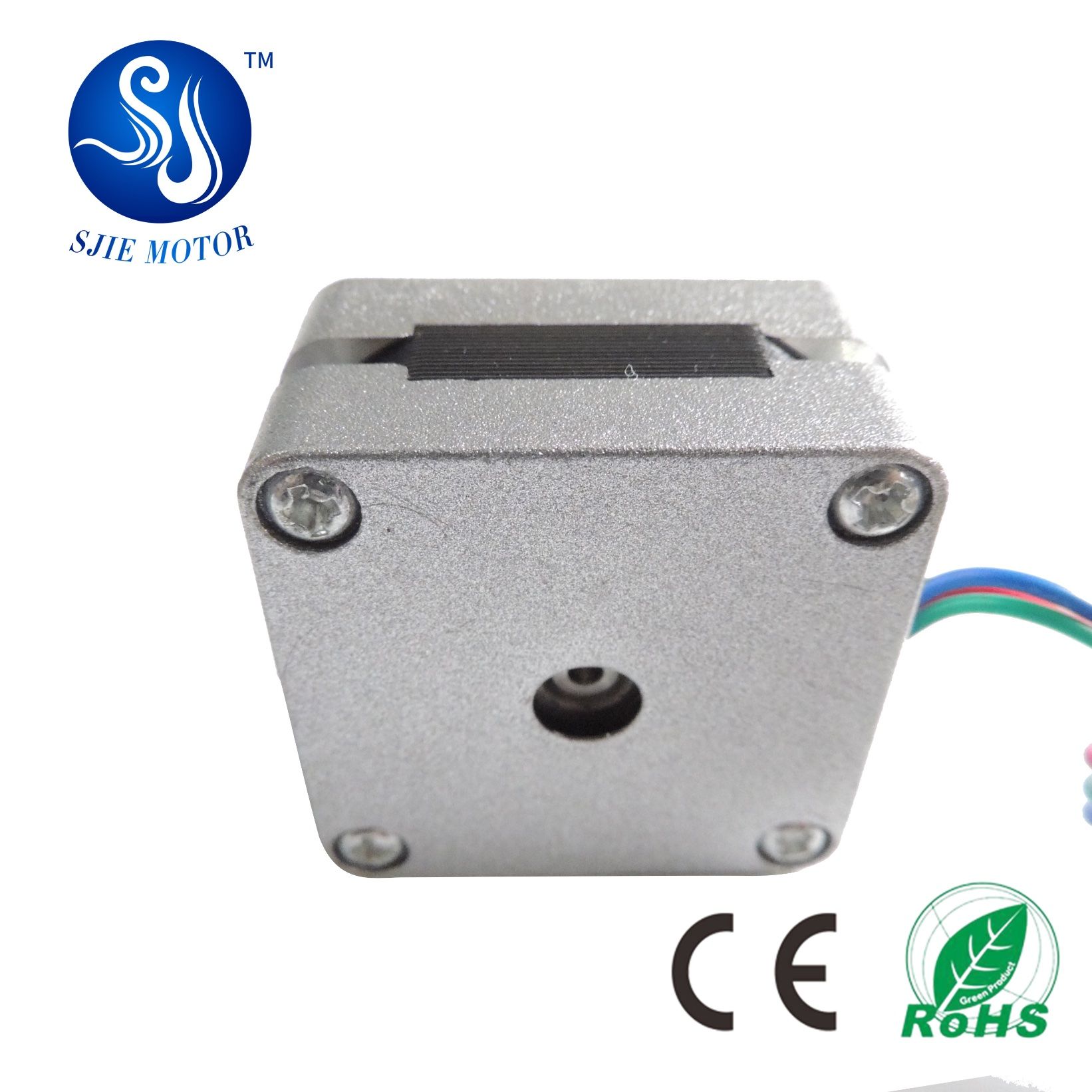

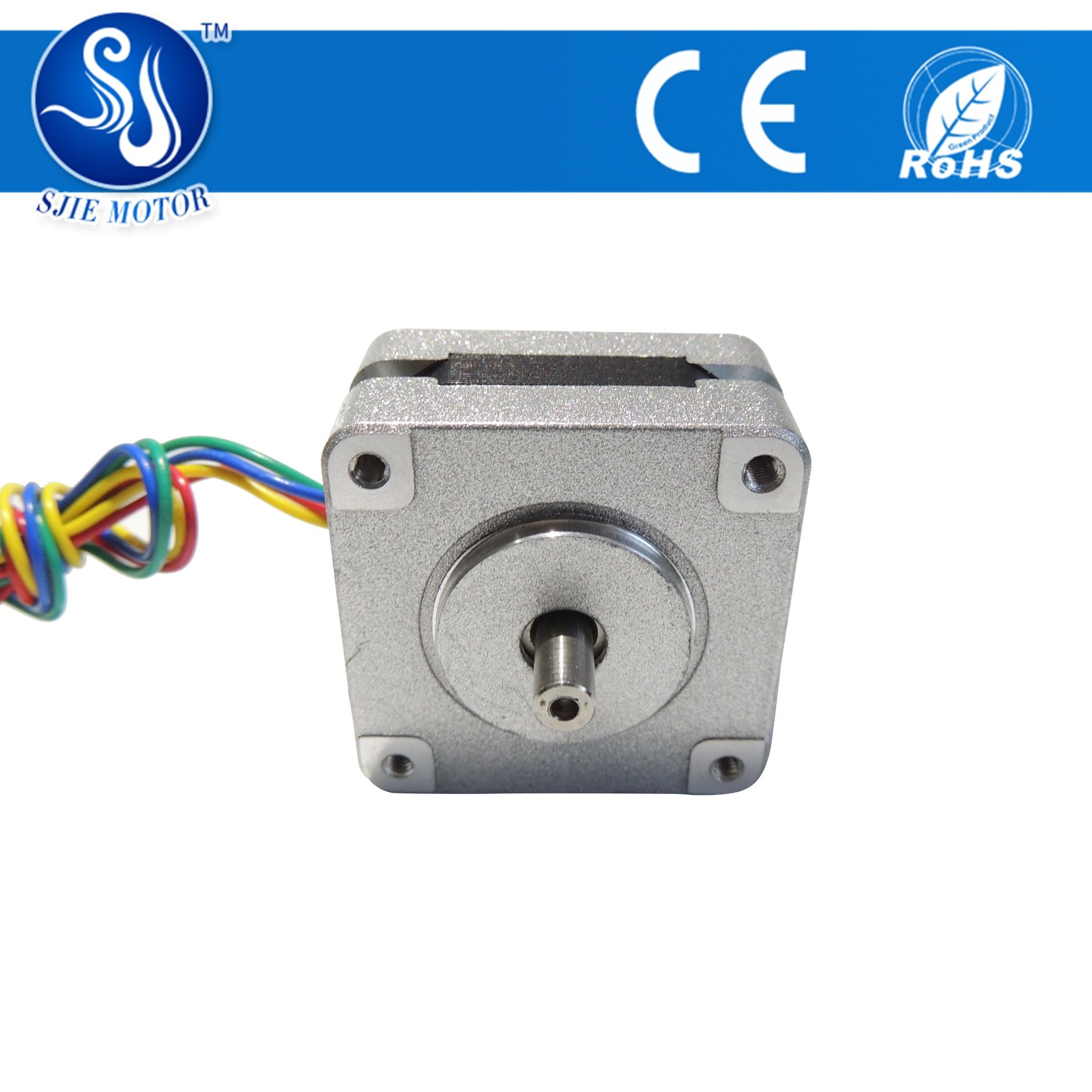

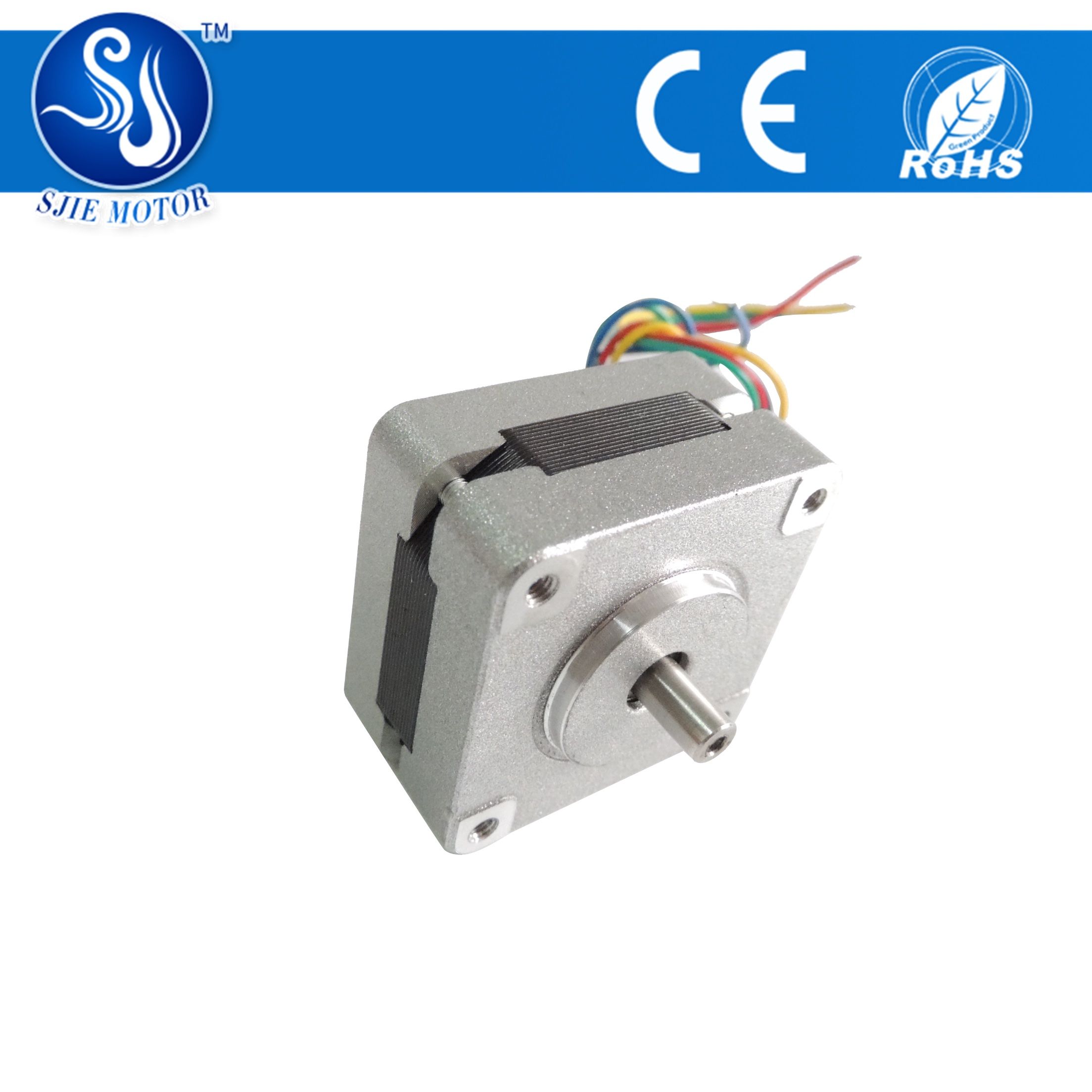

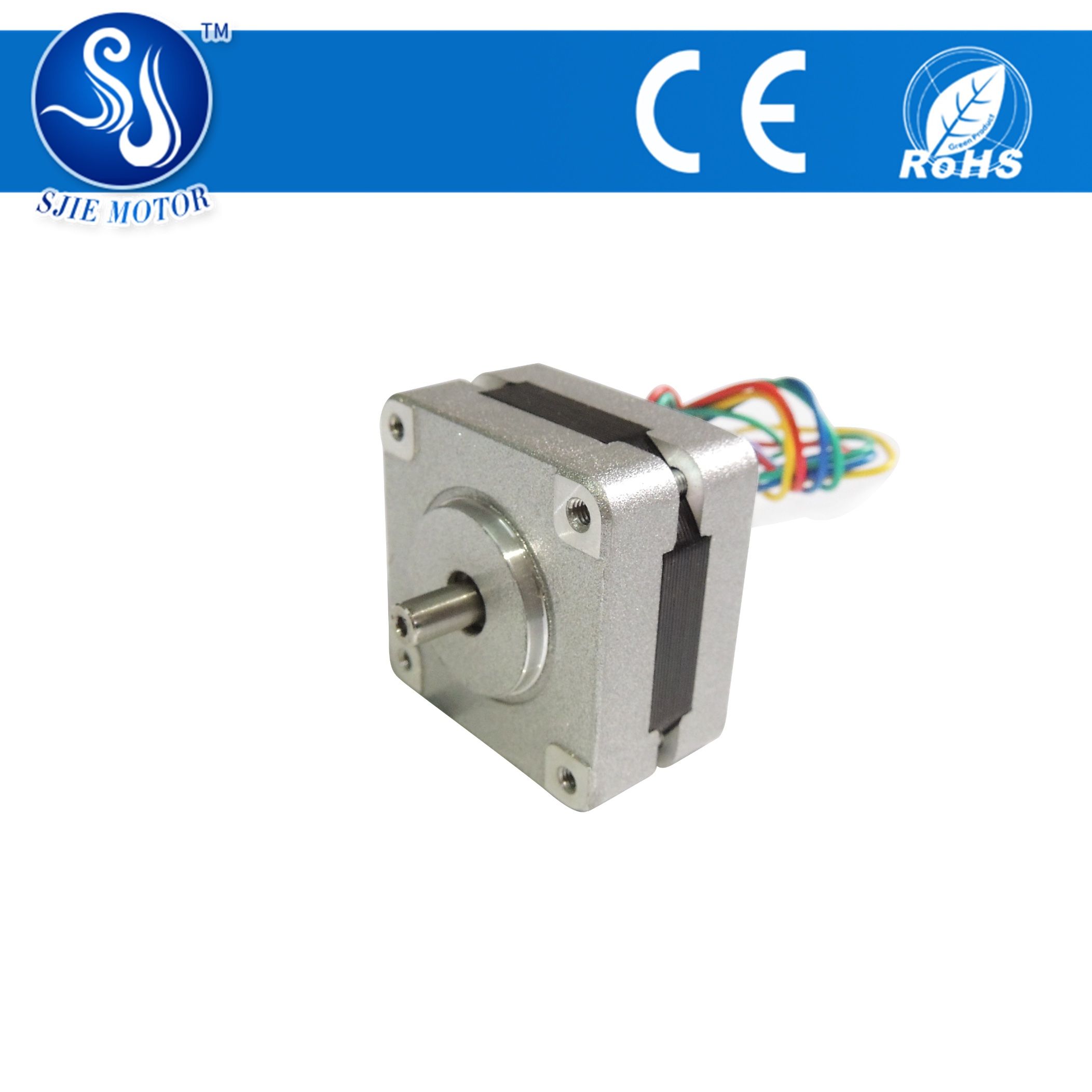

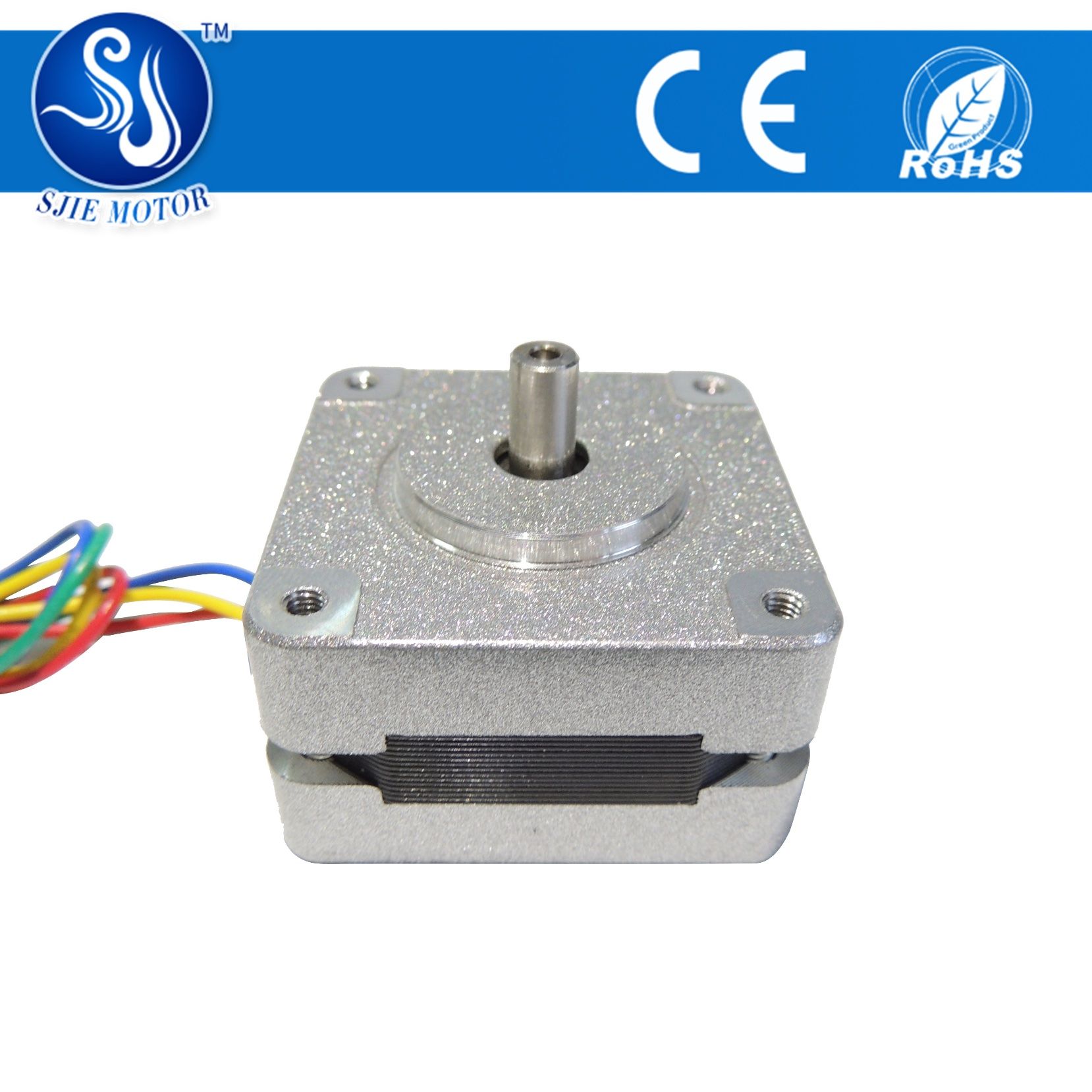

Products photos:

Product Description:

1.8degree Size 22mm 20mm High Torque Hybrid stepper motor.

22mm 20mm size stepper motor,

NEMA16 39mm stepping motor,

2 phase 22mm 20mm stepper motor

Stepper motor 22mm 20mm size

Hybrid Stepper Motors

1) We can develop customer design version

Specifications:

item	Specification
Temperature Rise	80°C Max
Insulation Resistance	100MΩ Min., 500VDC
Step Angle Accuracy	±5%(full step,no load)
Resistance Accuracy	±10%
Amibent Temperature	-20°C~+50°C
Inductance Accuracy	±20%
Dielectric Strength	500VAC for one minute

Electrical Specific
Electrical Specific
Series	Step	Motor	Rated	Phase	Phase	Holding	Detent	Rotor	Lead	Motor
Model	Angle	Length	Current	Resistance	Inductance	Torque	Torque	Inertia	Wire	Weight
	(° )	(mm)	(A)	(Ω)	(mH)	(kg.cm Min)	(g.cm Max)	(g.cm²)	(No.)	(g)
39HS2204	1.8	22	0.4	18	14	1.0	50	10	4	100
39HS2606	1.8	26	0.6	9.0	10	1.4	80	14	4	120
39HS3406	1.8	34	0.6	12.0	13	1.8	100	19	4	160
39HS3404	1.8	34	0.4	30	14	1.2	100	19	6	160
39HS4006	1.8	40	0.6	12	20	2.4	120	24	4	210
39HS4012	1.8	40	1.2	3.8	6.5	2.4	120	24	4	210
39HS4004	1.8	40	0.4	30.0	22	1.8	120	24	4	210
*Note:We can manufacture products according to customer's requirements.

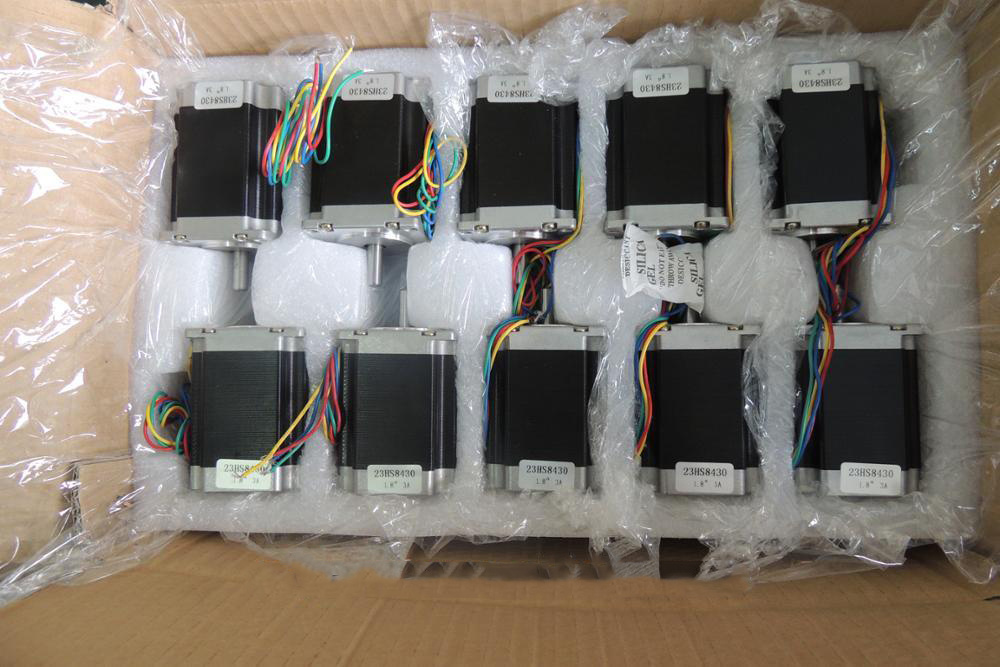

About our Packing:
