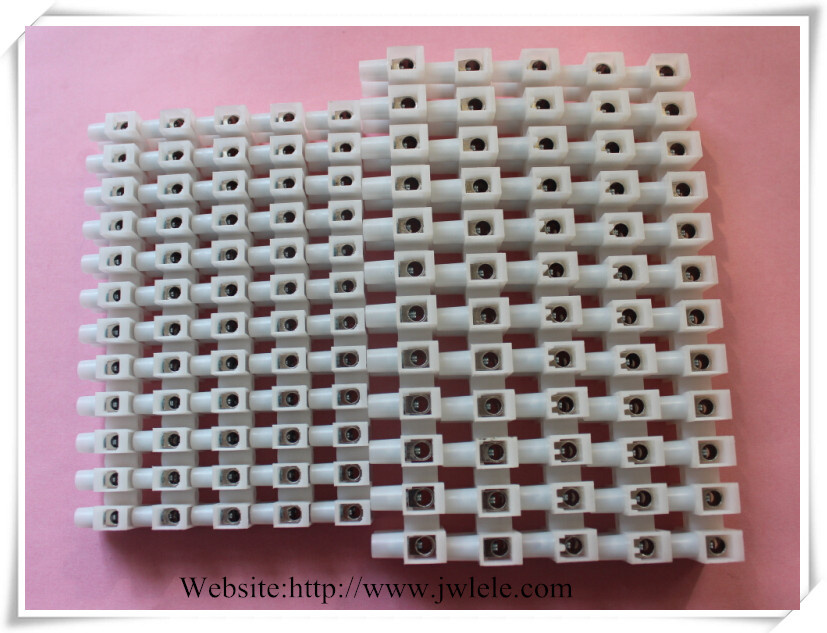

3A-150A Waterproof Screw Terminal Block Strip Connector

Name: 3A-150A Waterproof Screw Terminal Block Strip Connector
Brand: all-electronics-online.com
SKU: 678358425
Availability: InStock
Rating: 4.8 (77 reviews)

Price:	US $ 0.14/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1000/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	3A,5A,6A,10A,15A,20A,30A,60A,80A,100A,150A
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:	Cable
Environmental Protection:	Resistance to Environmental
Connection Mode:	Threaded Connection
Shape:	Rectangle
Contact Termination Form:	Screws Fixed

Product Description

Material:
12 ways terminal block
* type: W (U)
* Material: PE, PP, PA
* Current: From 3A to 100A, 240-450V

PE, Polyethylene, good pliability, transparence, extensibility, resist dissolve, radiation. Working Temperature: - 40° C to 65° C, short time is 80° C.

PP, Polypropylene, inflaming retarding, low transparency, low rigidity, good bounce impact force. Working Temperature: - 30° C to 110° C, short time is 140° C

PA, Polyamide 6/6, 94V-2 grade. Inflaming retarding, good resist dissolve, good bounce impact force, Working Temperature: - 35° C to 115° C, short time is 180° C.

Brass, screw is Iron plated zinc.

Color: Nature

Item no.	Spec.	L	H1	H2	W	ø	E1	E2	screw size	material
Item no.	Spec.	mm							screw size	material
JWL-3A	3A 4mm2	93	7	12.5	16	6	6	0.9	M2.5 x 4	PE PP PA
JWL-5A	5A 6mm2	112	8	13	15	7	3	0.9	M3.0 x 4.5	PE PP PA
JWL-6A	6A 6mm2	102	8	14	18	8	2.5	1.0	M3.0 x 4.5	PE PP PA
JWL-10A	10A 10mm2	125	9	15	20	9	3	1.2	M3.0 x 6	PE PP PA
JWL-15A	15A 12mm2	134	10	17	21	11	3	1.3	M4.0 x 6.5	PE PP PA
JWL-20A	20A 14mm2	140	10	18	22	11	3.5	1.4	M4.0 x 6.5	PE PP PA
JWL-30A	30A 16mm2	171	12	20.5	25	12	4	1.5	M4.0 x 7	PE PP PA
JWL-60A	60A 25mm2	191	16	25	30	13.5	4	1.8	M5.0 x 9	PE PP PA
JWL-80A	80A 35mm2	203	18.5	29	37	16	3	2.6	M5.0 x 12	PE PP PA

Our company is a key electrical accessories manufacturer of terminal blocks and other cable accessories in China.

Our company is located in Yueqing, Wenzhou City, Zhejiang Province. It is a manufacturing and export company, specialized in producing components for kinds of lights, automobile and so on. They have gone through many authentications such as CQC, CE, RoHS. The main products are terminal blocks and wires, cable ties, cable clips, cable glands and copper inserts. They have entered the mafket of most parts in the world including Europe, the Middle East and Latin America. They are of good quality and sell well in many countries.

Our company manufactures products strictly according to IEC and national GB standards, and we have established a complete and improved quality management system according with ISO9002 standard system, We guarantee the products with competitive price, high quality and timely delivery. Besides, we can supply a complete set of after-sales service to our customers and help term expand their local market share.

We welcome you to contact us for more information and we are looking forward to chances of creating a long and mutually beneficial partnership with you. We do hope to cooperate very very well and develop rapidly with our joint efforts for mutual benefits.
