3A Touch Screen Air Conditioner Thermostat with Black Backlight

Name: 3A Touch Screen Air Conditioner Thermostat with Black Backlight
Brand: all-electronics-online.com
SKU: 788117735
Availability: InStock
Rating: 4.3 (61 reviews)

Price:	US $ 3-25/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	TST70-AC
Applied Place:	Central Air Conditioner
Working Voltage:	85~260VAC,50/60Hz
Current Loading:	3A
Temperature Control Range:	10~40 Celsius
Temperature Control Precision:	-1/1 Celsius
Installation Box:	European Standard Box
Backlight:	Black Blacklight
Thermostat Working Environment:	0~+45 Celsius
Dimension:	86mmx86mmx13.3mm
Control Object:	2 Pipes/4 Pipes Fan Coil Unit

Product Description

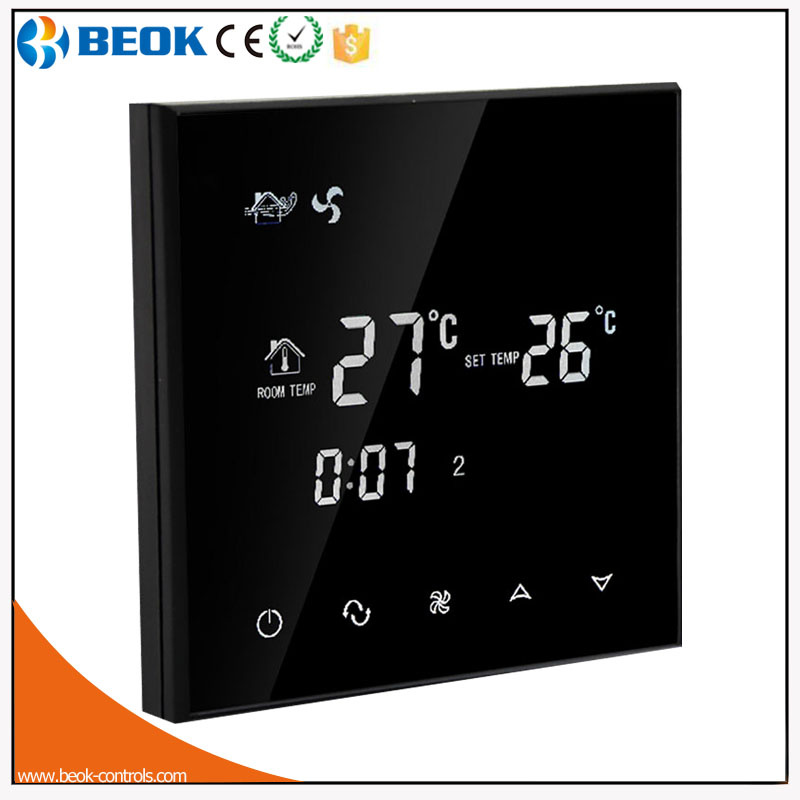

3A Touch Screen Air Conditioner Thermostat With Black Backlight

Product Summary

TGT70-AC Touch screen air conditioner thermostat with black backlight is used to control fans and valves in central air conditioner applications through comparison of the room temperature and setting temperatures, to reach the aim of comfort and saving energy.

Product Technical Parameter

Working Voltage	AC 85~260V, 50-60Hz
Currant Load	3A
Temp Control Accuracy	-1/1 Celsius
Consumption	<0.5W
Setting Temp	10-40 Celsius
Storage Temp Range	-5-55 Celsius
Installation	Wall Inserted Installation
Installation Box Dimension	80mmx80mm European Standard Box

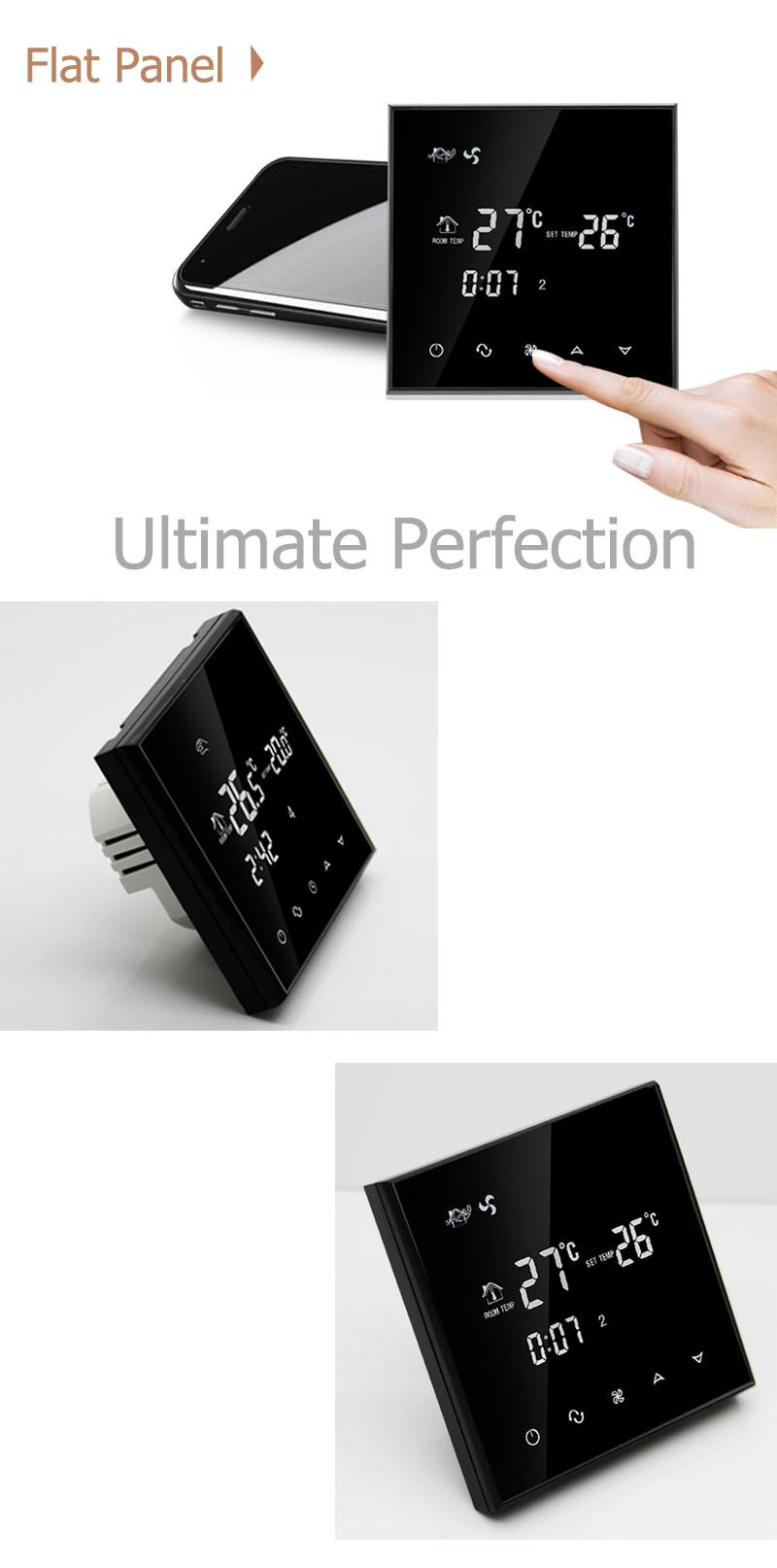

100% Real Product Photos

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~New Thermostat~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~Touch Screen Thermostat~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

Product Features

TGT70-AC Thermostat Main Features & Functions---

1.	With large glass screen display with back light, white words display
2.	With Programmable function, customer can set 4 periods time per day
3.	3 Fan Speed + Auto timer switch for daily or week
4.	With Super Capacitor to keep Data Memory function
5.	Precise comfort control keeps temperature within 1 Celsius of the level you set
6.	With 2 pipes and 4 pipes for choose;

Product Model Spec

Model	Current Loading	Fan Speed	Control Object	Timer Switch
TGT70-AC2	3A	3 fan speed + Auto	2 pipes fan coil	√
TGT70-AC4	3A	3 fan speed + Auto	4 pipes fan coil	√

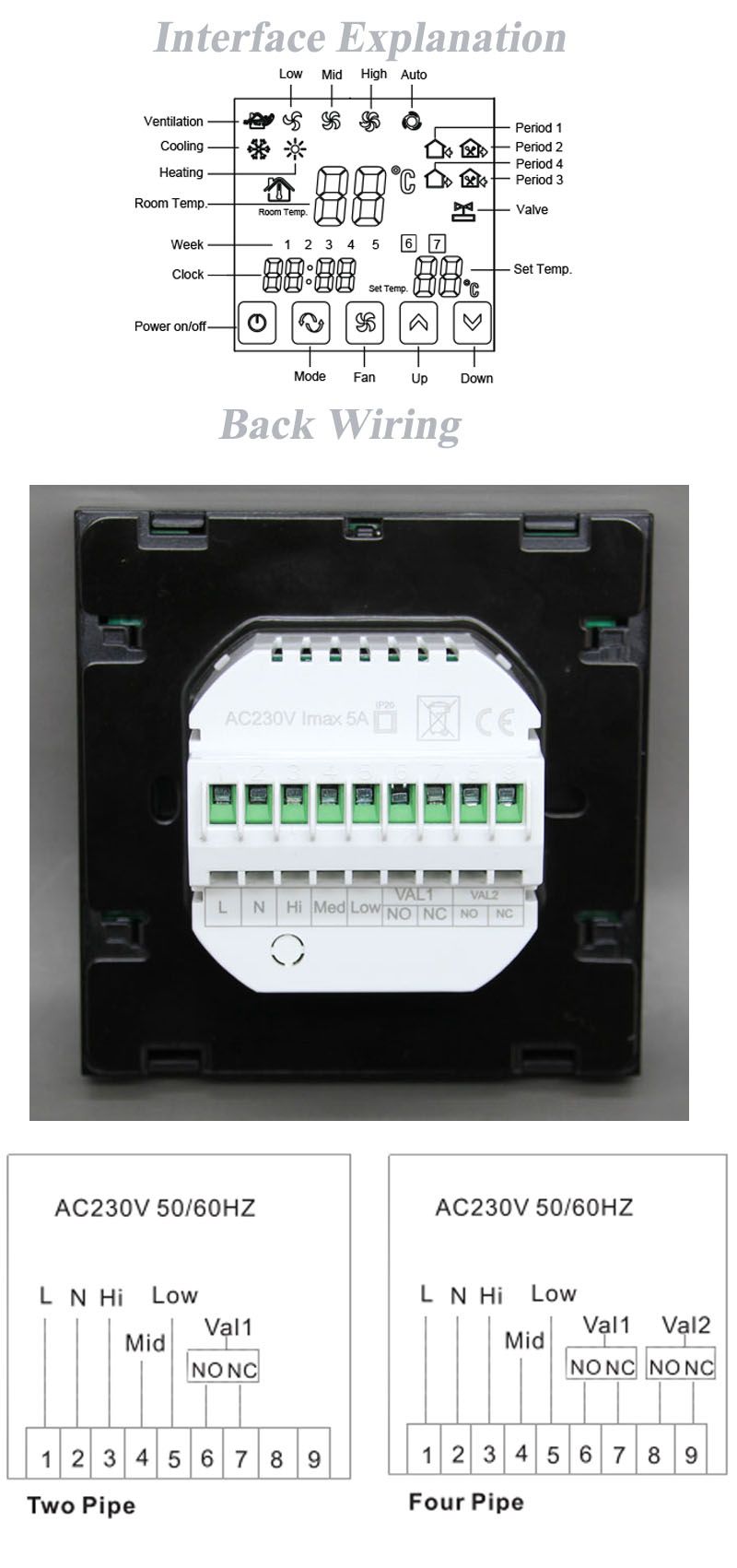

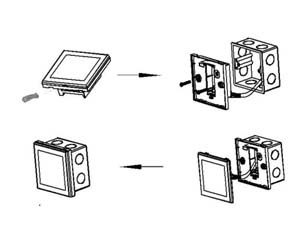

Product Installation

1. Connect the line of power and valve into the terminals. Fix the wall plate into the wall box by a screw driver;

2. Connect the lines with the LCD board;

3. Connect the LCD board into the wall plate.

NOTICE: The installation wire should be 1.5-2.5 mm.

Product Package

In the Inner packing box, you will find:

Thermostat	1pc
User Manual	1pc
Screws	2pcs
Drayer	1pc
