3c-2V Class a+ UL Coaxial Cable with 2f Plug

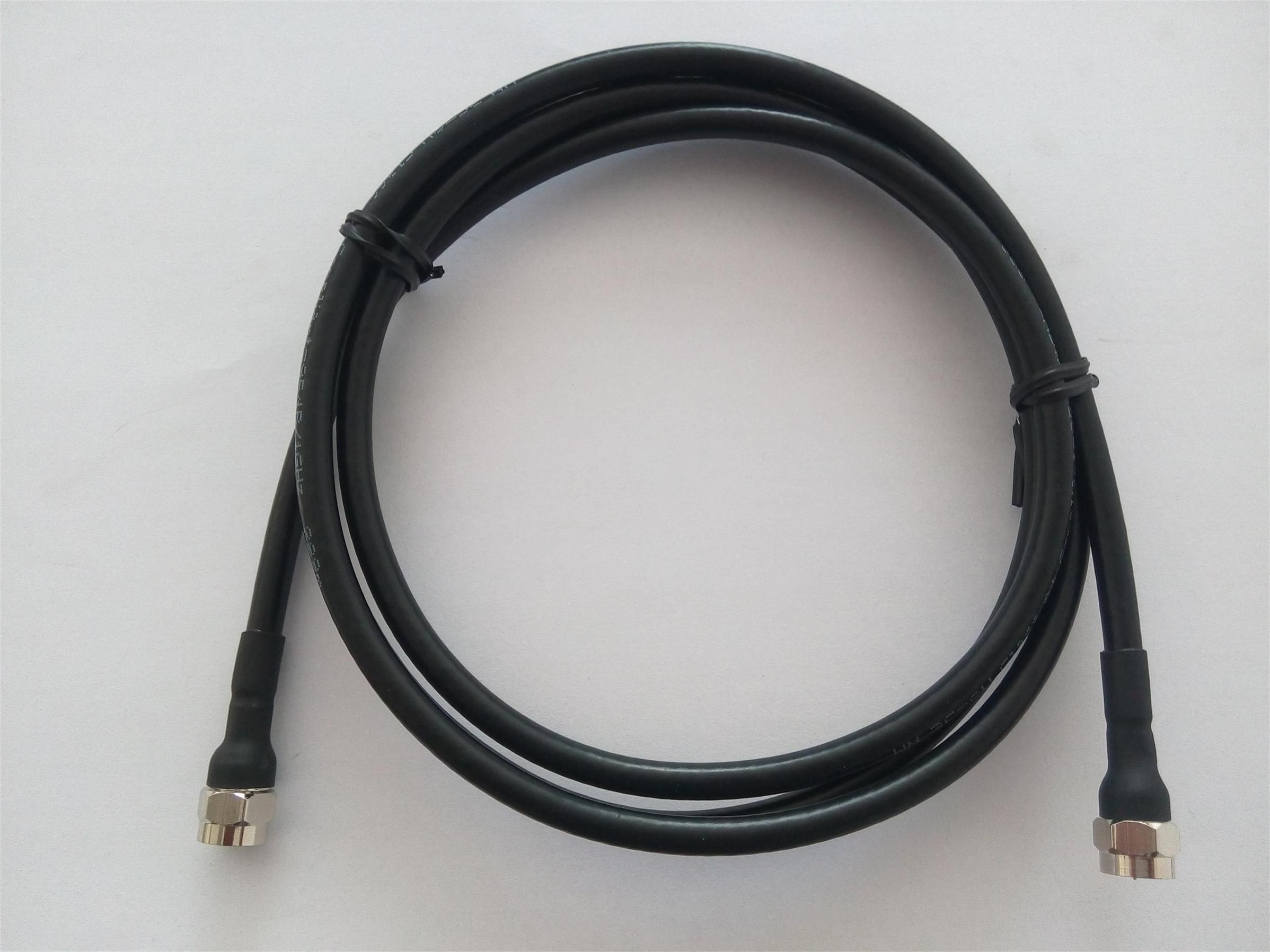

Name: 3c-2V Class a+ UL Coaxial Cable with 2f Plug
Brand: all-electronics-online.com
SKU: 771868945
Availability: InStock
Rating: 5 (126 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	2000/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	3c-2v CLASS A+ Coaxial Cable
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Jacket:	PVC
Application:	Coaxial Cable
Conductor Material:	Copper
Cover Material:	PVC
Certification:	RoHS

Product Description

Features:
Coax type: 3C-2V 75Ω Radio frequency coaxial cable with 0.85 X 2C power cords
Operating temperature: -20 to 60° C
Other: UV-resistant
Materials:
Conductor:
Nominal outer diameter: 0.5 ± 0.02mm
Material: Annealed solid copper
Dielectric:
Nominal outer diameter: 3.05 ± 0.13mm
Material: Solid PE
Braid shield:
Wire count: 6X16X0.14mm
Maximum pitch: 26mm
Material: Copper clad aluminum wire
Jacket:
Nominal outer diameter: 5.4 ± 0.2mm
Material: Soft PVC
Color: Black
Power cords:
Conductor outer diameter: 0.90 ± 0.02mm
Conductor material: Annealed solid copper
Insulation outer diameter: 1.35 ± 0.1mm
Insulation material: Solid PE, color in transparent and Red
Jacket outer diameter: 4.0 ± 0.2mm
Jacket material: Soft PVC
Shield effective:CLASS A+:5MHZ~1000MHZ≥ 95dB,1001MHZ~2000MHZ≥ 85dB
Electrical characteristics 3C-2V:
Characteristic impedance: 75 ± 2Ω
Insulation resistance: ≥ 1000MΩ /km
Conductor DC resistance: ≤ 91.4Ω /km
Voltage resistance: 1000V/minute
Static capacity (1kHz): 67 ± 3nF/km
Velocity propagation: 66 ± 2%
Electrical characteristics (power cords):
Conductor resistance: <29.2Ω /km at 20° C
Insulation resistance: 1000MΩ /km at 20° C
Withstanding voltage (in air): 350V AC at least 1 minute
Packing: 250m plastic reel/box, or as your requirment

Wanma is a professional cable manufacture located in Lin'an, Zhejiang Province, an ancient Chinese city.Since its establishment in 1989, Wanma has devoted over 20 years in constantly research, investigation, and improvement in not only our products, but also management philosophies and technical abilities.Thus allowing us to achieve rapid progress in the field of cable manufacturing industry, and also becoming a trusted OEM and ODM supplier to a number of well-known Fortunes 500 enterprises and many famous CATV, satellite system operators across the world.

Our major products include RG series cable, HDMI, USB2.0&3.0, A/V and Fiber Optic cables.Our annual output includes 700, 000 km of coaxial cables and 20 million pieces of related cable assemblies.Along with the development of cable products, we've also paid great attention to vertical integration of the supply chain;We set up our own individual plant for PVC and Aluminum foil.

Utmost quality is our constantly seeking and demand, we have accurate testing device for high frequency electrical performance, and a full set of testing equipments complying with UL's strict requirements.We passed through ISO 9002 quality system acceptance in 1999, acceptance to UL's safety specification as well as CSA nominated products in 2002.We became HDMI adopter and passed HDMI Compliance Test in 2010.In addition, we have passed GE and Thomson's quality management audit.

We are determined to assume the responsibility for the protection of our environment and society.We passed the SGS ethics acceptance in 2005, ISO 14000 acceptance in 2006, Wal-Mart EHS audit in 2012.Our products completely conform to the requirements of RoHS guidance.

We are always ready for your professional inquiry.
