3D-Fb Coax Twin Cable Assembly for Wilson Signal Booster

Name: 3D-Fb Coax Twin Cable Assembly for Wilson Signal Booster
Brand: all-electronics-online.com
SKU: 781238885
Availability: InStock
Rating: 4.7 (33 reviews)

Price:	US $ 0.01-1.5/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	2000/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	3D-FB
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
RF Coaxial Cable:	3D-Fb
Inner Conductor:	Bc/CCS
Insulation:	Foam PE
Shield:	Double Shield
Jacket:	PVC
Type:	Insulated
Conductor Type:	Solid
Application:	Overhead
Conductor Material:	Copper
Insulation Material:	PE
Certification:	RoHS
Range Of Application:	Antenna Cable
Brand:	Otto Cable

Product Description

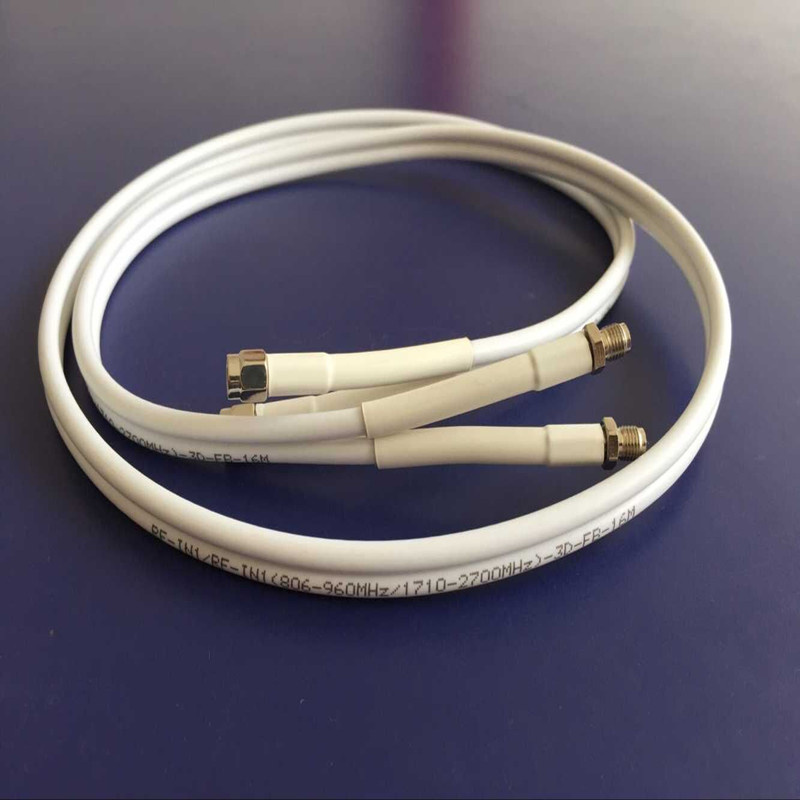

3D-FB Coax Twin Cable Assembly for Wilson Signal Booster

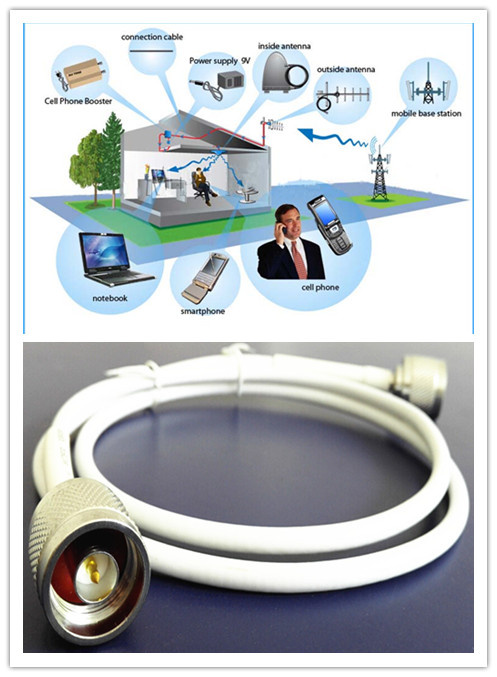

Coaxial Cable 3D-FB with SMA type connector, designed for cellphone signal booster / repeater, antennas.

50 Ohm 3D-FB coaxial cables can also be fixed with N,BNC,TNC, SMA connectors.
This 3D-FB cable and its assemblies works very well with cellphone signal boosters, repeaters and have already been widely applied to DAS,CDMA,GSM radio transmission,base radio antenna station and other communication systems.

SPEC:

Connector Type: SMA, male, straight.

Cable Length: 1M,3M,5M.... can be made as per customers' requirements.

Coaxial Cable 3D-FB
Construction
Item	Material		Diameter(mm)
Inner Conductor	Bare Copper or Copper Clad Steel		1.00
Dielectric	Foam PE		3.00
First Shield	Boned Aluminum Foil		3.20
Second Shield	Tinned Copper Braid		---
Jacket	PVC/PE/LSZH		5.40

Electrical Characteristics		Attenuation @20ºC (dB/100M)
Impedance(Ω)	50	@100MHz	10.4
Velocity of Propagation(%)	81.0	@350MHz	19.5
Return Loss(dB)	≥20	@900MHz	31.8
VSWR(dB)	≤1.3	@1200MHz	37.2
Shielding Effectiveness(dB)	≥85	@1500MHz	41.5
Operating Temperature(ºC)	-25 to +70	@1800MHz	45.6
		@2500MHz	54.0

Otto Cable Technology Co., Ltd. is a Hi-Tech enterprise specializes in researching, manufacturing and selling 50 Ohm & 75 Ohm coaxial cables, cable assemblies and other related products.

After decades of practical experience and technical skills, we have been very professional on these products, which covers:

1). Wireless RF Transmission coaxial cable, 50 Ohms RG MIL-C-17 and JIS Spec coaxial cables, mainly applying to 4G, 3G, GSM, and CDMA telecommunication system, digital microwave communication system, DAS, GPS and other car antenna system.

50 Ohm coaxial cable assemblies/pigtails/jumper cables/pre-made coax cables usually fixed with various connectors, such as N, SMA, SMB, MCX, MMCX, TNC, BNC, UHF...

2). 75 Ohms RG MIL-C-17 Spec coaxial cables, CCTV, CATV-MATV coaxial cable, satellite coaxial cable, video coaxial cable, which are serving for existing and next generation TV network and security monitoring and control systems.

Besides of the standard coaxial cables, customer required cables and value-added services are also available in our company.
