1. Name: 3D-FB Foam PE Insulation Coaxial High Speed Cable with 50 Ohms Resistance
2. Item Code: 3D-FB
3. Characteristics:
1) High velocity of propagation, low attenuation, low return loss;
2) Perfect connecting cable for digital video and audio signals for the highest quality image;
3) Perfect cable for satellite tv & high speed internet;
4) Durable & flexible pvc jacket is ideal for running cable through dry wall and over drop ceilings girders;
5) Allows for bending cable without damaging the quad shielded insulated wiring.

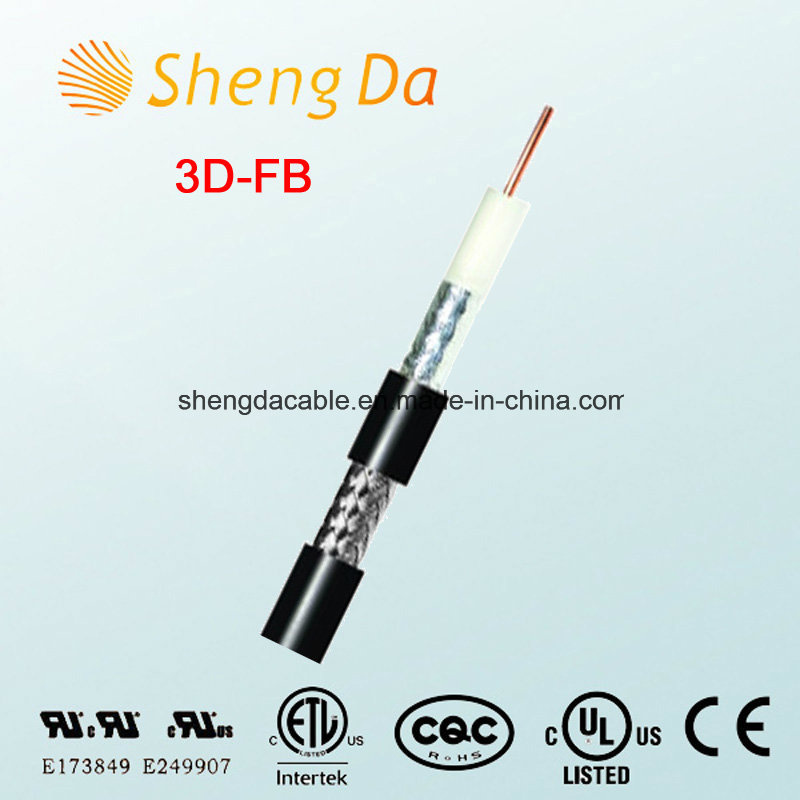

4. Picture:
------------------------------------------------------Specification------------------------------------------------------
Name | Material | Parameter |
Inner conductor | Bare copper or copper clad aluminum | 1.07 mm (diameter) |
Dielectric | Physical foam PE | 3.00 mm (diameter) |
First shield(tape) | AL/PET foil | N/A |
Braid | Tinned copper | 82% coverage |
Jacket | PVC or PE | 5.40 mm (diameter) |
Messenger | No messenger | N/A |
Min bending Radius | N/A | 55 mm |
Min bending Temp. | N/A | -15ºC |
Storage Temp. | N/A | -25~+70ºC |
Install Temp. | N/A | -15~+50ºC |
Operating Temp. | N/A | -20~+70ºC |
----------------------------------------------Electrical Characteristics----------------------------------------------
Characteristic Impedance | 50 Ohms |
Velocity of Propagation | 66% |
Capacitance | 67 pF/m |
Return Loss | ≥22 dB |
Shield efficiency | ≥85 dB |
-------------------------------------------------Attenuation at 20ºC-------------------------------------------------
Frequency (MHz) | 100 | 350 | 900 | 1500 | 2000 | 2500 |
Maximum(dB/100m) | 10.40 | 19.50 | 31.60 | 41.50 | 48.20 | 54.10 |
-------------------------------------------Voltage Standing Wave Ratio--------------------------------------------
Frequency (MHz) | 5~2500MHz | 800~1000MHz | 1700~2000MHz |
Ratio | ≤1.20 | ≤1.15 | ≤1.15 |

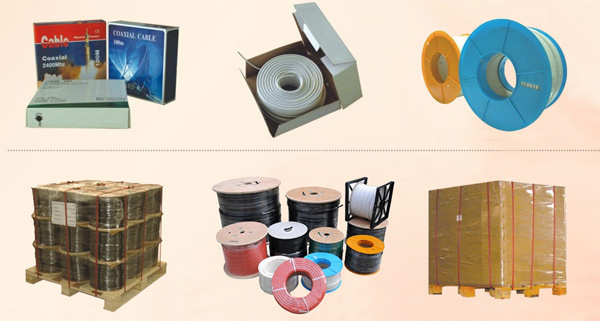

---------------------------------------------------------Packing----------------------------------------------------------
