| Prod Model: |
TK319-H |
| Model Number: |
Tk319-H |
| Voltage: |
9-72V |
| Color: |
Black/Red |
| GSM Frequency: |
850/900/1800/1900MHz |
| WCDMA Frequency: |
W800/W850/W900/W1900/W2100MHz |
| Weight: |
50g |
| Battery Capacity: |
140mAh |
| IP Level: |
IP65 |
| Dimensions: |
89(L)X37(W)X 12(H) |
| Type: |
GPS Tracker |
Product Description
Product Features
TK319-H acts like a 3G modem and responds to AT commands issued to it from either aphysical UART port connection or to AT commands issued to it through an SMS, TCP/IPor UDP/IP connection. With regard to text messages, TK319-H "reads" all of its own text messages and tries to interpret each message as an AT command. SMS text may be sent to a TK319-H through any CSD SMS connection.
Key superset functions outside that of typical UMTS/HSPA modems support intrinsic TK319-H Features. These functions include:
Typical Application Industry
Ø Logistics Enterprises
Ø Car Rental Company
Ø Logistics Distribution
Ø Intelligent Transportation
Ø Safety Supervision
Alarm Type
Ø Vibration Alarm
Ø Collision / falling Alarm
Ø Speed Alarm
Ø Geo-fence Alarm
Product Specification
Main Specifications |
GPS Chip | UBLOX GPS, GNASS Chip |
Antenna | Built-in GPS Patch antenna; UMTS/HSPA antenna |
GPS Positioning Accuracy | 5m-15m( Depend GPS signal) |
LBS Positioning Accuracy | About 200m (Depend Bases Density) |
GPS Frequency | L1,1575.42MHz C/A code |
Network | UMTS/HSPA, GSM, GPRS, EDGE |
Frequency bands | UMTS/HSPA 800/850/900/1900/2100 MHz |
GSM850/1900 and 900/1800MHz Quad-band |
GPRS | Class 12, TCP/IP |
LED indicator | GPS- Blue; GSM- Red |
Memory | 4MB for application and data storage |
Hot/warm/cold Start | <3s,<15s,<60s |
Built-in Battery | Embedded 150mAh battery for emergency alarm |
Standby | 4hours |
Work Current | <30 mA |
Standby Current | <15 uA |
Charger | 5VDC/1A |
IP Waterproof Level | IP65 |
Dimensions (mm) | 89mm x 37mm x 12mm |
Operating Voltage | 9-72V DC |
Environment Temperature | -20 to 75° C Operation -50 to +100° C Storage |
Environment Humidity | 20% to 90% Operation 10% to 95% Storage |
Net Weight | 50 g |
Certifications:
PTCRB, GCF, FCC,IC, R&TTE
RCM, CCC, Giteki, Anatel, AT&T
Rogers (all planned)
Installation
The TK319-H vehicle tracking device must be installed in a vehicle in such a way it has an unobstructed view of the sky during normal operation. If needed, use a double sided foam tape to secure the surface not facing the sky.
In addition to the above features, TK319-H comes with the provision to add a motion detector to the main board that can be used to wake the device from a very low power state.
Advanced Data Reporting Capabilities

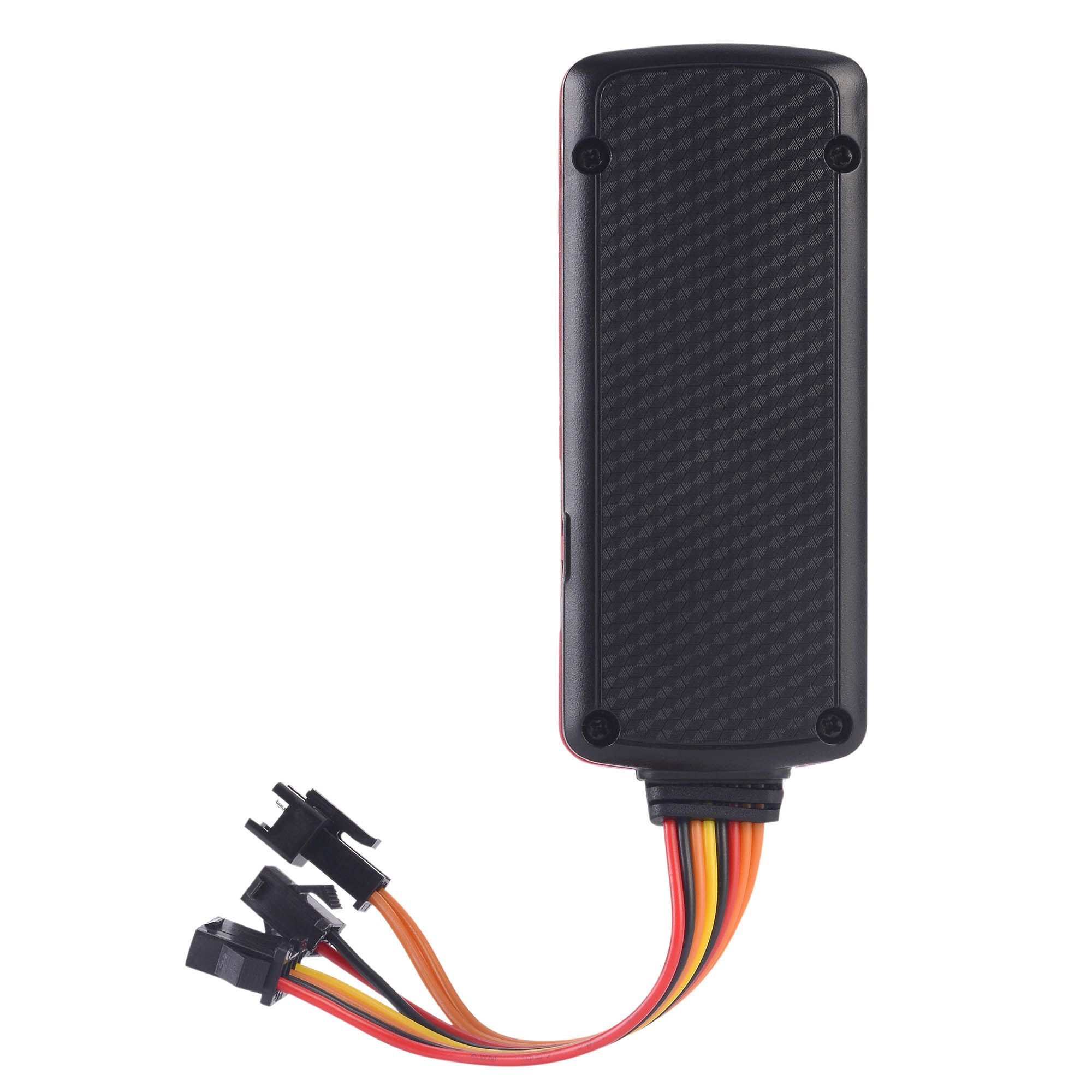

The TK319-H vehicle tracker consists of two piece of plastic enclosure which is waterproof IP65 for reliability, durability and low-cost assembly. The GPS patch and UMTS/HSPA antenna are placed internal to the device. The tracker itself can initiate data reporting through UMTS/HSPA's SMS, TCP/IP or UDP pathways or over a physical UART connection. Network provisioning is done using SIM technology for reliability and cost saving. The TK319-H can be provisioned for TCP/IP, UDP and SMS data services for application command and data transactions within the 850, 900, 1800 and 1900 MHz GSM bands and 800,850,900,1900 and 2100MHz UMTS/HSPA bands.
A hardware TK319-H endpoint reset and reboot is initiated for added safeguard against network connection loss. This can be done by simply calling the provisioned phone number and allowing it to ring three times.
Over The Air (OTA) application firmware updates are supported through at TFTP connection to a server. The high-level application image can be updated by using one specialized SMS or UART command.
