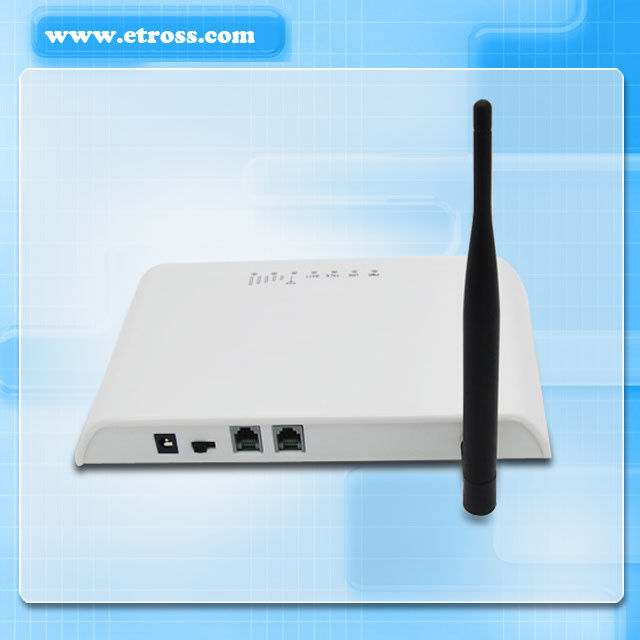

3G Fct WCDMA FWT 8848 Telular Terminal for Connecting Ordinary Phone

Name: 3G Fct WCDMA FWT 8848 Telular Terminal for Connecting Ordinary Phone
Brand: all-electronics-online.com
SKU: 809830415
Availability: InStock
Rating: 4.6 (128 reviews)

Price:	US $ 45-50/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	3G WCDMA FWT 8848
Color:	Black / White / Grey Optional
Frequency:	3G or 2g 850/900/1800/1900MHz
Reversal Polarity:	Support
Wight:	0.75kg
Warranty:	1 Year
Backup Battery:	Yes
IMEI Changeable:	Support
Locking Pin/Network:	Optional
Phone Connector:	2 Ports
Caller ID:	Support
Usage:	Alarm System, PBX
Type:	Wireless
Support Network:	3G
Certification:	RoHS
Condition:	New
Information Content:	Voice and SMS

Product Description

Product Name: 3G FCT WCDMA FWT 8848 telular terminal for connecting ordinary phone

Keyword: 3G fixed wireless terminal/ 3G FCT/ FWT/ 1 sim card fixed wireless terminal/WCDMA telular terminal/ WCDMA FWT 8848/ WCDMA fixed wireless terminal

Brand: Etross/ OEM
Model no.: 3G WCDMA FWT 8848
3G Working Frequency:
1. Quectel UC15-A for American countries and regions
850/1900MHz@UMTS
850/900/1800/1900MHz@GSM
2. Quectel UC15-E for European and Asian countries
900/2100MHz@UMTS
900/1800MHz@GSM
3. Quectel UC15-T for Thailand and Australia
850/2100MHz@UMTS
850/900/1800/1900MHz@GSM

Features and Functions:
1) Simple to install and easy to maintain
2) Steady industrial module and reliable design ensures good performance
3) Provides optimized circuit directly connecting the exchange device for Extensions
4) Compatible to most telephones, PBX and VoIP gateways (for call Termination)
5) Connect to Alarm systems to realize wireless alarm(for security use)
6) Strong signals with high gain antenna
7) Support SIM card (1.8V,3V)
8) Support DTMF 2'nd dialing out
9) DTMF CLIP(Caller ID display)
10) Hide subscriber caller id (been sent out)
11) Provides reversal polarity signal for metering
12) Signal indiator and power indicator and working status indicator
13) Suitable for wide voltage range and low power consumption
14) Suitable for all kinds of weather and environment
15) Locking PIN / network (optional)
16) GPRS function(optional)
17) IMEI change(optional)
18) Back up li-ion battery(optional)

Specifications:
1) Air interface standard: GSM850/1900Mhz,900/1,800Mhz phase 2+ full band
2) Frequency ranges:
A) GSM 850 GSM 1900:
I) Transmission: 869.2 ~ 893.8MHz I) Transmission: 1, 930 ~ 1, 990MHz
Ii) Reception: 824.2 ~ 848.2MHz Ii) Reception: 1, 850 ~ 1, 910MHz
B) GSM 900: GSM 1800:
I) Transmission: 890 ~ 915MHz I) Transmission: 1, 710 ~ 1, 785MHz
Ii) Reception: 935 ~ 960MHz Ii) Reception: 1, 805 ~ 1, 880MHz
3) Channel space: 200kHz
4) User line, bell signal: In line with GB/T15279
5) Max power: 0.25W / 0.5W
6) Consumption:
A) Immobility: Less than 25mAh
B) Transmission: Less than 400mAh
7) Sensitivity: -105dB
8) Dial tone frequency: 450MHz (standard)
9) Surrounding temperature: -10°C ~ +40°C
10) Relative humidity: 45% ~ 90% (without frost)
11) Atmosphere pressure: 86 ~ 106KPa
12) Environment noise: <60dB
13) Antenna amplifying: 3.5dB (omni directional), 12dB (certain direction /
Chosen direction)
14) AC power: DC 10V - 20V
15) Input: AC100 - 230V, 50 / 60Hz
16) Output: 12V 1A
17) Switching type / transformer type AC adapter (optional)
18) Connector of power: US or European ,UK,austrialia

Installation And Connection:

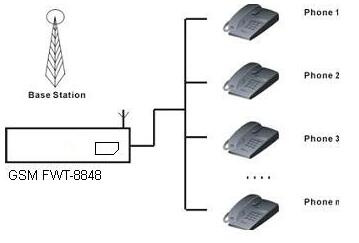

1) The Sketch for connecting ordinary Telephone for voice calls

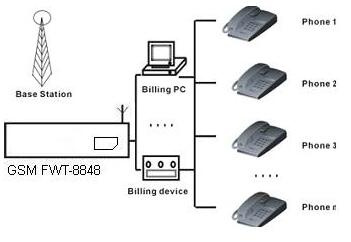

2) The sketch for connecting to Billing device or Computer charging system for metering

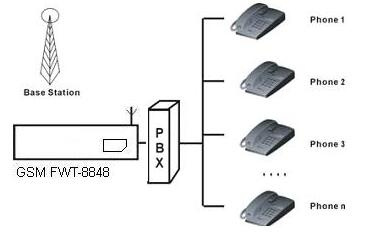

3) The sketch for connecting to PBX device for call extentions

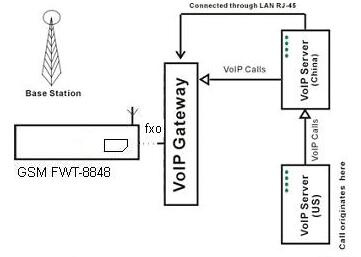

4) The sketch for connecting to VoIP gateway for call termination

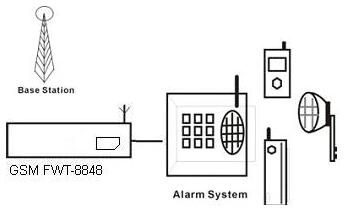

5) The sketch for connecting to alarm system for security purpose

Package:
*Terminal
*Power adaptor
*Antenna
*Back up battery
*User manual

Company information:

As the 11 years manufacturer, we would like to offer our support to the end users or wholesalers with:
*Best Quality Device with Reasonable Price
*Professional Technical Support
*Quick Delivery
*Good Service
*Warmly Welcome OEM Project

Product range:
GSM/CDMA/WCDMA FWT Series
GSM/CDMA/WCDMA Gateway Series
GSM Modem Pool series
GSM/CDMA/WCDMA FWP Series

For any inquiries or problems, please feel free to contact me at any time.

Mobile: +86-13660463575

Tel: +86-755-23040460
Fax: +86-755-23040681

General:

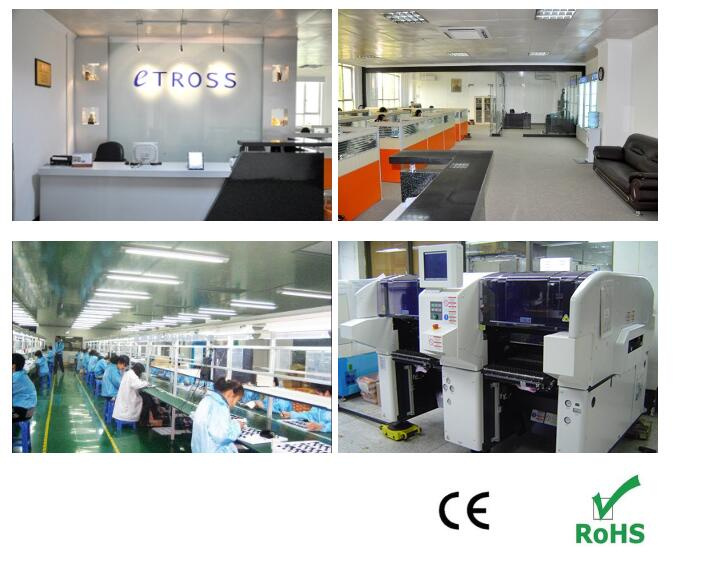

Shenzhen Etross Telecom Co., Ltd is a high-tech telecom company which specializes in developing and manufacturing wireless products, including GSM/CDMA/PCS FWT, FWP, And PC Multi user Share & Network Computing Terminal etc. For years, we have been devoted to providing good quality and hi-tech products to our clients, to be a China gold supplier of Telecom and IT products, we have operated around 7 years since 2000.

Business Description:
Currently we have several modern production lines producing GSM/CDMA/PCS FWT and FWP series devices, and coordinated factories producing Multi user PC share & Network Computing terminal products. The production capacity can reach 1000 sets a day. In our company's R&D center, our experienced engineers are working to develop new high technology to guarantee our products' good quality and competitive advantage in the market. And some of our products have passed CE, FCC &RoHS certification.

Etross series products have been sold to more than 100 cities in China and exported to over 40 countires spread over South Asia, Middle East, Africa, South America, Europe And North America. And also get good market share in some countries.

Major Products & Services
Etross products and services are categorized under the following different segments:
Fixed Wireless Terminal--GSM, CDMA and PCS 1 port and 4, 8 ports
Fixed Wireless Telephone--GSM, CDMA and PCS
PC Multi user share & Network Computing terminal

Thanks for using Etross Series products, hope you can make more successfully.
