| Prod Model: |
TK119-3g |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model Number: |
Tk119-3G |
| Color: |
Black |
| Weight: |
50g |
| GSM Frequency: |
850/900/1800/1900MHz |
| Working Voltage: |
12VDC/24VDC/36VDC |
| Dimension(mm): |
85.8(L)X30.6(W)X10.8(H) |
| GPS Positioning Accuracy: |
5-15m (Depend GPS Signal) |
| Optional Accessory: |
Relay |
| Battery Capacity: |
70mAh |
| WCDMA Frequency: |
W850/W1900/W2100MHz |
Product Description
GPS Car tracker TK119-3g is much helpful to secure, positon, monitor various vehicles by GPS/LBS positioning system and GSM/GPRS cellular network.It is widely used in business traffic, public transportation, shipping market, army and police, safety supervision,etc.
Product Feature
*Supports quad bands, i. E. 850/900/1800/1900MHz, worldwide used.
*Suppoert 3G network,WCDMA Frequency:W850/W1900/W2100MHz
*Wide Input Voltage: 6-36V DC.
*GPS + GSM/WCDMA (LBS) Tracking
*GPS precise positioning with A-GPS and feedback position via GPRS at setting times
*Tracks real-time and playback
*Web browser platform, Smart phone app platform and SMS query.
*Built-in battery, Power disconnect alarm & Low battery alarm.
*Supports multiple alarm, acceleration sensor can be added, so as increase vibration, collision and falling alarm.
*Supports ACC status checking and vehicle status notifying.
*Use relay to remotely control the vehicle.
*Water proof level IP67
*Multiple protocol support, OTA upgrade program.
*Mini size, easy to hide and install
Platform features
-Real time tracking
-History route playback
-Cut oil(relay)
-Vibration / Collision / falling Alarm
-Power disconnect / Low battery Alarm
-Speed / Shift Alarm
-Geo-fence alarm
Function Extension
Function Interface: Power cable , Relays, ACC
Extended Interface: GPIO for adding extensions (need customization)
Delivery
*Sample and mini order will be delivered within 1-2 working days after the receipt of payment.
*For order over 500pcs or customized order, please contact our sales to make sure the current inventory. Our manufacturing capacity is 1, 200, 000 units per year. And for the popular units we hold 3000pcs stocks in advance per month.
Warranty
*All products have been strictly Quality Checked in house before packing.
*All products have been well packed before shipping.
*One year warranty is provided for all models. We will bear maintenance cost during warranty.
| Base Specification |
| Voltage | 12VDC/24VDC/36VDC |
| Work current | <30mA@12V |
| Standby Current | <10mA@12V |
| GPS positioning accuracy | 15m |
| LBS positioning accuracy | 200m |
| GPS Frequency | 1575MHz |
GSM Frequency
WCDMA Frequency | 850/900/1800/1900MHz
W850/W1900/W2100MHz |
| Hot/warm/cold start time | <3s,<15s,<60s |
| Battery capacity | 70mAh |
| Dimensions (mm) | 87(L)X 41.6(W) X 12(H) |
| Operating temperature | -20ºC~70ºC |
| Operating humidity | 20%~80%RH |
| Net Weight | 50g |

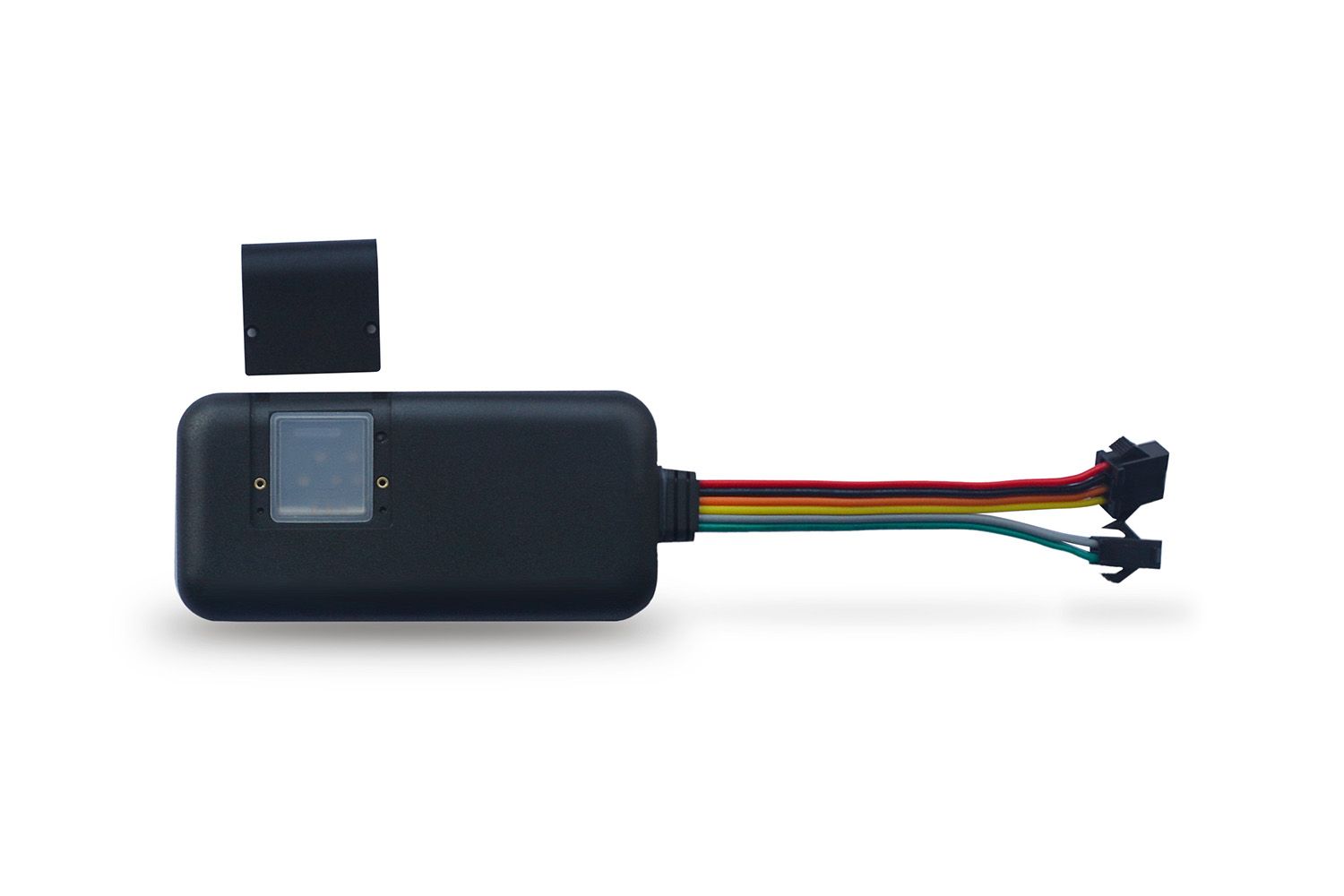

3G GPS tracker TK119-3G picture
