3G HD-Sdi Slip Ring Compatible with Video, USB, Ethernet Signal

3G HD-Sdi Slip Ring Compatible with Video, USB, Ethernet Signal
Price: US $ 150/Piece
Min Order: 3/Piece
Pay Type: T/T,Western Union
Prod Model: BTHS50-03S1
Operating Speed: 1000rpm
Circuit: Gigabit Ethernet + Signal / Power
Contacting Material: Gold to Gold
Temperature: -40°c~+80°c
Power: 2A/5A/10A/15A Option
Cable: Cat 6e + 22AWG
Option: Dimension and Circuits
Life Span: 120,000,000 Rounds

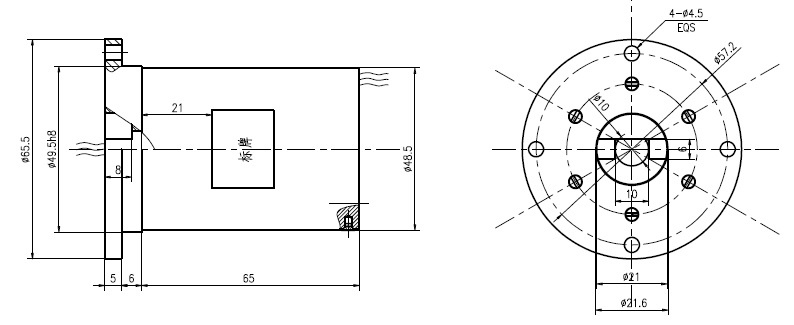

Product Description

Circuits:3
2 circuit for  digital signal--- 3G-HD-SDI compliant (3Gbits/Sec. Data rate)
1 circuits for  analogue signal(10MHz).
Current & Voltage: 36VAC/DC - 100mA
Rings: 2x3+ 1x3=9
Impendence:75Ω
Insulation resistance:≥500MΩ/500V/DC
Static resistance:≤50mΩ
Electric noise:≤10mΩ
Isolation ≥35dB(S3)

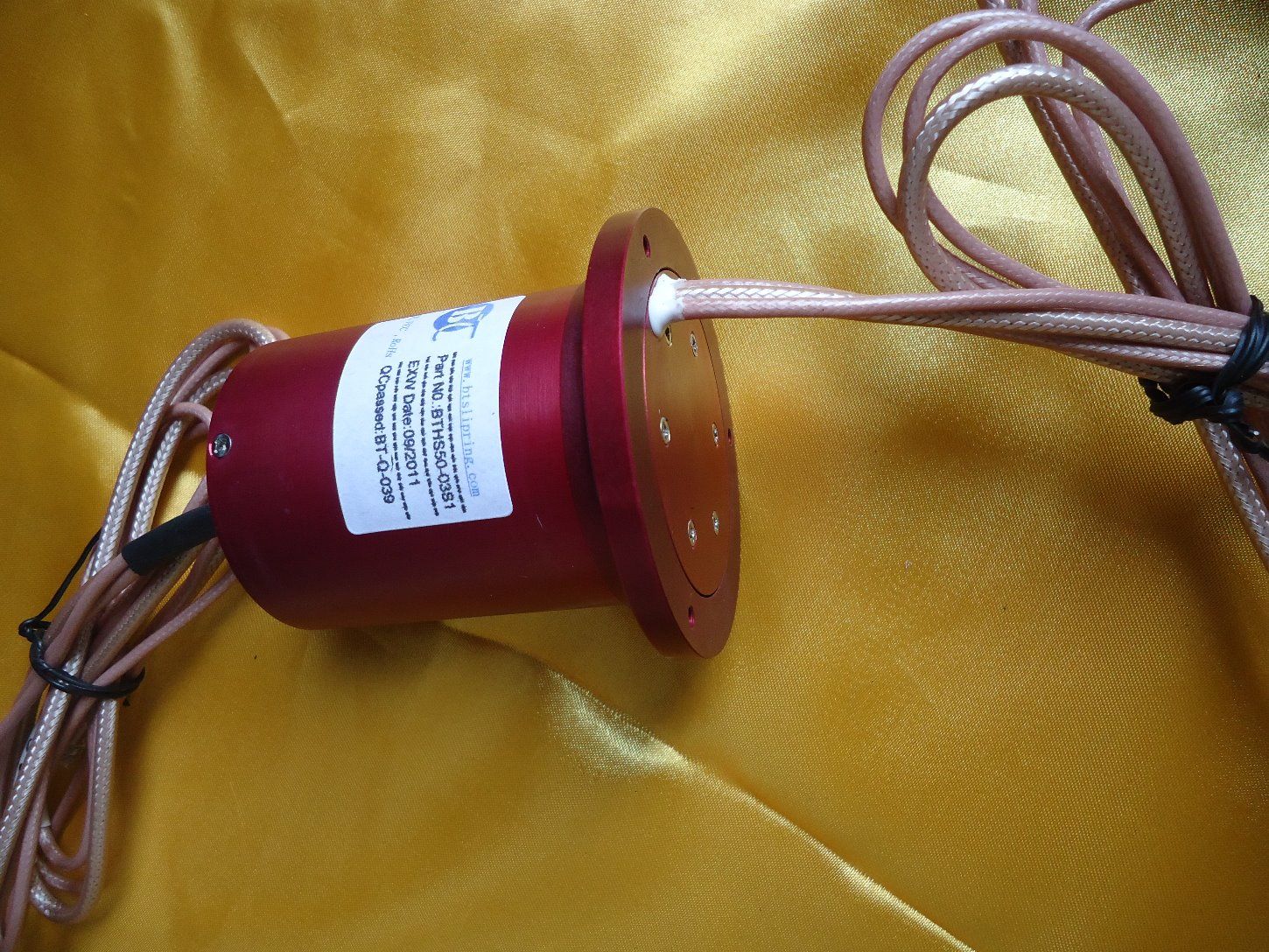

Housing procession: Red anodized
Cable length:≥650mm for both side
Cable size: RG179
Working speed: ≤120rpm
    Protection: IP65

ByTune electronics Co., Ltd, since 1998, is a government supporting, hi-tech, private enterprise, with more than 200 employees, 20, 000 square feet factory and 2, 500 square feet rd & sales office. ByTune is focused in developing, designing, manufacturing slip rings nearly 20 years, we supply wide range slip rings and provide360° Rotary solutions. Besides supplying standard through hole slip rings, capsule slip rings, separate slip rings, pan cake slip rings, hydraulic slip rings, pneumatic slip rings, coax rotary joints, fiber optic slip ring etc, we have an expertized engineering team of more than 50 persons, we provide full range of customized slip rings at prompt delivery. We customize slip rings as per customers request in different applications such as agriculture machine slip ring, crane slip ring, antenna slip rings, wind turbine slip rings, auto-wrap machine slip rings...

ByTune electronics is equipped with the machines of CNC ( 2, 3, 4 and 5 axis), vertical machine tool integrating turning with milling, auto-drilling machine, precise milling machine, numerical control punch press, grinding machine, and so on… ...With advanced machines, we could do all of the processions in one-stop: CNC lathe, milling, drilling, grinding, punching, bending, casting, forging, stamping, etc … ByTune supplies quality & precise machine parts at prompt delivery.

At www.btslipring.COM, you could get high quality slip rings and machine parts at an affordable price and with superior support by contacting sales@btslipring. COM.

ByTune is ISO9001, CE, FCC, RoHS and military standard JGB9001A certificated!
