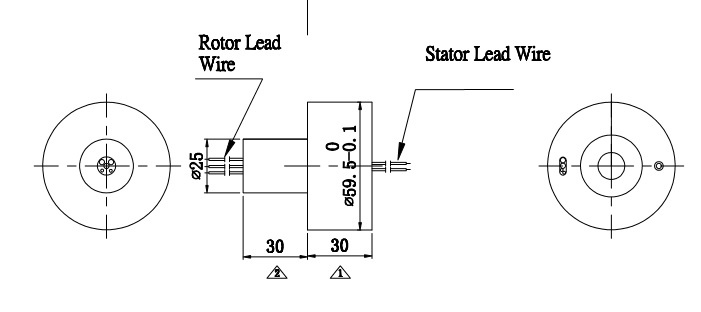

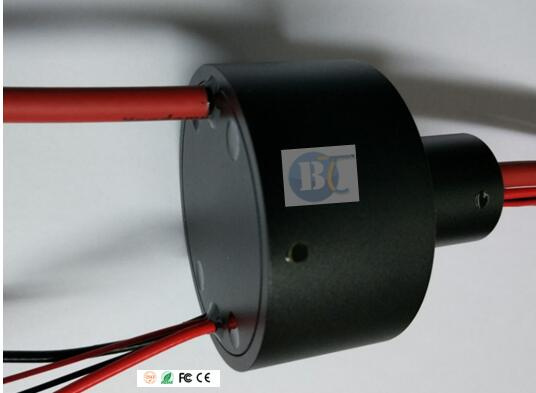

3G HD Sdi Video Slip Rings

Prod Model:	BTH0059-0220-0202-02S
Channels:	as Per Requested
Electrical Noise:	0.007ohm
Dimension:	as Per Requested
Delivery:	2 Weeks
Inspection:	100%

Product Description

Parameters:
2 channels for 20A, 2 channels for sigal, one cable for 3G HD video !
Mechanical :

Working speed	1000rpm
Operating temperature	-40ºC~ +100ºC
Contact material	Precious metal
IP Grade	IP   54

Electrical:

Circuit	as per requested
Current	5A,10A,15A,20A,or    higher current
Signal	3G HD SDI Video
Voltage	≤380V, 600V optional
Dielectric strength	≥1000V@50Hz between each circuit
Insulation resistance	1000MΩ@ 500VDC
Electric noise	≤0.007Ω
Lead wire size	22AWG, 17AWG,14AWG,UL, color Teflon, silver   or tin plated
Lead wire length	300mm

Features of 3G HD SDI VIDEO slip rings:
l  Low noise
l  Wear-resisting (Silver to silver contacting)
l  Good impact resistance
l  Signal and current compatible
l  Without interference
l  Workable in hostile environment(-40ºC~ +100ºC)
l  Flexible design for special installation way
Alternativesof  3G HD SDI VIDEO slip rings:
l  Circuits
l  Loading of each circuit
l  Wire length
l  Inner hole /outer hole diameter or length
l  Working speed
l  Gold contacting
l  Housing color
Typical Applications of 3G HD SDI VIDEO slip rings:
Aerospace / Defense
• Armored vehicle turrets, IR and EO systems
• Missile seeker gimbals and inertial systems • Helicopter de-ice systems, EO / IR trackers and target
systems
• Fixed-wing aircraft - EO / IR trackers, fire control systems, surveillance systems and targeting systems
• Missile counter measures
• Space - solar array mechanisms• Shipboard / submersible - navigation systems and fire control radar
• Surveillance systems
Industrial
• Medical equipment and devices • Robotics• Index tables• Semiconductor handling
• Pan tilt cameras• Packaging and processing equipment • Cable reels• Wind energy• CT scanners
Marine
• Remote operated vehicles (ROV)• Seismic surveying• Oceanographic winches• Subsea
communications and control• Floating production, storage and offshore loading (FPSO) • Diving
• Marine instrumentation
• Down hole / wire logging and drilling
Advantages of slip ring manufacturer---ByTune:
l  Affordable price
l  Quality guaranteed within 1 year
l  Response within 24 hours
l  Prompt delivery
l  Reliable package & shipment
l  Flexible & quick customization
Delivery time and shipment:
l  2 weeks ARO
l  By UPS ,DHL or FedEx (depends on your location) 3 days door to door service
