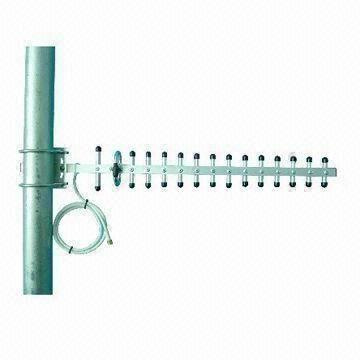

3G High-Gain Yagi Directional Antenna

Name: 3G High-Gain Yagi Directional Antenna
Brand: all-electronics-online.com
SKU: 717620305
Availability: InStock
Rating: 4.5 (26 reviews)

Price:	US $ 5/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10/Piece
Pay Type:	L/C,T/T,D/P,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	JCY2170-16
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	590 X 84 X 44mm
Gain:	16dBi
Bandwidth -MHz:	250MHz
Usage:	Yagi Antenna
VSWR:	<1.5

Product Description

Features: High gain Aluminum-alloy frame Full day for working Optimized dimensions Optional installation H or V Applications: 3G system Point-to-point transmission system Long distance terminal antenna Electric specifications: Frequency range: 1920 to 2170MHz Bandwidth: 250MHz Gain: 16dBi Element: 15 Beam width: H: 30° V: 30° F/B ratio: ≥ 16dB VSWR: ≤ 1.5 Input impedance: 50Ω Polarization: Horizontal or vertical Maximum power: 100W Lightning protection: DC ground Connector model: SMA female or others Mechanical specifications: Dimensions: 590 x 84 x 44mm Cable length: 1m Antenna weight: 0.32kg Working temperature: -40 to 60° C Rated wind velocity: 60m/s Clamp: U Pole diameter: 40 to Φ 50mm

Jiashan Jinchang Electronic Co., Ltd. is professionally engaged in the R&D, designing, manufacturing, and selling GPS and GSM antenna. It is a high and new technology company of Zhejiang Province and a leading manufacturer in high frequency antenna in China-mainland. Jinchang locates on Hang-Jia-Hu plain, and near Shanghai economic development zone, having a convenient traffic.

Main products: GPS antenna, GSM antenna, WiFi antenna, GPS/GSM combo antenna, GPS/GSM/FM antenna, GPS/GSM/WiFi antenna, all kinds of connectors and cable assemblies.

Jinchang has 12 patents till now. Its antenna serial products acquired new technology prize of Zhejiang Province, and won National New Production Creation Fund. Jinchang has passed ISO9001: 2000 certification while the products passed CE certification, and comply with RoHS directive.

Jiashan Jinchang Electronic Co., Ltd. is professionally engaged in the R&D, designing, manufacturing, and selling GPS and GSM antenna. It is a high and new technology company of Zhejiang Province and a leading manufacturer in high frequency antenna in China-mainland. Jinchang locates on Hang-Jia-Hu plain, and near Shanghai economic development zone, having a convenient traffic.

Main products: GPS antenna, GSM antenna, WiFi antenna, GPS/GSM combo antenna, GPS/GSM/FM antenna, GPS/GSM/WiFi antenna, all kinds of connectors and cable assemblies.

Jinchang has 12 patents till now. Its antenna serial products acquired new technology prize of Zhejiang Province, and won National New Production Creation Fund. Jinchang has passed ISO9001: 2000 certification while the products passed CE certification, and comply with RoHS directive.
