3G Personal Mini GPS Tracker with Sos Button (EV-07W)
| Price: |
US $ 75-80/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
EV-07W |
| Work Time: |
3-7 Days |
| GSM Frequencies: |
3G WCDMA Network |
| Battery: |
Chargeable 3.7V 800mAh |
| GPS Sensitivity: |
Cold Start: -148dBm Hot Start: -162dBm |
| Mainframe Dimension: |
61mm*43mm*16mm |
| Humidity: |
5%-95% Non-Condensing |
| GPS Chip: |
U-Blox 7 (Support Agps) |
| Weight: |
35g |
| Charging Voltage: |
5V DC |
| Brand: |
OEM |
Product Description
The new-and-improved EV-07W highly portable and pleasant to look at, a true combination of style and technology.
1. The world smallest 3G(WCDMA) personal/asset GPS tracker.
2. A docking station provides an alternative method to charge and make it a lot quicker and easy to use.
3. Real time tracking by GPS satellite.
4. Tracking by RF (not available now)
5. AGPS, TTFF in 30 seconds (10 seconds for GPRS included).
6. Fall down alarm for children and elderly, patient.
7. Built-in Vibration sensor.
8. With rechargeable 900mah Lithium battery. Standby time: 30days.
9. Built-in 3D G-sensor for motion, shock alarm and power management.
10. Voice monitoring
11. Two way Voice communication.
12. Data logging: 60000locations.
13. GPRS blind area data re-upload function
14. Firmware upgrade over the air.
15. Reply map link of current position.

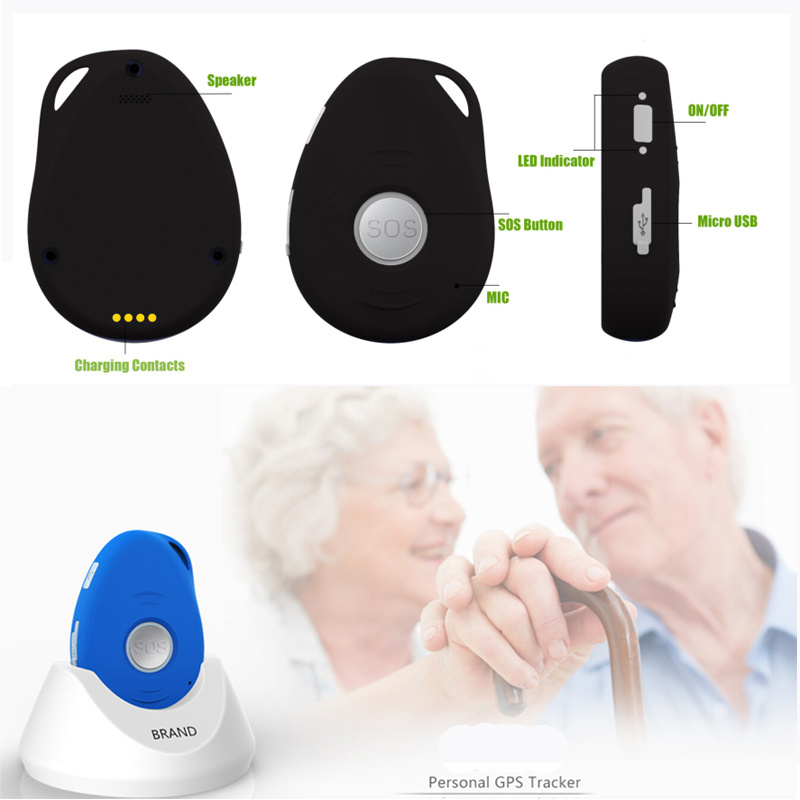

16. SOS emergency button.
17. Geo-zone alarm, Over speed alarm.
18. Movement alarm.
19. U-blox GPS technology.
What's New?
1. Unique design, combination of style and technology.
2. Supports A-GPS for accelerated positioning.
3. Supports GPS and Cellular tracking.
4. Two way voice communications.
5. Fall detection via 3D G-sensor
6. Firmware upgrade over the air.
7. Built-in 8MB flash memory.
8. GPRS blind area data re-upload function.
This device is an innovative miniature size personal remote positioning device with built-in U-blox GPS and GSM/GPRS technology. It's for monitoring and protecting people and property. It can be used in all walks of life from traveling lone workers and mobile nursing staff to children and the elderly, Dementia etc.
Features:
1. Real time tracking by GPS satellite.
2. Real time tracking by CellLocate, location based on the cellular network, users are able to track in shielded environments such as indoors and enclosed park houses.
3. AGPS, TTFF in 30 seconds (10 seconds for GPRS included).
4. Fall detection for children and elderly, patient.
5. With rechargeable 900mah Lithium battery. Standby time: 30days.
6. Built-in 3D G-sensor for motion, shock alarm and power management.
7. Voice monitoring
8. Two way Voice communication.(high quality sounds and hands free volume sound)
9. Built in 8MB flash memory.
10. Data logging: 60000locations.
11. GPRS blind area data re-upload function
12. Firmware upgrade over the air.
13. Reply map link of current position.
14. SOS emergency button.
15. Geo-fencing alarm, Over speed alarm.
16. GPS signal lost and recovery alert.
| Main frame Dimension | 61mm*43mm*16mm |
| Weight | 35g |
| GSM Frequencies | WCDMA Specification:
• WCDMA Module: Telit UL865 ( 900/2100MHZ and 850/1900mhz )
Supported Bands:
EU variants:
2 Bands GSM / GPRS / EDGE 900 / 1800 MHZ (2G)
2 Bands UMTS / HSPA 900 / 2100 MHz (3G)
North America variants:
2 Bands GSM / GPRS / EDGE 850 / 1900 MHz (2G)
2 Bands UMTS / HSPA 850 / 1900 MHz (3G)
• Communication: Embedded TCP/IP over GPRS class 10, SMS messages, Voice
• Antenna: Built in FPC antenna
|
| GPS chip | U-blox 7 (Support AGPS) |
| GPS sensitivity | Cold start: -148dBm Hot start: -162dBm |
| GPS accuracy | <2.5m |
| Storage Temperature | -40°C to +85°C |
| Operation Temperature | -20°C to +80°C |
| Battery | Chargeable 3.7V 800mAh |
| Humidity | 5%-95% non-condensing |
Our Service
1.All of our products can be offered at OEM, such as custom logo, packaging, etc.
2.All our product will be strictly tested before we delivered to you.
3. we will try our best to provide the lowest shipping cost for you.
Warranty
1.Our product warranty is one year since the date of purchase.
2.We have the after-sale service. If any comments or questions after received our item, please e-mail us immediately, we will answer you as soon as possible.
FAQ
*What's the MOQ and lead time?
For our existing mold items, normally we don't have strict MOQ, samples or trial order is available.
Our sample lead time 2-3days, our production lead time is 10-15days, which also based on the order quantity.
*Can I brand the items with our own logo/Brand?
Yes, we do provide OEM & ODM service.If any comments, please feel free to contact us.
