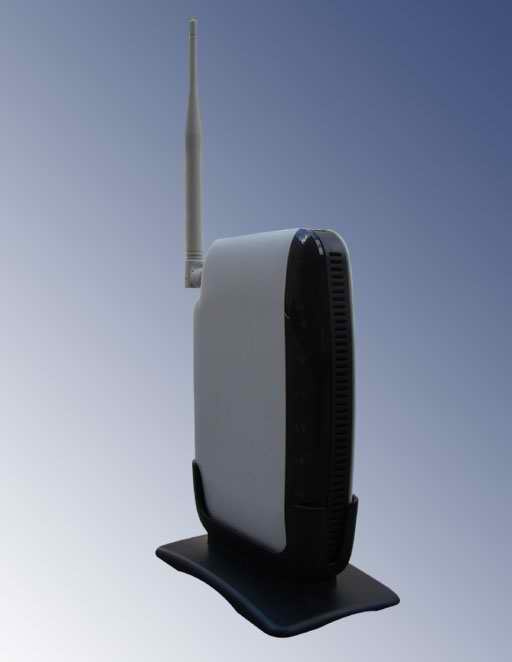

3G Terminal (TIT-609)

Prod Model:	TIT-609
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Network:	3G
Support Network:	3G
Usage:	Computer
Type:	Wireless
Information Content:	Voice & Data

Product Description

3G+SMS+VOICE

Features:
1. Based on W-CDMA(3G)
2. Can connect to PBX.
3. Support connect with Internet
4. Can lock SIM card
5. Support Caller ID
6. Making & answering calls after connecting to telephone set.
7. Support G3 function (optional).
8. Support SMS.

Technique Parameters:
GSM part:
* Working Frequency
Rx (EGSM 900): 925~960MHz
Tx (EGSM 900): 880~915MHz
Rx (DCS 1800): 1805~1880MH
Tx (DCS 1800): 1710~1785MHz
* Radio Frequency Power: 1W
* Rx Sensitivity: <-104dBm

3G part:
Multimode operation -HSUPA/HSDPA/UMTS/EDGE/GPRS/GSM
Triple-band HSPA/UMTS 850/1900/2100 MHz
Quad-band EDGE/GPRS/GSM 850/900/1800/1900 MHz
HSUPA uplink up to 2.0 Mbps
HSDPA downlink up to 7.2 Mbps
WCDMA (UMTS) uplink data rate up to 384 kbps
EDGE data up to 237 Kbps DL and 118Kbps UL, 3GPP Release4, class 12
GPRS data up to 85.6 Kbps DL and 42.8 Kbps UL
Power Supply: DC12 V
Output Power:
Class 3 for UMTS/HSDPA/HSUPA
Class 4 for GSM 900
Class 1 for GSM 1800
Class E2 for EDGE 900/1800
USB: USB 2.0 Full Speed
Antenna Gain: >1.5dBm

Environmental; Operating Temperature: -10 ` +55ºC
Storage Temperature: -40 ~ +80ºC
RJ-11 phone interface: Dialing tone frequency 450Hz
On hook voltage 45V
Off hook current 30mA/41mA

Package Information:
Size: 185(L) x 130(W) x 40 (H)mm
Weight: 300.00g
Package: 1PCS/box; 20boxes/carton
Carton size: 58.5*29.5*37.5CM
G. W/CTN: 18.00kgs
