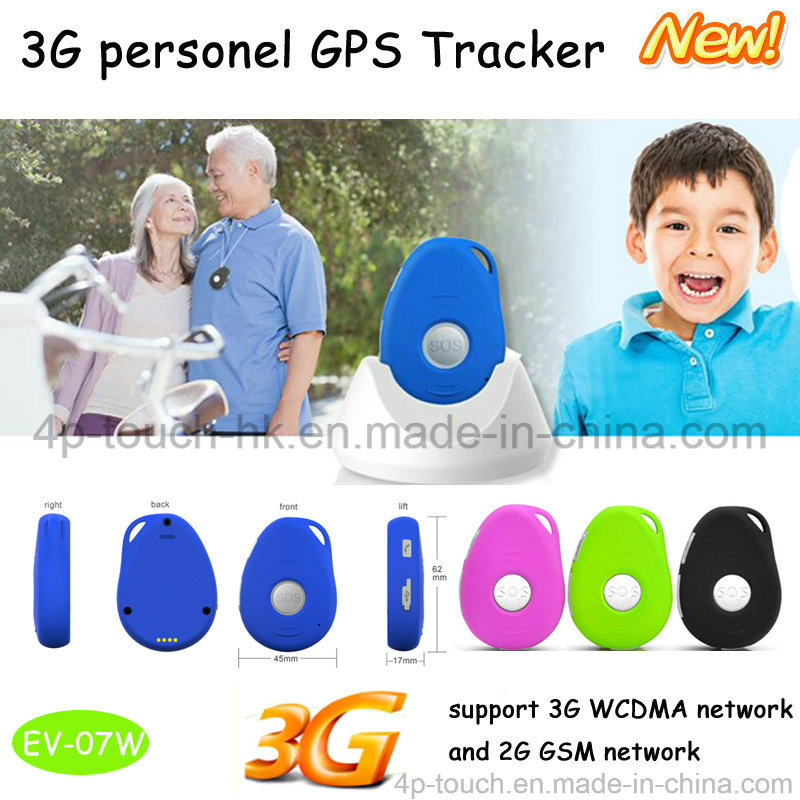

3G/WCDMA Waterproof Personal/Child GPS Tracker with Sos Button EV-07W
| Price: |
US $ 74-75/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
EV-07W |
| Waterproof: |
IP66 |
| Geo-Fence: |
Support |
| Memory: |
Built in 8MB |
| Battery: |
800mAh |
| Standby Time: |
30days |
| Working Time: |
3-7days |
| Color: |
Green, Black, Pink, Blue |
| Weight: |
35g |
| Charging Voltage: |
5V DC |
| 3G Module: |
Telit UL865 |
Product Description
main functions:
1. Real time tracking and positioning
2. Monitor (Voice Surveillance)
3. Geo-fence
4. Movement alert
5. Overspeed alert
6. SOS button
7. Supports A-GPS for accelerated
8. positioning.
9. Supports GPS and Cellular tracking.
10. GPRS blind area data re-upload function.
11. Device can be charged by micro USB.
12. Waterproof IP66
Features:
1. The world smallest 3G(WCDMA) personal/asset GPS tracker2. A docking station provides an alternative method to charge and make it a lot quicker and easy to use3. Real time tracking by GPS satellite4. AGPS, TTFF in 30 seconds (10 seconds for GPRS included)5. Fall down alarm for children and elderly, patient6. Built-in Vibration sensor7. With rechargeable 800mah Lithium battery. Standby time: 30days8. Built-in 3D G-sensor for motion, shock alarm and power management9. Voice monitoring10. Two way Voice communication.
11. Data logging: 60000locations
Available Frequency: 900/2100MHZ and 850/1900MHZ
EV-07W Specifications:
1.WCDMA Specification:
WCDMA Module: Telit UL865 ( 900/2100MHZ and 850/1900mhz )
2.Supported Bands:
EU variants:2 Bands GSM / GPRS / EDGE 900 / 1800 MHZ (2G)
2 Bands UMTS / HSPA 900 / 2100 MHz (3G)
3.North America variants:2 Bands GSM / GPRS / EDGE 850 / 1900 MHz (2G)
2 Bands UMTS / HSPA 850 / 1900 MHz (3G)
4. Communication: Embedded TCP/IP over GPRS class 10, SMS messages, Voice
5.Antenna: Built in FPC antenna
GPS Specification:
1.GPS chipset: uBlox 0702(AGPS Support)
2.Channels: 50
3.Receiver frequency: 1575.42 MHz
4.Cold starts: approx 32S, typical TTFF (95%)
5.Warm start: approx 32S, typical TTFF (95%)
6.Hot start: approx: 1S, typical TTFF (95%)
7.Antenna: Built-in ceramic antenna
Hardware Specification:
1. Charging voltage: DC5V
2. Backup battery: Rechargeable, 3.7V, 800mAh (Li-Poly)
3. Connectors: Micro USB connectors
4. SIM card: Micro SIM card
5. Accelerometer: Built in 3G motion sensor
6. Flash Memory: Built in 8MB memory
7. Normal current consumption: 40~60mAh
8. Sleep current consumption: 5~10mAh (GPS off)
Environment:1. Operating Temperature: -20°C to +80°C
2. Storage Temperature: -40°C to +85°C
3. Humidity: 5%-95% non-condensing

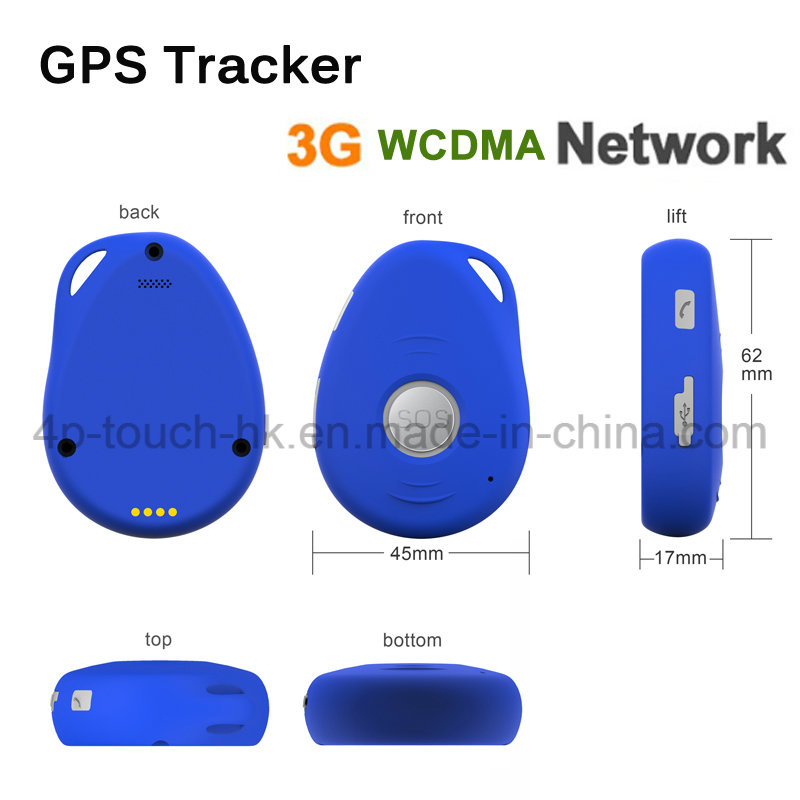

4. Mainframe Dimensions: 61mm X 44mm X 16mm
5. Weight (NET): 35gHardware Specification:| Content | Specs. |
| Mainframe Dimension | 61mm*43mm*16mm |
| Weight | 35g |
| Frequencies | Supported Bands:
EU variants:
2 Bands GSM / GPRS / EDGE 900 / 1800 MHZ (2G)
2 Bands UMTS / HSPA 900 / 2100 MHz (3G)
North America variants:
2 Bands GSM / GPRS / EDGE 850 / 1900 MHz (2G)
2 Bands UMTS / HSPA 850 / 1900 MHz (3G) |
| GPS chip | U-blox 7 (Support AGPS) |
| GPS sensitivity | Cold start: -148dBm Hot start: -162dBm |
| GPS accuracy | <2.5m |
| Time to First Fix | Cold start 32s, Warm start 11s, Hot start 1s |
| Charging Voltage | 5V DC |
| Battery | Chargeable 3.7V 800mAh |
| Standby Current | ≤2mAh |
| Storage Temperature | -40°C to +85°C |
| Operation Temperature | -20°C to +80°C |
| Humidity | 5%-95% non-condensing |
Tracking on website (below is our platform), please kindly note the server is open for your own server. we can offer the server protocol for your engineer configuration with your own server , so it's ok for your server to receive the datas.
Our Service
1.All of our products can be offered at OEM, such as custom logo, packaging, etc.
2.All our product will be strictly tested before we delivered to you.
3. we will try our best to provide the lowest shipping cost for you.Warranty
1.Our product warranty is one year since the date of purchase.
2.We have the after-sale service. If any comments or questions after received our item, please e-mail us immediately, we will answer you as soon as possible.
FAQ
*What's the MOQ and lead time?
For our existing mold items, normally we don't have strict MOQ, samples or trial order is available.Our sample lead time 2-3days, our production lead time is 10-15days, which also based on the order quantity.
*Can I brand the items with our own logo/Brand?
Yes, we do provide OEM & ODM service.
*What's the payment terms you accept?
Our payment term: T/T(30% down payment, 70% balance before shipment), for small batch orders, normally we accept Paypal payment, for bulk order we have HK HSBC account or Western Union account.
*How can I get a sample to check quality?
Please just forward me the sample order summary (include the exact item number, preferred colors, sample quantity), then I will make the sample PI for your approval, after received your payment through Paypal,I will send out the sample to you,If any question or new enquiry, please kindly feel free to contact me.
