3G/WCDMA Waterproof Personal GPS Tracker with Geo-Fence EV-07W
| Price: |
US $ 75-80/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
EV-07W |
| Battery: |
800mAh |
| 3G Module: |
Telit UL865 |
| Waterproof: |
IP66 |
| Standby Time: |
30 Days |
| Working Time: |
3-7days |
| GPS Accuracy: |
<2.5m |
| GPS Chip: |
U-Blox 7 (Support Agps) |
| Frequency Bands: |
GSM850/900/1800/1900MHz + WCDMA 850/900/1900MHz 21 |
| Color: |
Green, Black, Pink, Blue |
| Charging Voltage: |
5V DC |
Product Description
3G GPS Kids Tracker with Real Time Tracking function (EV07W)
1.Frequency Bands:GSM850/900/1800/1900MHz + WCDMA 850/900/1900MHz 2100MHz
2.GPS chip: U-blox 7 (Support AGPS)
3.GPS sensitivity:Cold start -148dBm
4.3G MODULE:TELIT UL865
5.Hot start -162dBm
6.GPS accuracy: <2.5m
7.Memory:built in 8MB
8.Weight:35g
9.Time to First Fix:Cold start: 32s, Warm
10.start:11s, Hot start:1s
11.Charging Voltace:5V DC
12.Battery:Chargeable 3.7V 800mAh
13.Standby Current: ≤2mAh
14.Storage Tempeterature:-40°C to +85°C
15.Operation Temperature:-20 °C to +80°C
16.Humidity:5%-95%non-condensing
17.Color:green, black, pink, blue
18.Working time:3-7days
19.Standby time:30days

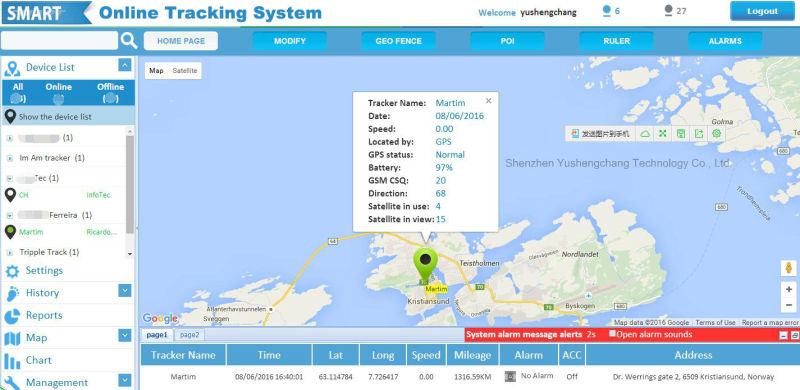

Features:1. Real time tracking and positioning
2. Monitor (Voice Surveillance)
3. Geo-fence
4. Movement alert
5. Overspeed alert
6. SOS button
7. Supports A-GPS for accelerated
8. positioning.
9. Supports GPS and Cellular tracking.
10. GPRS blind area data re-upload function
11. Device can be charged by microUSB.
12. Waterproof IP66
WCDMA Specification:
• WCDMA Module: Telit UL865 ( 900/2100MHZ and 850/1900mhz )
Supported Bands:
EU variants:
2 Bands GSM / GPRS / EDGE 900 / 1800 MHZ (2G)
2 Bands UMTS / HSPA 900 / 2100 MHz (3G)
North America variants:
2 Bands GSM / GPRS / EDGE 850 / 1900 MHz (2G)
2 Bands UMTS / HSPA 850 / 1900 MHz (3G)
• Communication: Embedded TCP/IP over GPRS class 10, SMS messages, Voice
• Antenna: Built in FPC antenna
GPS Specification:
• GPS chipset: uBlox 0702(AGPS Support)
• Channels: 50
• Receiver frequency: 1575.42 MHz
• Cold starts: approx 32S, typical TTFF (95%)
• Warm start: approx 32S, typical TTFF (95%)
• Hot start: approx: 1S, typical TTFF (95%)
• Antenna: Built-in ceramic antenna
Hardware Specification:
• Charging voltage: DC5V
• Backup battery: Rechargeable, 3.7V, 800mAh (Li-Poly)
• Connectors: Micro USB connectors
• SIM card: Micro SIM card
• Accelerometer: Built in 3G motion sensor
• Flash Memory: Built in 8MB memory
• Normal current consumption: 40~60mAh
• Sleep current consumption: 5~10mAh (GPS off)
Environment:
• Operating Temperature: -20°C to +80°C
• Storage Temperature: -40°C to +85°C
• Humidity: 5%-95% non-condensing

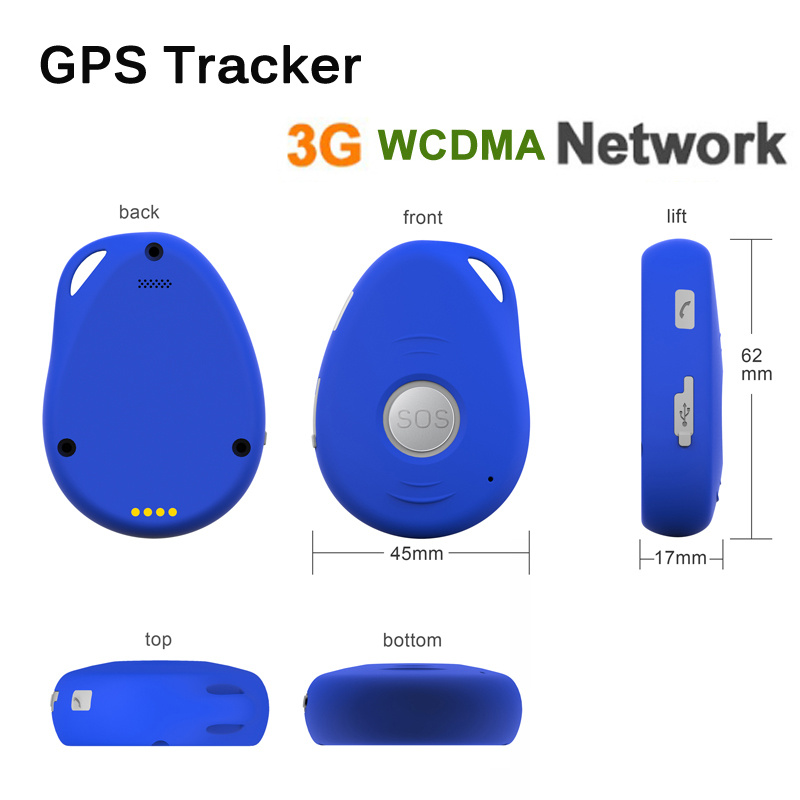

• Mainframe Dimensions: 61mm X 44mm X 16mm
• Weight (NET): 35g
Hardware Specification:| Content | Specs. |
| Mainframe Dimension | 61mm*43mm*16mm |
| Weight | 35g |
| Frequencies | Supported Bands:
EU variants:
2 Bands GSM / GPRS / EDGE 900 / 1800 MHZ (2G)
2 Bands UMTS / HSPA 900 / 2100 MHz (3G)
North America variants:
2 Bands GSM / GPRS / EDGE 850 / 1900 MHz (2G)
2 Bands UMTS / HSPA 850 / 1900 MHz (3G) |
| GPS chip | U-blox 7 (Support AGPS) |
| GPS sensitivity | Cold start: -148dBm Hot start: -162dBm |
| GPS accuracy | <2.5m |
| Time to First Fix | Cold start 32s, Warm start 11s, Hot start 1s |
| Charging Voltage | 5V DC |
| Battery | Chargeable 3.7V 800mAh |
| Standby Current | ≤2mAh |
| Storage Temperature | -40°C to +85°C |
| Operation Temperature | -20°C to +80°C |
| Humidity | 5%-95% non-condensing |
giftbox size:84*84*60mm 100PCS/CTN
Package Size:53*28*49cmctn
net weight: 22kgs
ctn gross weight:23kgs
Our Service
1.All of our products can be offered at OEM, such as custom logo, packaging, etc.
2.All our product will be strictly tested before we delivered to you.
3. we will try our best to provide the lowest shipping cost for you.
Warranty
1.Our product warranty is one year since the date of purchase.
2.We have the after-sale service. If any comments or questions after received our item, please e-mail us immediately, we will answer you as soon as possible.
FAQ
*What's the MOQ and lead time?
For our existing mold items, normally we don't have strict MOQ, samples or trial order is available.
Our sample lead time 2-3days, our production lead time is 10-15days, which also based on the order quantity.
*Can I brand the items with our own logo/Brand?
Yes, we do provide OEM & ODM service.
*What's the payment terms you accept?
Our payment term: T/T(30% down payment, 70% balance before shipment),
for small batch orders, normally we accept Paypal payment, for bulk order we have HK HSBC account or Western Union account.
Thank you!
