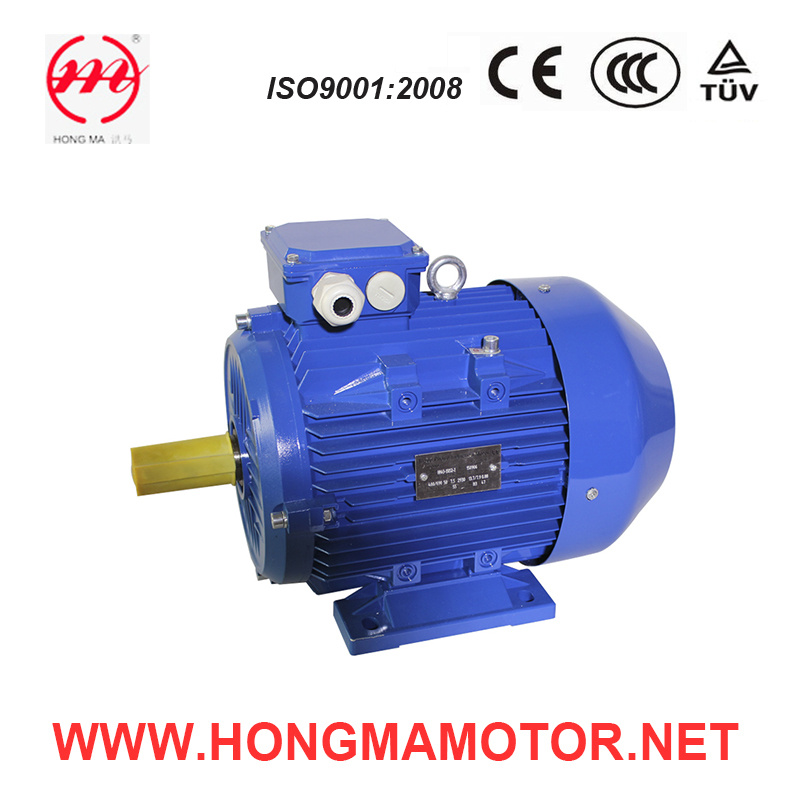

3hm Electric AC Asynchronous Induction Motor
| Price: |
US $ 50-6000/Piece |
| Trade Terms: |
FOB,CIF,CIP |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
3HMA/3HMI |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Frame Size Range: |
H80-355 |
| Rated Voltage: |
220/380V, 380/660V, 230/400V, 400V/690V |
| Rated Freqency: |
50Hz, 60Hz |
| Rated Power Range: |
0.75kw-315kw |
| Protection Class: |
IP44, IP54, IP55 |
| Insulation Class: |
B\F\H |
| Mounting Type: |
B3, B5, B14, B35multi and Pad Mounting |
| Ambient Temperature: |
-20~+40 °c |
| Altitude: |
Not Exceed 1000m |
| Origial Place: |
Zhejiang, China |
| Application: |
Universal |
| Operating Speed: |
Constant Speed |
| Number Of Stator: |
Three-Phase |
| Species: |
Y, Y2 Series Three-Phase |
| Rotor Structure: |
Squirrel-Cage |
| Casing Protection: |
Closed Type |
| Starting Mode: |
y-δ Starting |
| Number Of Poles: |
2, 4, 6 |
| Certification: |
Ce & UL & Saso |
| Brand: |
Hongma |
Product Description
Product DescriptionHMI-IE1 (1HMI)Cast Iron Series Premium efficiency Three Phase Asynchronous Motor is the basic series of general-purpose motor with low voltage upgraded of Y series motor.The HMI Series Motors are enhanced performance motors built in light weight, all cast iron frames. 1HMI Series Motors with beautiful appearance and reliable operation meet to the needs of general-purpose at domestic and overseas within the range of frame size 63 to 355. 1HMI Cast Iron Series Premium efficiency Motors are designed of high efficiency, energy saving, high quality performance, small vibration, low noise, long life, high reliability, easy maintenance and large start torque, etc. The mounting dimension and power totally conform to IEC standard.Technical Data | Frame Size Range | 80-355 |
| Pole | 2002/4/6 |
| Output Range | 0.75KW-315kw |
| Rated Voltage | 220/380V, 380/660V, 230/400V, 400V/690V |
| Terminal Box | Top Mounted |
| Housing Material | Aluminum(80-160) |
| Cast Iron(80-355) |
| Duty | S1 |
| Efficiency Standard | IEC60034-2-1 |
| Protection Class | IP44, IP54, IP55 |
| Insulation Class | B,F,H |
| Mounting Type | B3, B5, B14, B35 multi and pad mounting |
| Ambient Temperature | -20~+40 °C |
| Altitude | ≤1000M |

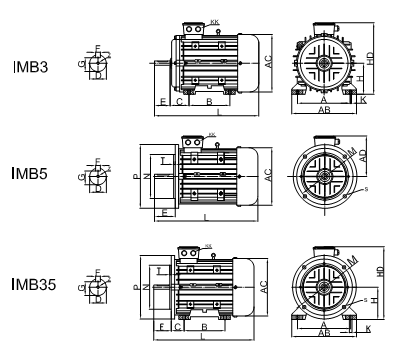

Insulation Method &Mounting Dimensions
(Cast Iron Housing-B3&B5&B35)
| | | |
| MOUNTING DIMENSIONS | OVERALL DIMENSIONS |
| | Frame Size | A | B | C | D | E | F | G | H | K | Z | KK | P | M | N | S | T | AB | AC | AD | HD | L |
| 1HMI | 80M | 125 | 100 | 50 | 19 | 40 | 6 | 15.5 | 80 | 10 | M6×16 | 1-M20×1.5 | 200 | 165 | 130 | 12 | 3.5 | 152 | 153 | 122 | 202 | 290 |
| 1HMI | 90S | 140 | 100 | 56 | 24 | 50 | 8 | 20 | 90 | 10 | M8×19 | 2-M20×1.5 | 200 | 165 | 130 | 12 | 3.5 | 168 | 172 | 135 | 225 | 315 |
| 1HMI | 90L | 140 | 125 | 56 | 24 | 50 | 8 | 20 | 90 | 10 | M8×19 | 2-M20×1.5 | 200 | 165 | 130 | 12 | 3.5 | 168 | 172 | 135 | 225 | 340 |
| 1HMI | 100L | 160 | 140 | 63 | 28 | 60 | 8 | 24 | 100 | 12 | M10×22 | 2-M20×1.5 | 250 | 215 | 180 | 15 | 4 | 192 | 193 | 145 | 245 | 370 |
| 1HMI | 112M | 190 | 140 | 70 | 28 | 60 | 8 | 24 | 112 | 12 | M10×22 | 2-M25×1.5 | 250 | 215 | 180 | 15 | 4 | 222 | 223 | 165 | 277 | 395 |
| 1HMI | 132S | 216 | 140 | 89 | 38 | 80 | 10 | 33.3 | 132 | 12 | M12×28 | 2-M25×1.5 | 300 | 265 | 230 | 15 | 4 | 248 | 265 | 208 | 340 | 470 |
| 1HMI | 132M | 216 | 178 | 89 | 38 | 80 | 10 | 33.3 | 132 | 12 | M12×28 | 2-M25×1.5 | 300 | 265 | 230 | 15 | 4 | 248 | 265 | 208 | 340 | 500 |
| 1HMI | 160M | 254 | 210 | 108 | 42 | 110 | 12 | 37 | 160 | 15 | M12×28 | 2-M40×1.5 | 350 | 300 | 250 | 19 | 5 | 315 | 330 | 260 | 420 | 605 |
| 1HMI | 160L | 254 | 254 | 108 | 42 | 110 | 12 | 37 | 160 | 15 | M12×28 | 2-M40×1.5 | 350 | 300 | 250 | 19 | 5 | 315 | 330 | 260 | 420 | 680 |
| 1HMI | 180M | 279 | 241 | 121 | 48 | 110 | 14 | 42.5 | 160 | 15 | M12×28 | 2-M40×1.5 | 350 | 300 | 250 | 19 | 5 | 350 | 352 | 285 | 445 | 694 |
| 1HMI | 180L | 279 | 279 | 121 | 48 | 110 | 14 | 42.5 | 160 | 15 | M12×28 | 2-M40×1.5 | 350 | 300 | 250 | 19 | 5 | 350 | 352 | 285 | 445 | 732 |
| 1HMI | 200L | 318 | 305 | 133 | 55 | 110 | 16 | 49 | 200 | 19 | M20×42 | 2-M50×1.5 | 400 | 350 | 300 | 19 | 5 | 390 | 394 | 315 | 515 | 774 |
| 1HMI | 225S(4-8P) | 356 | 286 | 149 | 60 | 140 | 18 | 53 | 225 | 19 | M20×42 | 2-M50×1.5 | 450 | 400 | 350 | 19 | 5 | 435 | 442 | 335 | 560 | 820 |
| 1HMI | 225M(2P) | 356 | 311 | 149 | 55 | 110 | 16 | 49 | 225 | 19 | M20×42 | 2-M50×1.5 | 450 | 400 | 350 | 19 | 5 | 435 | 442 | 335 | 560 | 813 |
| 1HMI | 225M(4-8P) | 356 | 311 | 149 | 60 | 140 | 18 | 53 | 225 | 19 | M20×42 | 2-M50×1.5 | 450 | 400 | 350 | 19 | 5 | 435 | 442 | 335 | 560 | 873 |
| 1HMI | 250M(2P) | 406 | 349 | 168 | 60 | 140 | 18 | 53 | 250 | 24 | M20×42 | 2-M63×1.5 | 550 | 500 | 450 | 19 | 5 | 490 | 481 | 375 | 625 | 922 |
| 1HMI | 250M(4-8P) | 406 | 349 | 168 | 65 | 140 | 18 | 58 | 250 | 24 | M20×42 | 2-M63×1.5 | 550 | 500 | 450 | 19 | 5 | 490 | 481 | 375 | 625 | 922 |
| 1HMI | 280S(2P) | 457 | 368 | 190 | 65 | 140 | 18 | 58 | 280 | 24 | M20×42 | 2-M63×1.5 | 550 | 500 | 450 | 19 | 5 | 547 | 550 | 400 | 680 | 991 |
| 1HMI | 280M(2P) | 457 | 419 | 190 | 65 | 140 | 18 | 58 | 280 | 24 | M20×42 | 2-M63×1.5 | 550 | 500 | 450 | 19 | 5 | 547 | 550 | 400 | 680 | 1040 |
| 1HMI | 280S(4-8P) | 457 | 368 | 190 | 75 | 140 | 20 | 67.5 | 280 | 24 | M20×42 | 2-M63×1.5 | 550 | 500 | 450 | 19 | 5 | 547 | 550 | 400 | 680 | 991 |
| 1HMI | 280M(4-8P) | 457 | 419 | 190 | 75 | 140 | 20 | 67.5 | 280 | 24 | M20×42 | 2-M63×1.5 | 550 | 500 | 450 | 19 | 5 | 547 | 550 | 400 | 680 | 1040 |
| 1HMI | 315S(2P) | 508 | 406 | 216 | 65 | 140 | 18 | 58 | 315 | 28 | M20×42 | 2-M63×1.5 | 660 | 600 | 550 | 24 | 6 | 630 | 600 | 540 | 855 | 1160 |
| 1HMI | 315M(2P) | 508 | 457 | 216 | 65 | 140 | 18 | 58 | 315 | 28 | M20×42 | 2-M63×1.5 | 660 | 600 | 550 | 24 | 6 | 630 | 600 | 540 | 855 | 1270 |
| 1HMI | 315L(2P) | 508 | 508 | 216 | 65 | 140 | 18 | 58 | 315 | 28 | M20×42 | 2-M63×1.5 | 660 | 600 | 550 | 24 | 6 | 630 | 600 | 540 | 855 | 1270 |
| 1HMI | 315S(4-10P) | 508 | 406 | 216 | 80 | 170 | 22 | 71 | 315 | 28 | M20×42 | 2-M63×1.5 | 660 | 600 | 550 | 24 | 6 | 630 | 600 | 540 | 855 | 1190 |
| 1HMI | 315M(4-10P) | 508 | 457 | 216 | 80 | 170 | 22 | 71 | 315 | 28 | M20×42 | 2-M63×1.5 | 660 | 600 | 550 | 24 | 6 | 630 | 600 | 540 | 855 | 1300 |
| 1HMI | 315L(4-10P) | 508 | 508 | 216 | 80 | 170 | 22 | 71 | 315 | 28 | M20×42 | 2-M63×1.5 | 660 | 600 | 550 | 24 | 6 | 630 | 600 | 540 | 855 | 1300 |
| 1HMI | 355M(2P) | 610 | 560 | 254 | 75 | 140 | 20 | 67.5 | 355 | 28 | M20×42 | 2-M63×1.5 | 800 | 740 | 680 | 24 | 6 | 730 | 710 | 655 | 1010 | 1500 |
| 1HMI | 355L(2P) | 610 | 630 | 254 | 75 | 140 | 20 | 67.5 | 355 | 28 | M20×42 | 2-M63×1.5 | 800 | 740 | 680 | 24 | 6 | 730 | 710 | 655 | 1010 | 1500 |
| 1HMI | 355M(4-10P) | 610 | 560 | 254 | 95 | 170 | 25 | 86 | 355 | 28 | M20×42 | 2-M63×1.5 | 800 | 740 | 680 | 24 | 6 | 730 | 710 | 655 | 1010 | 1530 |
| 1HMI | 355L(4-10P) | 610 | 630 | 254 | 95 | 170 | 25 | 86 | 355 | 28 | M20×42 | 2-M63×1.5 | 800 | 740 | 680 | 24 | 6 | 730 | 710 | 655 | 1010 | 1530 |
PackageFrame Size. 80--132 :Package by carton box and then packed by wooden box
Frame Size 160 and above:one wooden box per setOur Cerfiticate
